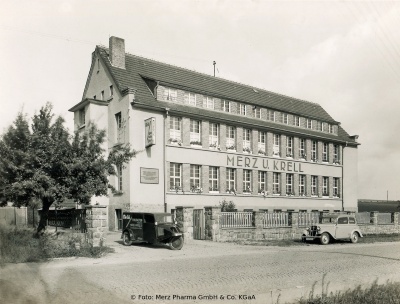

Merz & Krell

In the town Gross-Bieberau (Hessen/Germany)  Georg Merz and the woodturner Justus Krell built up the writing instruments company Merz & Krell.

The start-up was supported by Friedrich Merz, founder of the famous Merz Pharma.

In its early years Merz & Krell produced fountain pens and mechanical pencils. Today, the company under the name of Senator is an international manufacturer of writing instruments, with production estimated at about one million ballpoints per day.

A demand for larger piston filling fountain pens was expected for the Japanese market. Pelikan therefore commissioned the company Merz & Krell to produce the models 400NN and 120 again. Therefore, between 1973 and 1978, there was a new edition of the models Pelikan 120 and 400NN with small variations from the original fountain pen. Pelikan itself no longer had the necessary machinery to produce these models in-house.

Pelikan 120 (Merz & Krell)

Pelikan had already discontinued the production of the 120 in 1965. In 1973 a new edition appeared. This was manufactured by Merz & Krell and differs in some details from the original model. The filling knob is flush with the barrel as is the transition from the grip section to the barrel. The cap ring is tapered.

Merz & Krell also produced the model 120 in black, a color not being produced by Pelikan before.

The threads of the cap are also different, so the cap of an old 120 will not fit the M & K.


Model Production Period Nib
120 Merz & Krell 1973-1977

Steel nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.49 oz 5.16 in 3.94 in 2.48 in 0.47 in 0.65 ml
14 g 131 mm 100 mm 63 mm 12 mm


120 (Merz & Krell)

120 (Merz & Krell) M&K Green-Black Series Production Color
Production: 1973-1977Nib: Steel nib
Logo: Without Logo Series Production
Barrel Color: greenCap Color: blackTrim: gold plated
120 (Merz & Krell) M&K Black Series Production Color
Production: 1973-1977Nib: Steel nib
Logo: Without Logo Series Production
Barrel Color: blackCap Color: blackTrim: gold plated

Pelikan 400NN (Merz & Krell)

Pelikan 400NN - Merz & Krell.

Pelikan had already stopped the production of the 400NN by 1965. In 1973 a new edition appeared. This was manufactured by Merz & Krell and differs in some details from the original model. The filling knob is flush with the barrel, as is the transition from the grip section to the barrel.

The threads of the cap are also different, so the cap of an old 400NN will not fit the M & K.

Since the Merz & Krell model also the writing characteristics of the nibs are different, so far, the nibs of the 400 models were ground as Italic nibs, now the nibs have a ball point which offers no line variance.

Model Production Period Nib
400NN Merz & Krell 1973-1978

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.59 oz 5.08 in 3.86 in 2.48 in 0.45 in 0.75 ml
15.6 g 129 mm 98 mm 63 mm 11.5 mm


400NN (Merz & Krell)

400NN (Merz & Krell) Green-striped Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: green-stripedCap Color: blackTrim: gold plated

400NN produced by Merz & Krell

400NN (Merz & Krell) Black-striped Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: black-stripedCap Color: blackTrim: gold plated

400NN produced by Merz & Krell

400NN (Merz & Krell) Black Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: blackCap Color: blackTrim: gold plated

400NN produced by Merz & Krell.

400NN (Merz & Krell) Tortoise brown-striped Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: brown-stripedCap Color: dark brownTrim: gold plated

400NN produced by Merz & Krell
