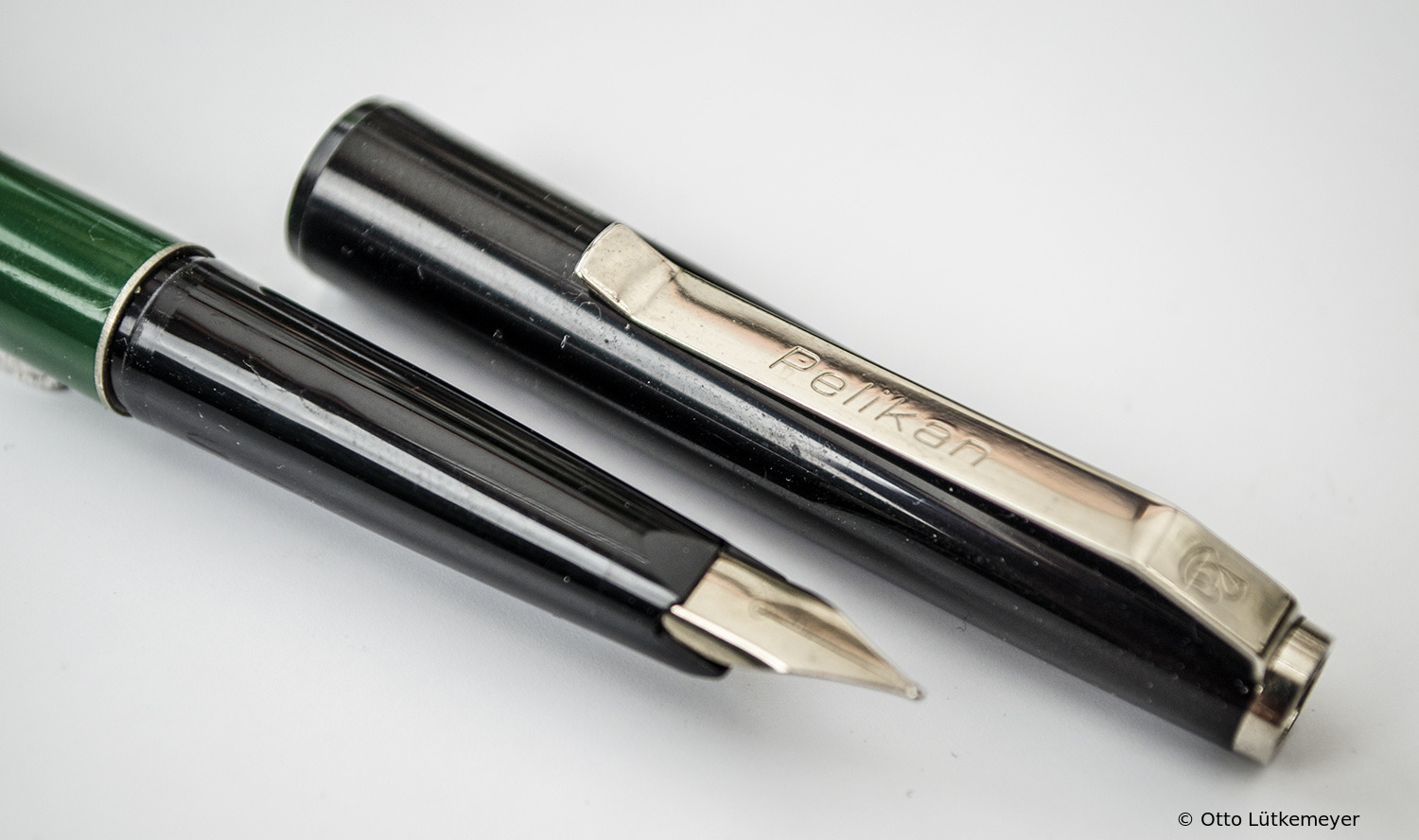

Pelikan Set 120

This writing set was produced by Pelikan Milan. The writing instrument are made of plastic. What is striking is the flat spring steel clip.

Model Production Period Nib
120 mid 1980th

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.33 oz 5.35 in 4.37 in 2.64 in 0.43 in 0.8 ml (cartridge)
9.4 g 136 mm 111 mm 67 mm 11 mm

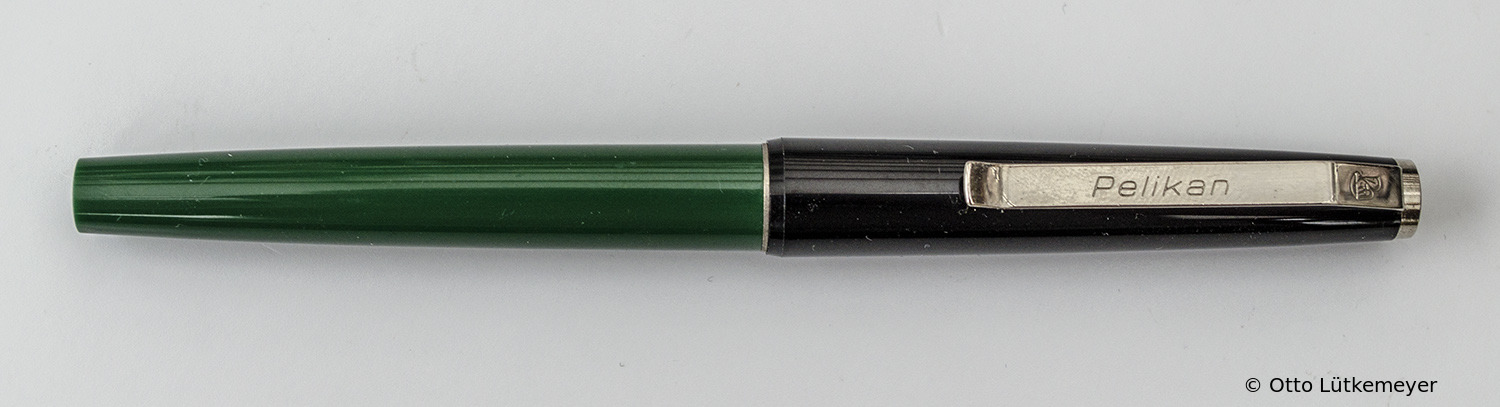

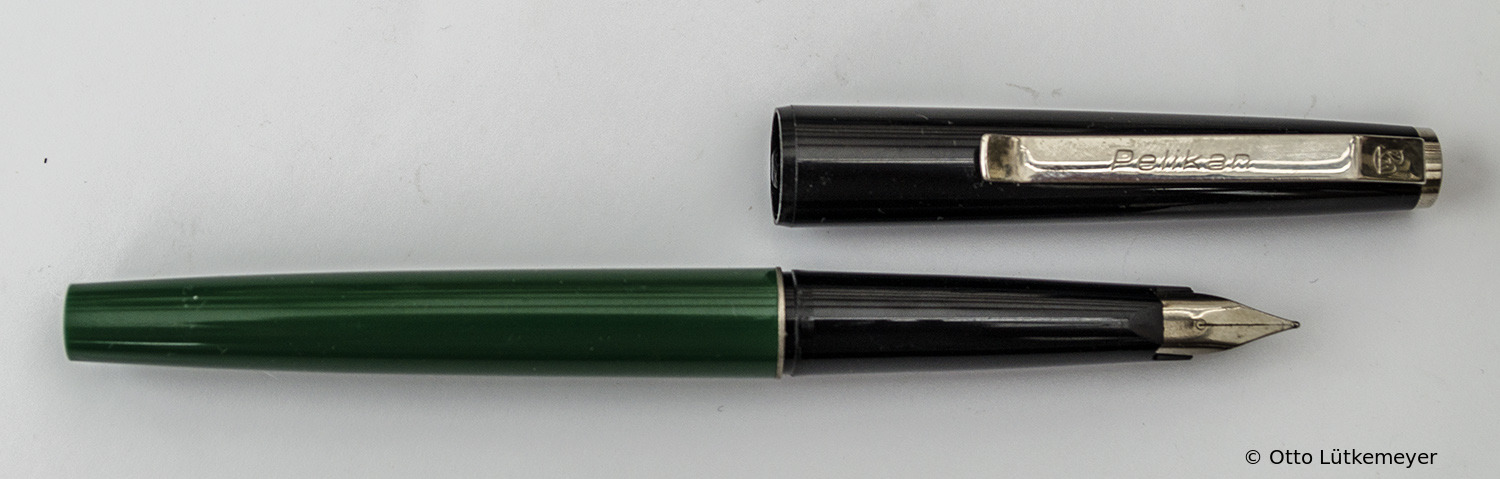

P120

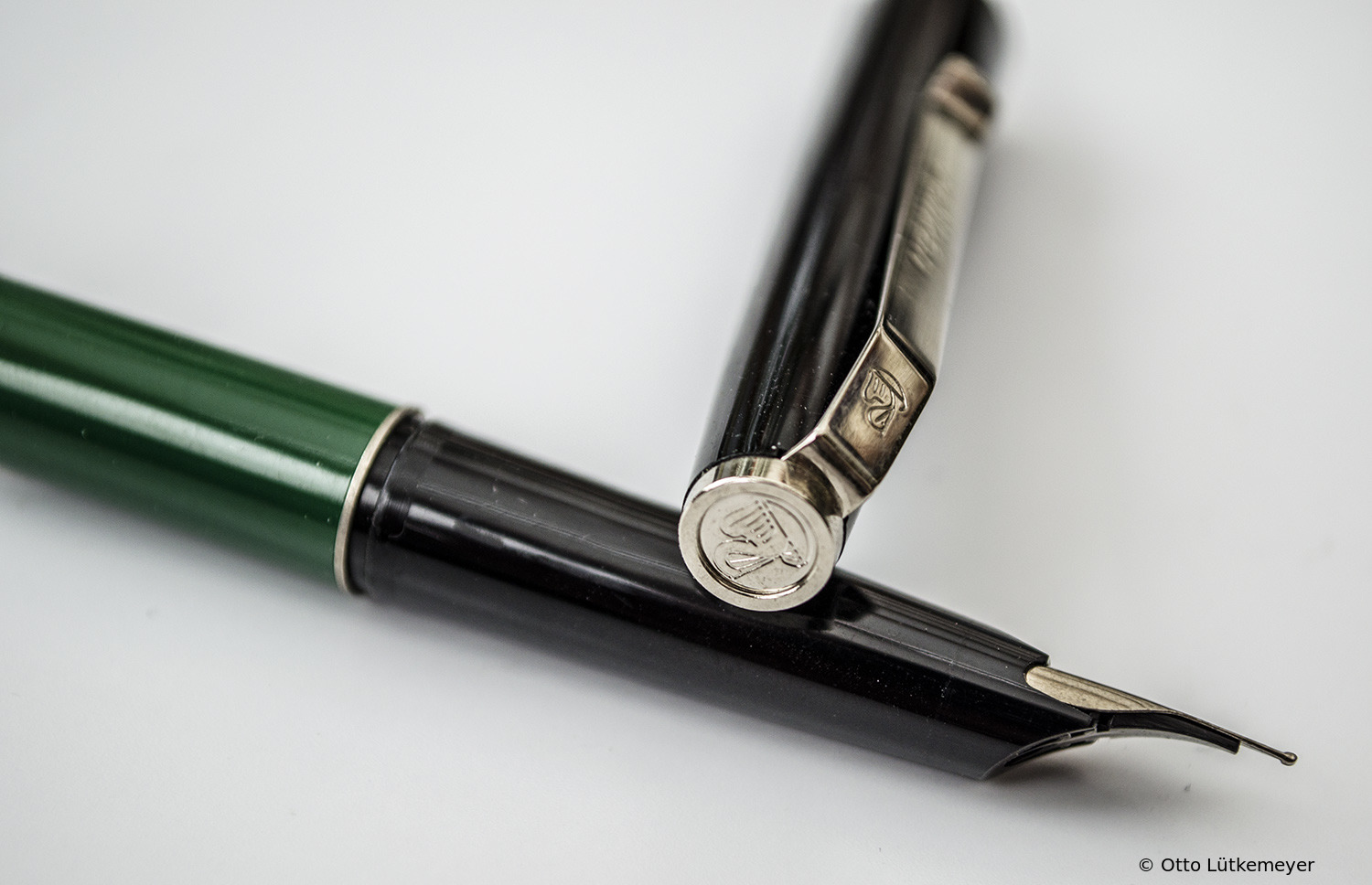

P120  Exportmodel Color
Production: mid 1980thNib: Steel
Logo: Logo as of 1938 (two chicken) Exportmodel
Barrel Color: greenCap Color: blackTrim: silver-colored

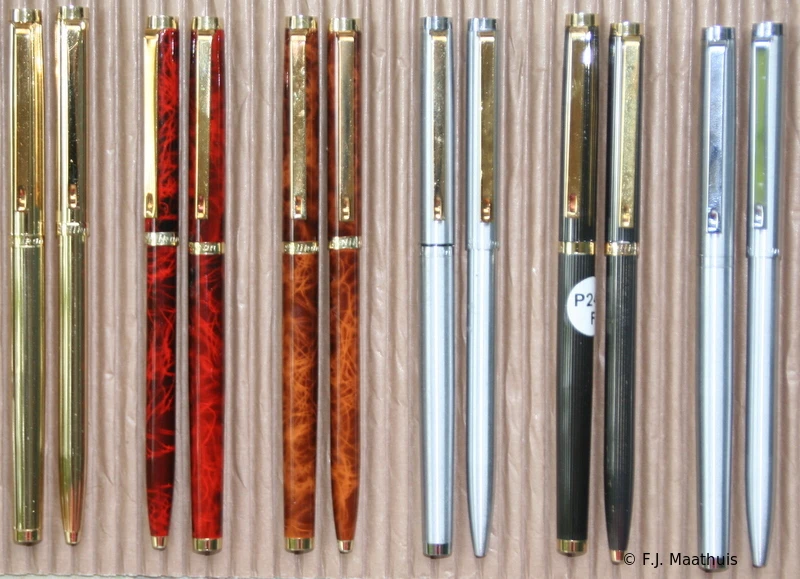

Pelikan - P200-P320

Pelikan Nederland B.V. applying this series in 1984 or 1985 in its advertising magazine. The pens have been probably sold only in Benelux.

P200 and P220 are called master style.
P260 and P300 called Gun Metal.

Model Production Period Nib
P200-P320 appr. 1985

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.71 oz 5.47 in 4.80 in 2.68 in 0.31 in 2 x 0.8 ml (cartridge)
20 g 139 mm 122 mm 58 mm 8 mm


P200 Master-Style - Chrome Exportmodel Color
Production: appr. 1985Nib: Steel
Logo: Without Logo Exportmodel
Barrel Color: chromeCap Color: chromeTrim: silver-colored
P220 Master-Style - Chrome/gold Exportmodel Color
Production: appr. 1985Nib: Steel, gold plated
Logo: Without Logo Exportmodel
Barrel Color: chromeCap Color: chromeTrim: gold plated
P240 Gun Metal - black Exportmodel Color
Production: appr. 1985Nib: Steel, gold plated
Logo: Without Logo Exportmodel
Barrel Color: blackCap Color: blackTrim: gold plated
P260 Gun Metal - gold Exportmodel Color
Production: appr. 1985Nib: Steel, gold plated
Logo: Without Logo Exportmodel
Barrel Color: goldCap Color: goldTrim: gold plated
P300 Gun Metal - brown pattern Exportmodel Color
Production: appr. 1985Nib: Steel, gold plated
Logo: Without Logo Exportmodel
Barrel Color: brown patternCap Color: brown patternTrim: gold plated
P320 Gun Metal - red pattern Exportmodel Color
Production: appr. 1985Nib: Steel, gold plated
Logo: Without Logo Exportmodel
Barrel Color: red patternCap Color: red patternTrim: gold plated

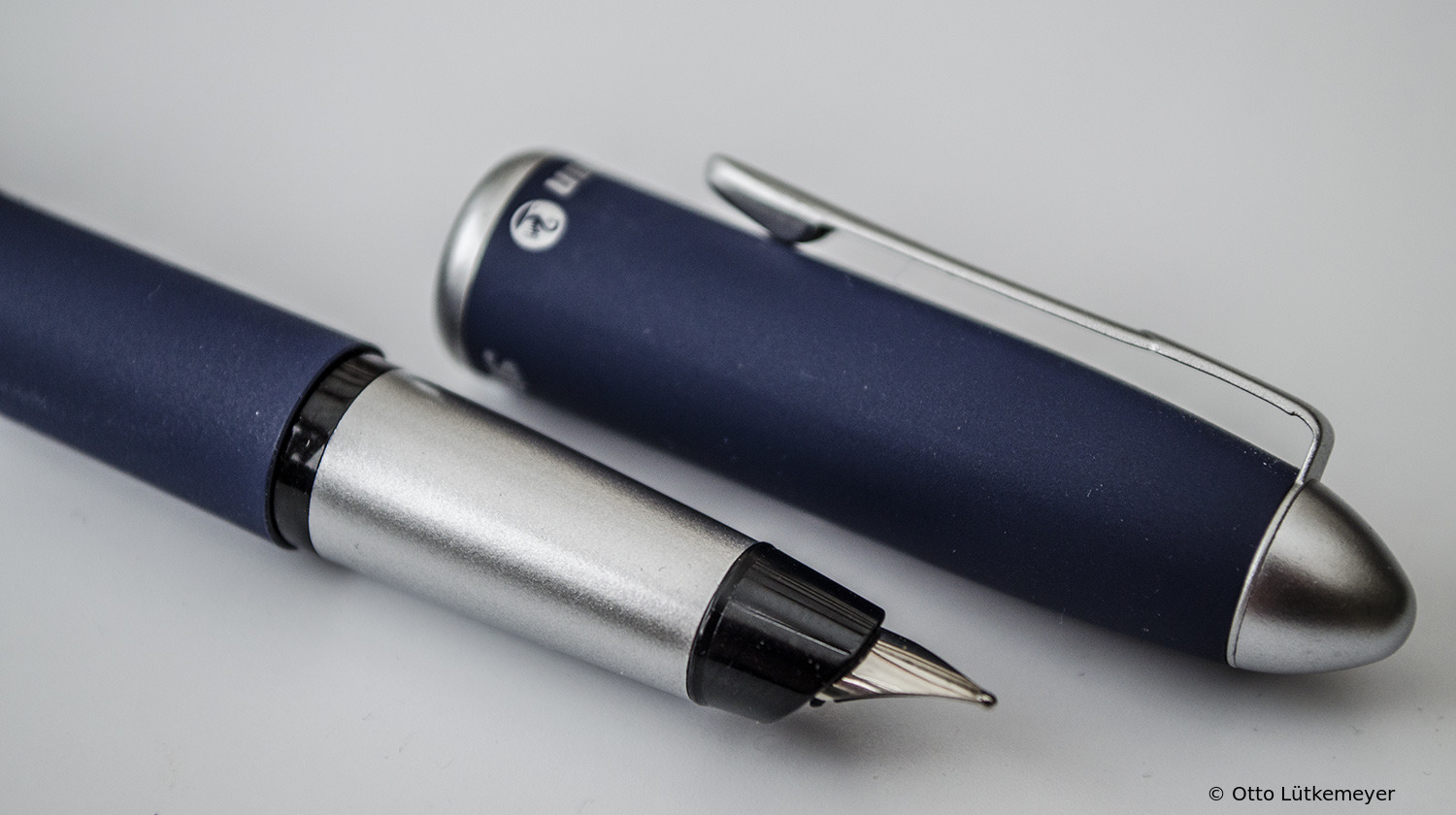

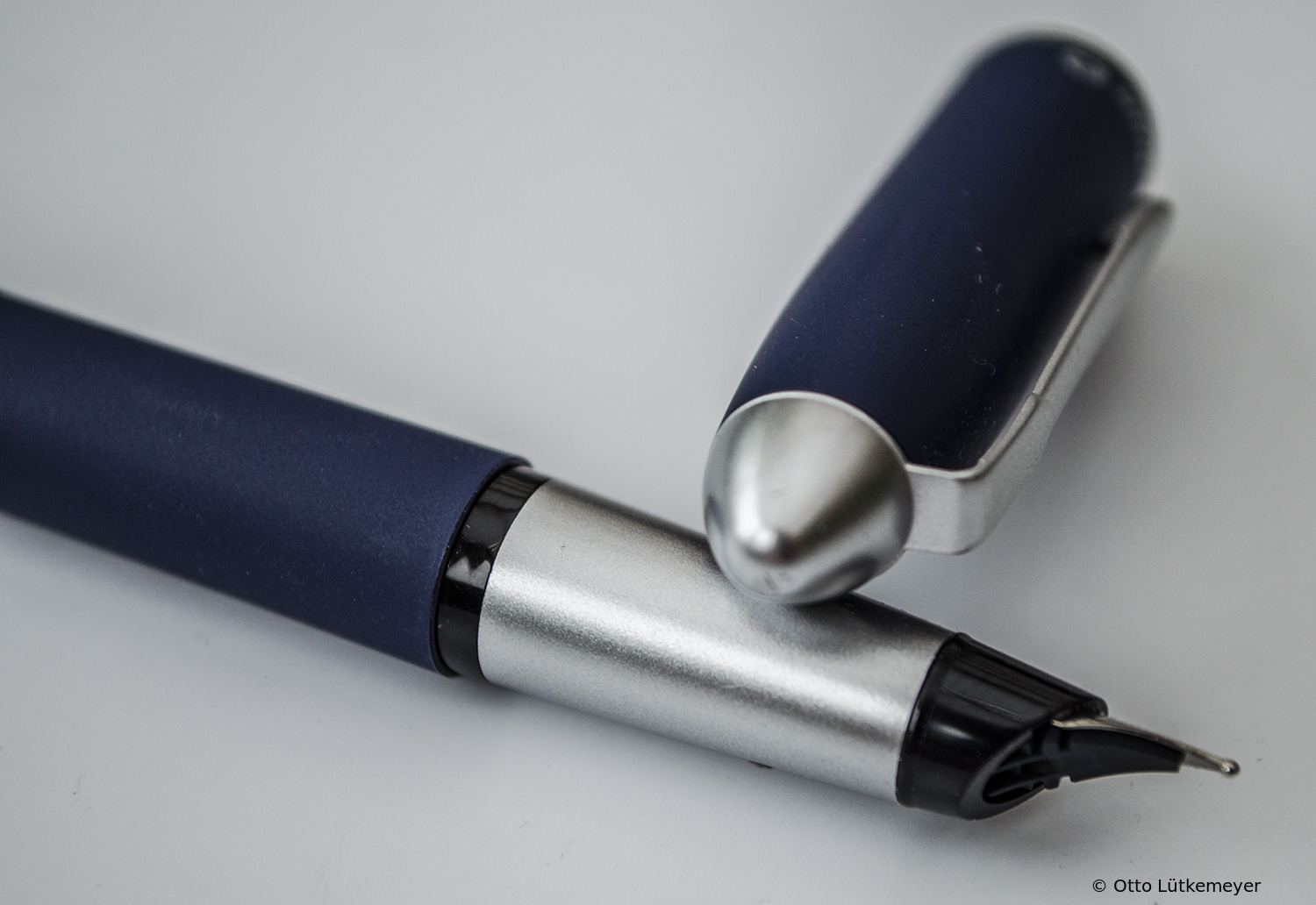

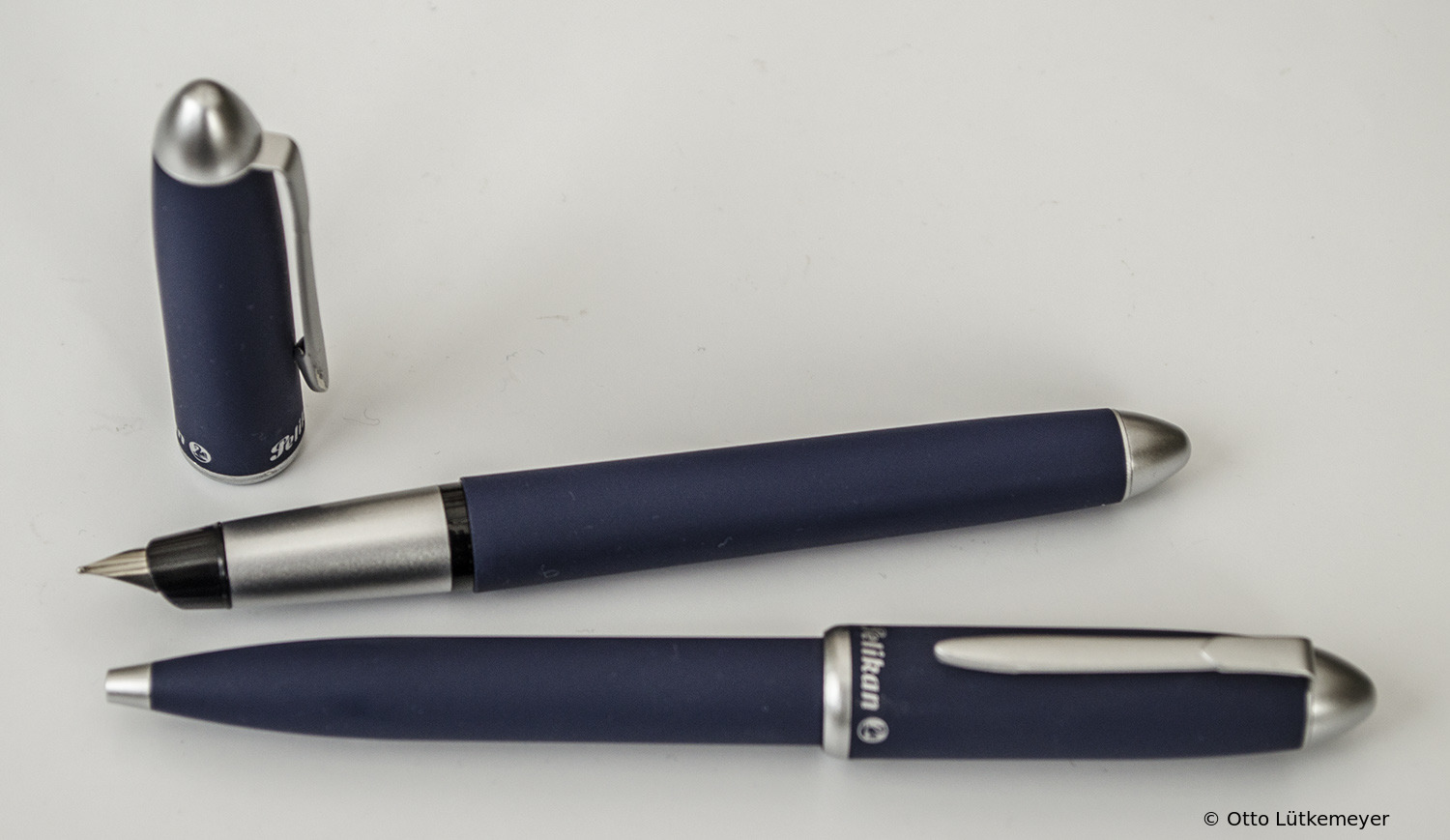

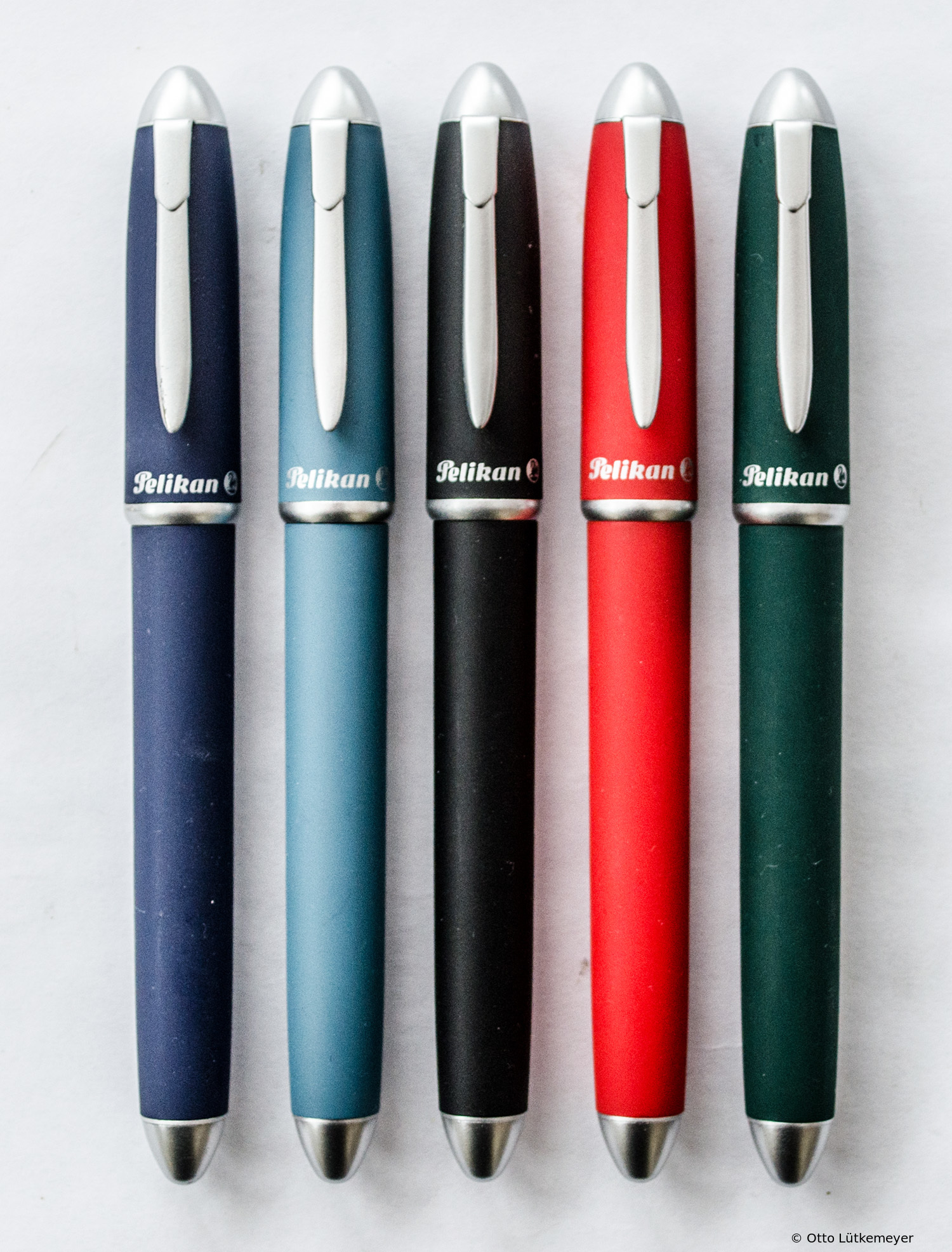

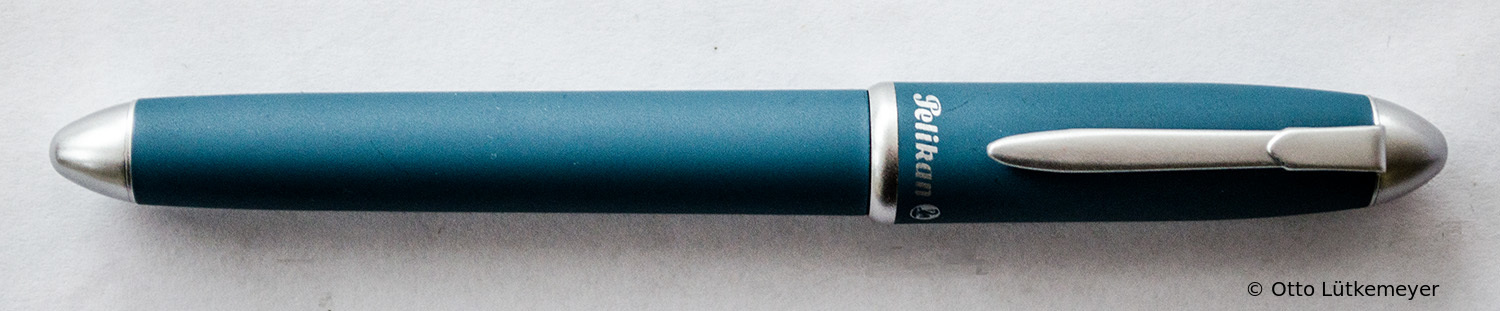

Pelikan Set Koinè

Ballpoint pen and fountain pen of these sets have a satin plastic surface. The fountain pen with push-on cap is defined by its semi-concealed stainless steel nib.

Model Production Period Nib
Set Koinè from 1999

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.35 oz 5.39 in 4.45 in 2.24 in 0.48 in 0.8 ml (cartridge)
10.0 g 137 mm 113 mm 57 mm 12.3 mm


Koinè

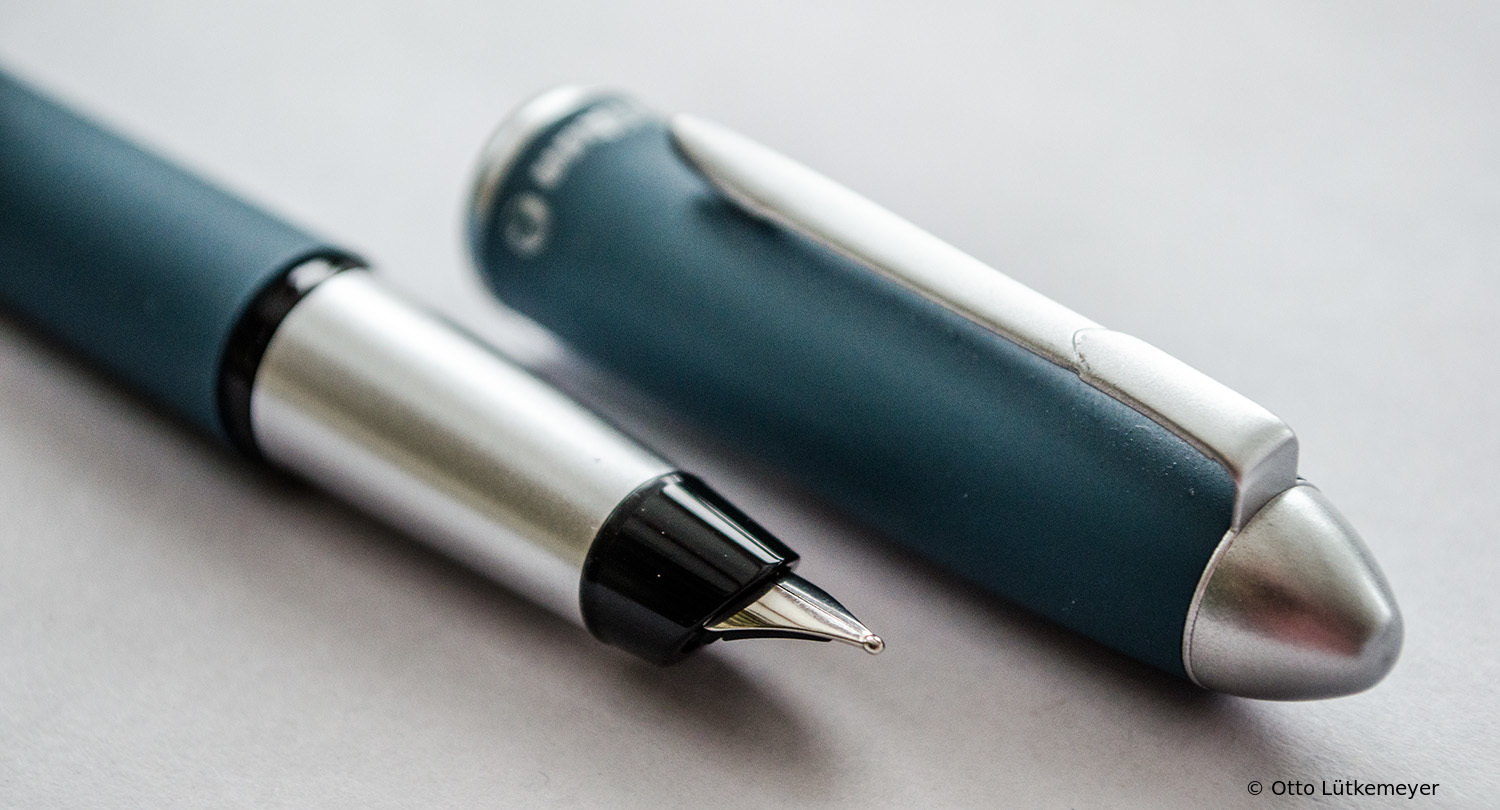

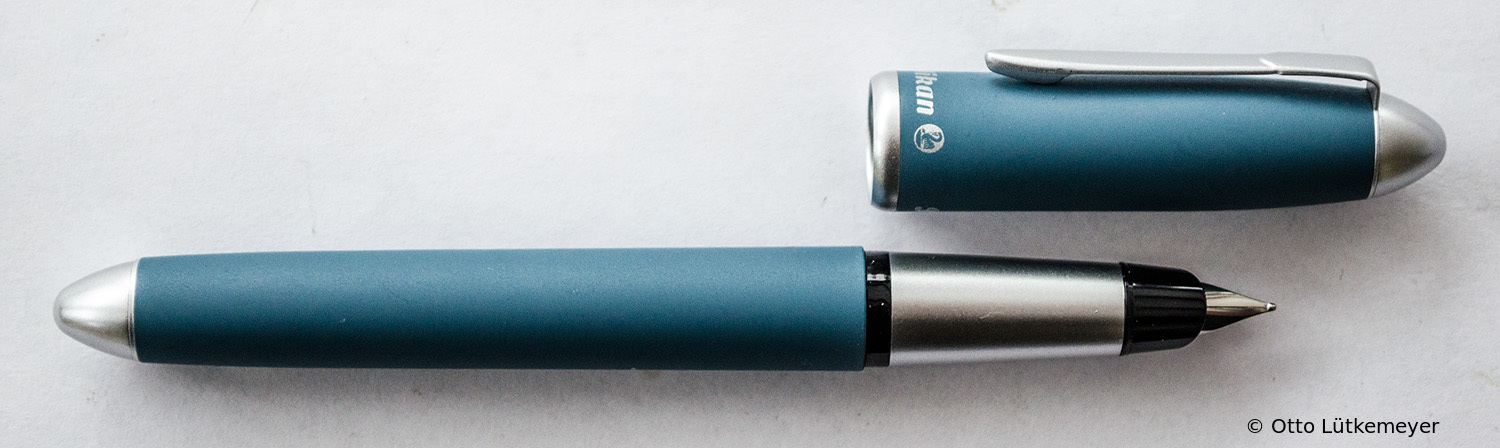

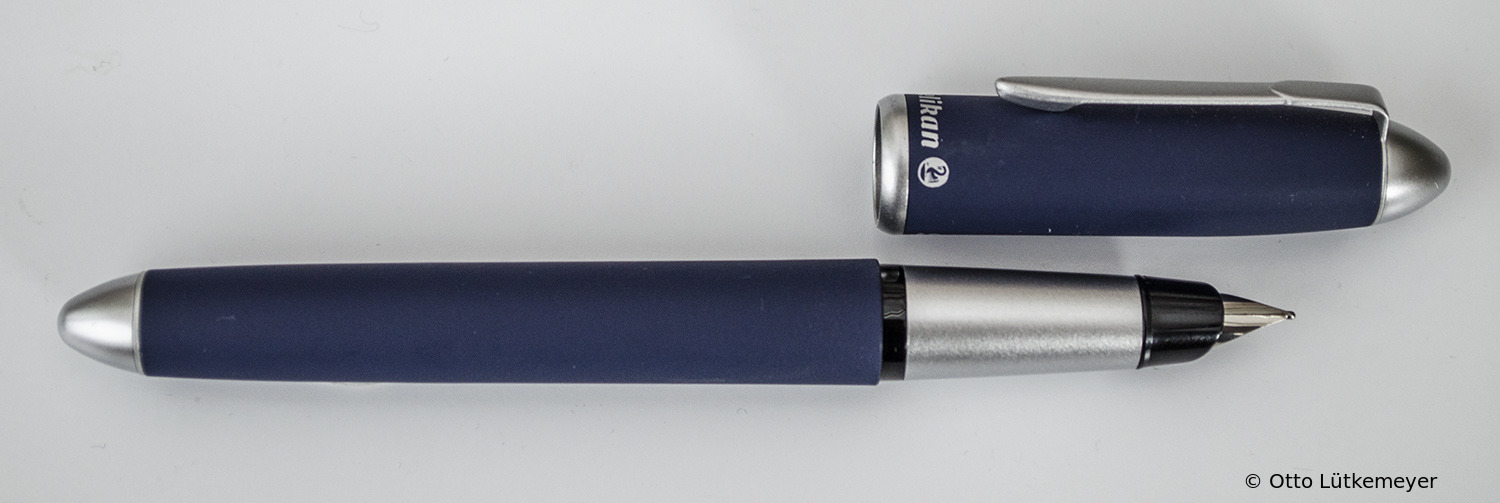

Koinè Blue Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: blueCap Color: blueTrim: silver-colored
Koinè Maroon Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: maroonCap Color: maroonTrim: silver-colored

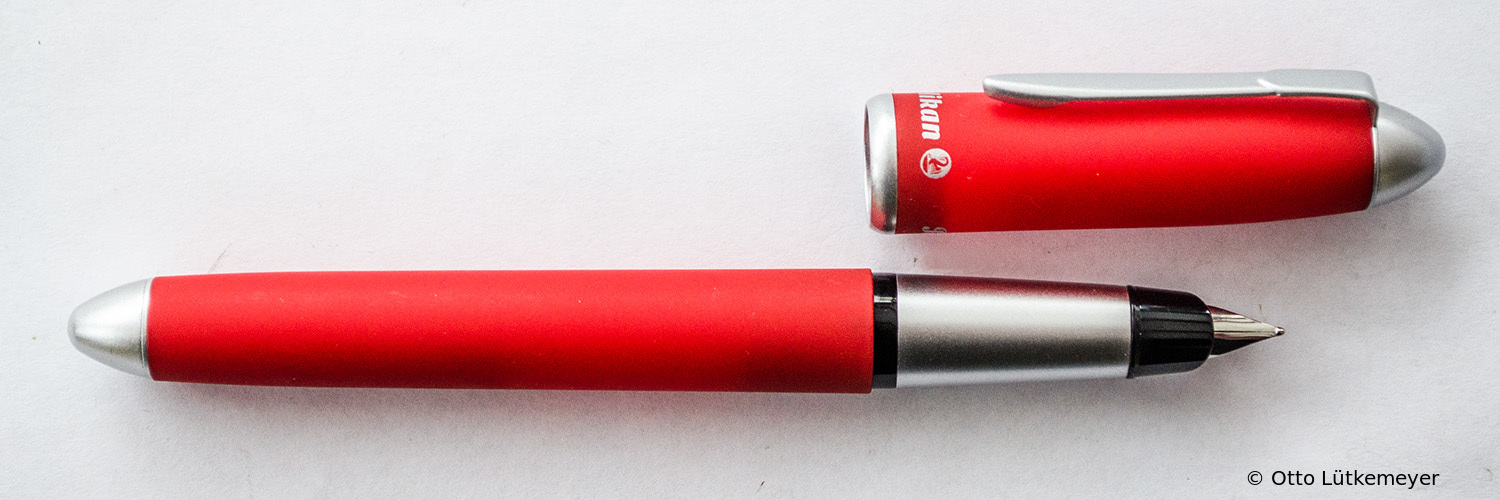

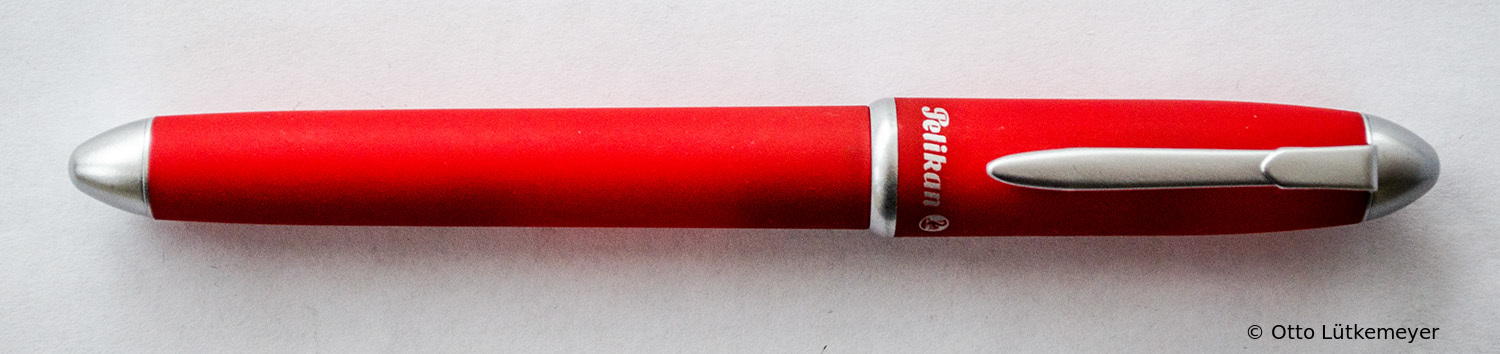

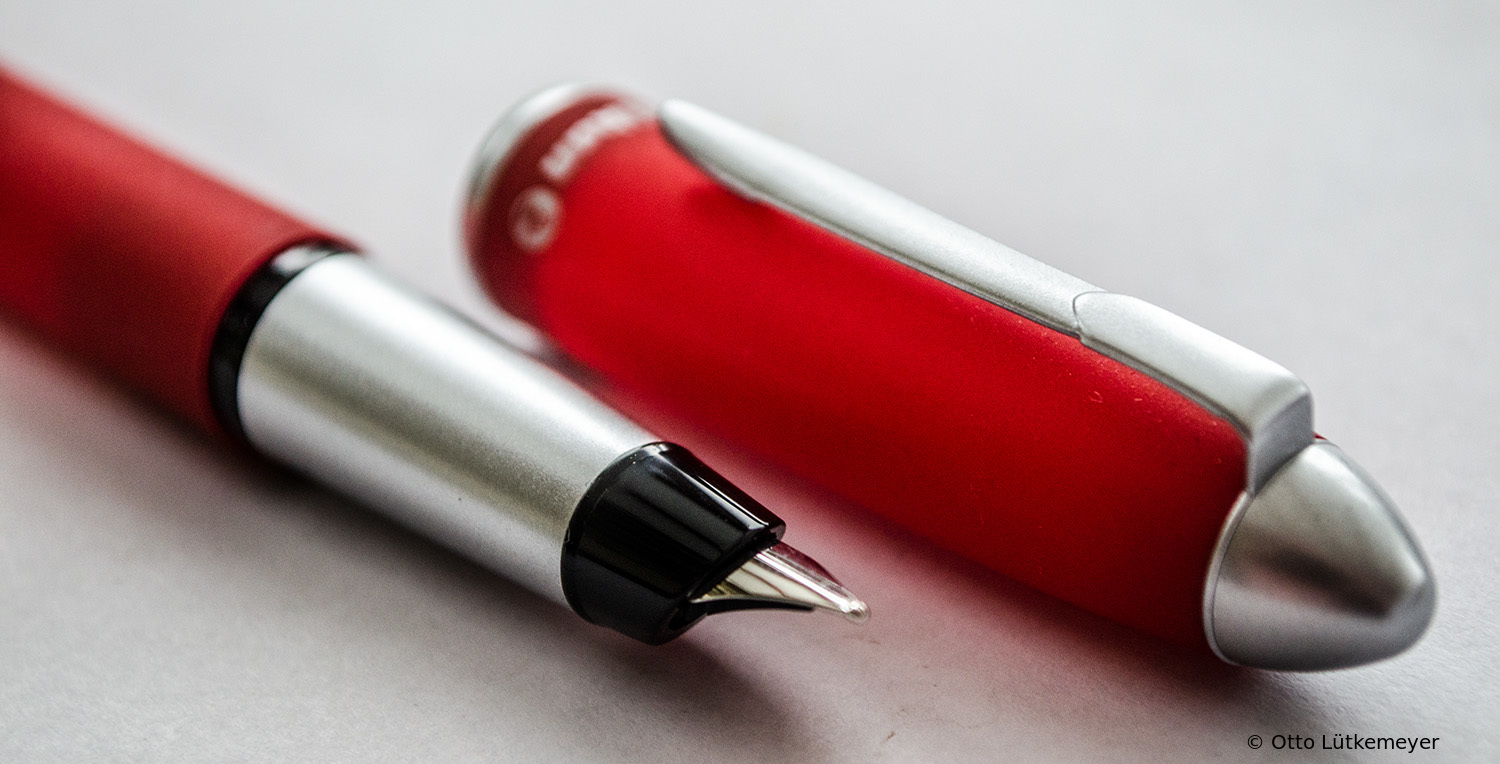

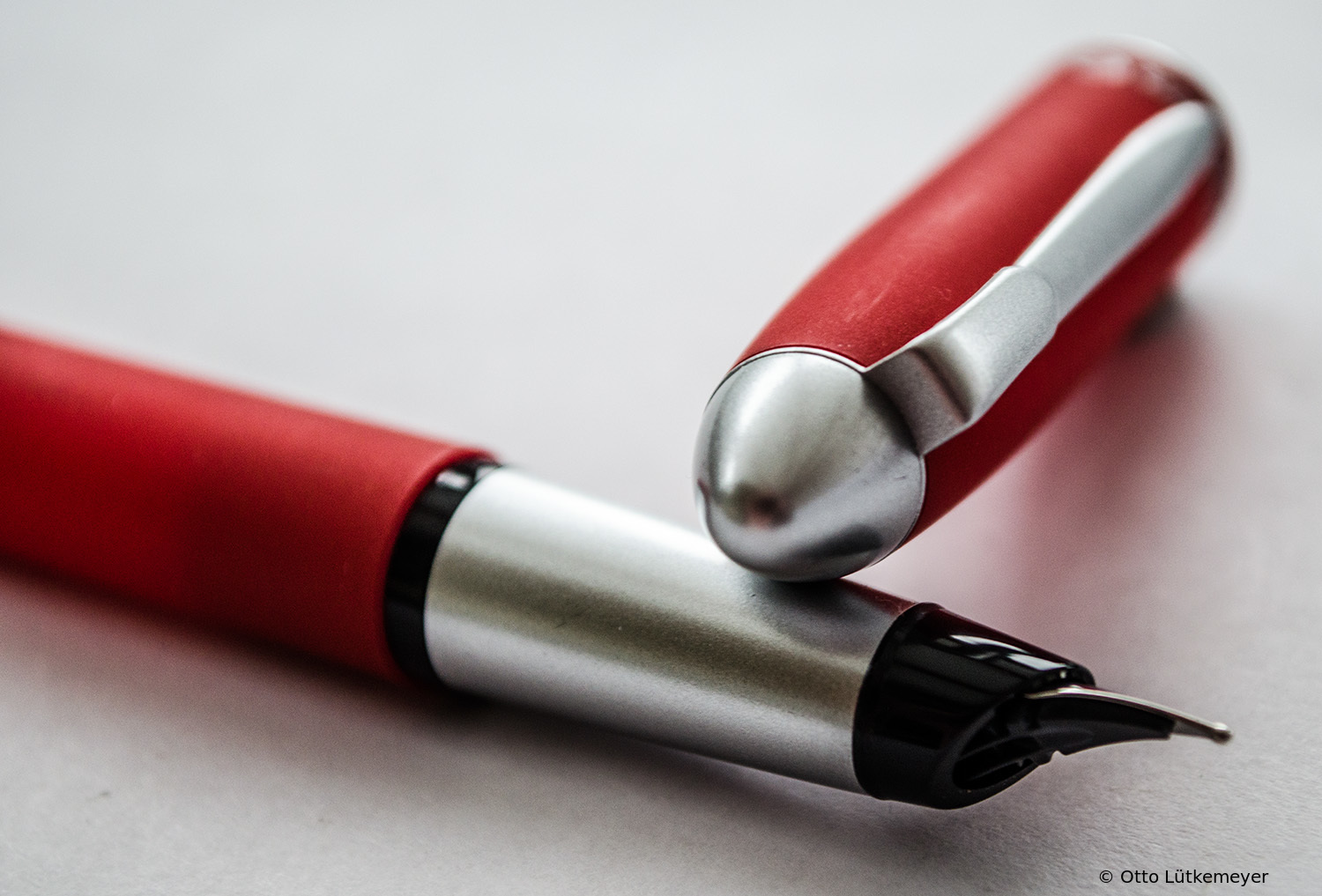

Koinè Red Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: rotCap Color: rotTrim: silver-colored

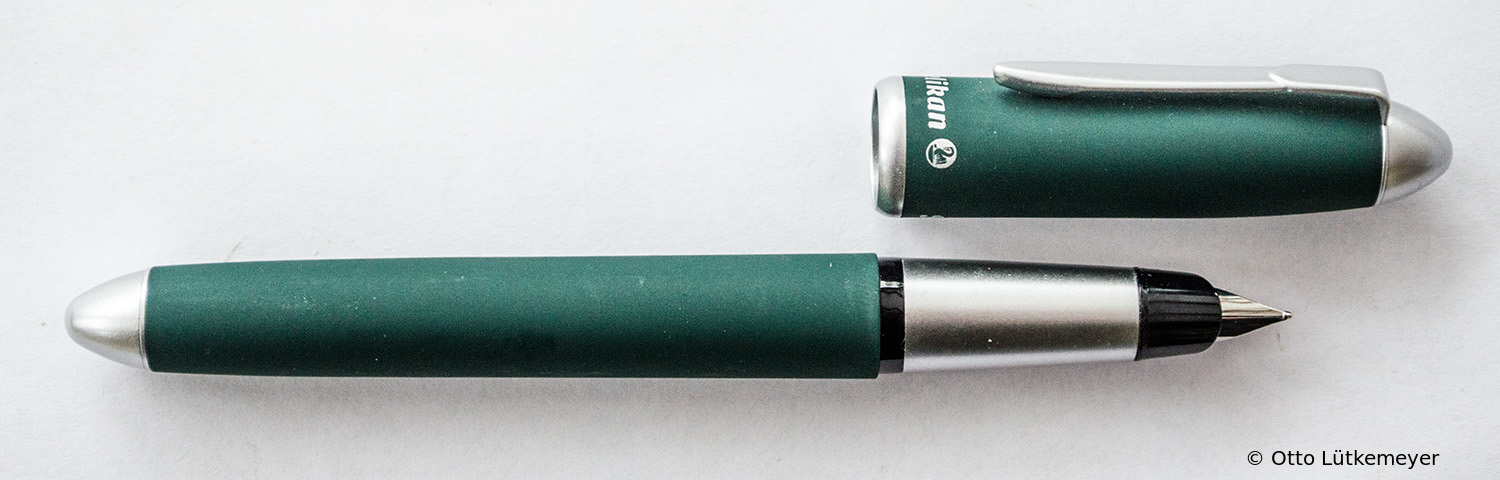

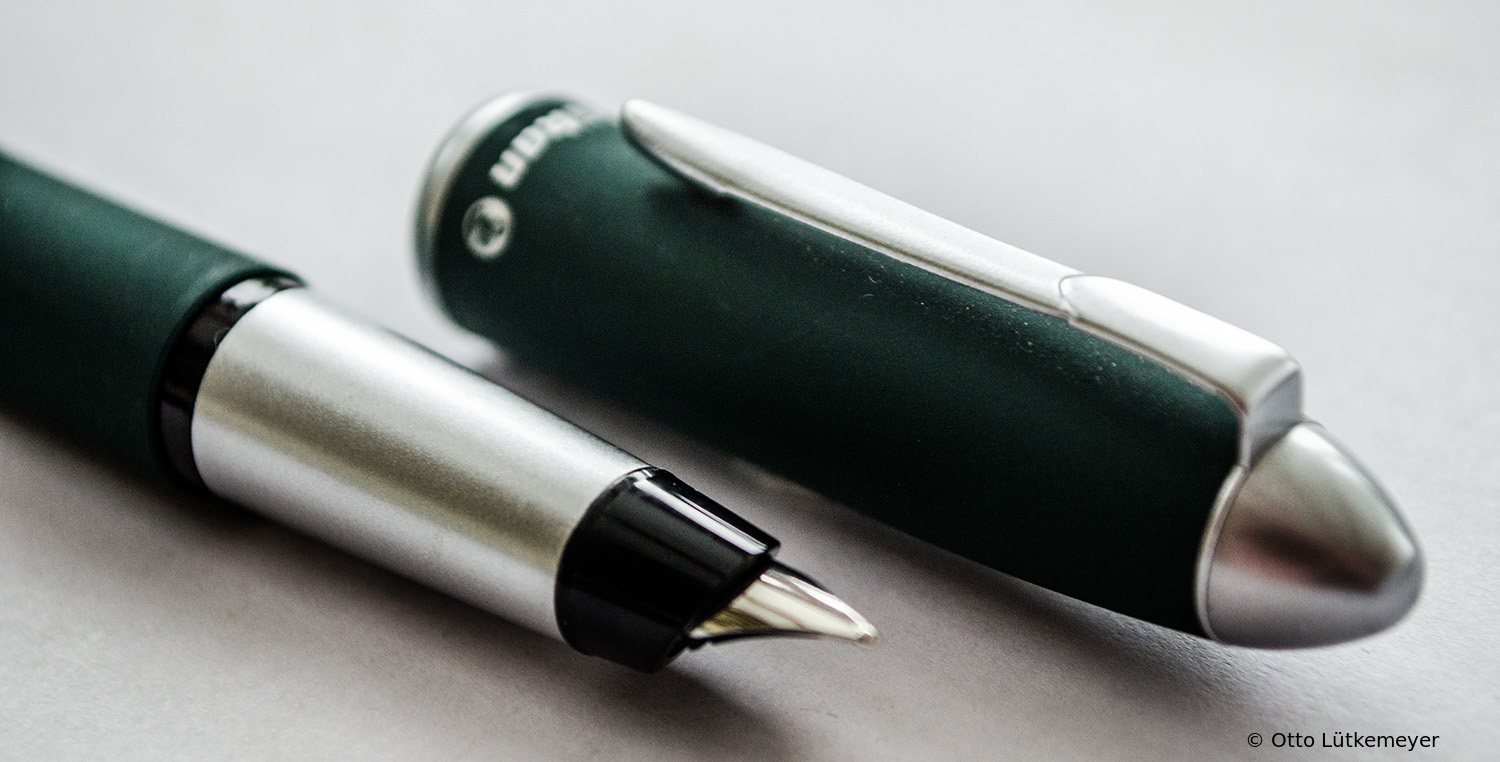

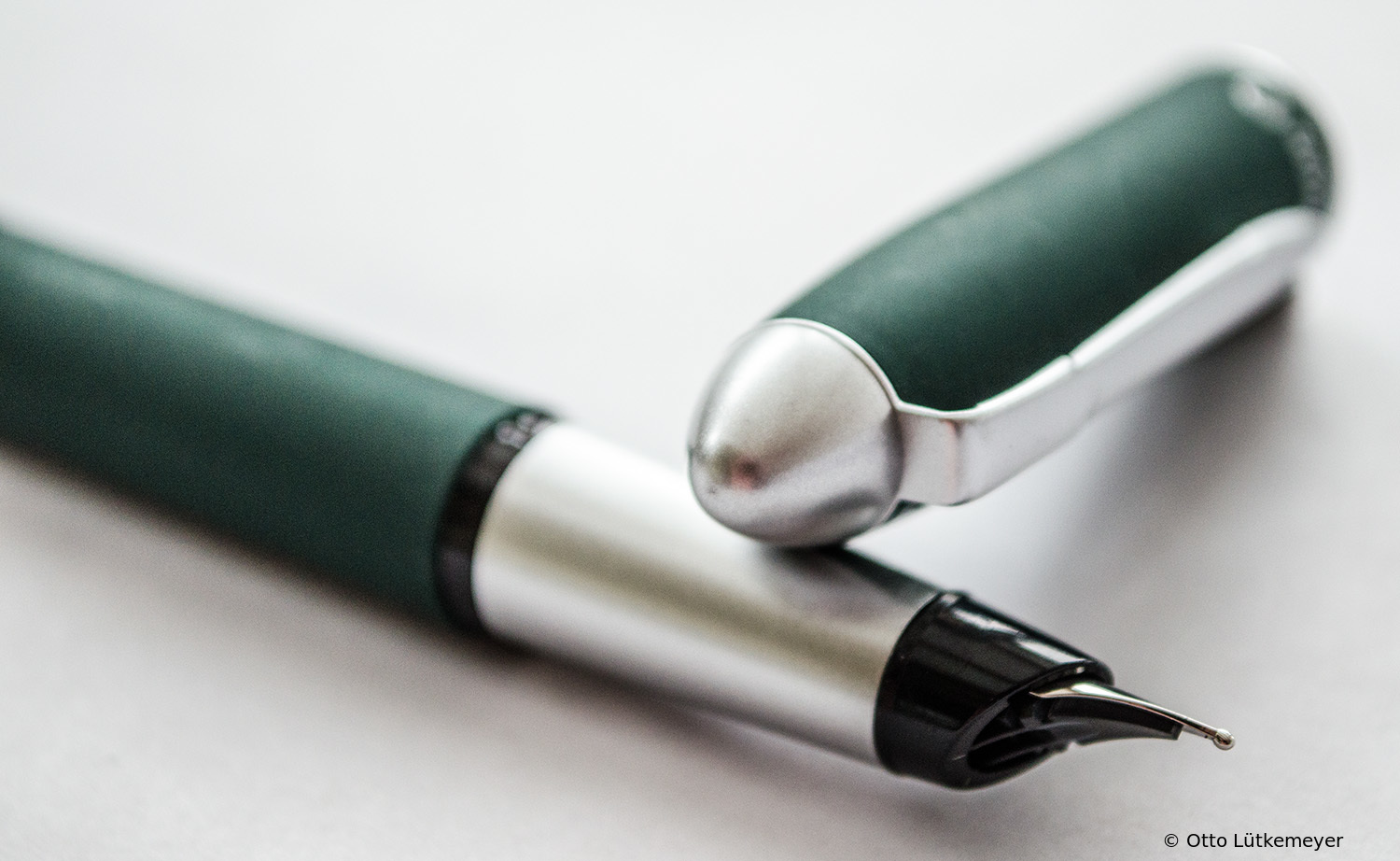

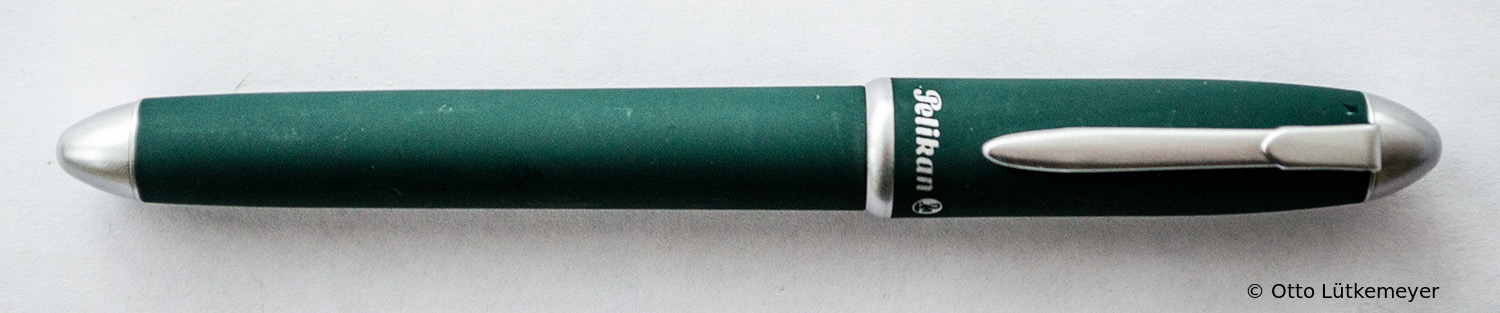

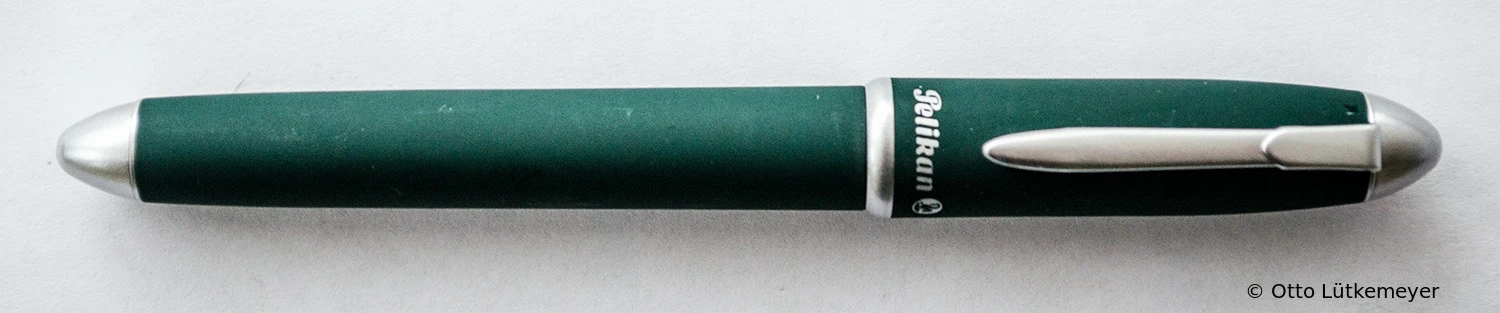

Koinè Green Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: greenCap Color: greenTrim: silver-colored

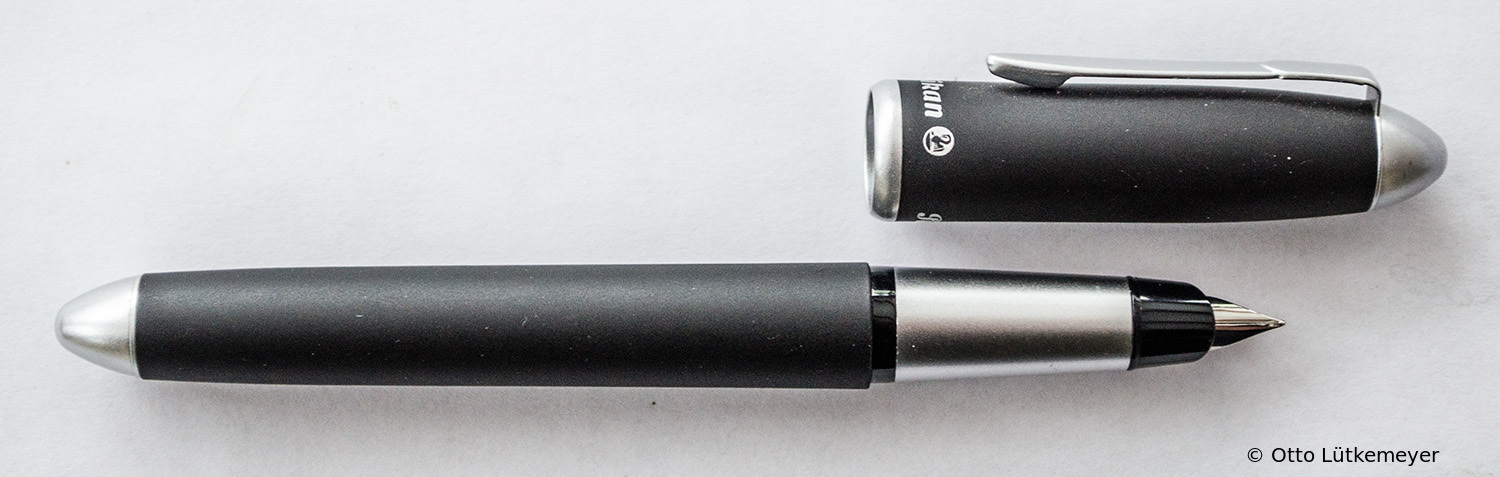

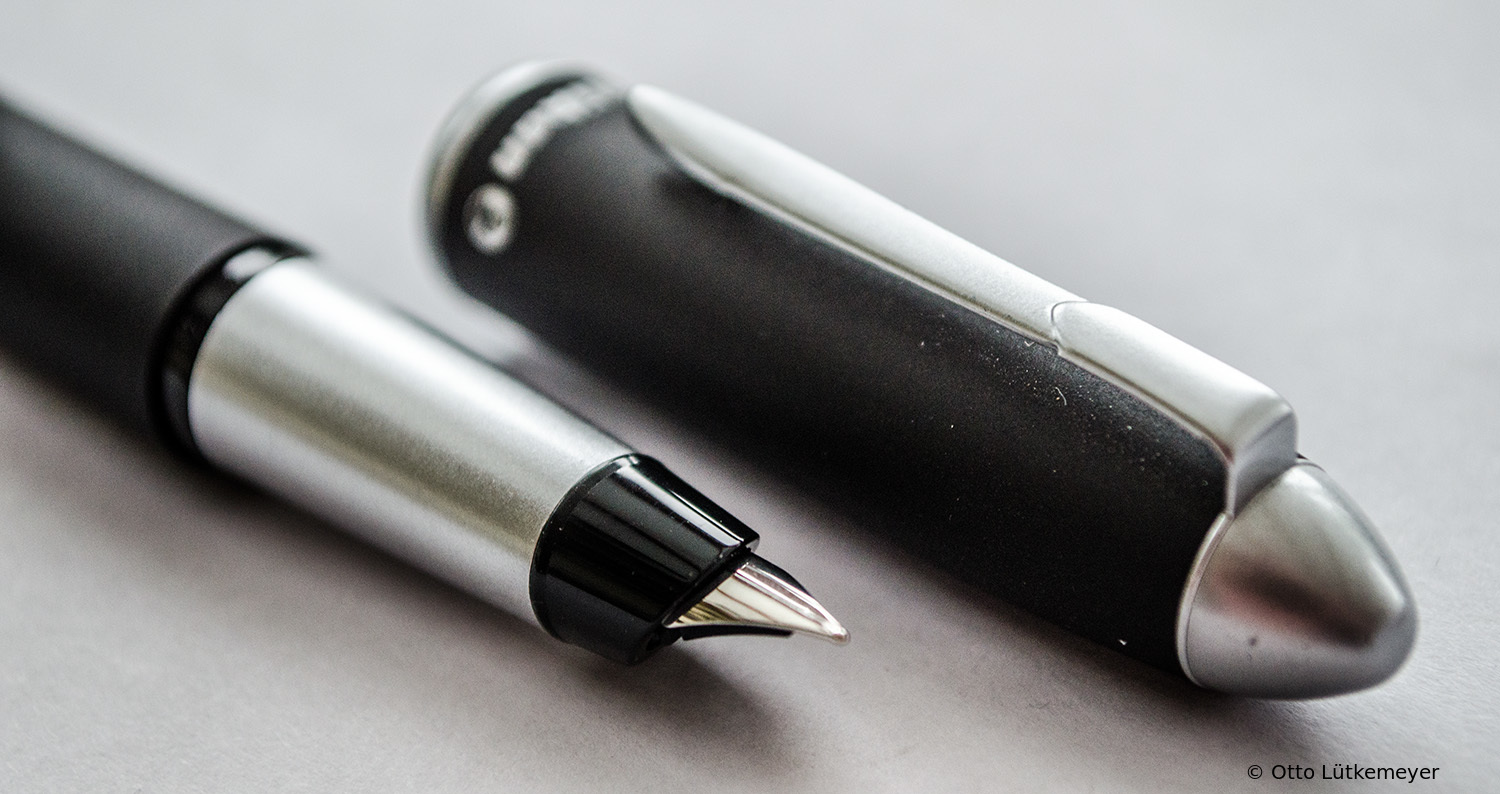

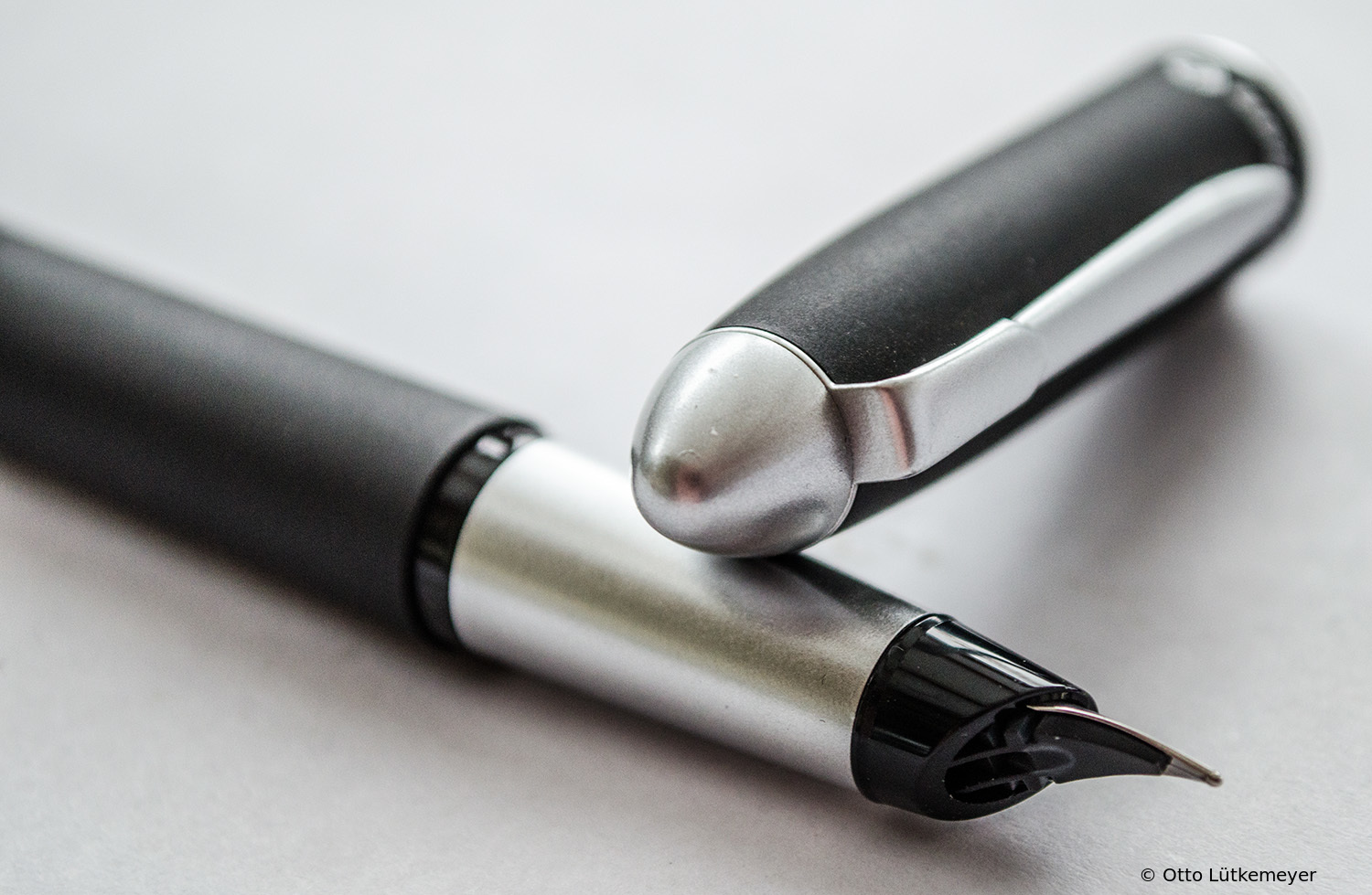

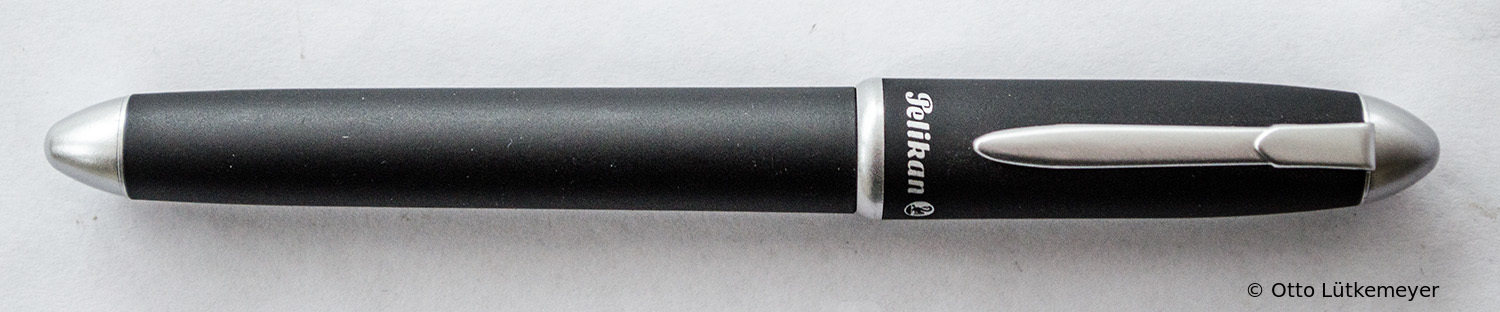

Koinè Black Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: blackCap Color: blackTrim: silver-colored
Koinè Yellow Series Production Color
Production: after 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: yellowCap Color: yellowTrim: silver-colored

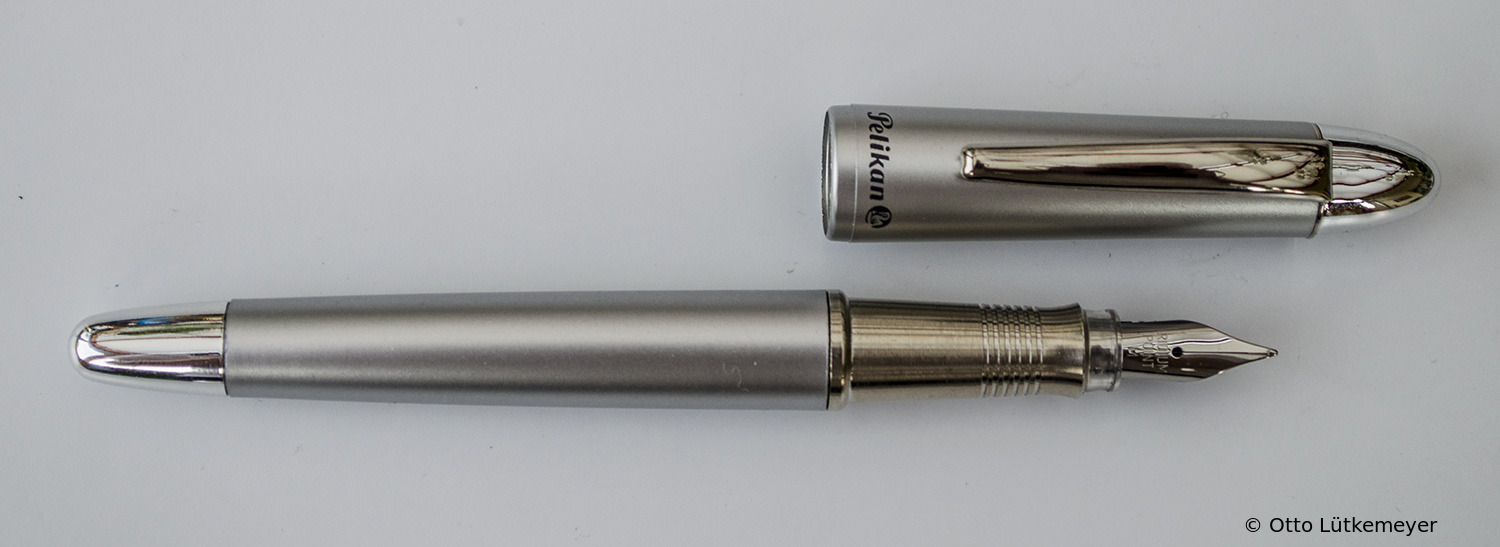

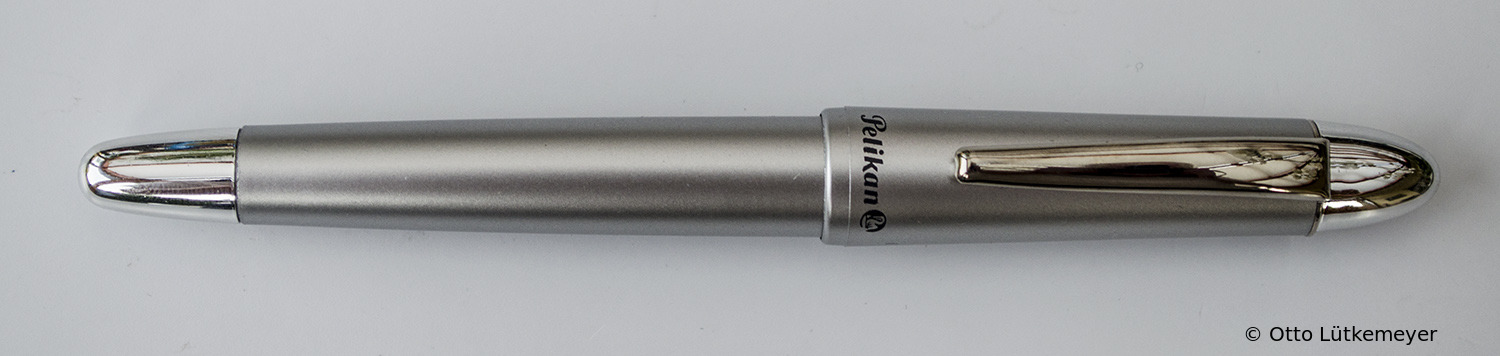

Pelikan Silverstar

The pens of this writing set are made mostly of plastic. However the tip of the ballpoint pen and the grip section of the fountain pen are made of solid metal  to add some weight to the pens and make them feel better for writing.

Model Production Period Nib
Silverstar after 2003

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.77 oz 5.47 in 4.21 in 2.52 in 0.49 in 0.8 ml (cartridge) + reserve cartridge
21.8 g 139 mm 107 mm 64 mm 12.4 mm

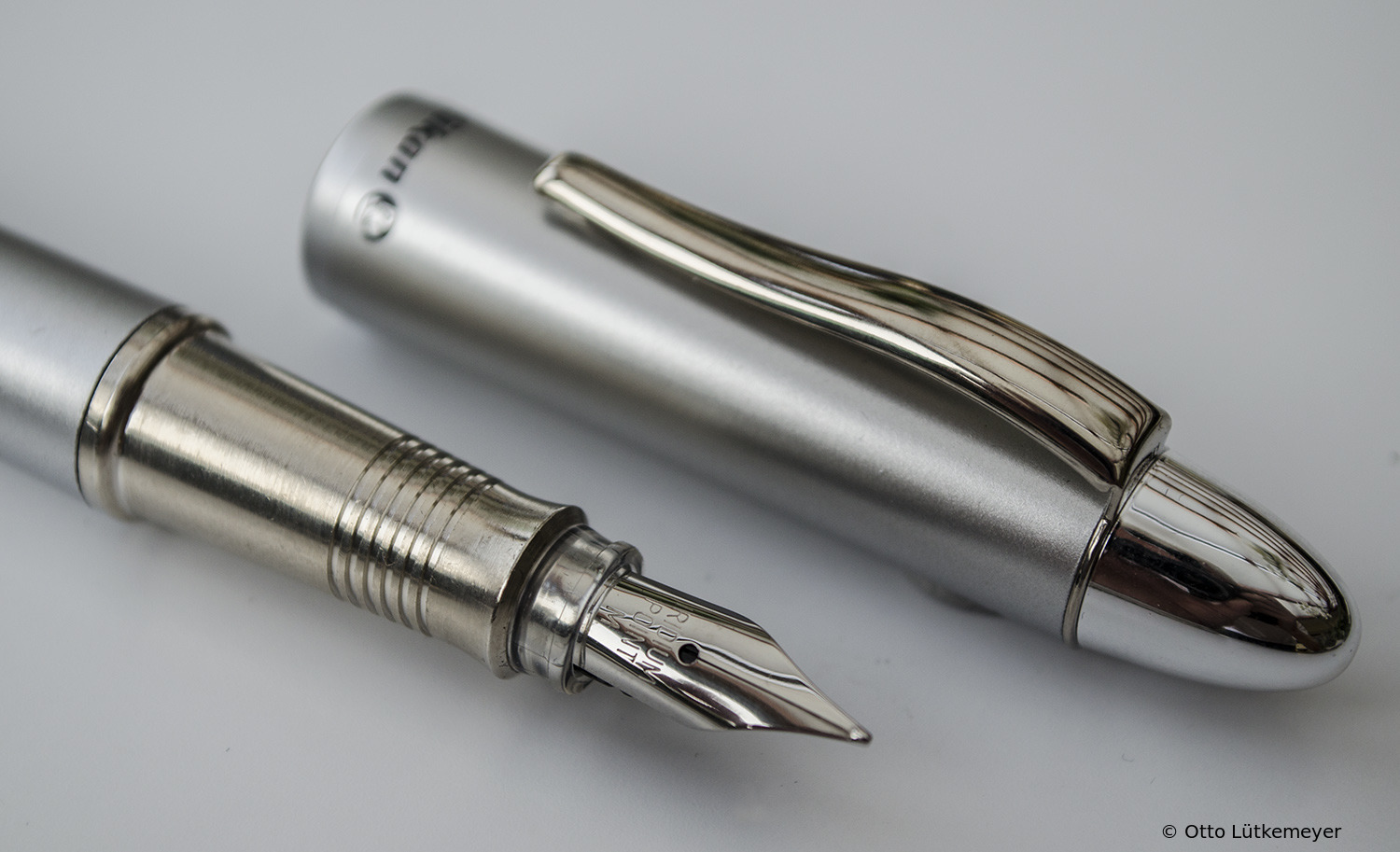

Silverstar

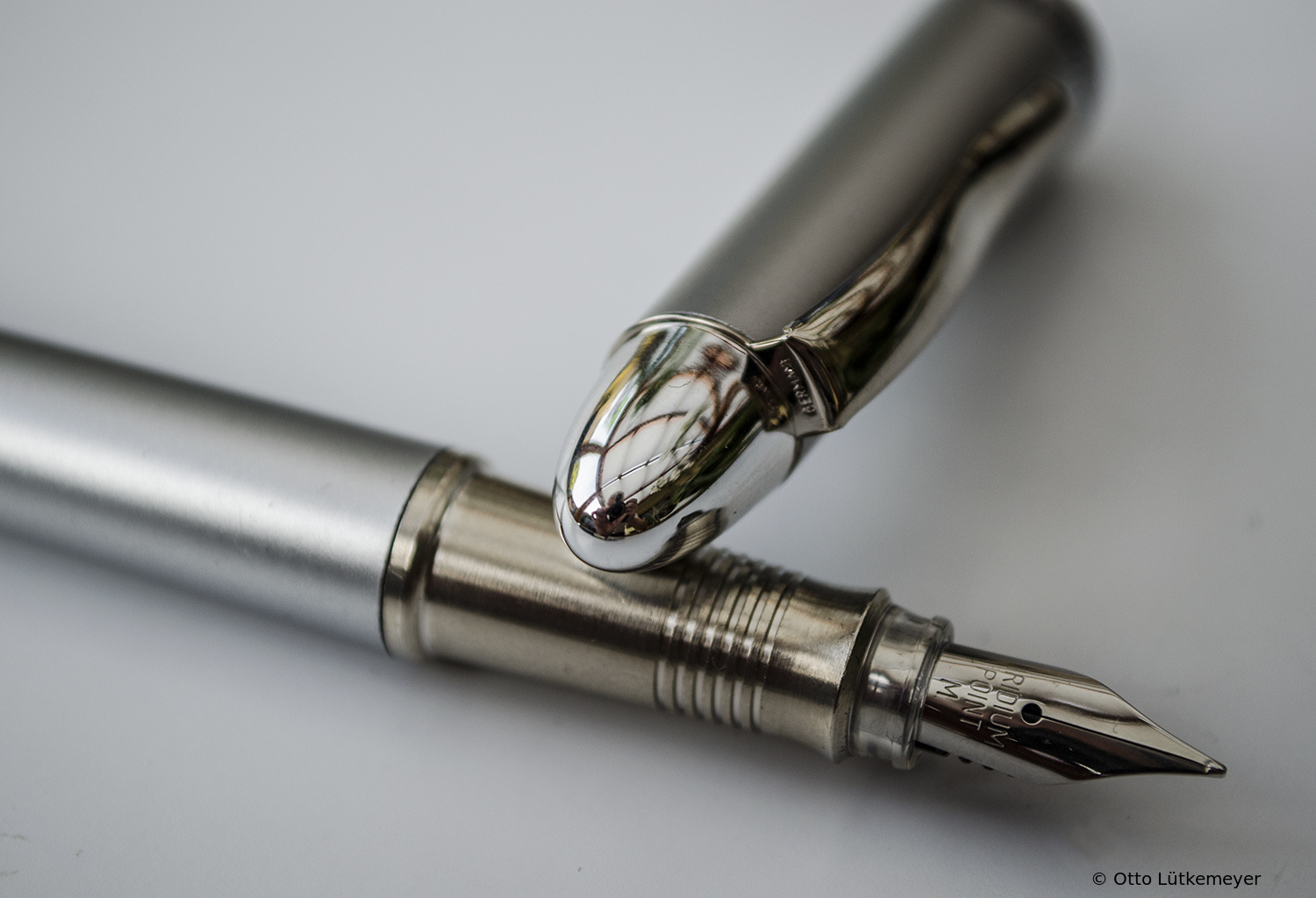

Silverstar Silver Series Production Color Details
Production: after 2003Nib: Steel
Logo: Without Logo Series Production
Barrel Color: silverCap Color: silverTrim: silver-colored

Stainless Steel nib Iridium Point

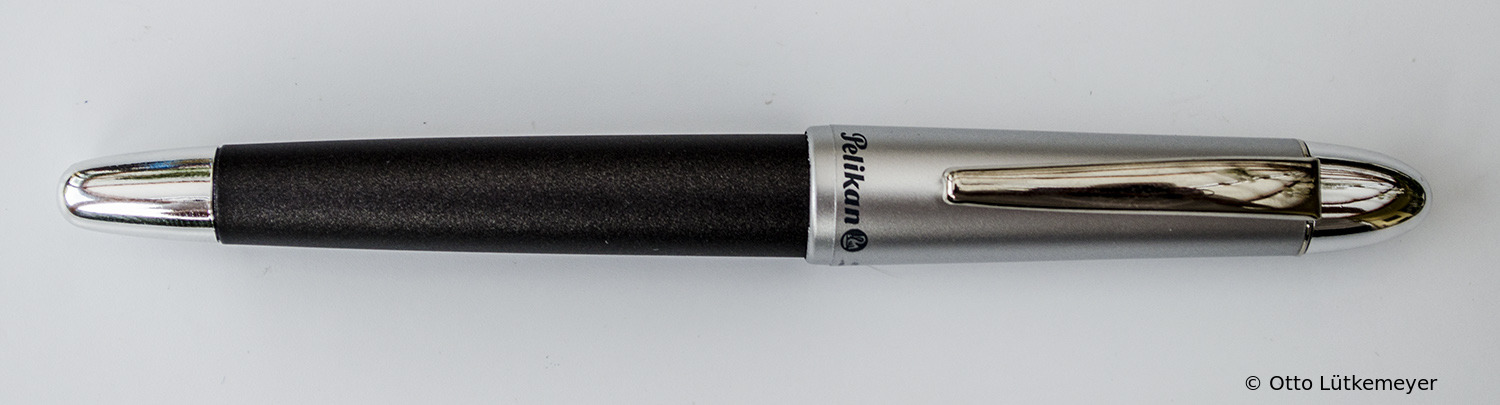

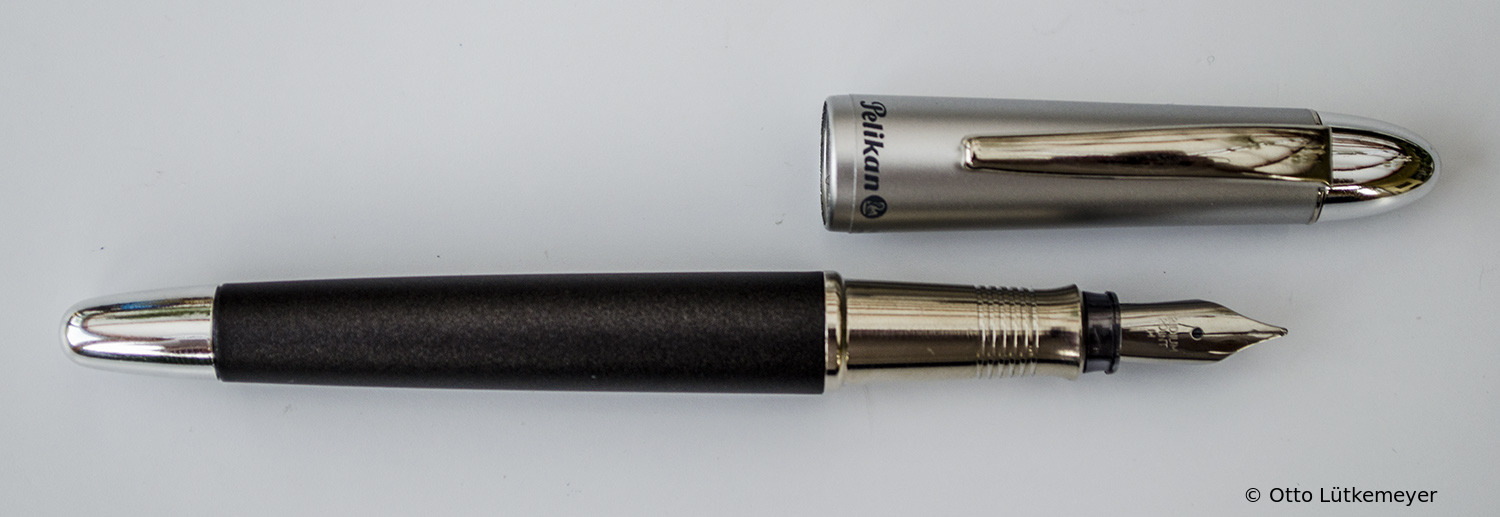

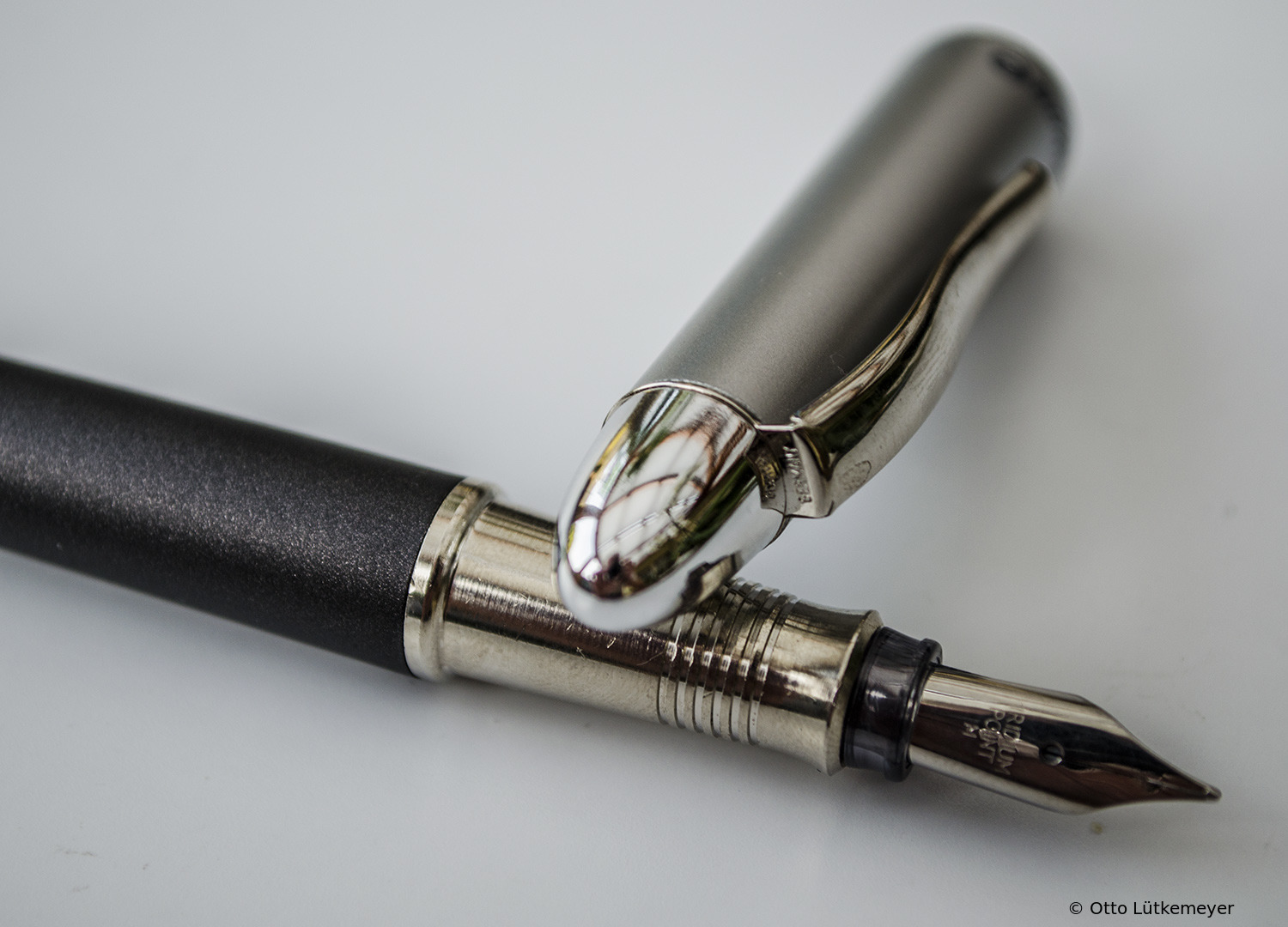

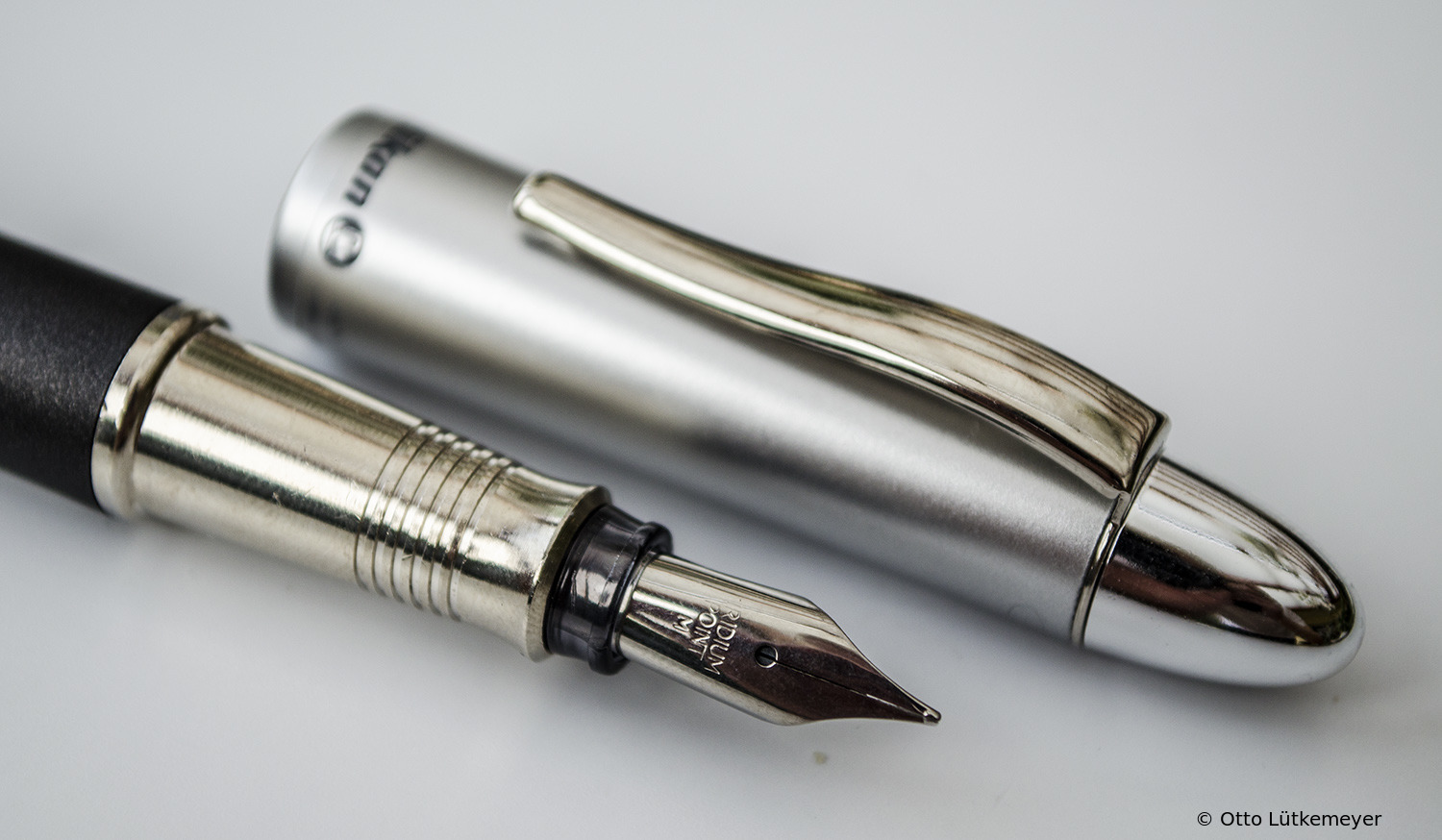

Silverstar Black-Silver Series Production Color Details
Production: after 2003Nib: Steel
Logo: Without Logo Series Production
Barrel Color: blackCap Color: silverTrim: silver-colored

Stainless Steel nib Iridium Point

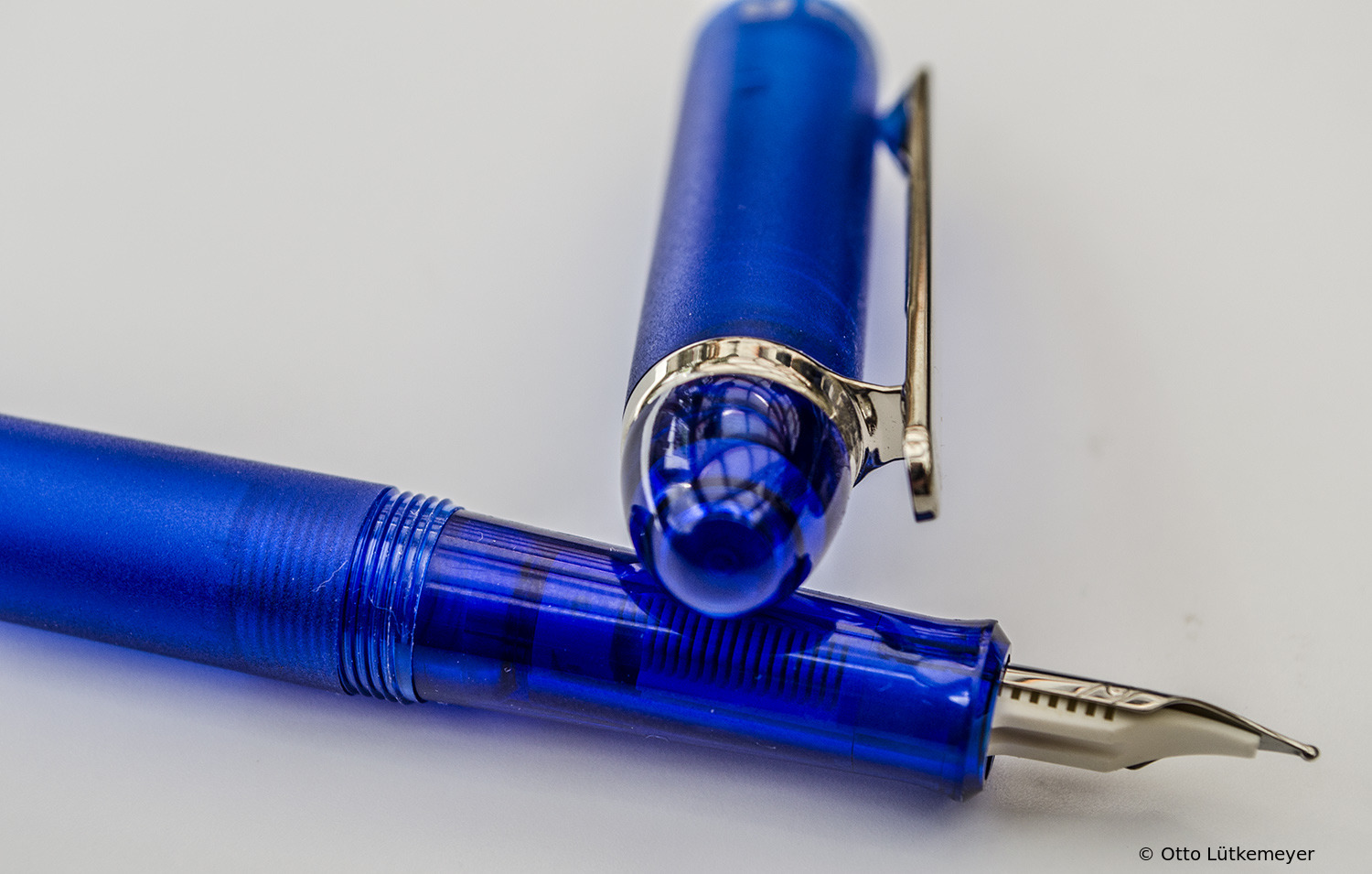

Pelikan Set 2000 - 1998

This set of a pen and (push button) ball pen is made of a matte blue-transparent barrel and cap with chrome fittings. The Pelikan icon on the edge of the screw cap has two chicks in the nest. The stainless steel nib shows a simple symbol with one Pelikan chick.
The shape and the ink feed matches the 4000 set. The barrels end and the matte surface of the filler are different from the 4000 set.

Model Production Period Nib
Set 2000 1998

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.35 oz 5.31 in 4.53 in 2.13 in 0.43 in 0.8 ml (cartridge)
10.0 g 135 mm 115 mm 54 mm 11 mm


P2000

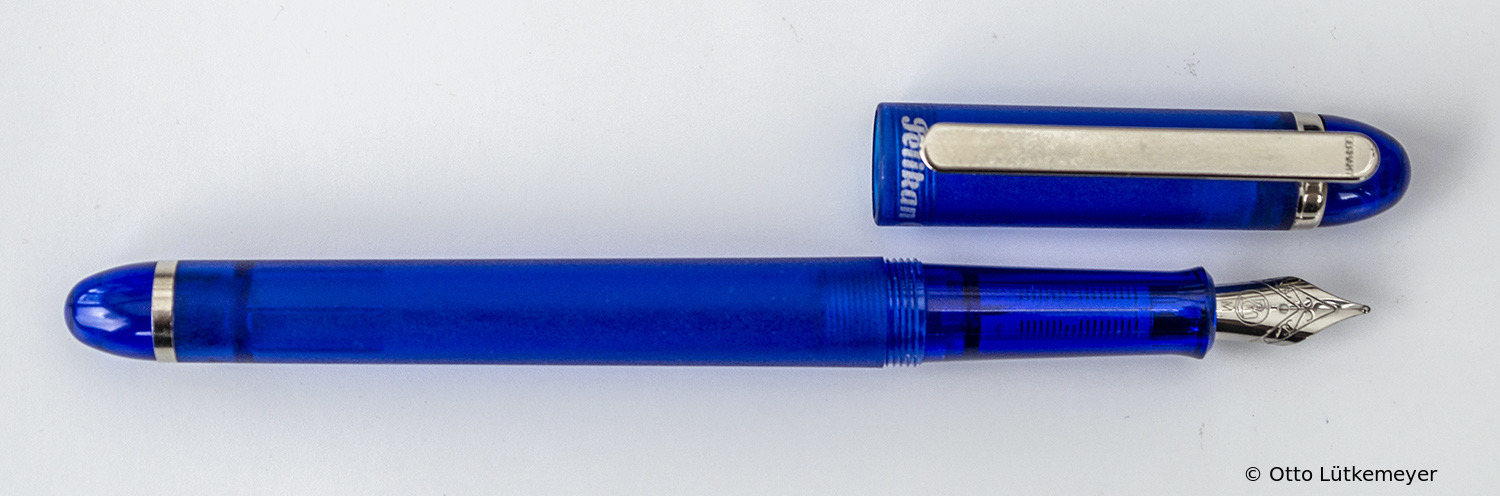

P2000 cobalt blue transparent Series Production Color
Production: from 1998Nib: Steel Leaflet: DeutschLink opens PDF documentBotschafter der Exzellenz
Logo: Without Logo Series Production
Barrel Color: blueCap Color: blueTrim: silver-colored
P2000 purple transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: purpleCap Color: purpleTrim: silver-colored
P2000 fuchsia transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: fuchsiaCap Color: fuchsiaTrim: silver-colored

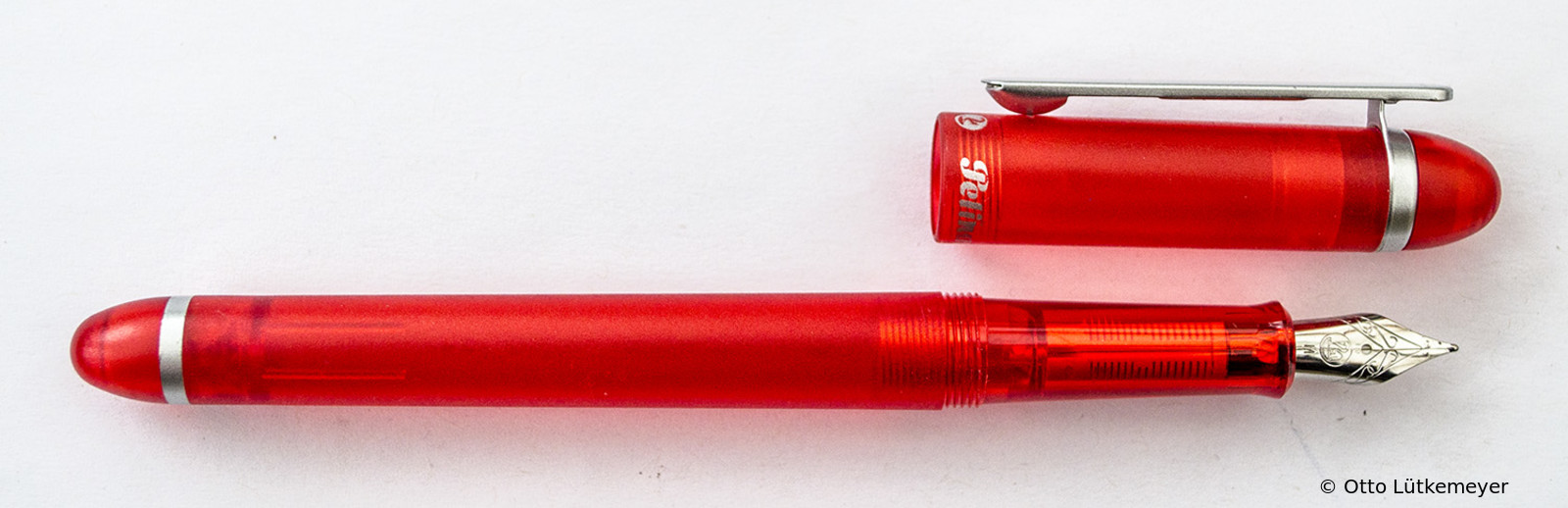

P2000 cherry red transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: rotCap Color: rotTrim: silver-colored

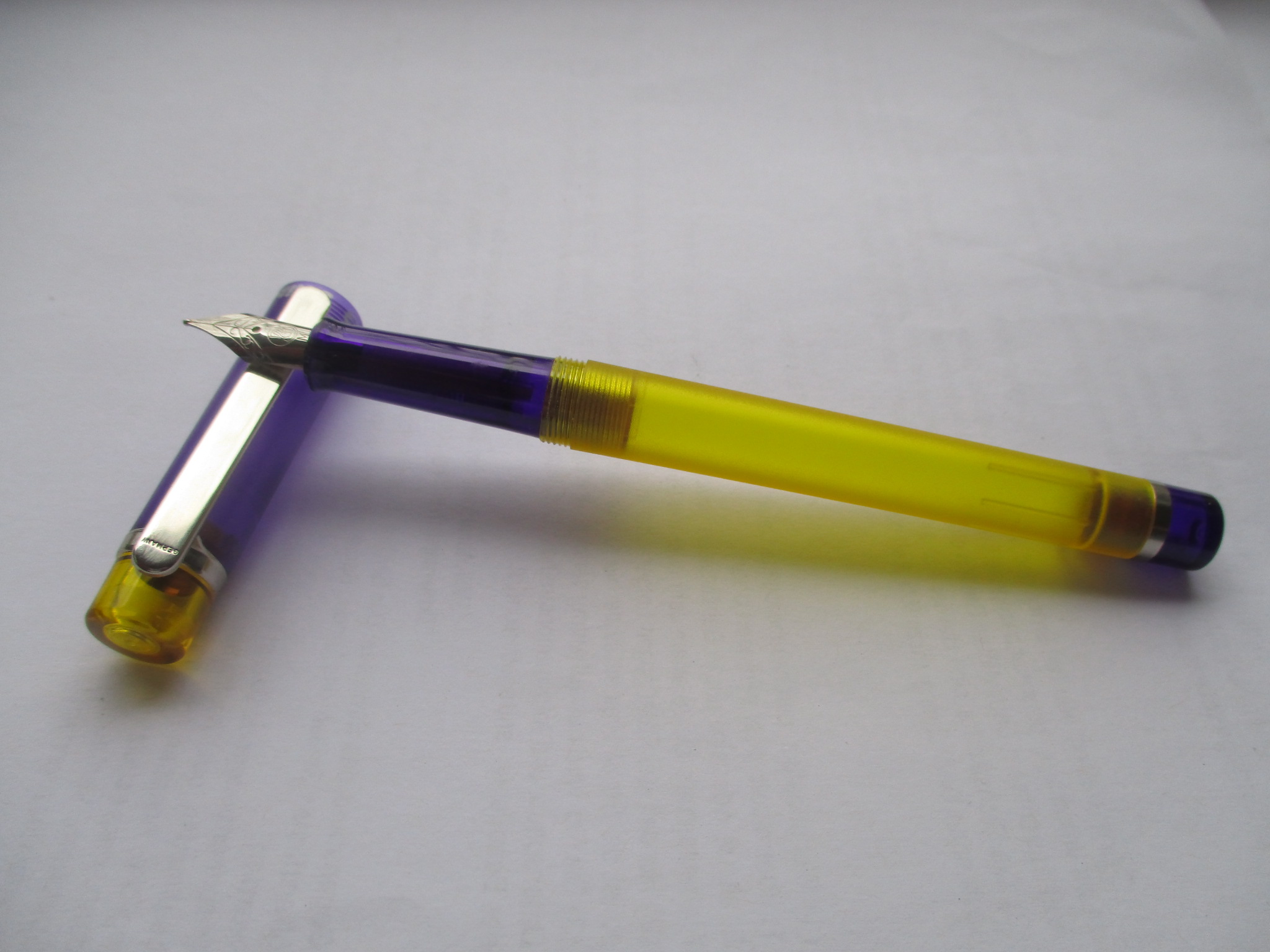

P2000 lemon transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: yellowCap Color: purpleTrim: silver-colored
P2000 emerald green transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: greenCap Color: greenTrim: silver-colored
P2000 mint green transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: greenCap Color: greenTrim: silver-colored
P2000 salmon orange transparent Series Production Color
Production: from 1998Nib: Steel
Logo: Without Logo Series Production
Barrel Color: orangeCap Color: orangeTrim: silver-colored

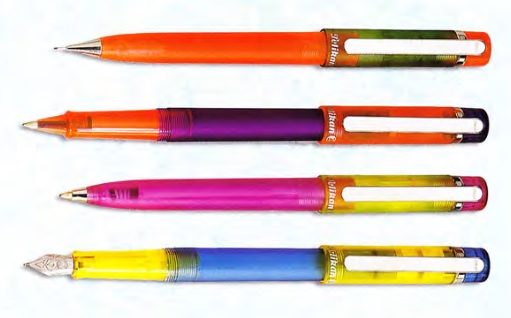

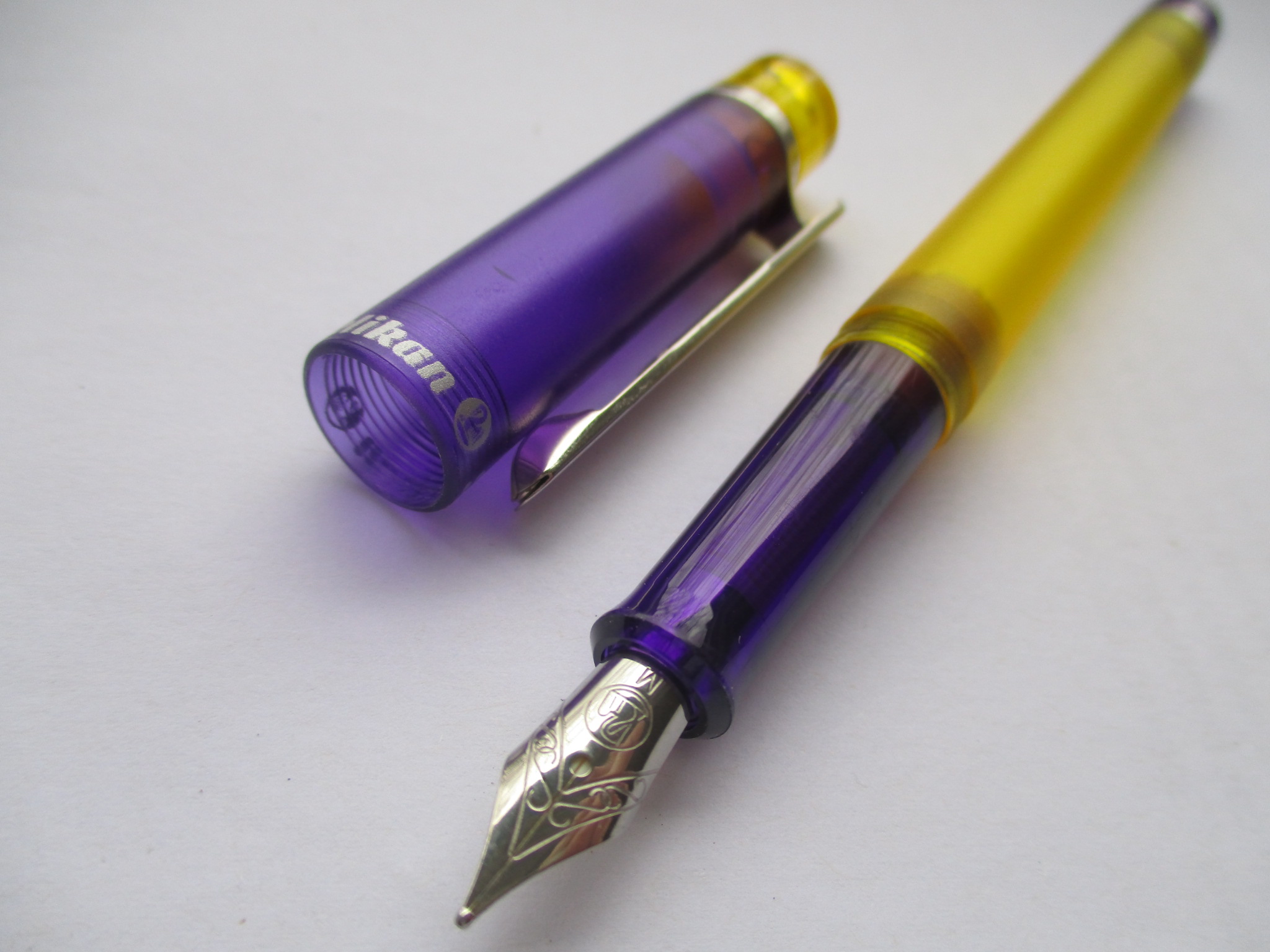

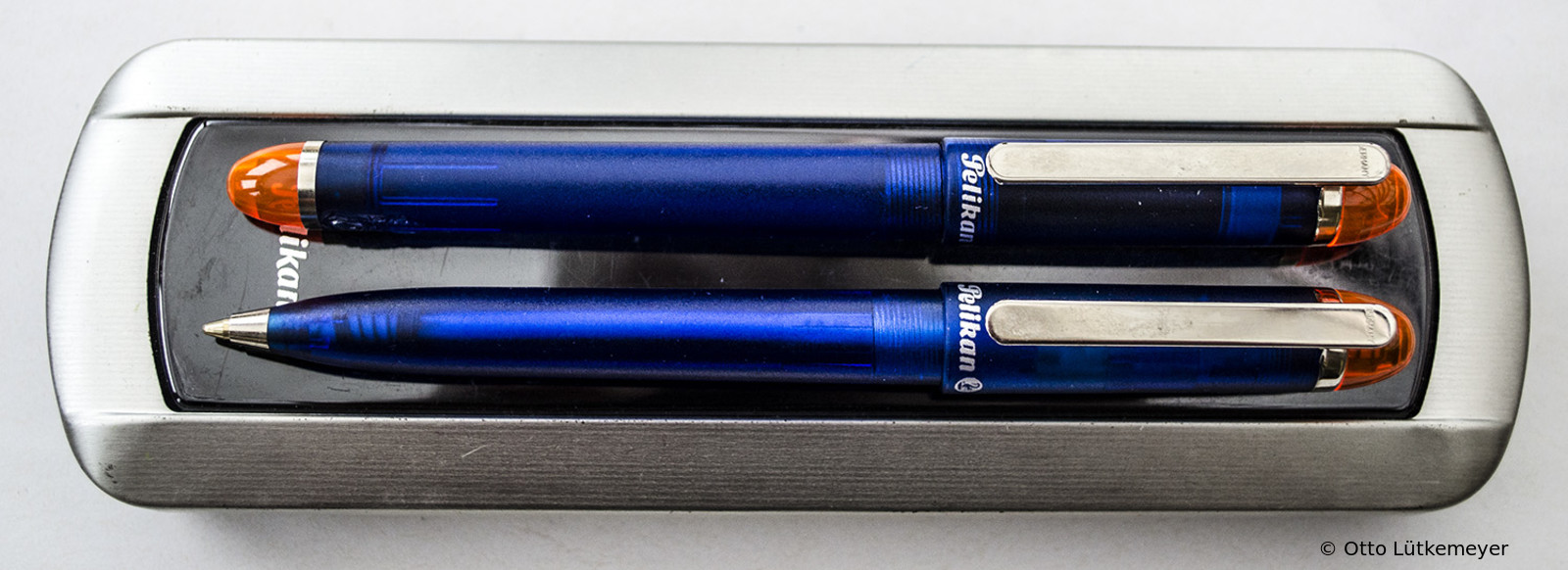

Pelikan Set 2000 - 1999

From 1999 the Set 2000 was prepared in two colors. The material is matt transparent.

Model Production Period Nib
Set 2000 from 1999

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.35 oz 5.31 in 4.53 in 2.13 in 0.43 in 0.8 ml (cartridge)
10.0 g 135 mm 115 mm 54 mm 11 mm


P2000

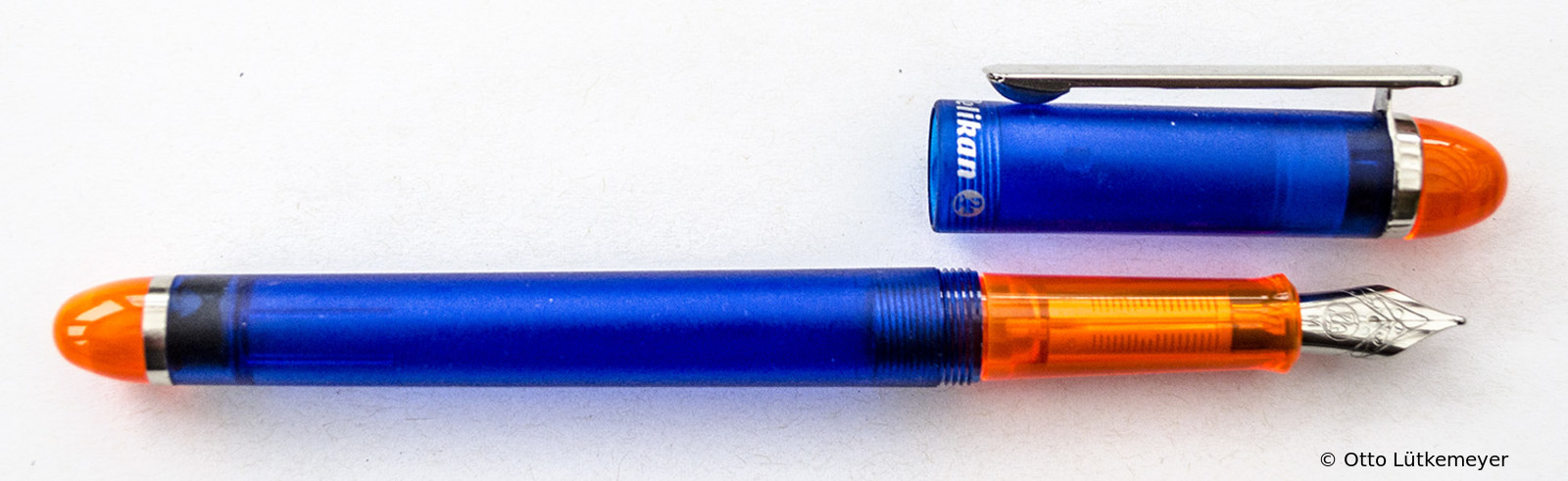

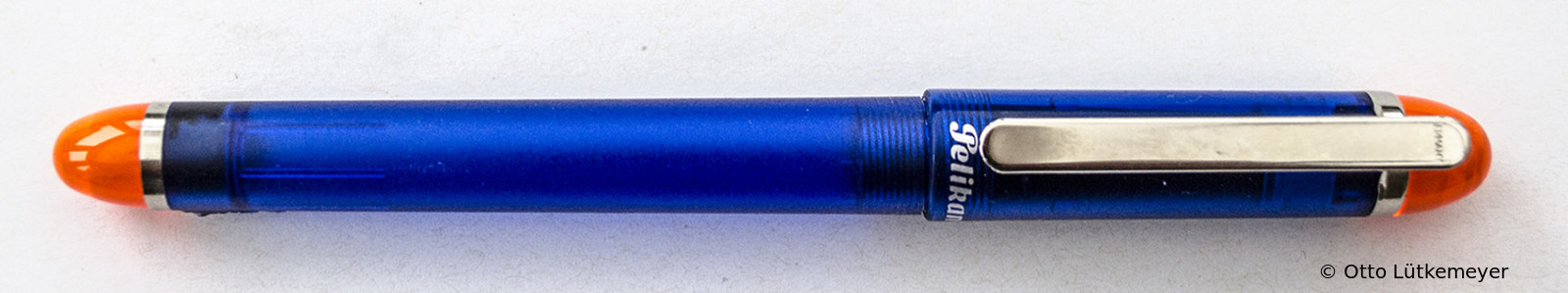

P2000 cobalt blue transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: blueCap Color: yellowTrim: silver-colored

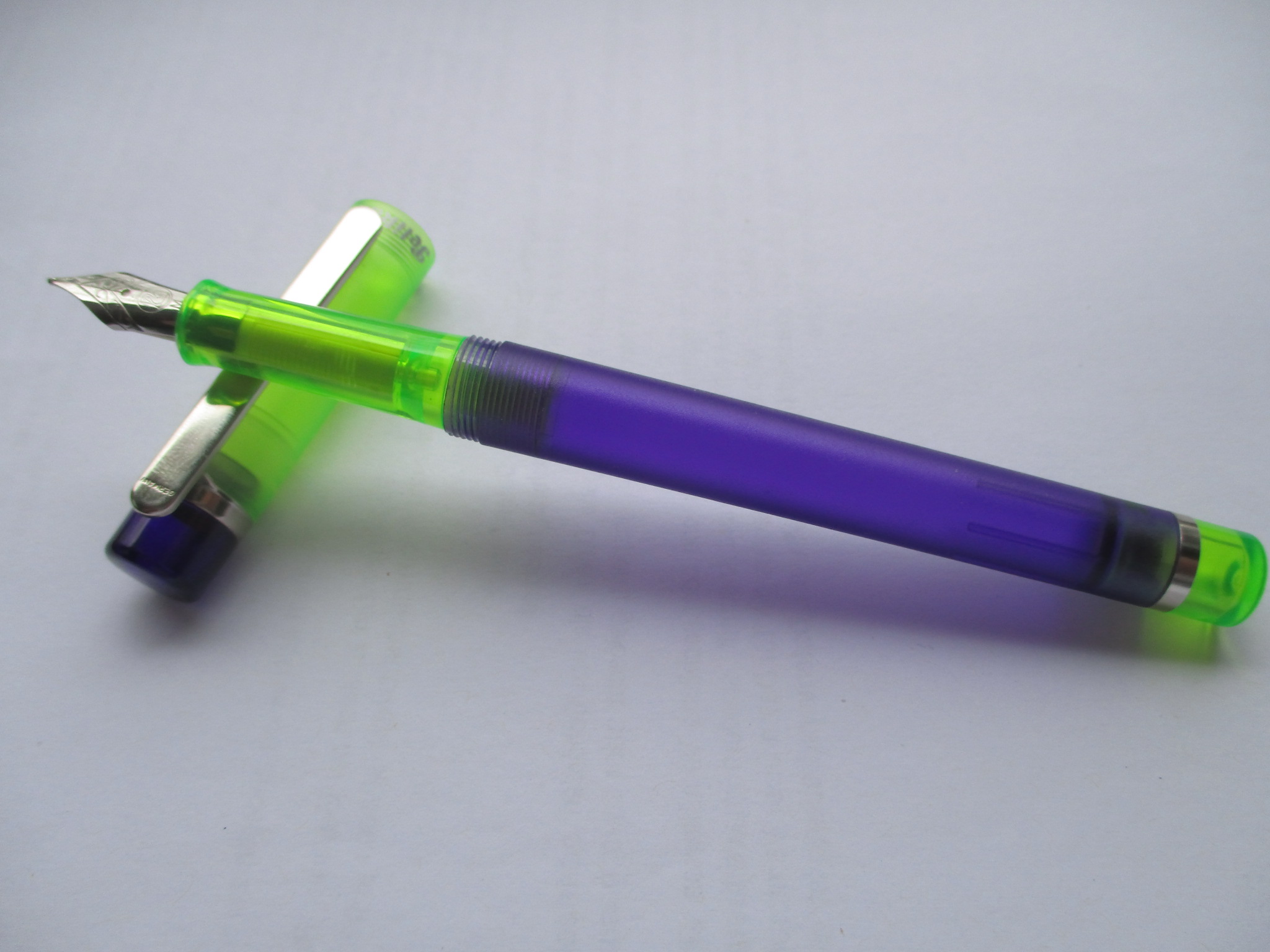

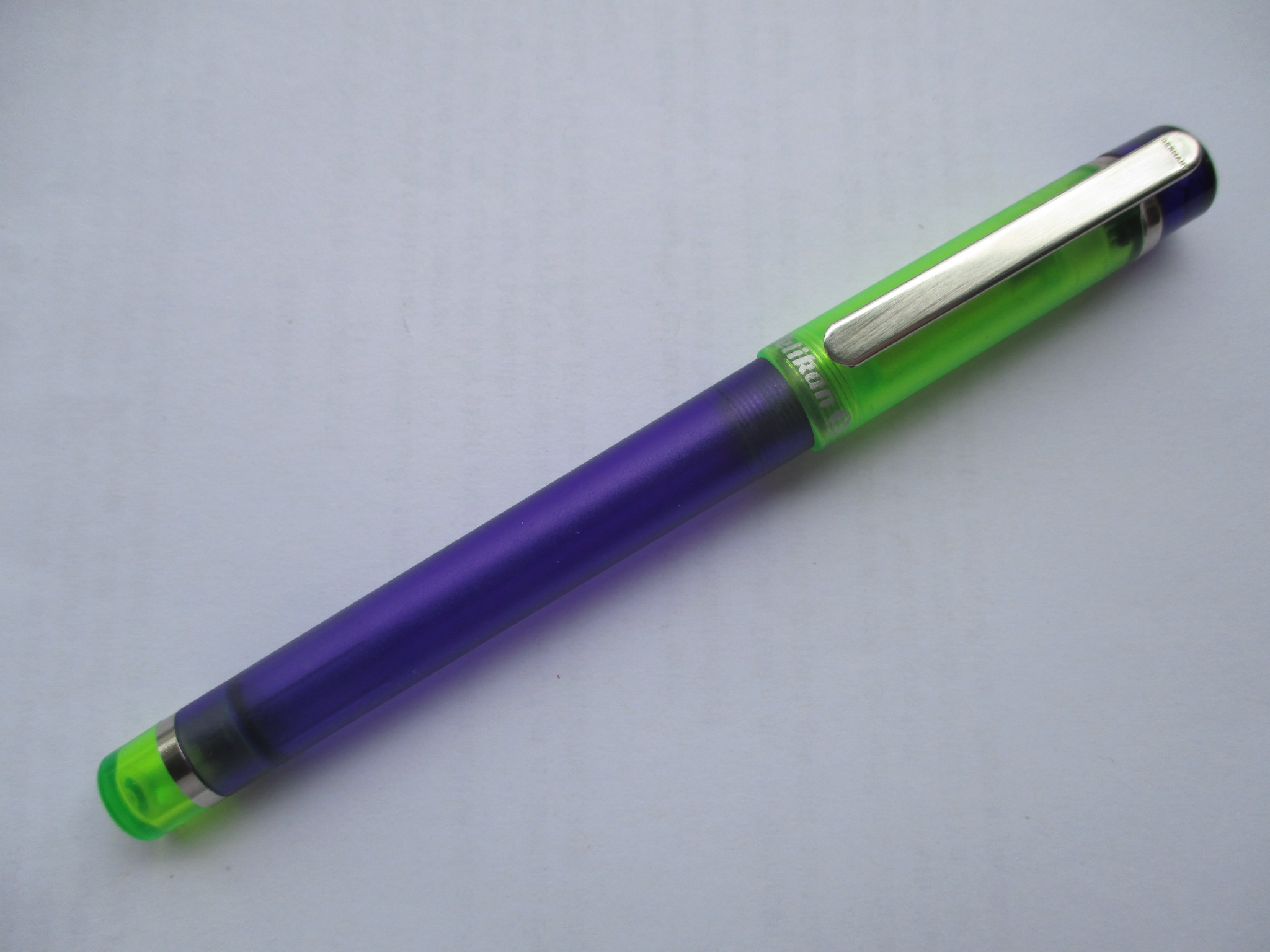

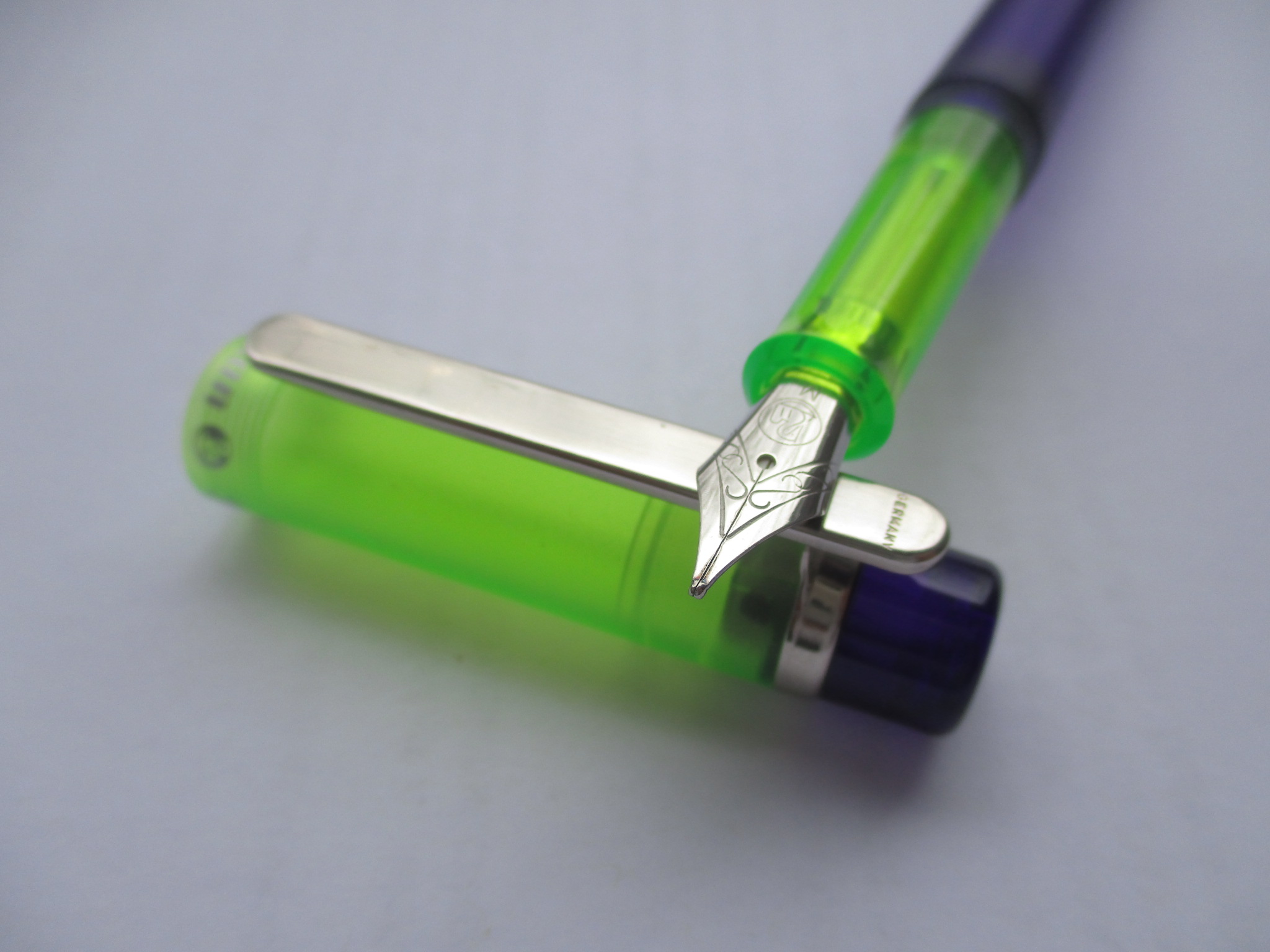

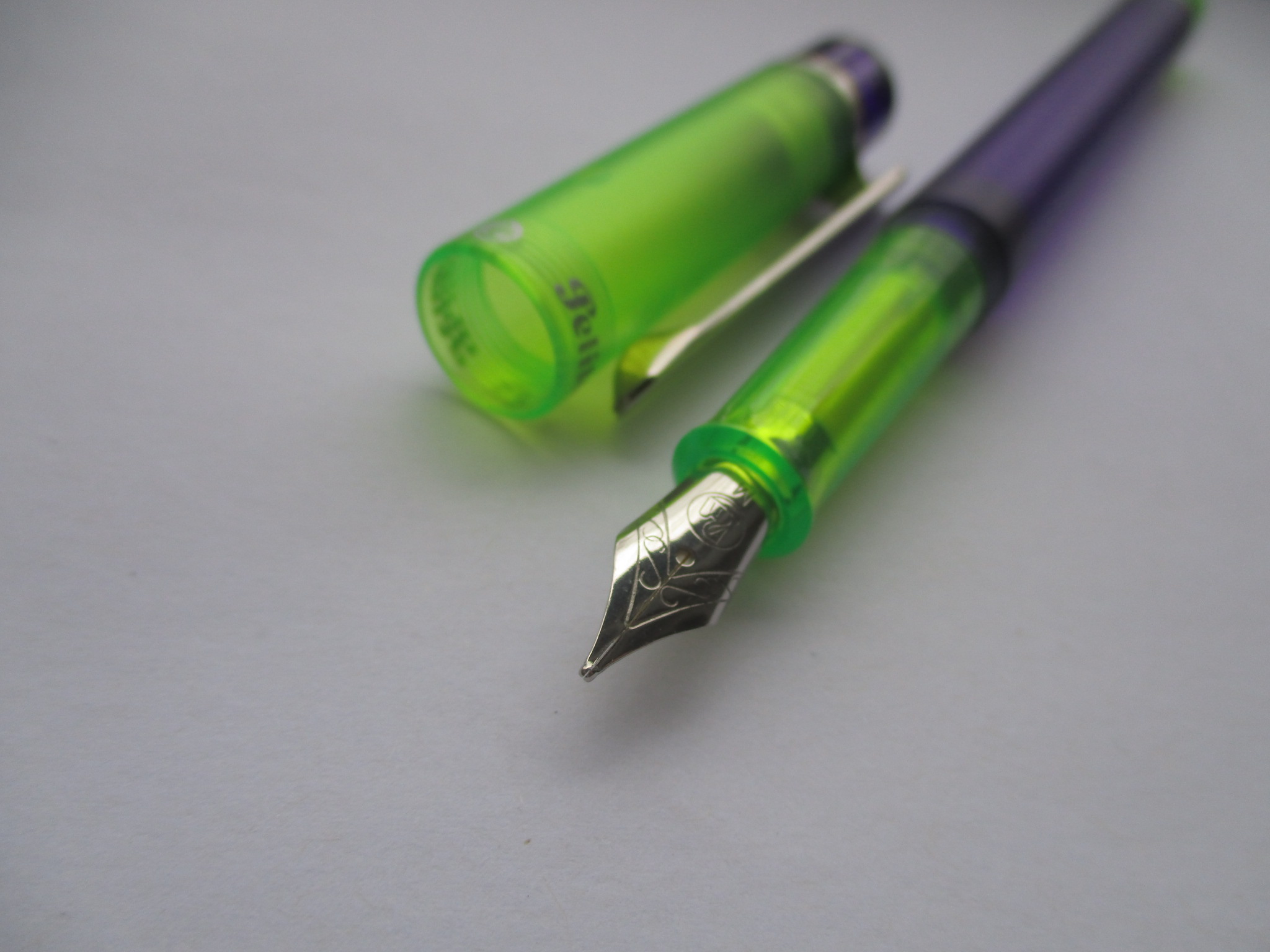

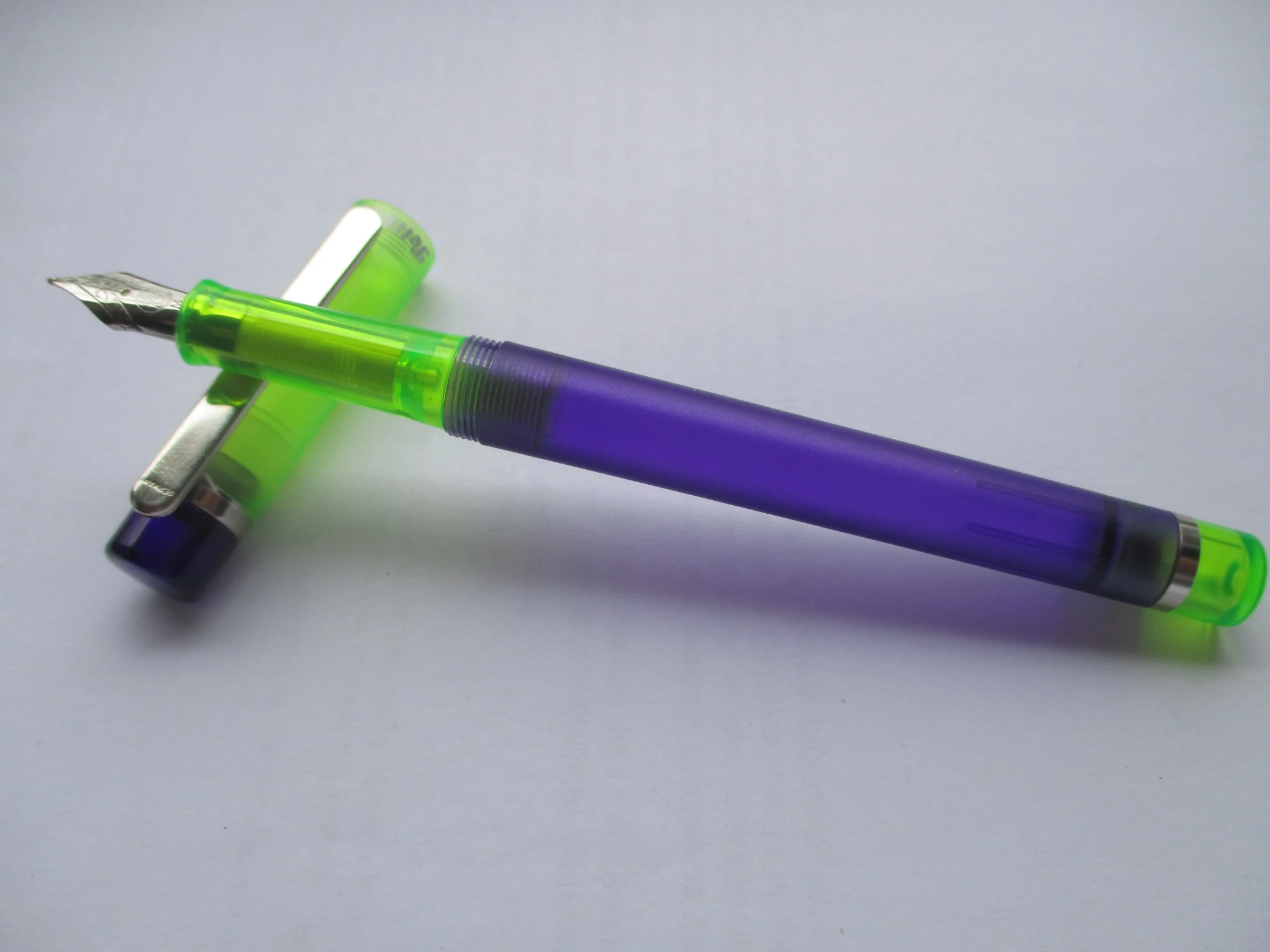

P2000 purple transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: purpleCap Color: greenTrim: silver-colored
P2000 fuchsia transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: fuchsiaCap Color: yellowTrim: silver-colored
P2000 cherry red transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: rotCap Color: ?Trim: silver-colored

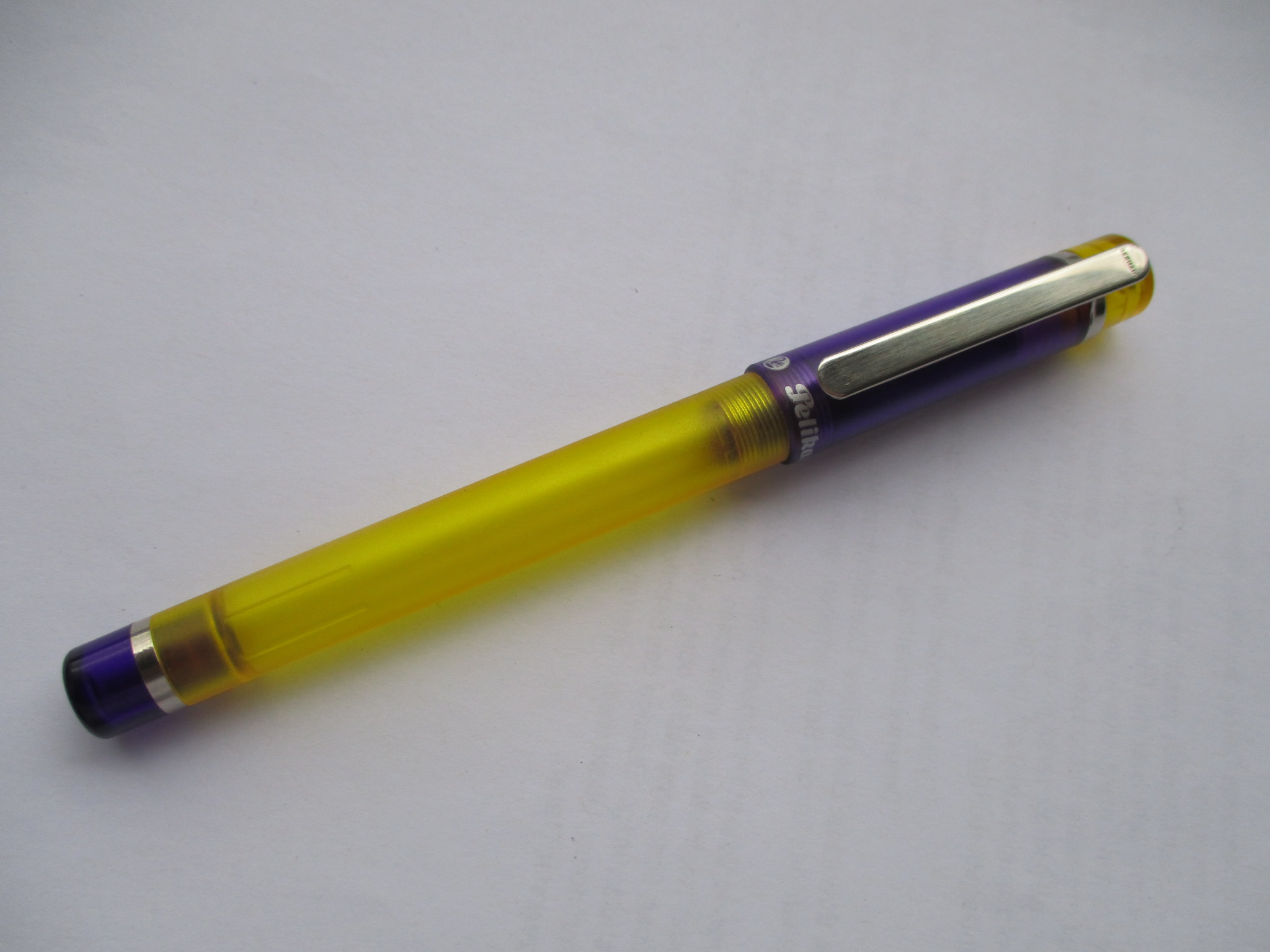

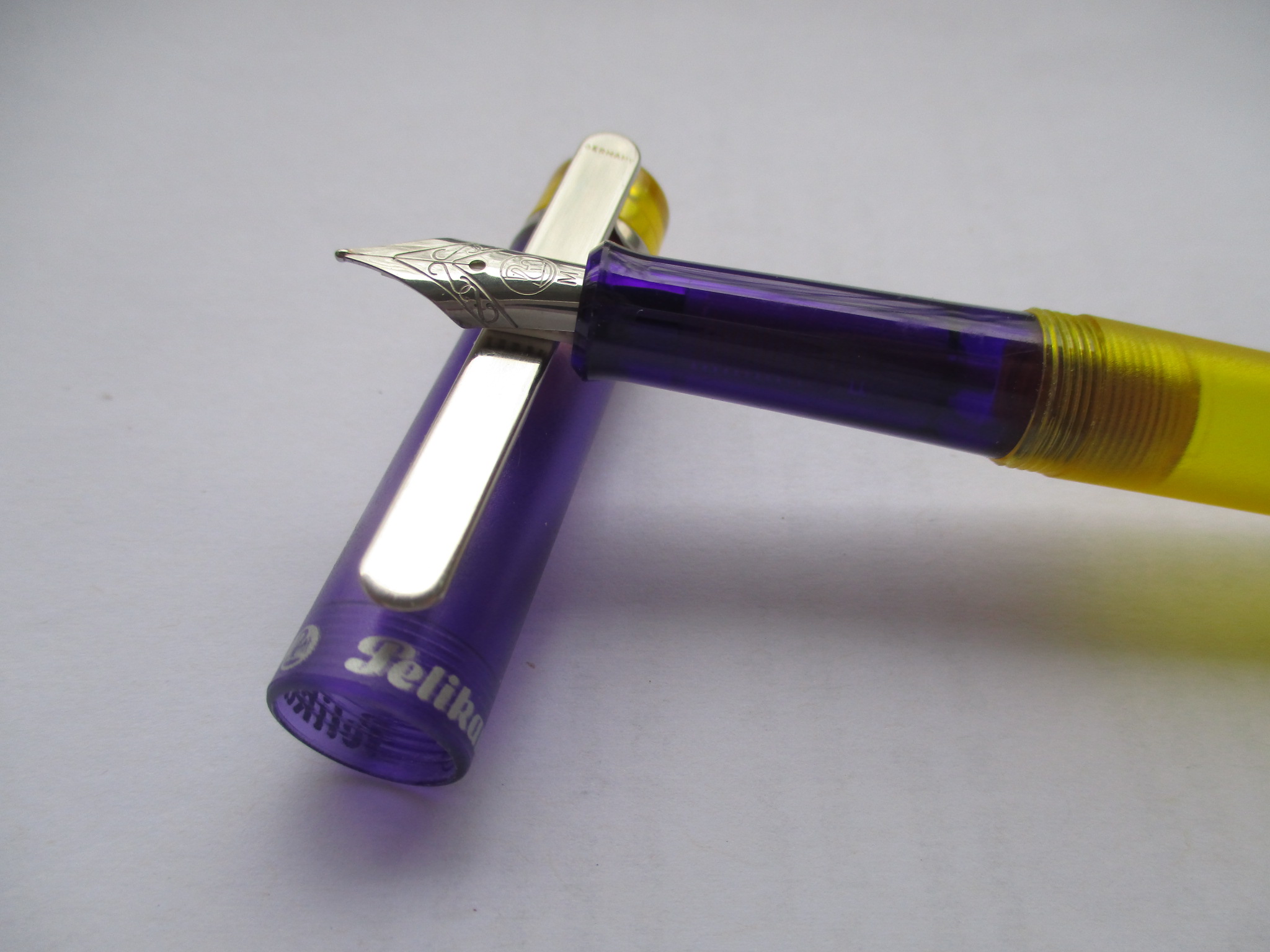

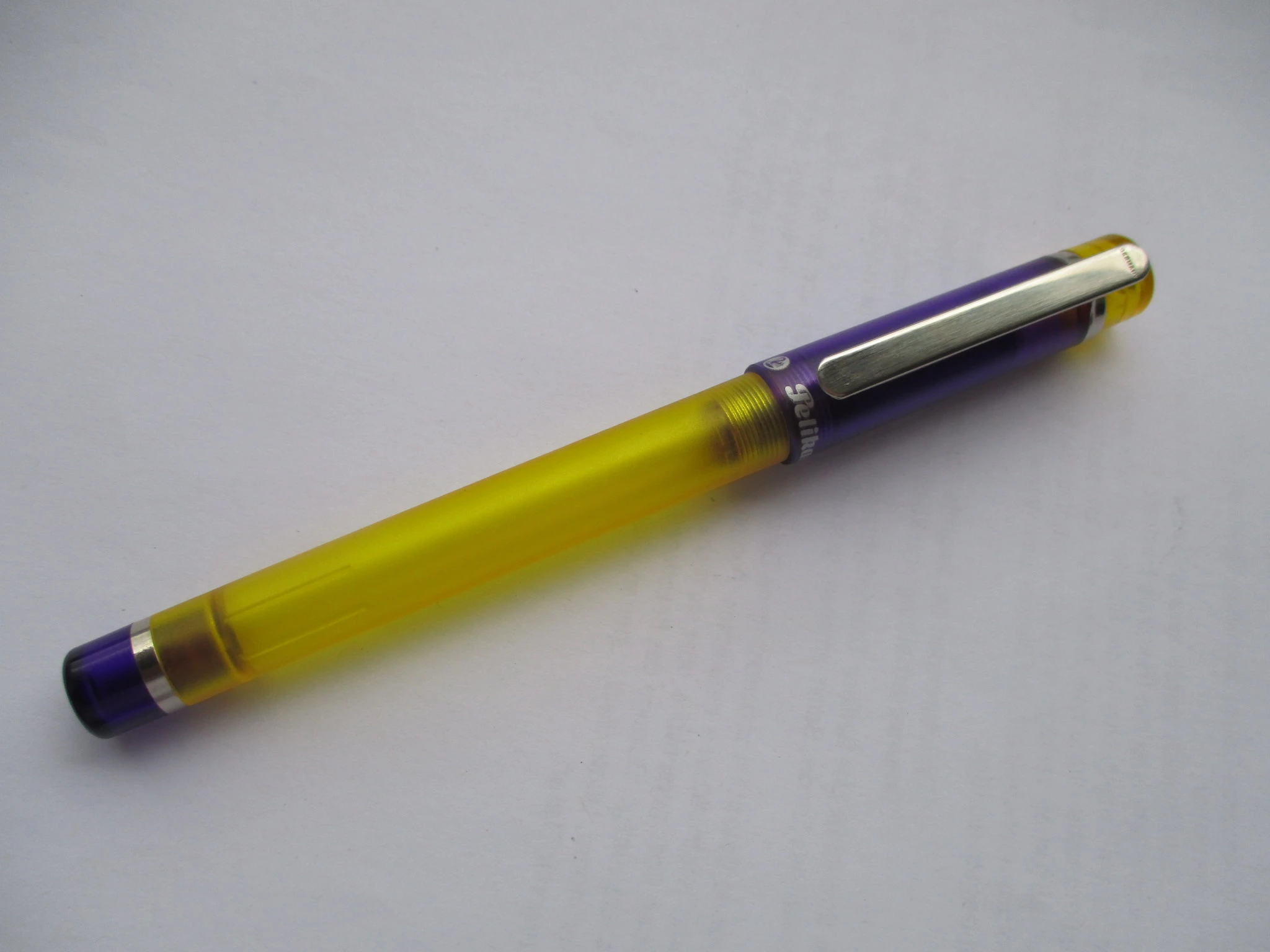

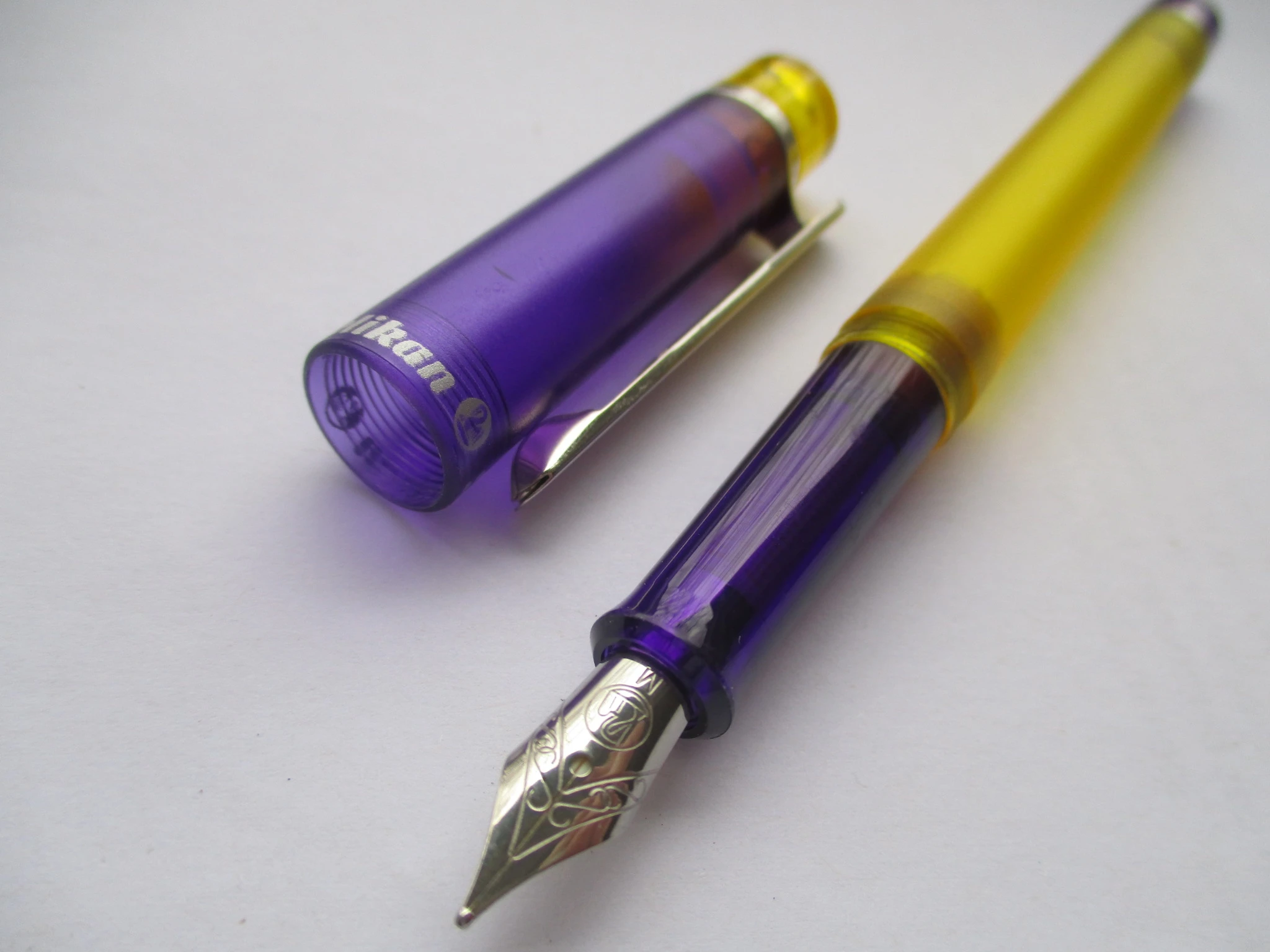

P2000 lemon transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: yellowCap Color: purpleTrim: silver-colored
P2000 emerald green transparent Series Production Color
Production: from 1998Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: greenCap Color: ?Trim: silver-colored
P2000 mint green transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: greenCap Color: ?Trim: silver-colored

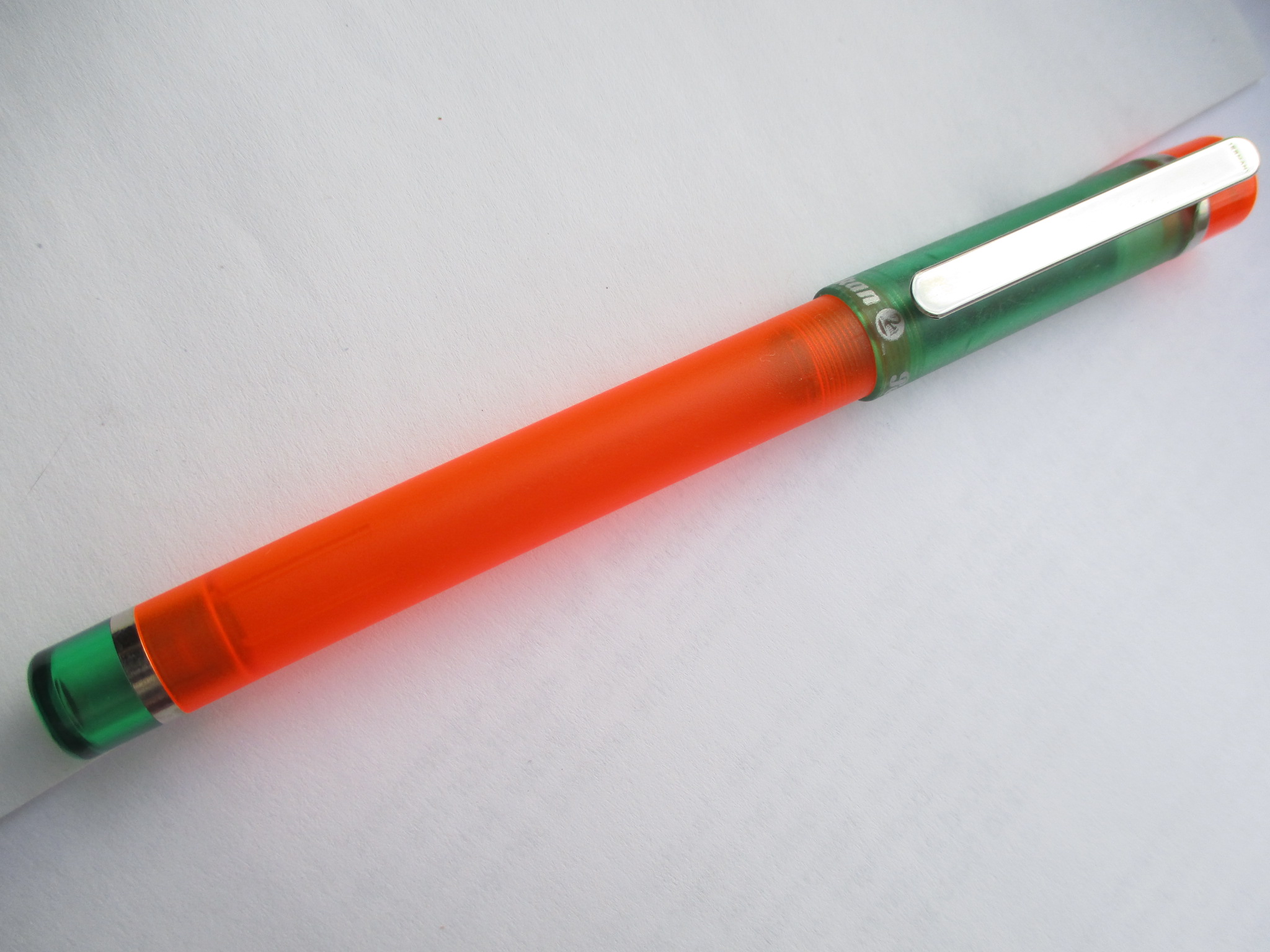

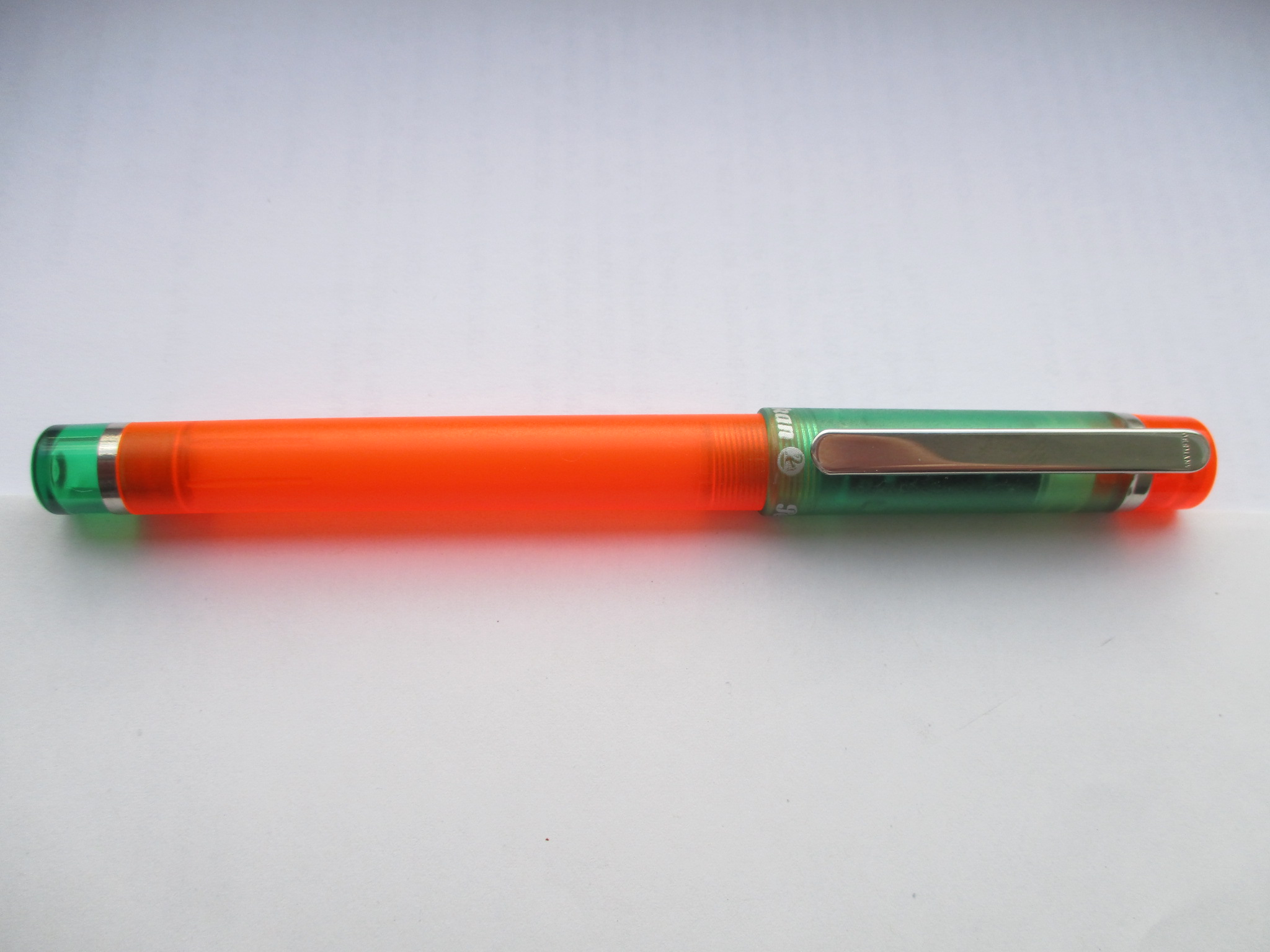

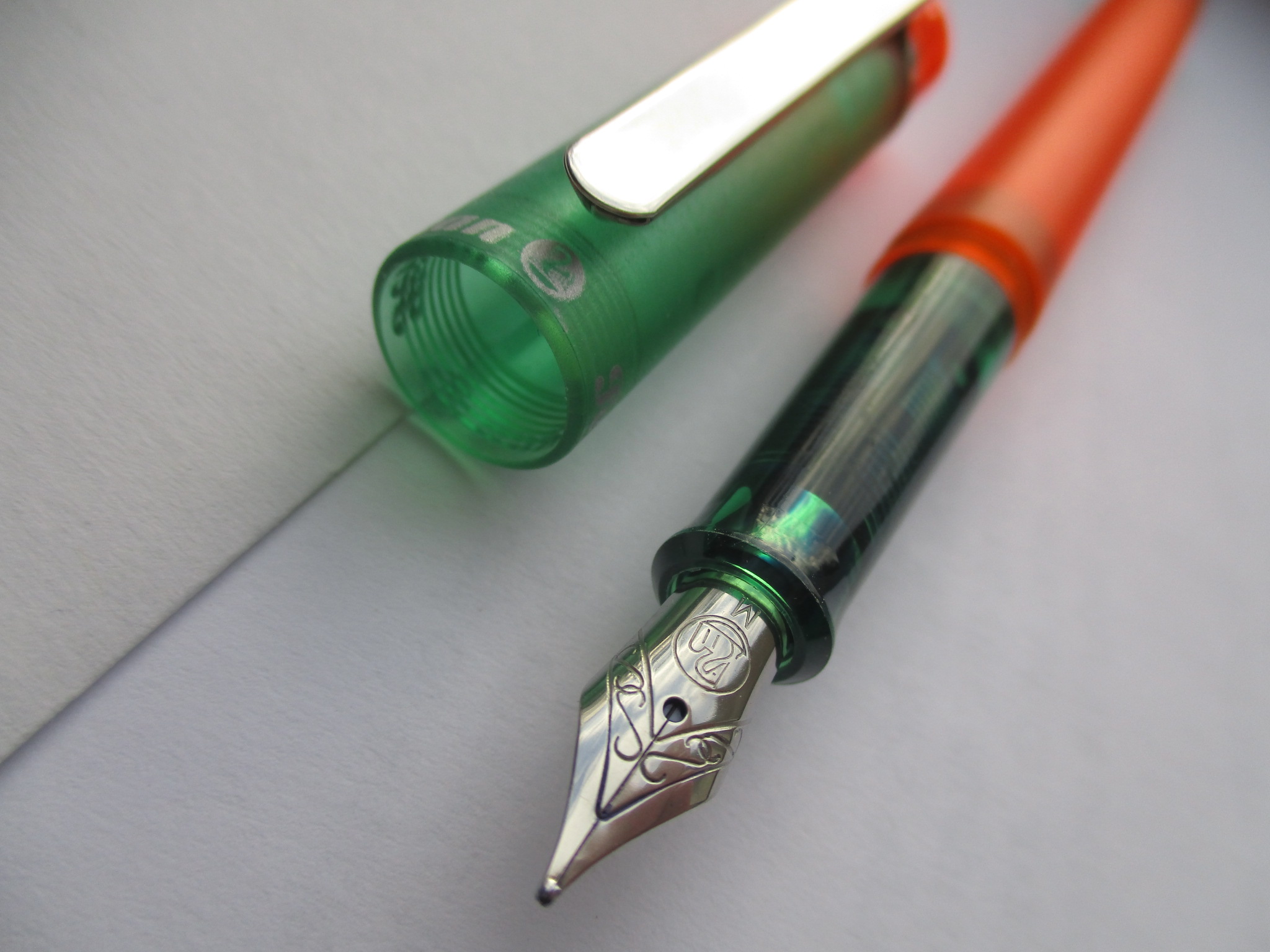

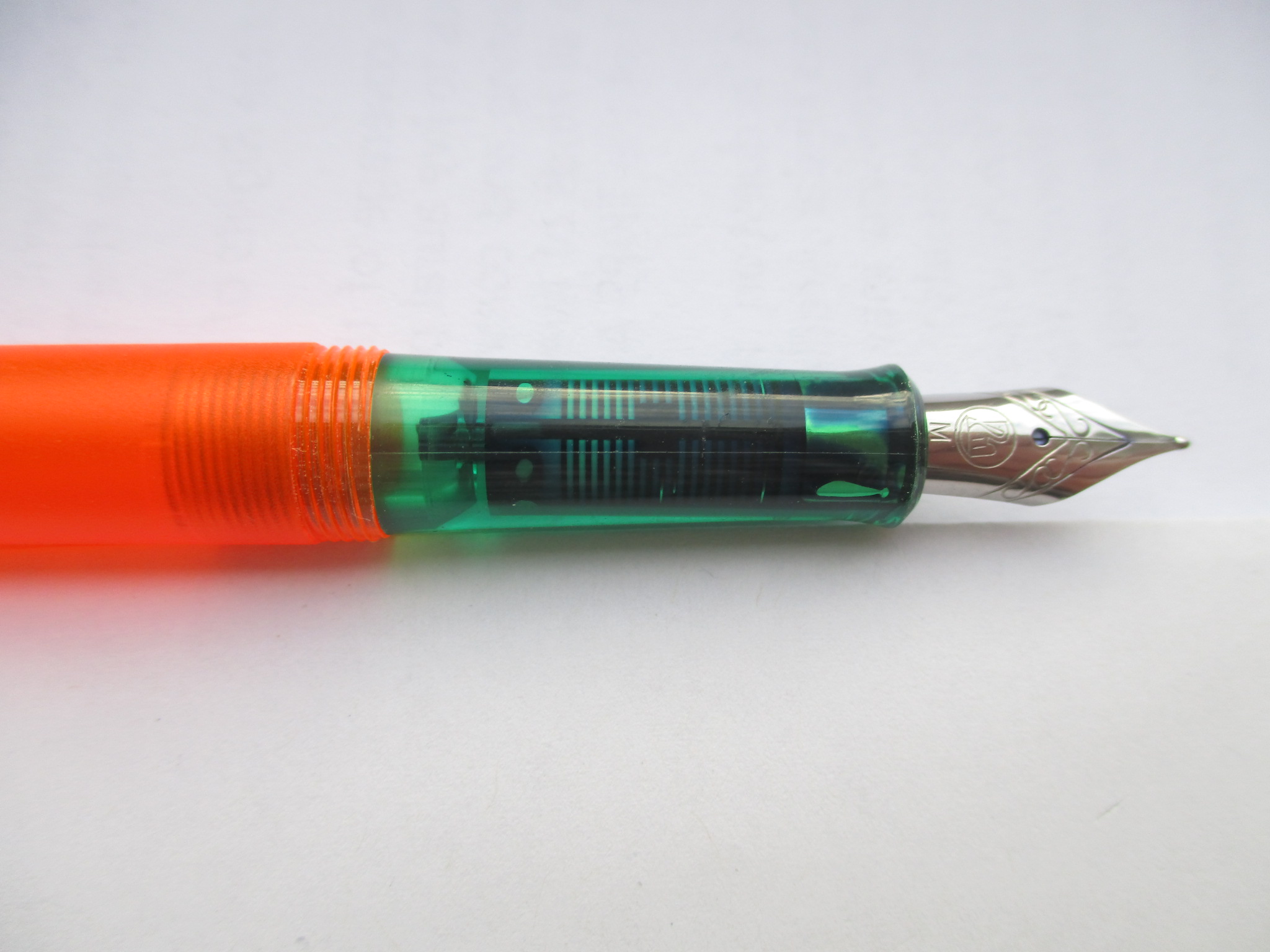

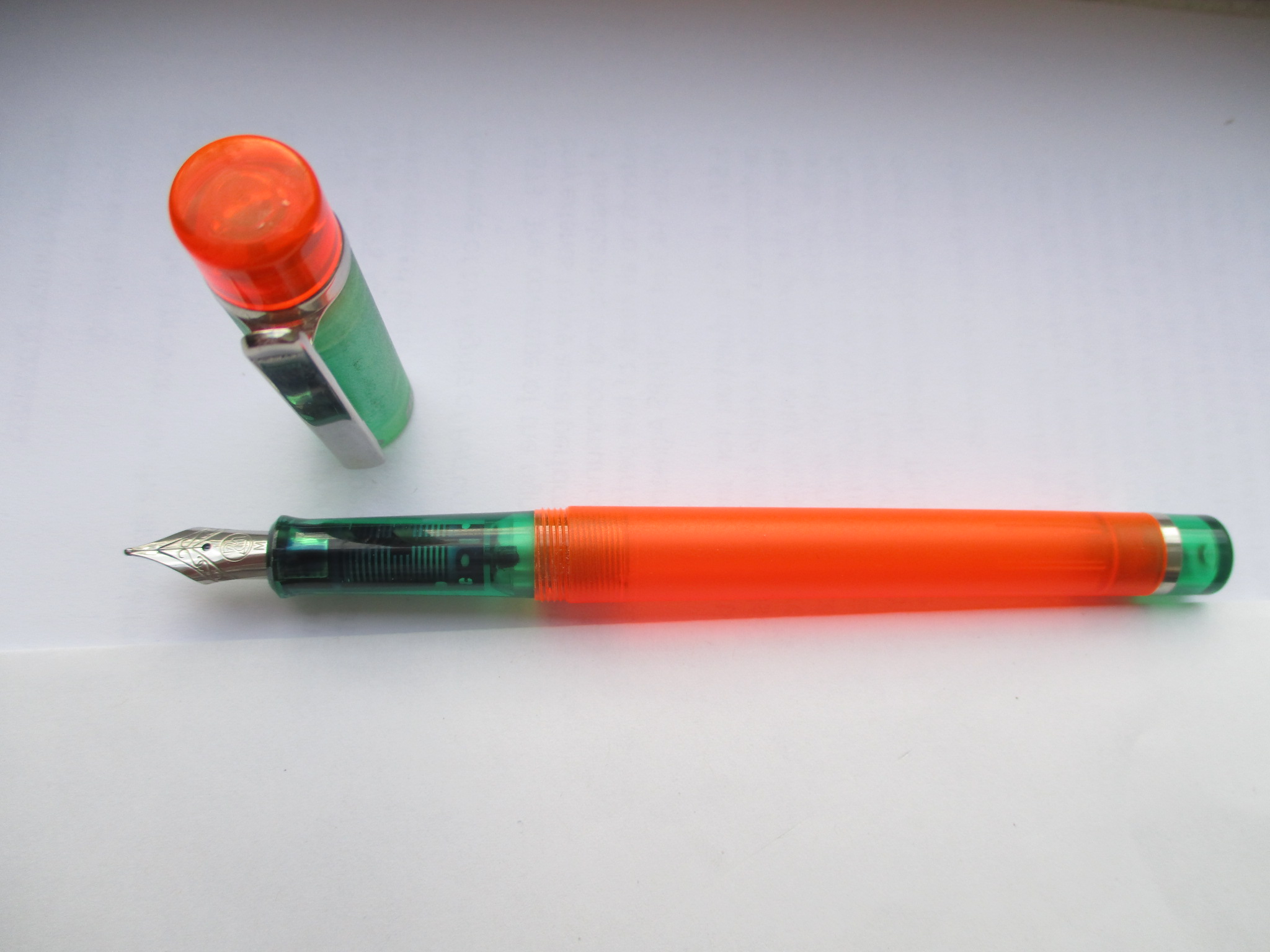

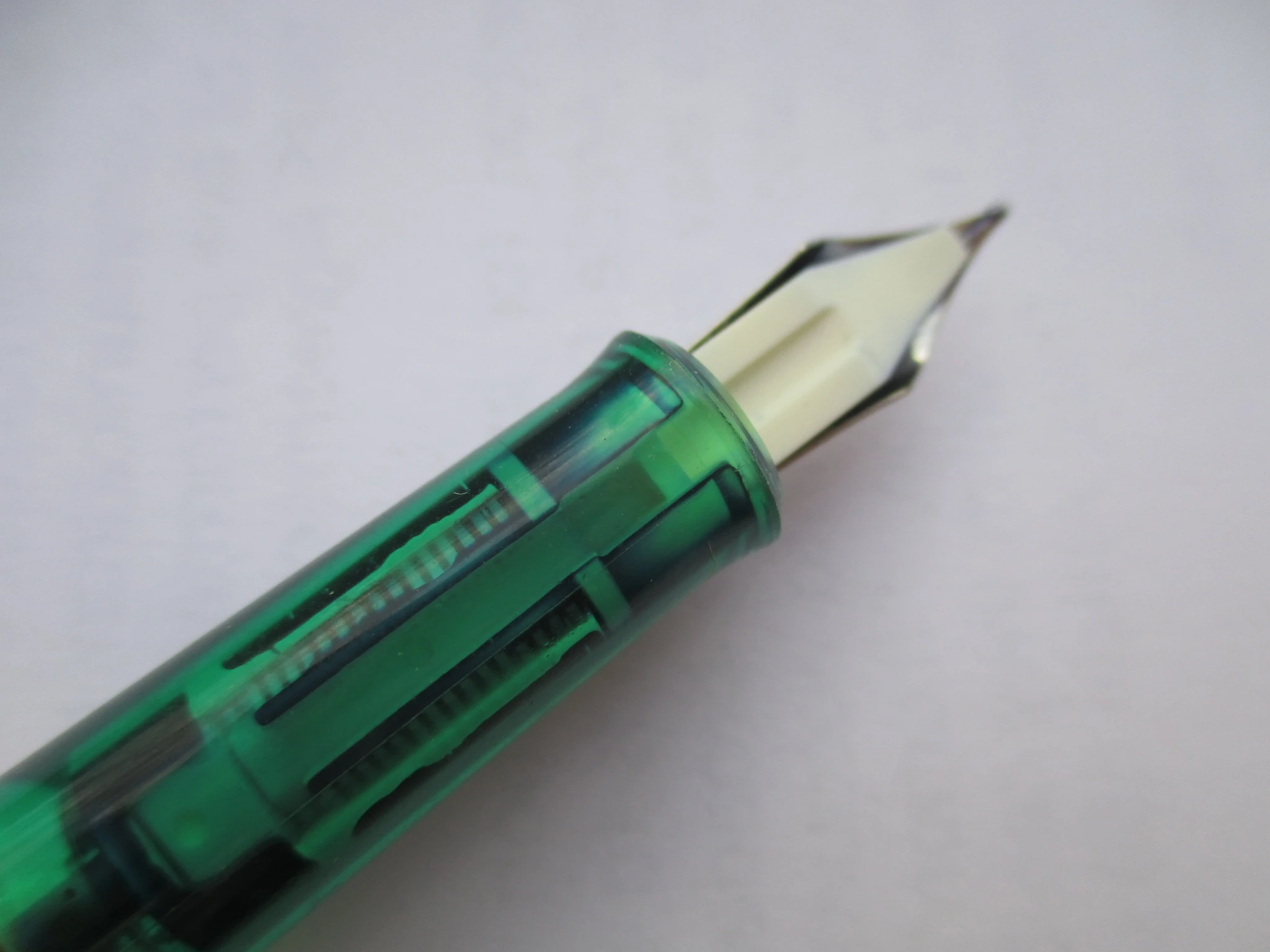

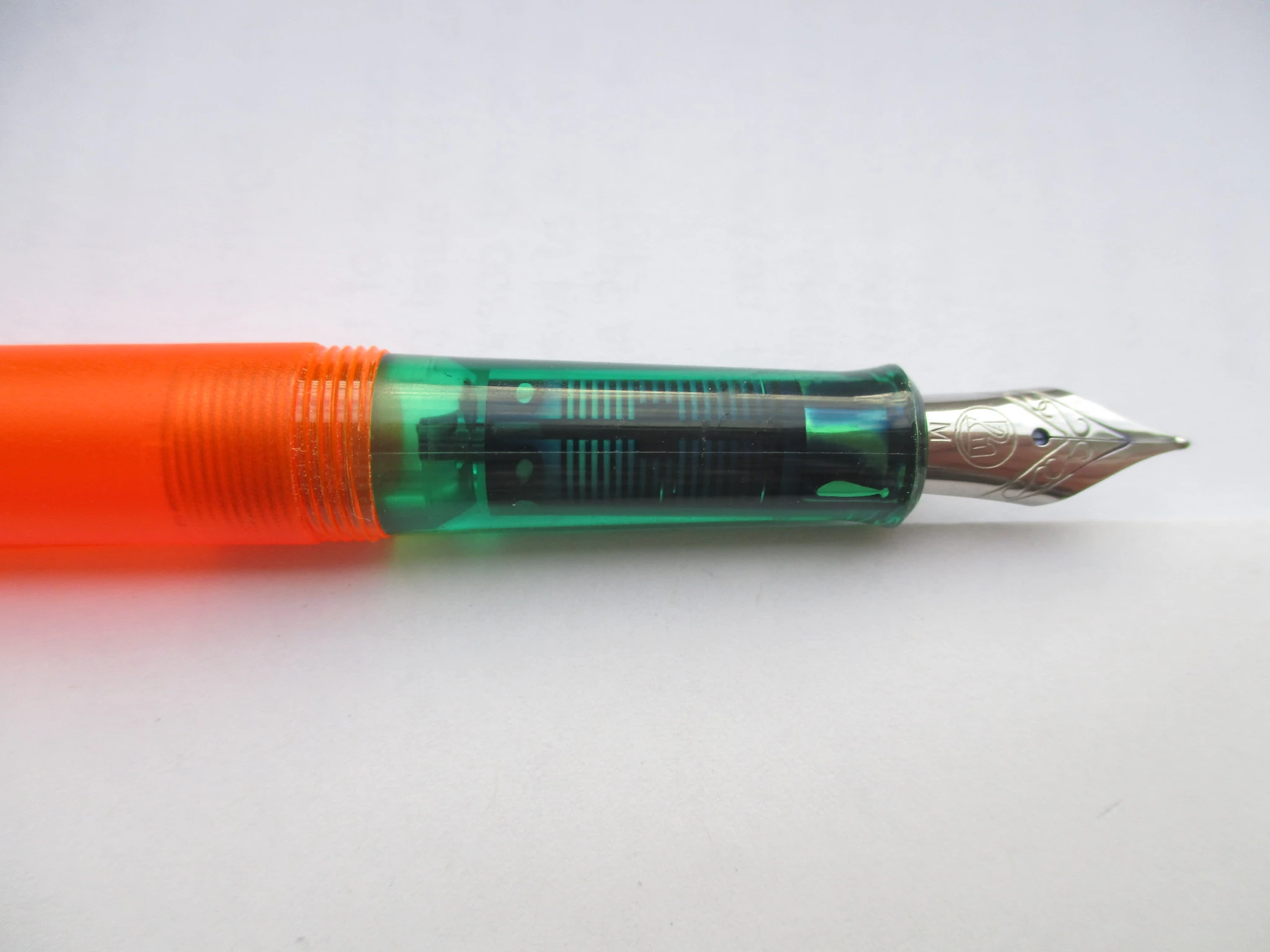

P2000 salmon orange transparent Series Production Color
Production: from 1999Nib: Steel Leaflet: SpanischLink opens PDF documentPelikan CATÁLOGO GENERAL
Logo: Without Logo Series Production
Barrel Color: orangeCap Color: greenTrim: silver-colored

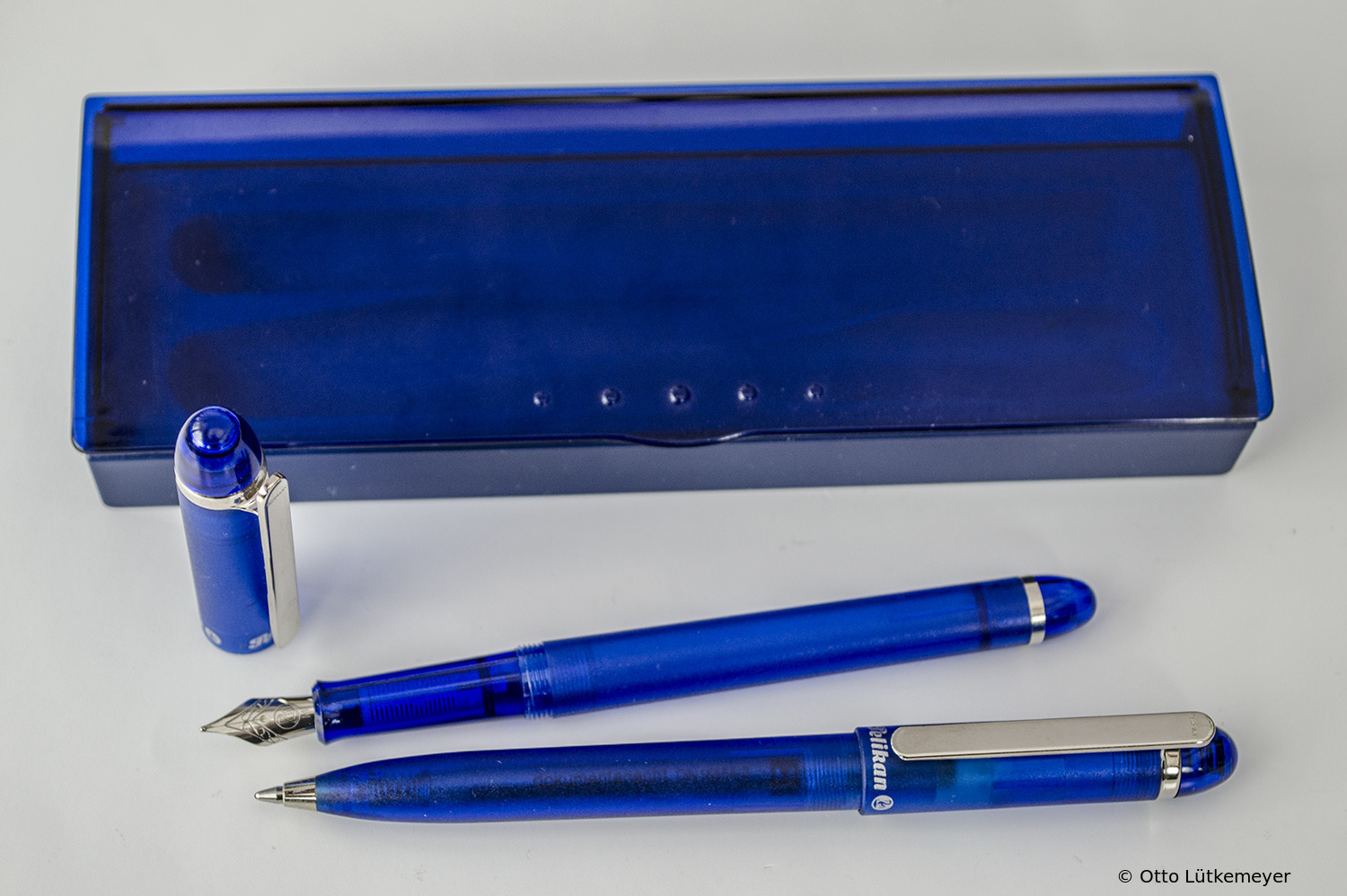

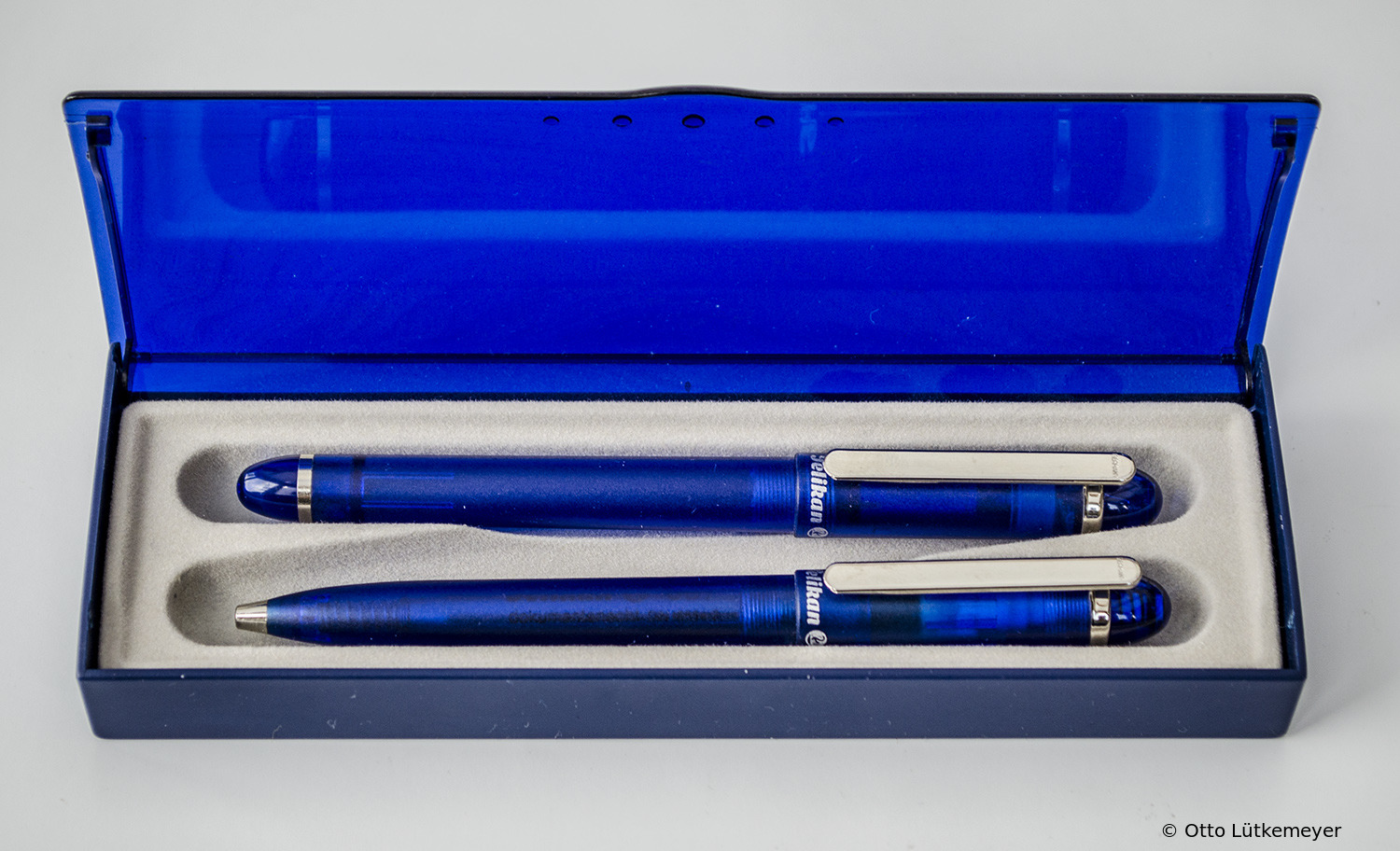

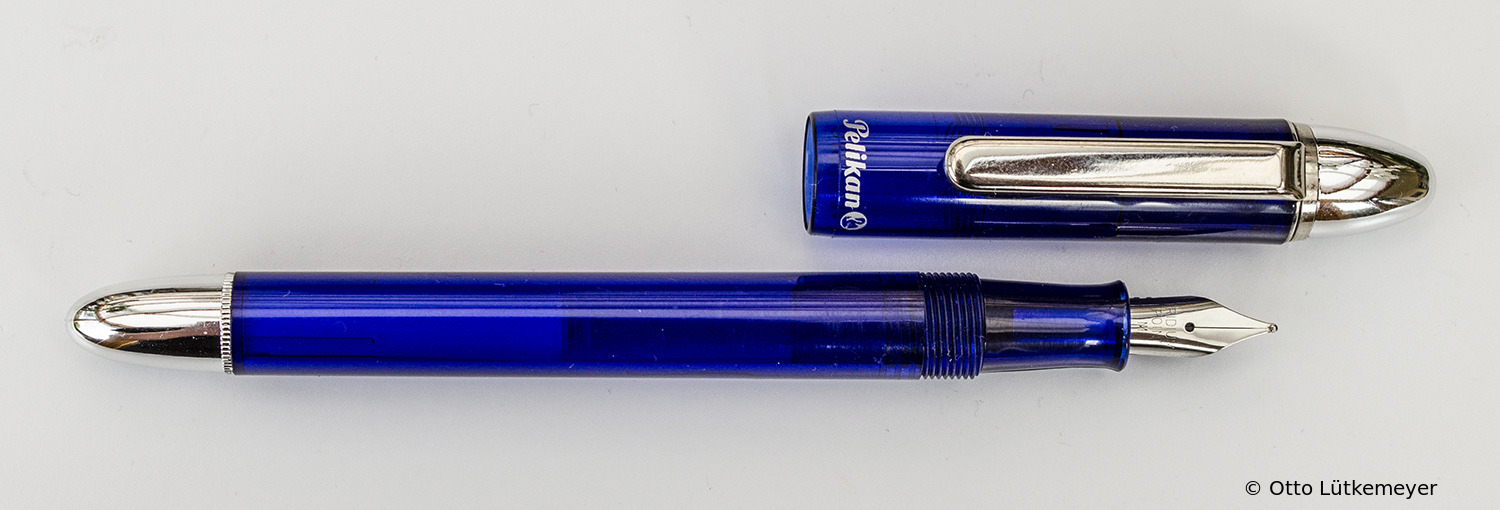

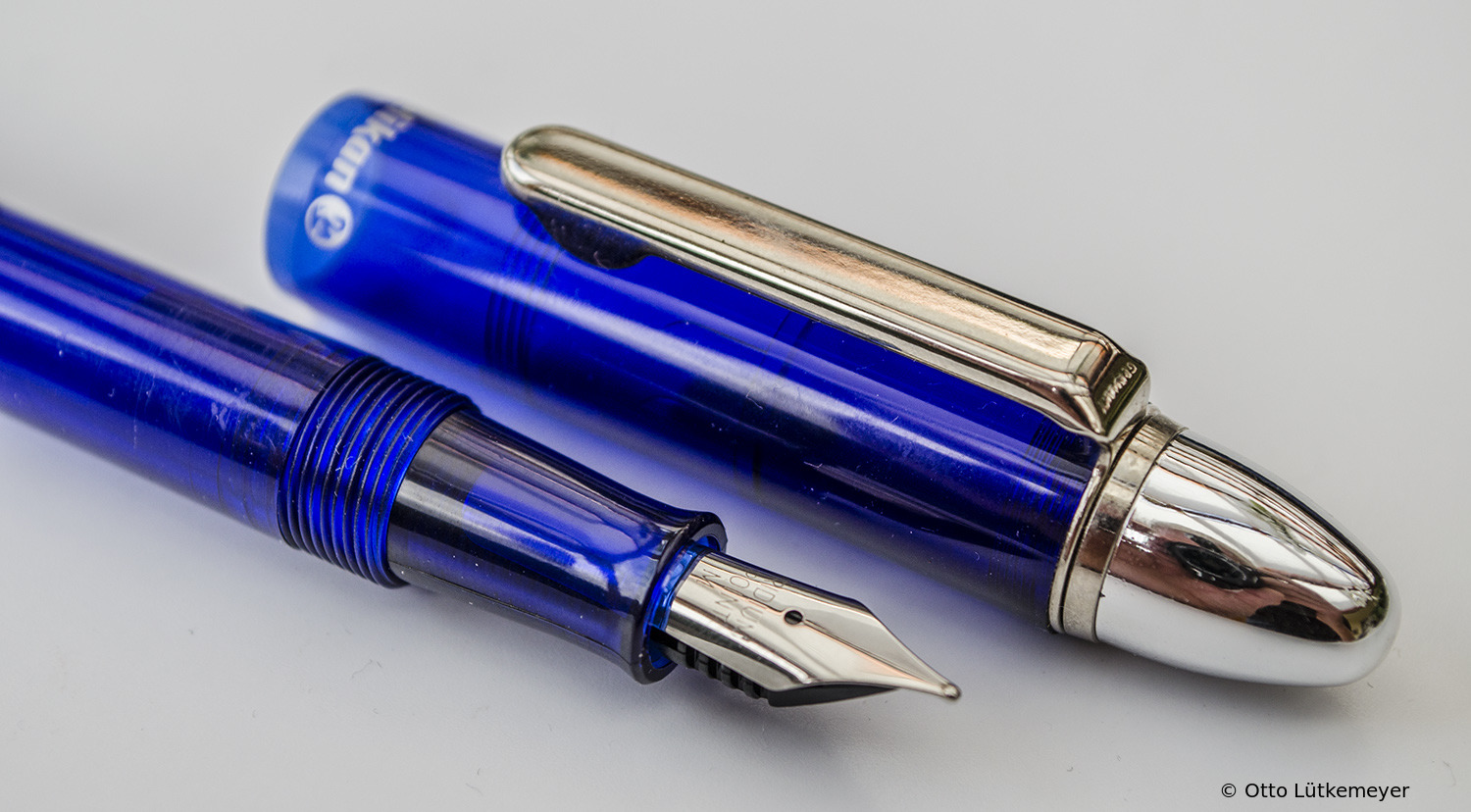

Pelikan Set 2500

The piston filler and the ballpoint pen are made of blue transparent plastic with chrome fittings.
The fountain pen has a screw-cap, the ballpoint pen a push mechanism.

Model Production Period Nib
Set 2500 after 2003

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.43 oz 5.65 in 4.33 in 2.60 in 0.43 in 0.8 ml (cartridge) + reserve cartridge
12.3 g 143.5 mm 110 mm 66 mm 11 mm


P2500

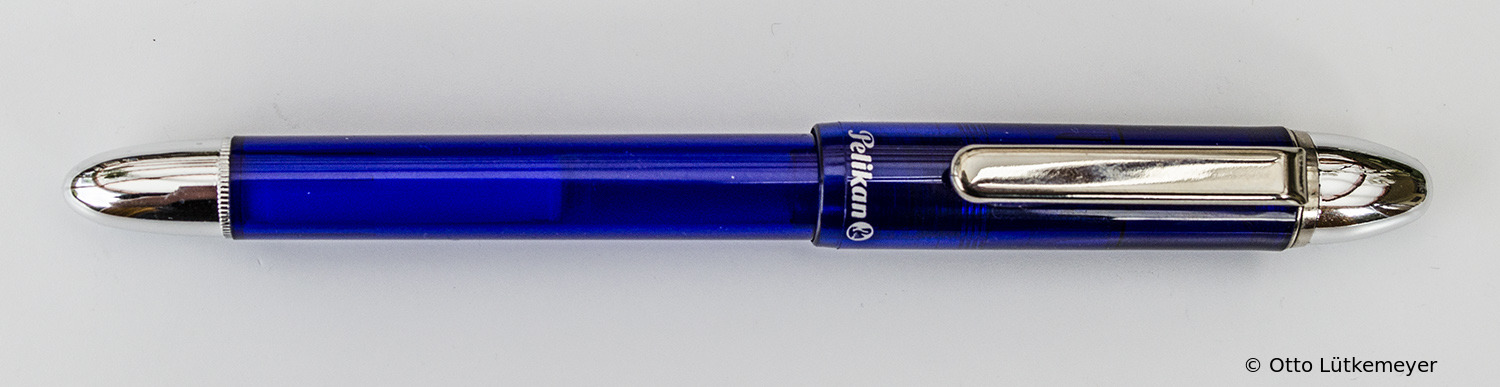

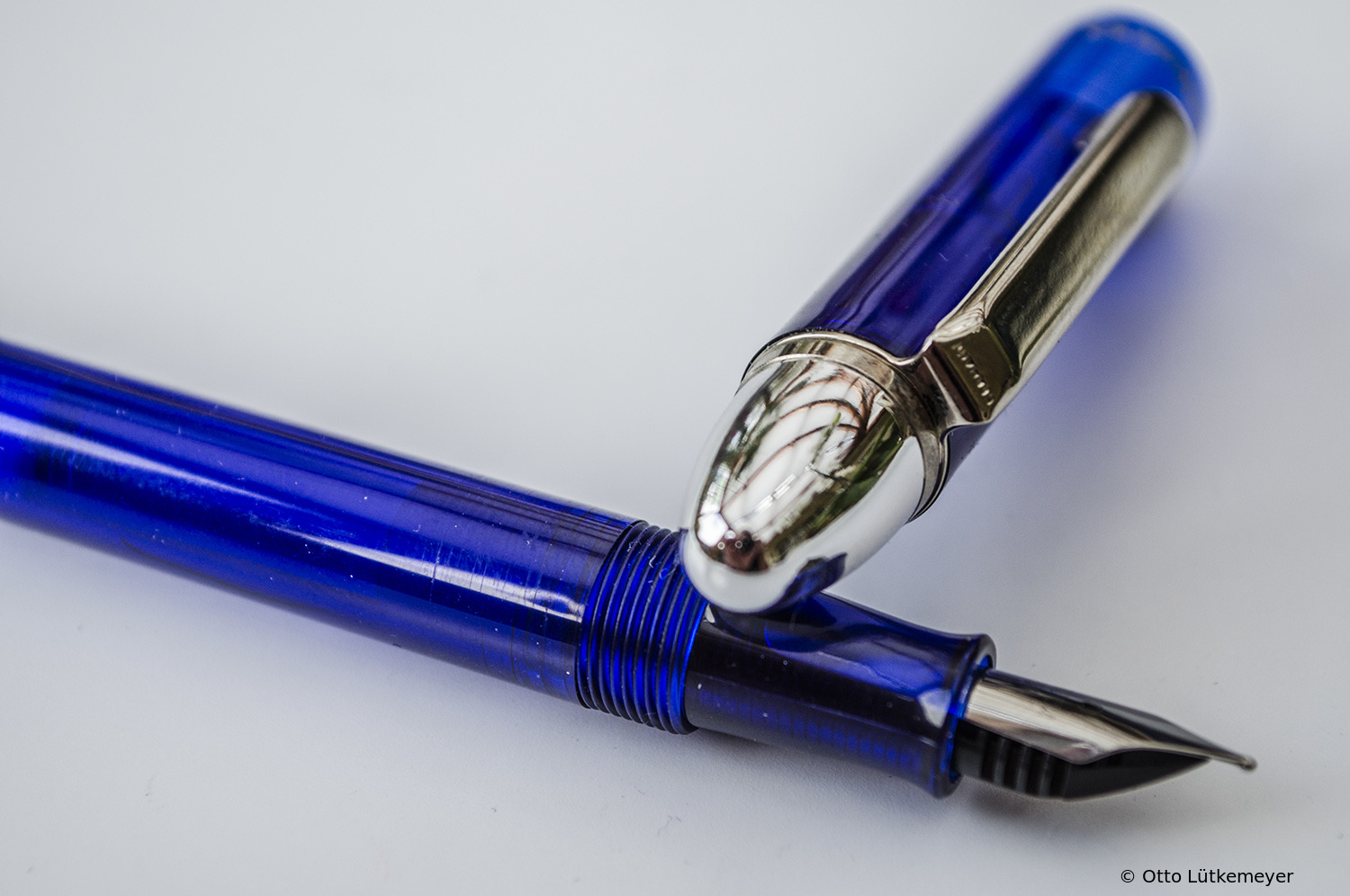

P2500 Transparent blue Series Production Color Details
Production: after 2003Nib: Steel
Logo: Without Logo Series Production
Barrel Color: blueCap Color: blueTrim: silver-colored

Stainless steel nib IRIDIUM Point

Pelikan Set 3000

The piston filler and the ballpoint pen are made of blue transparent plastic with chrome fittings.
The fountain pen has a screw-cap, the ballpoint pen a push mechanism.

Model Production Period Nib
Set 3000 after 2003

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.67 oz 5.39 in 4.33 in 2.36 in 0.44 in 0.8 ml (cartridge) + reserve cartridge
19.1 g 137 mm 110 mm 60 mm 11.2 mm


P2500

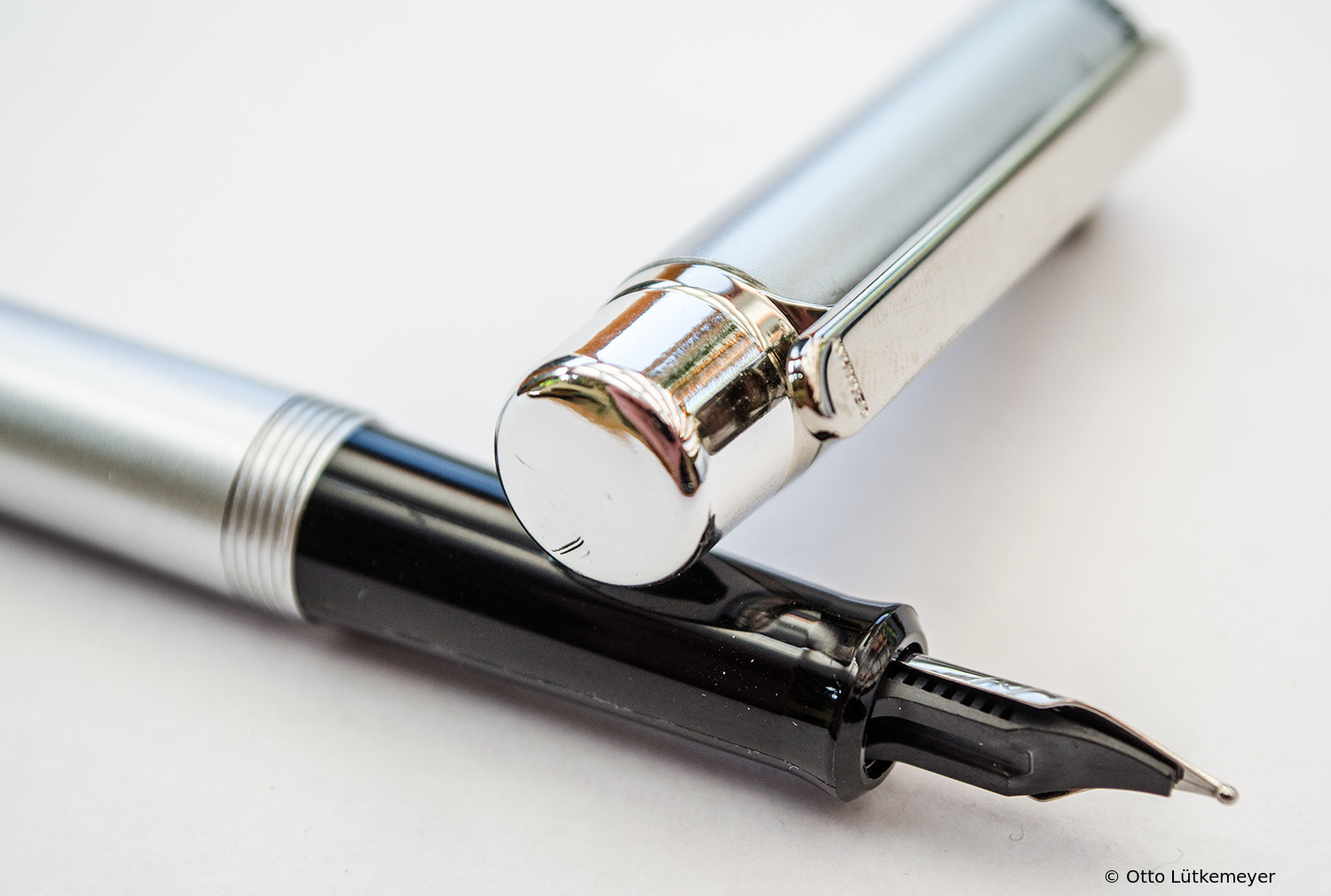

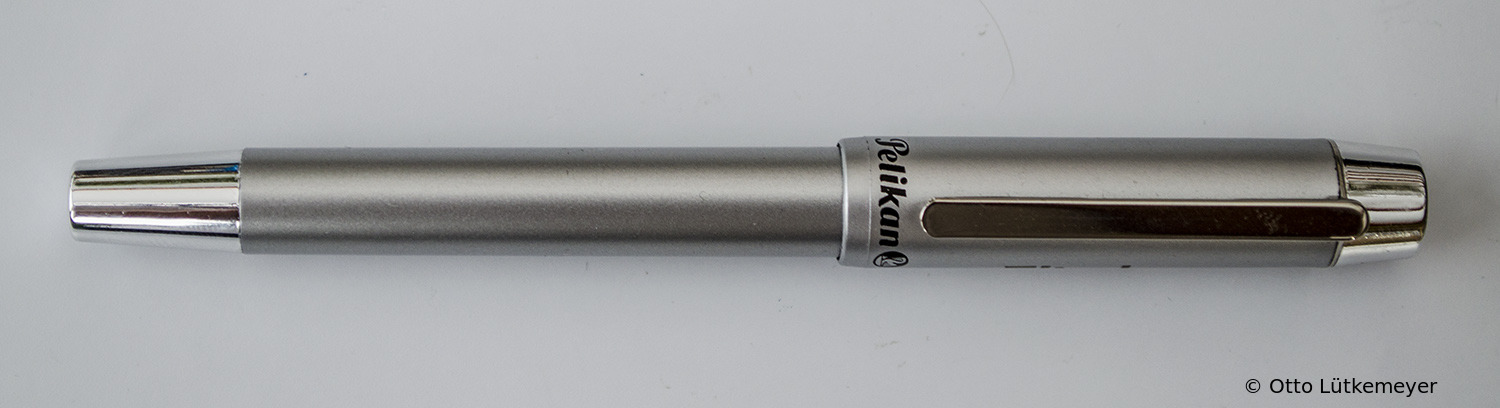

P2500 Silver Series Production Color Details
Production: around 2003Nib: Steel Leaflet: DeutschLink opens PDF documentBotschafter der Exzellenz
Logo: Without Logo Series Production
Barrel Color: silverCap Color: silverTrim: silver-colored

Stainless steel nib IRIDIUM Point

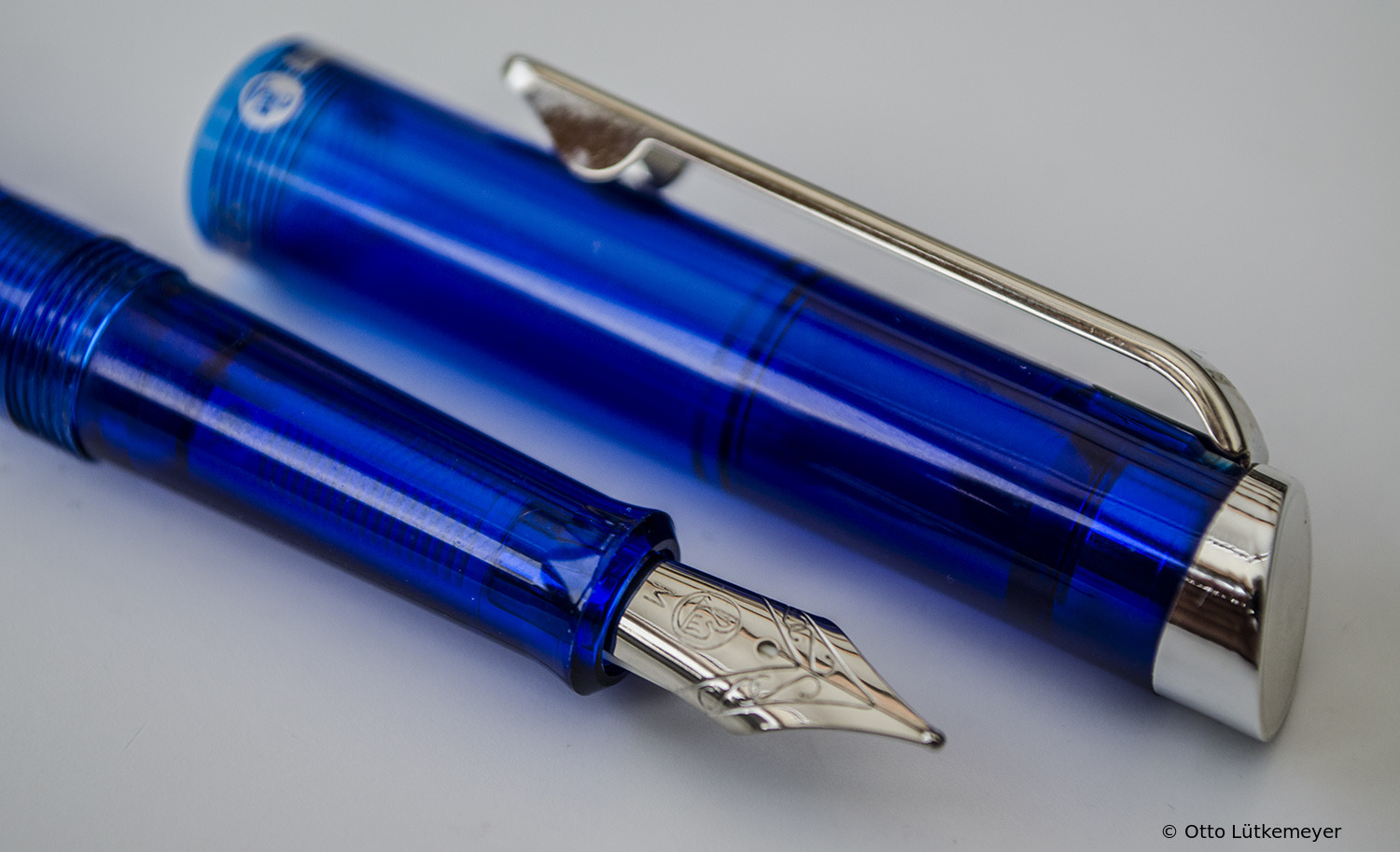

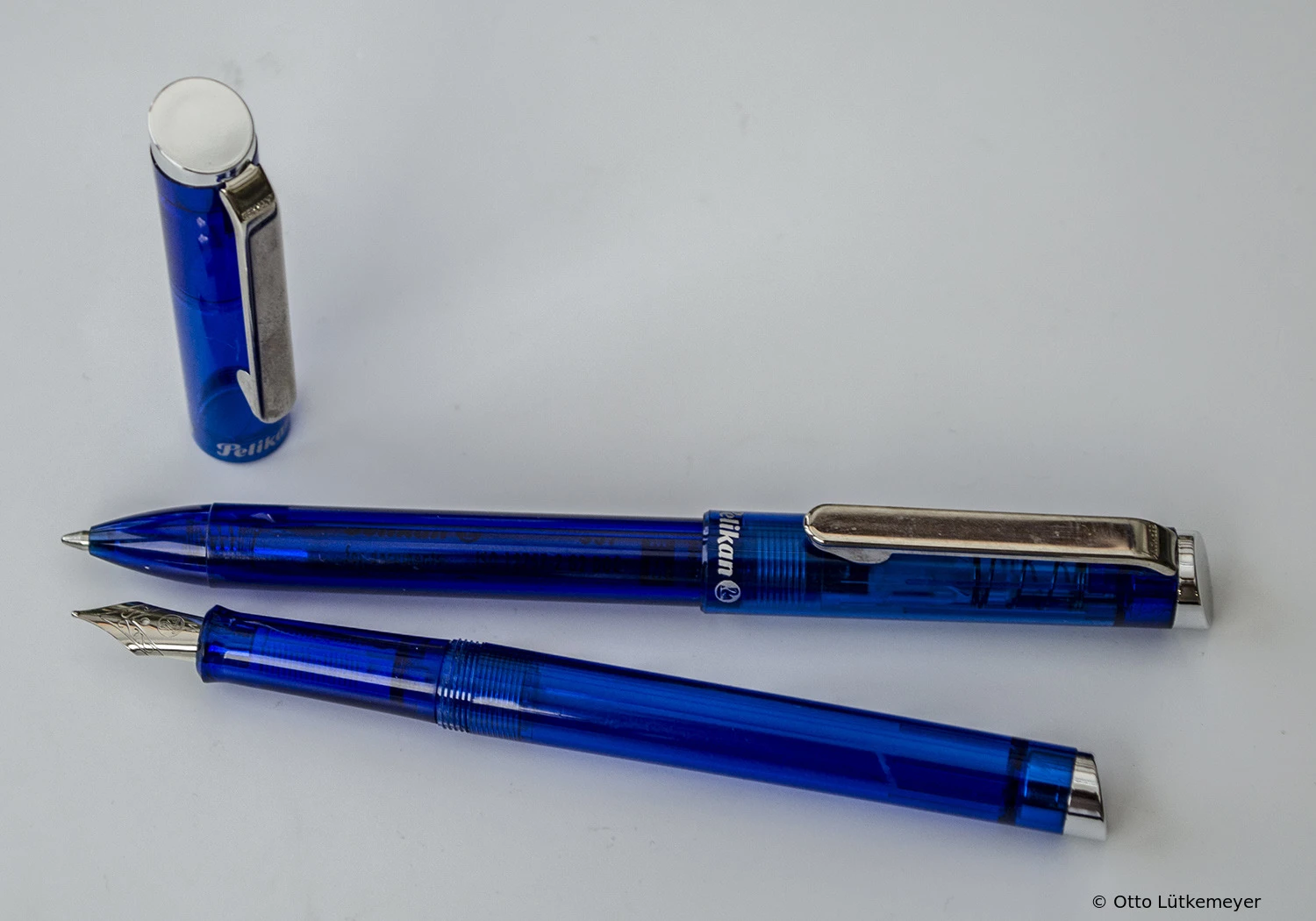

Pelikan Set 4000

The pens of Set 4000 are made of transparent plastic. The pen has a screw cap. The set includes a ballpoint pen with push mechanism.
The printed Pelikan symbol shows 1 chick in the nest, but the nib of the Pelikan Cartridge filler still shows the old logo with 2 chicks in the nest.

Model Production Period Nib
Set 4000 after 2003

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.36 oz 5.39 in 4.29 in 2.44 in 0.43 in 0.8 ml (cartridge) + reserve cartridge
10.3 g 137 mm 109 mm 62 mm 11 mm

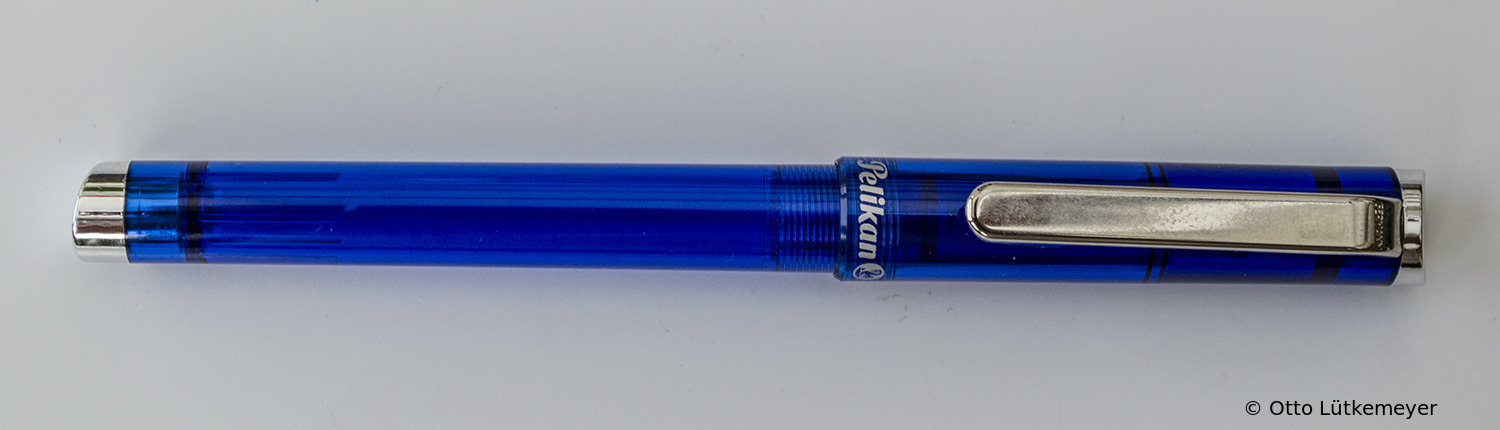

P4000

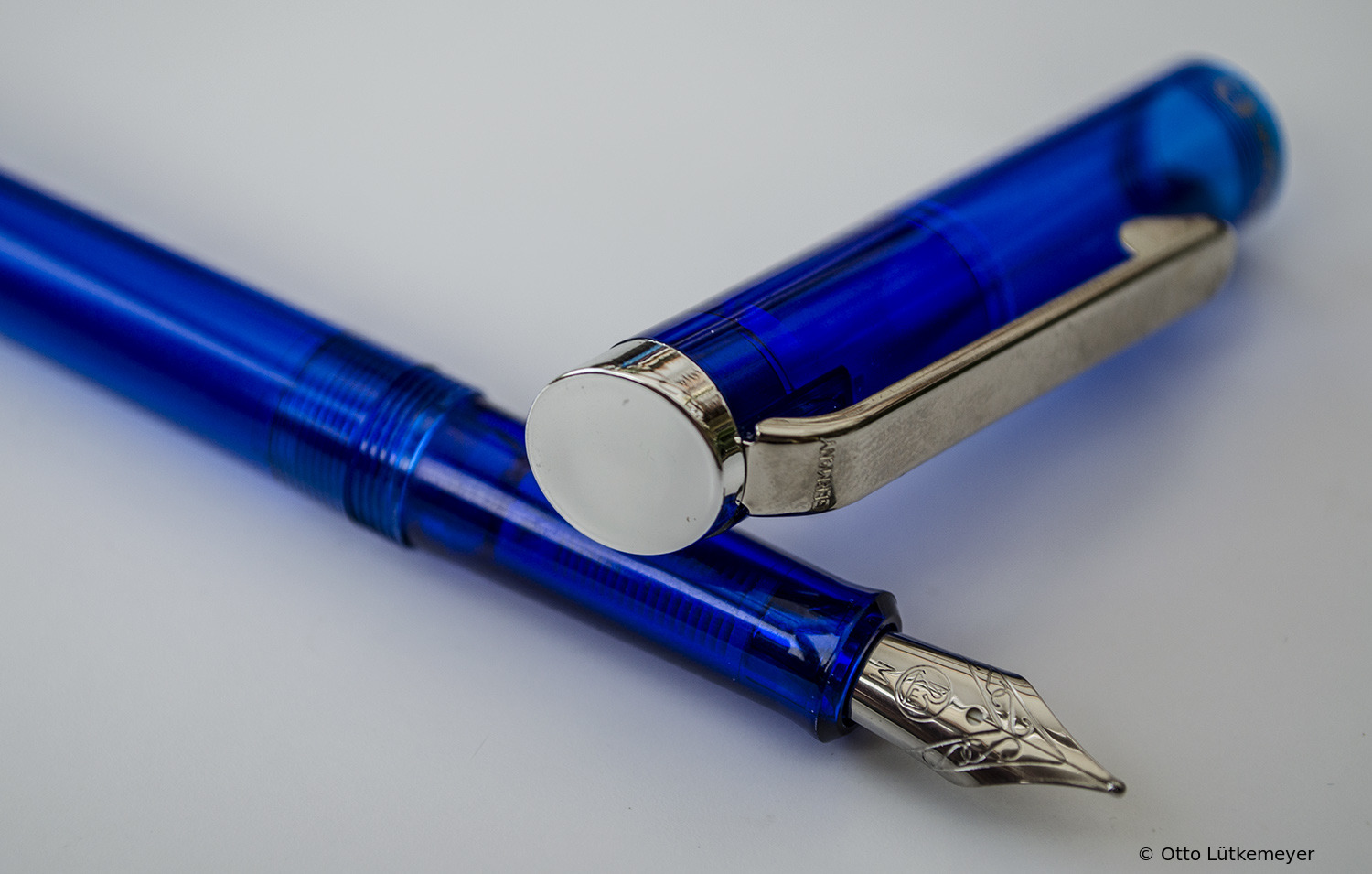

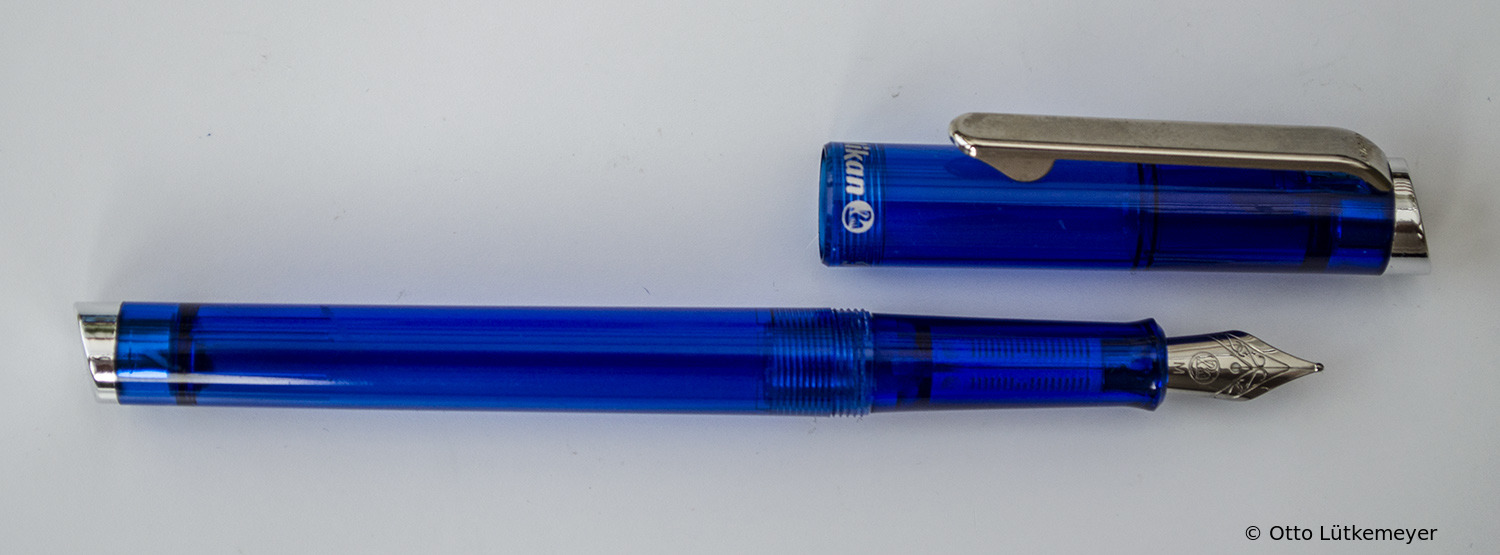

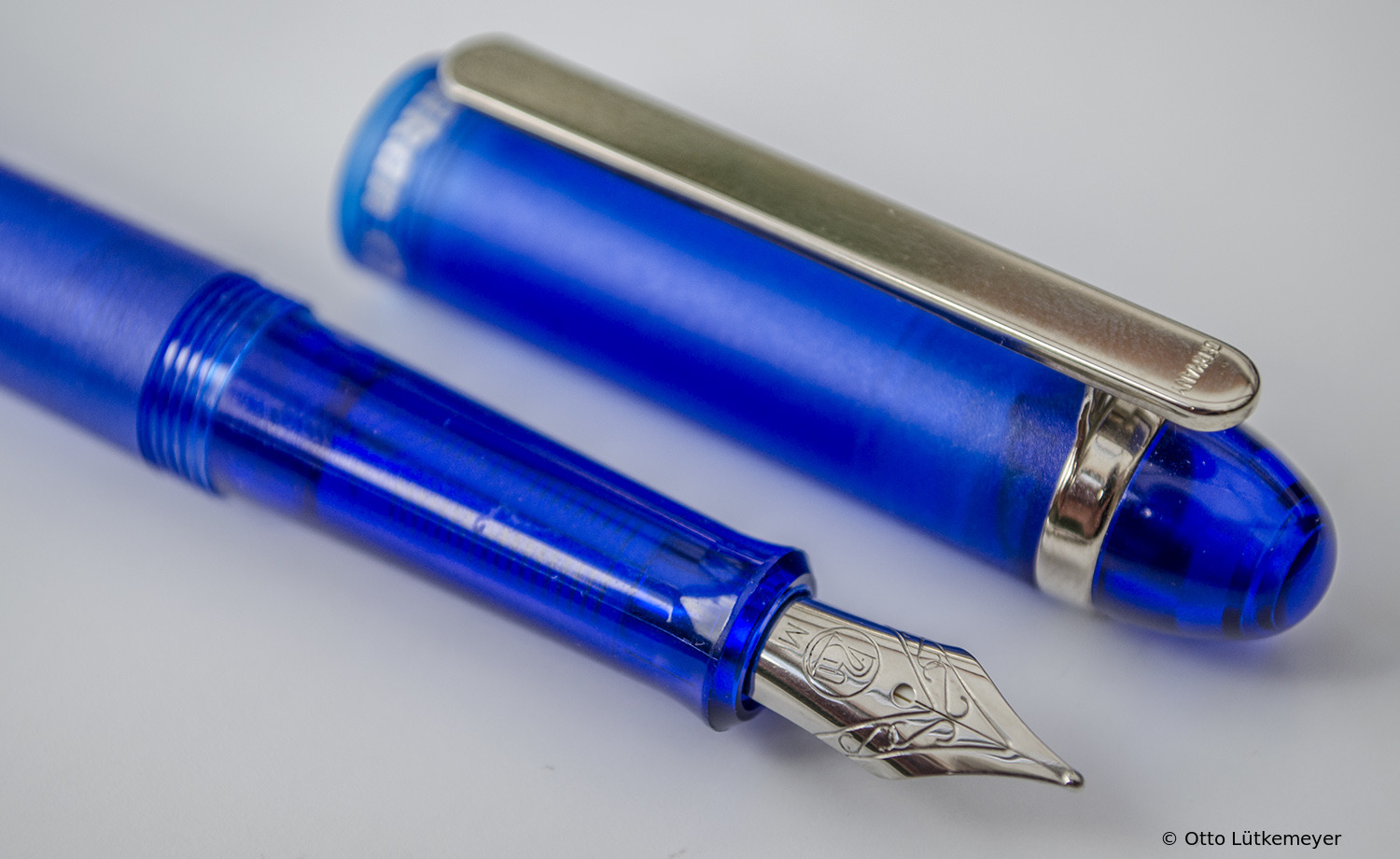

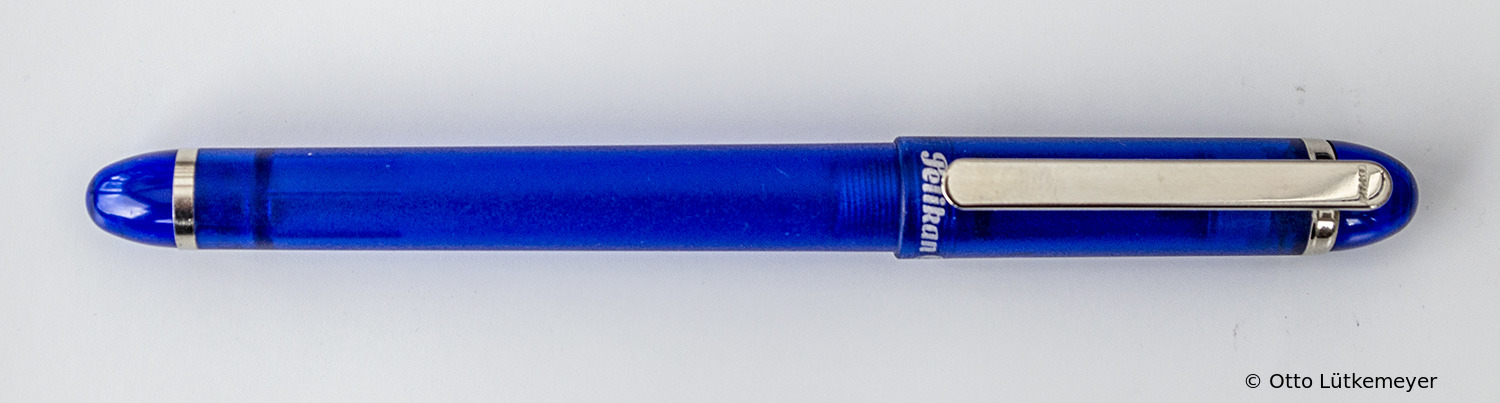

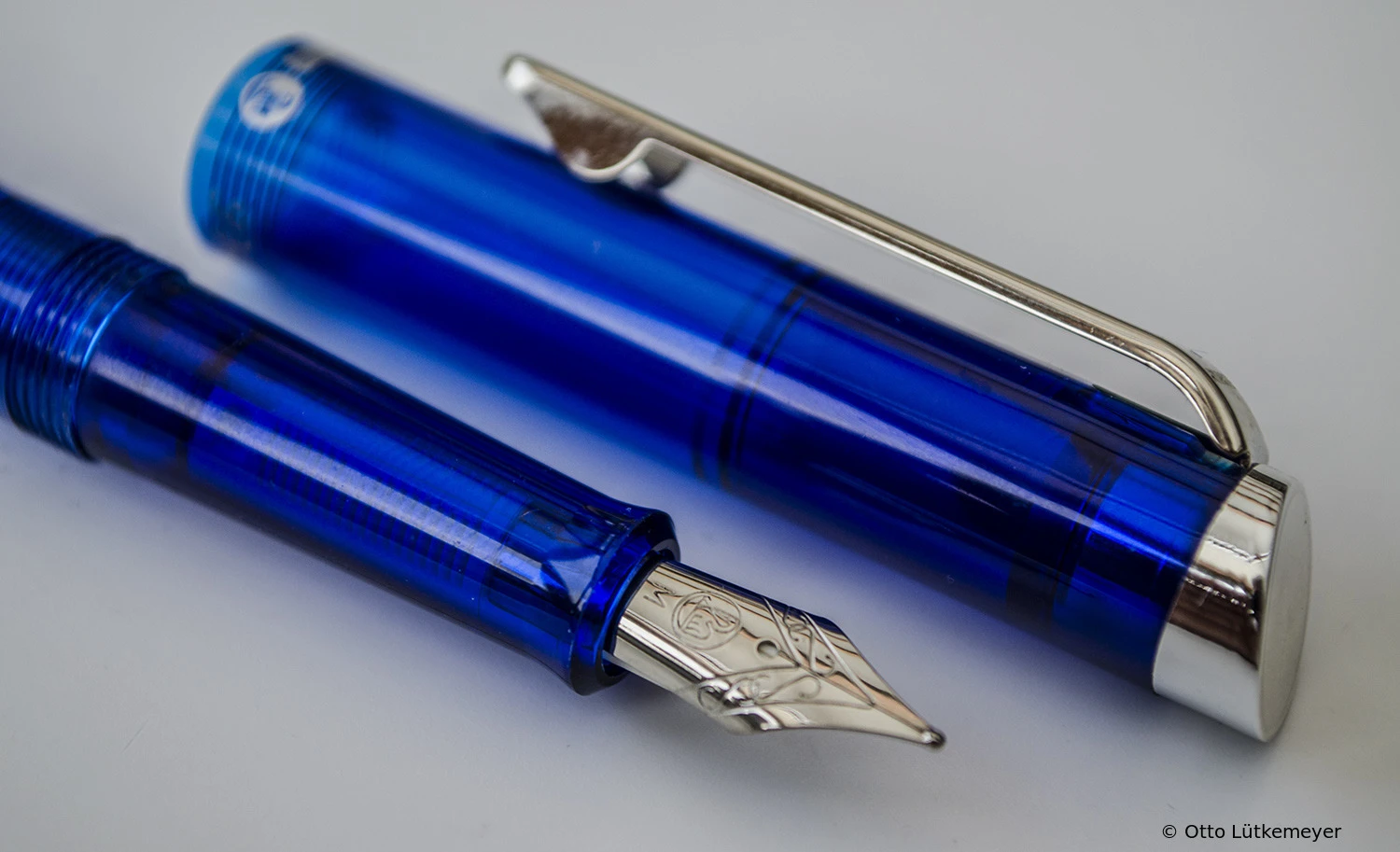

P4000 Blue transparent Series Production Color
Production: after 2003Nib: Steel
Logo: Without Logo Series Production
Barrel Color: blueCap Color: blueTrim: silver-colored

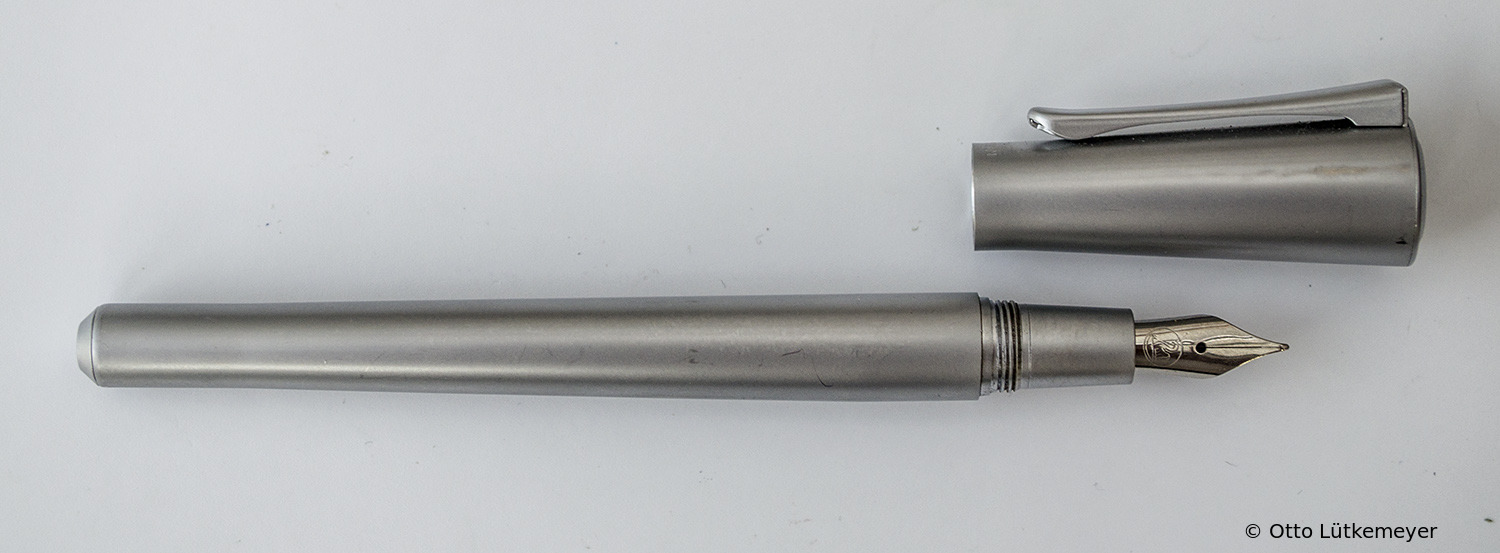

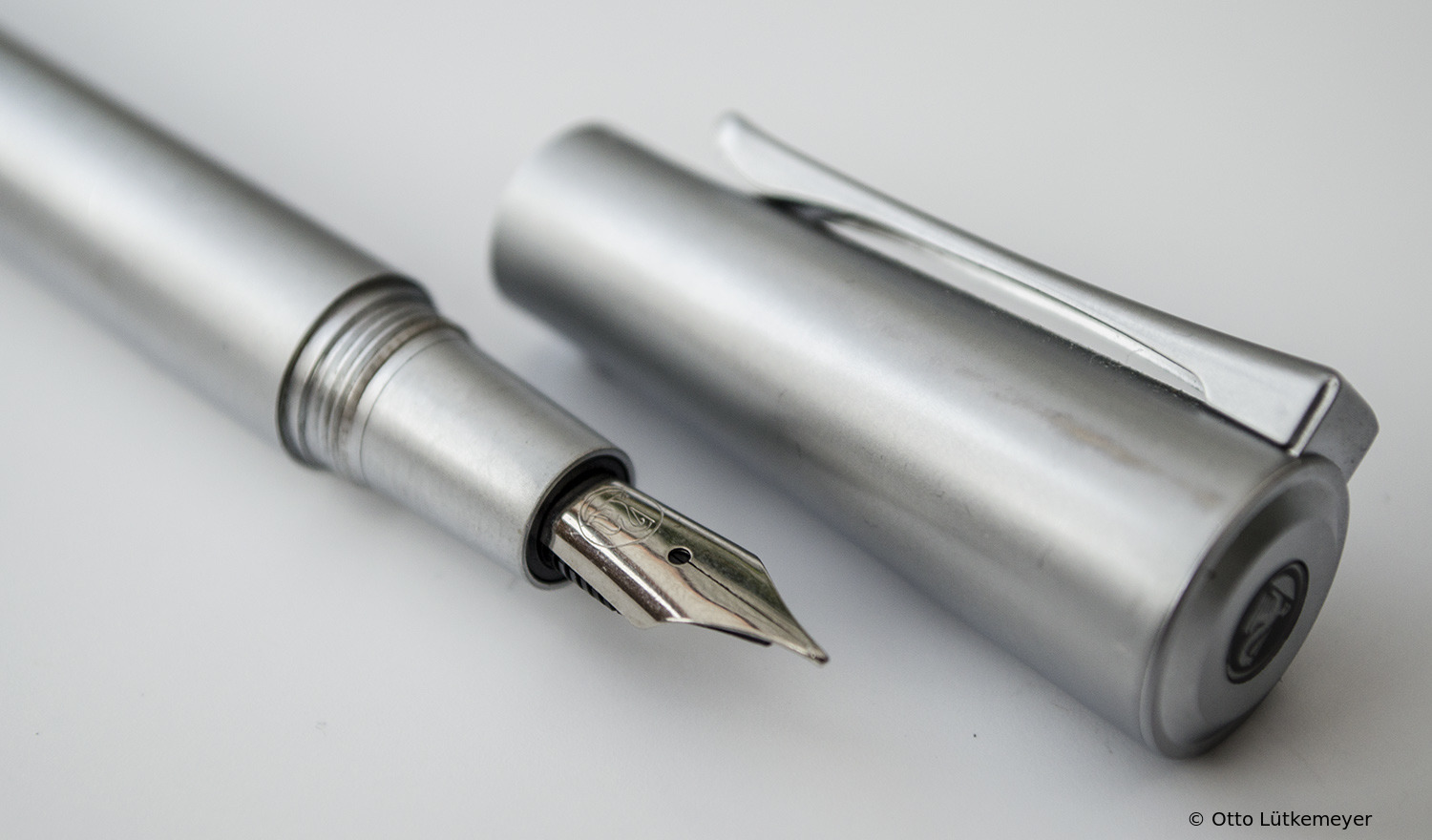

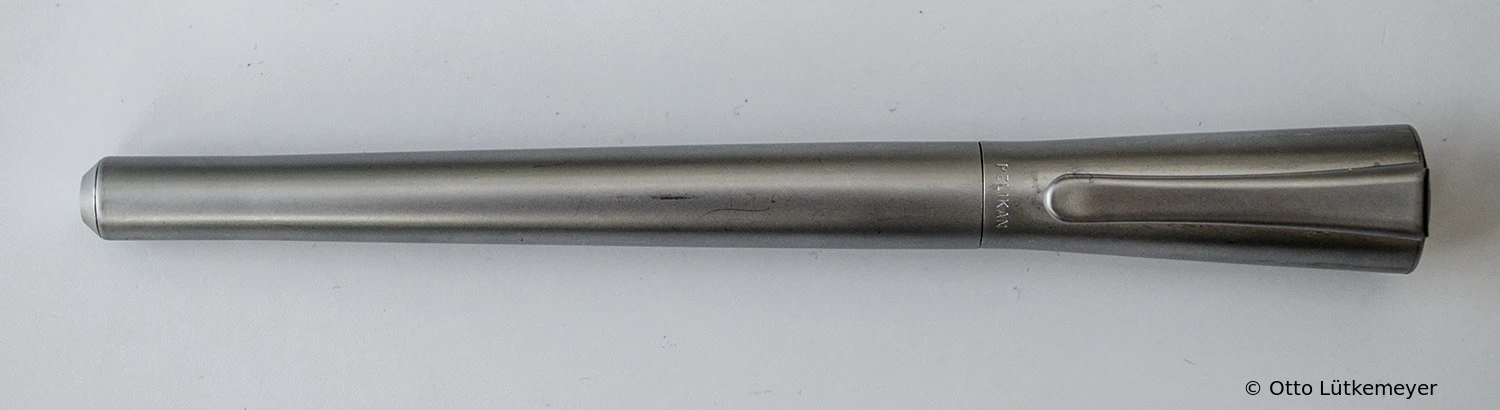

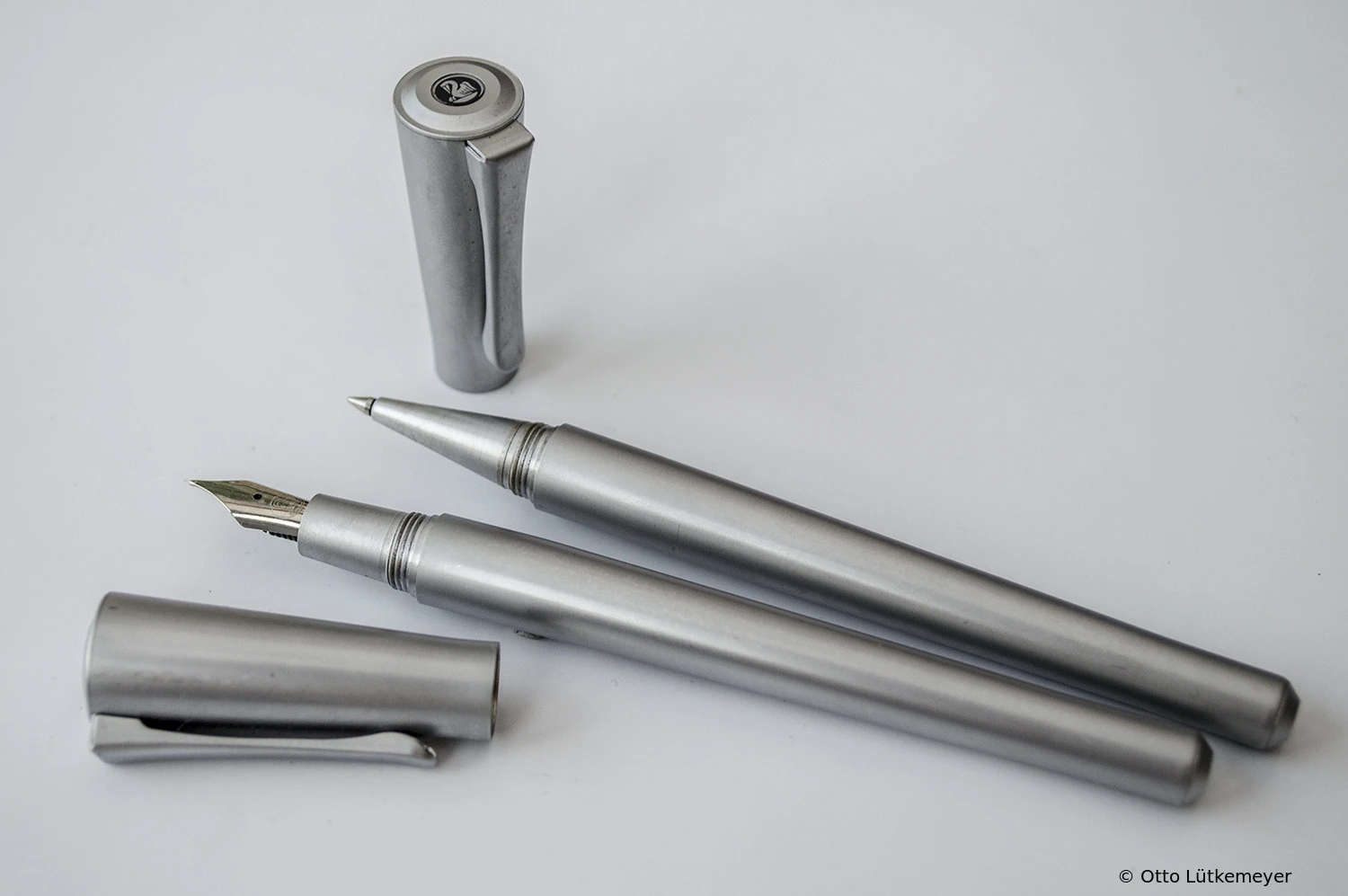

Pelikan Pharo

The pens of the Pharo series are noted for their unconventional design, with a slim barrel end of just 9 mm tapering outwards towards the flared cap head with its 16 mm diameter. As the screw cap and the barrel are made of metal, the writing instruments are notably heavy; the weight is distributed approximately equally between the cap and barrel. The pens are offered as cartridge pen (P72), (rotary) ballpoint pen (K72) or rollerball (R72) with cap. The fountain pens are offered only in the nib size M.

Model Production Period Nib
Pharo ca. 2003-2006

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
1.25 oz 5.59 in 4.39 in 1.85 in 0.45 in 1.4 ml giant ink cartridge
35.5 g 142 mm 111.5 mm 47 mm 11.5 mm

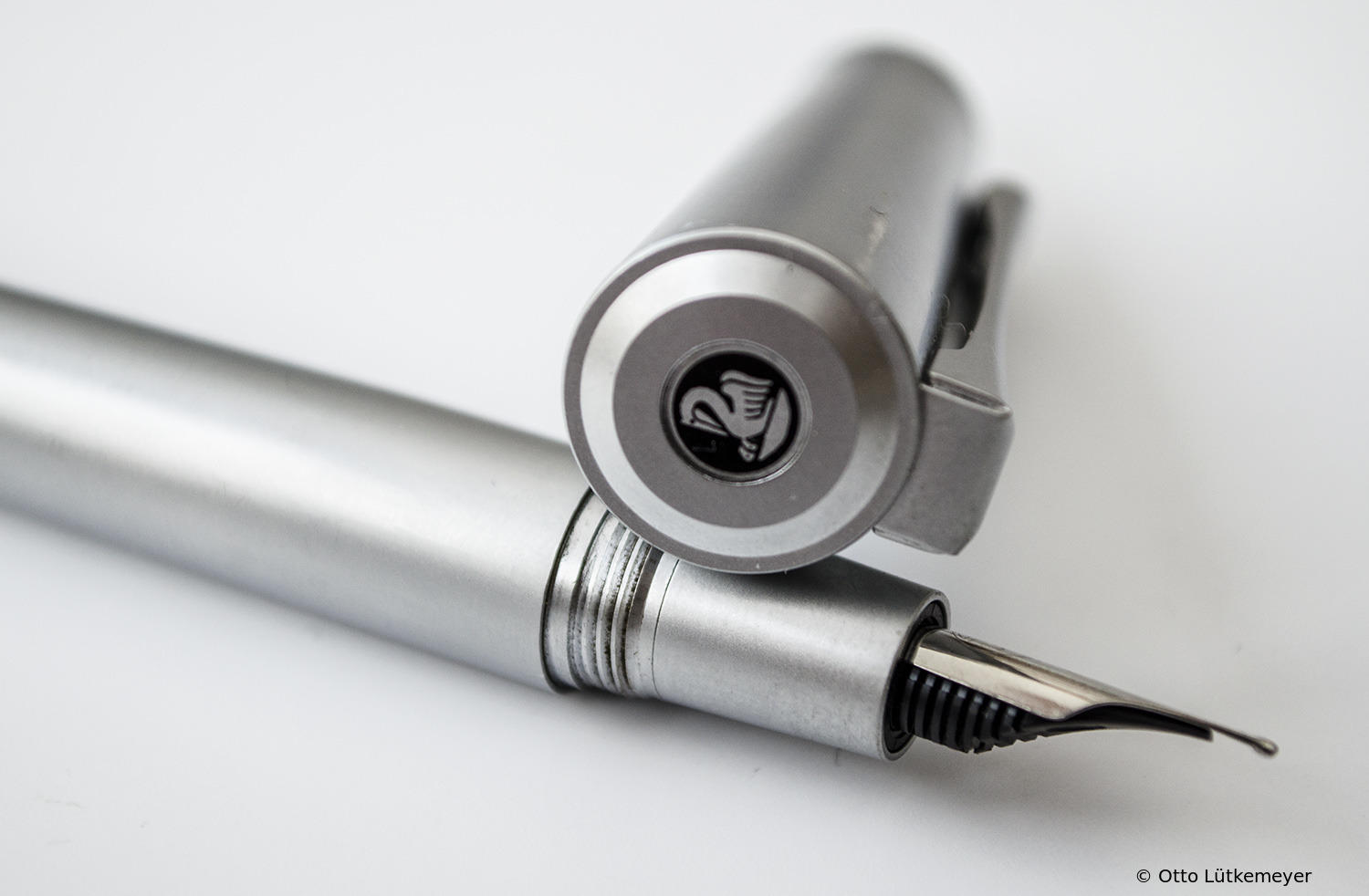

P72

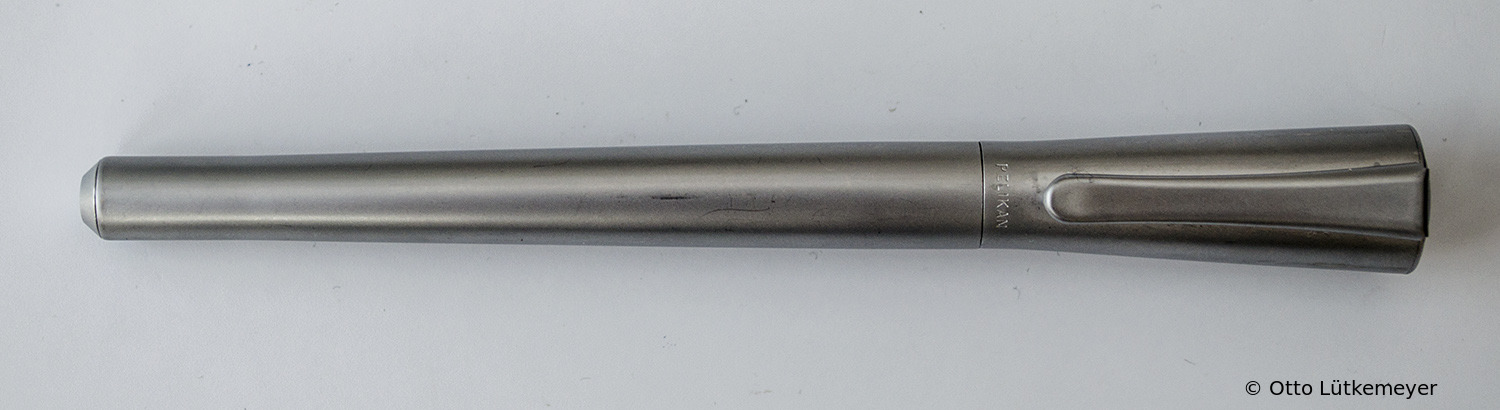

P72 Silver Series Production Color
Production: ca. 2003-2006Nib: Steel Leaflet: DeutschLink opens PDF documentMoments by Pelikan DeutschLink opens PDF documentKatalog 2004
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: silverCap Color: silverTrim: silver-colored

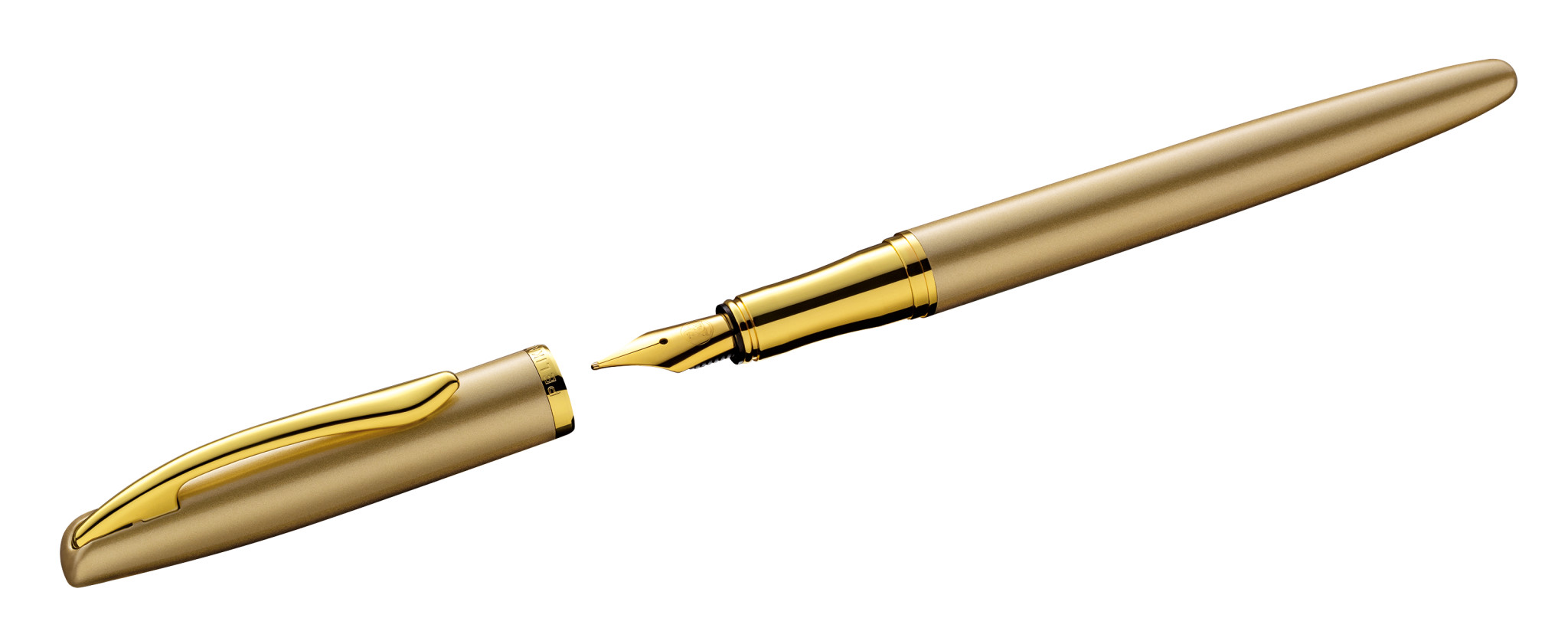

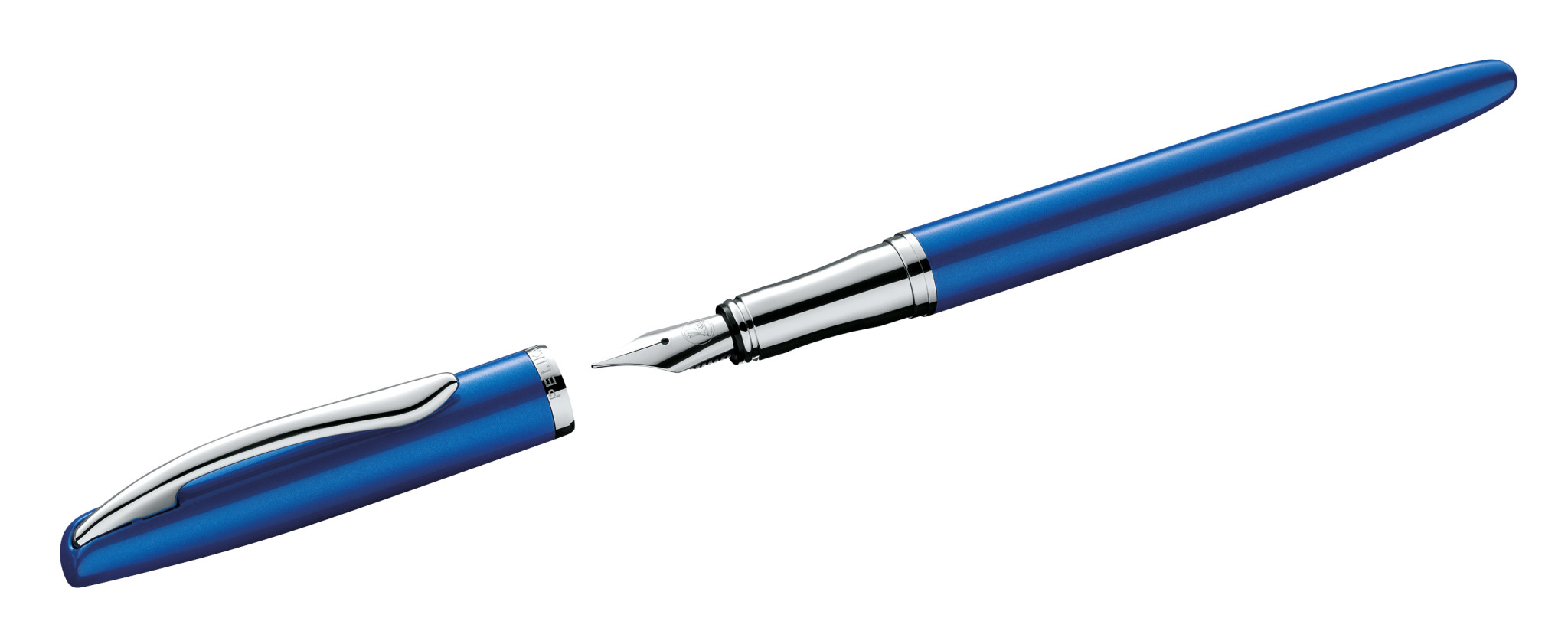

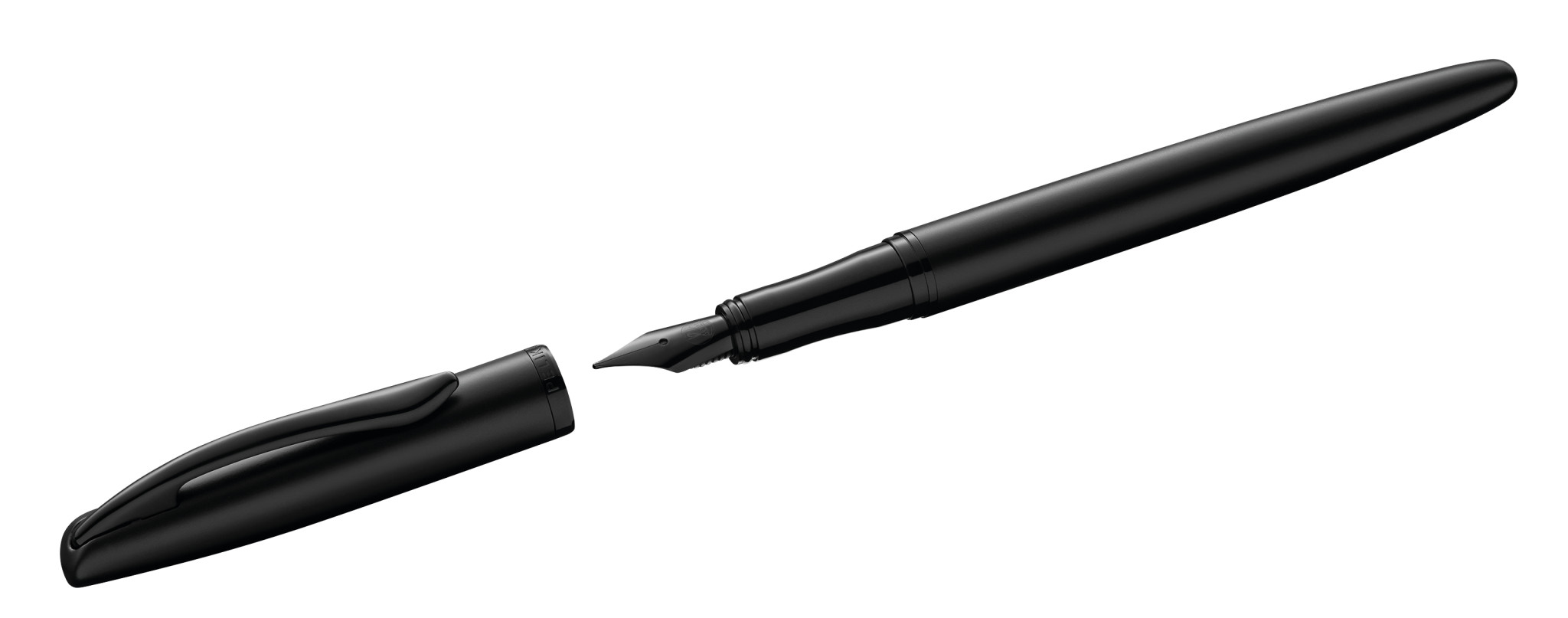

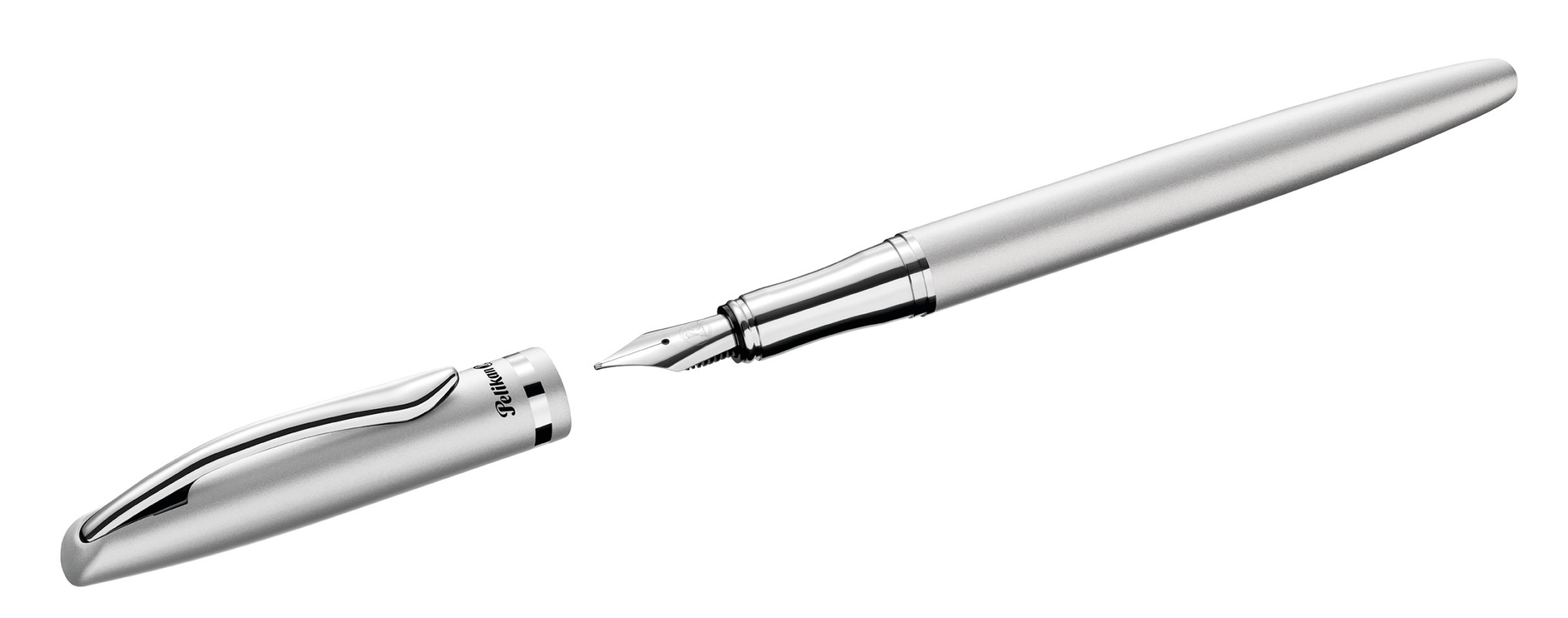

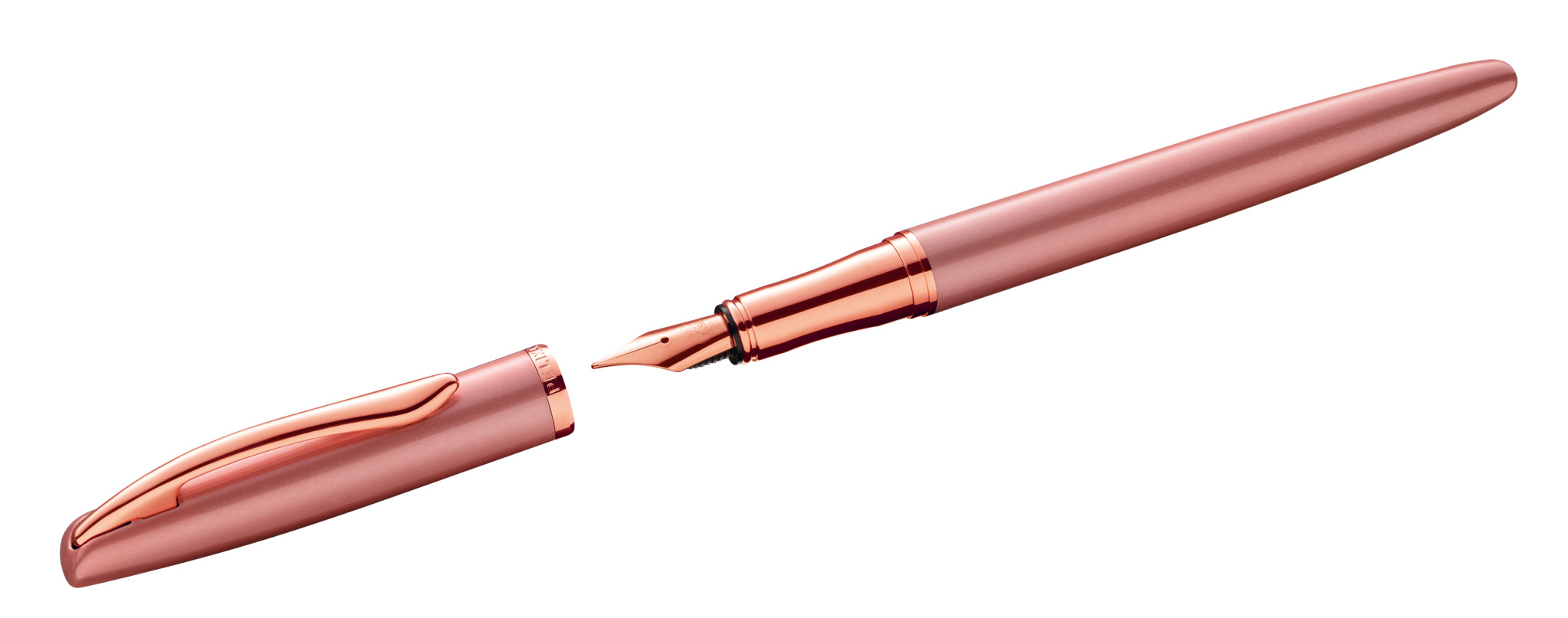

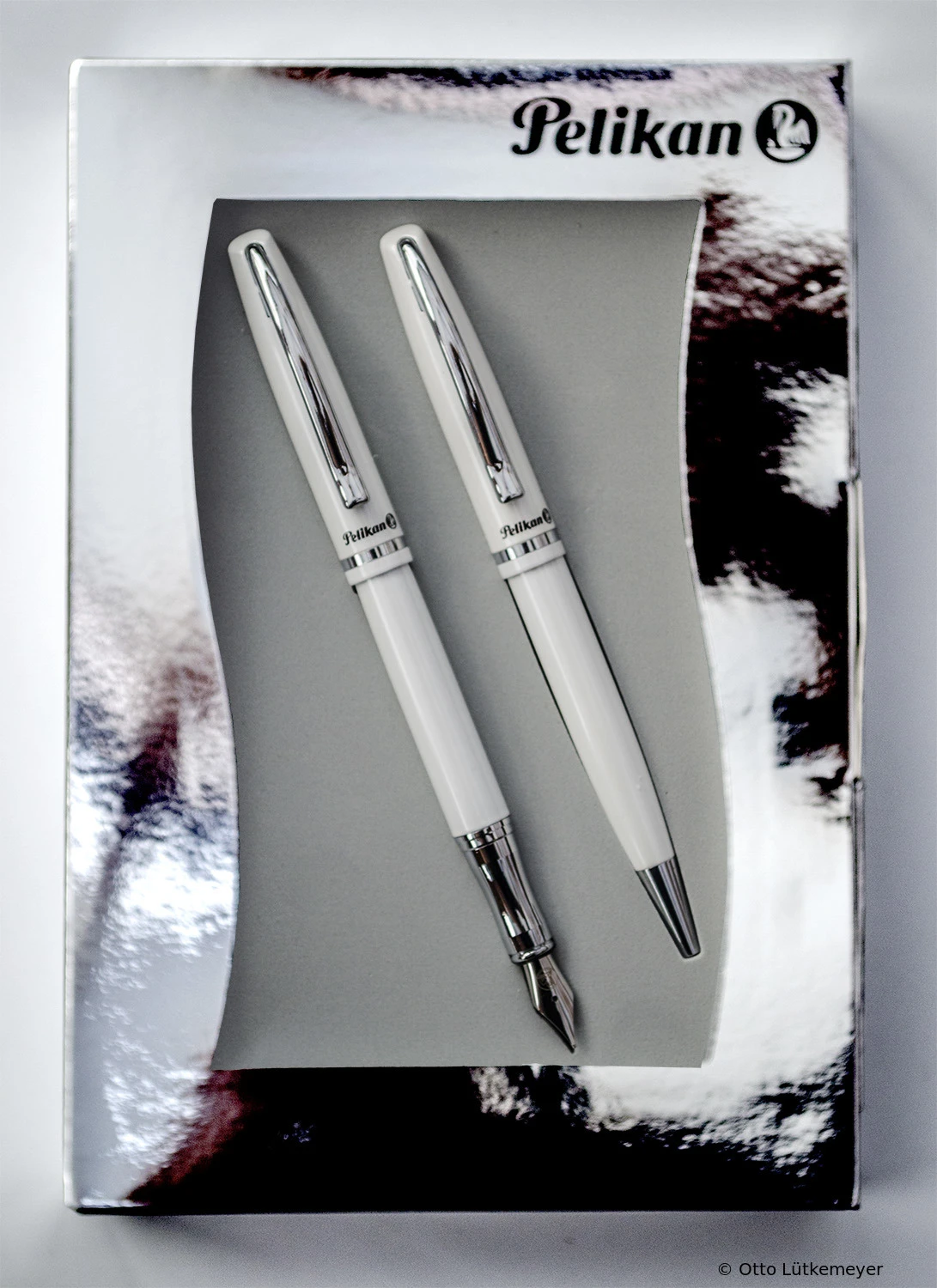

Pelikan JAZZ

At Pelikan Milan this set is offered consisting of fountain pen and twist ball pen. Barrel and cap of writing instruments are made of heavy metal, which are black or white matt lacquered. The polished nib carrying the Pelikan logo.

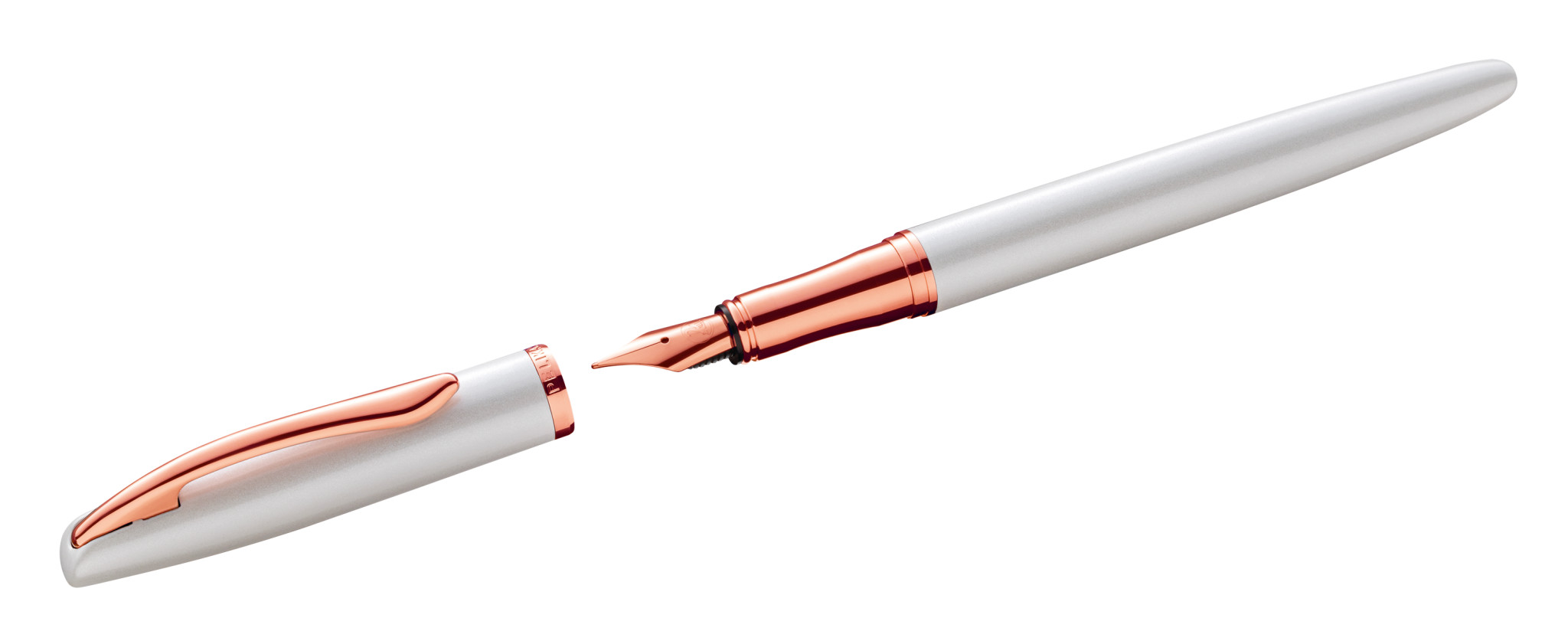

The set complements the JAZZ Elegance line of pencils and ballpoint pens, which are available in many other colors.

Model Production Period Nib
JAZZ 2015

Steel

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.73 oz 5.51 in 3.98 in 2.50 in 0.41 in 0.8 ml (cartridge) + reserve cartridge
20.6 g 140 mm 101 mm 63.5 mm 10.5 mm


JAZZ

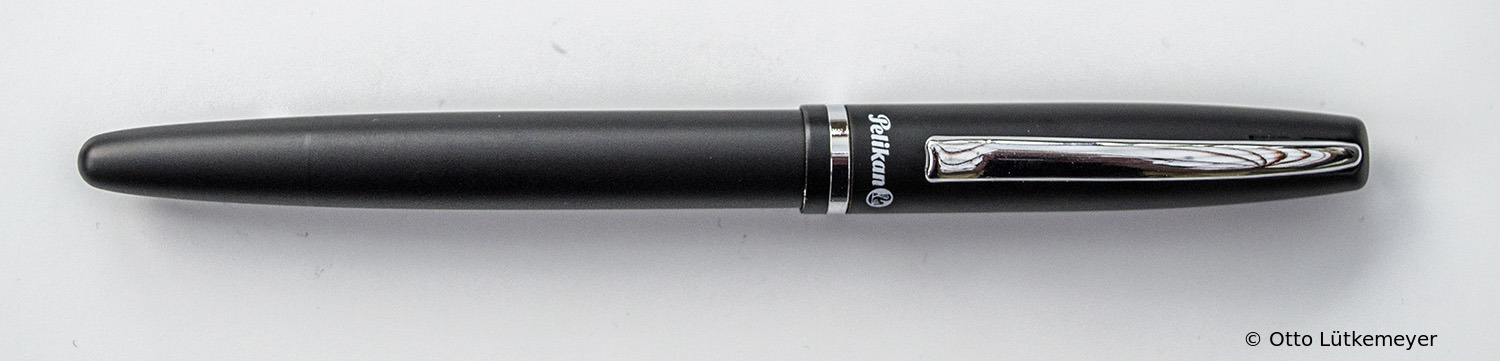

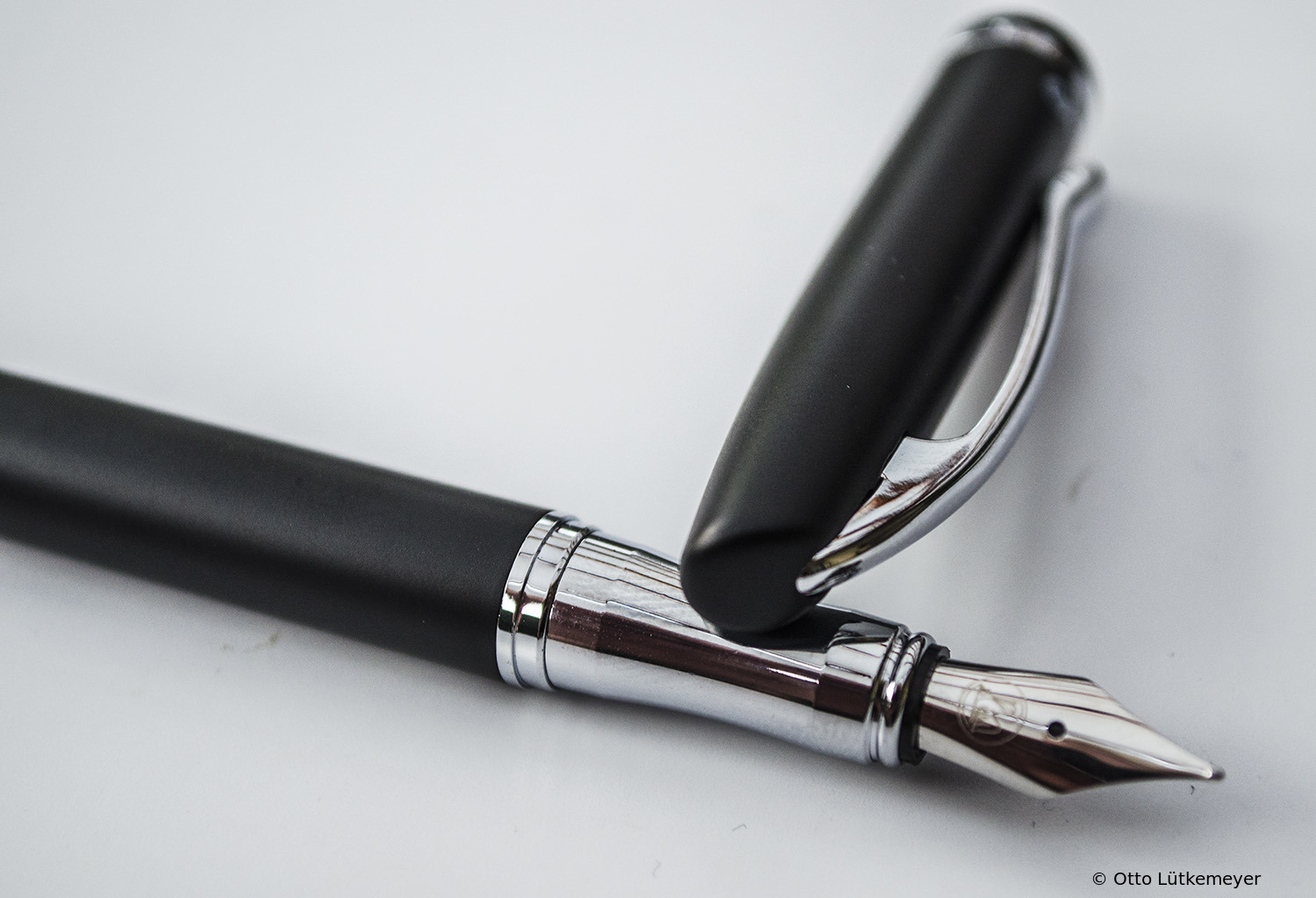

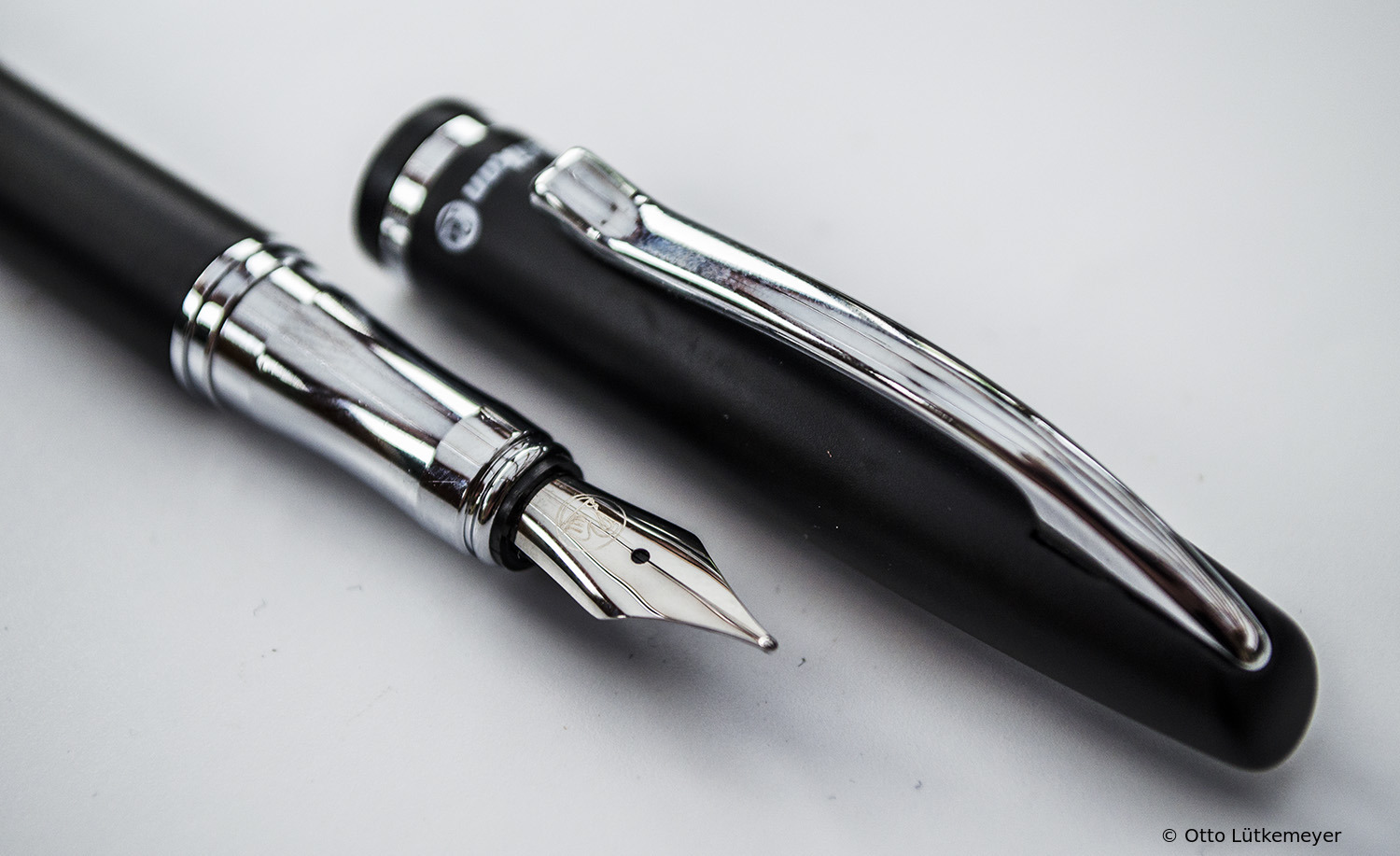

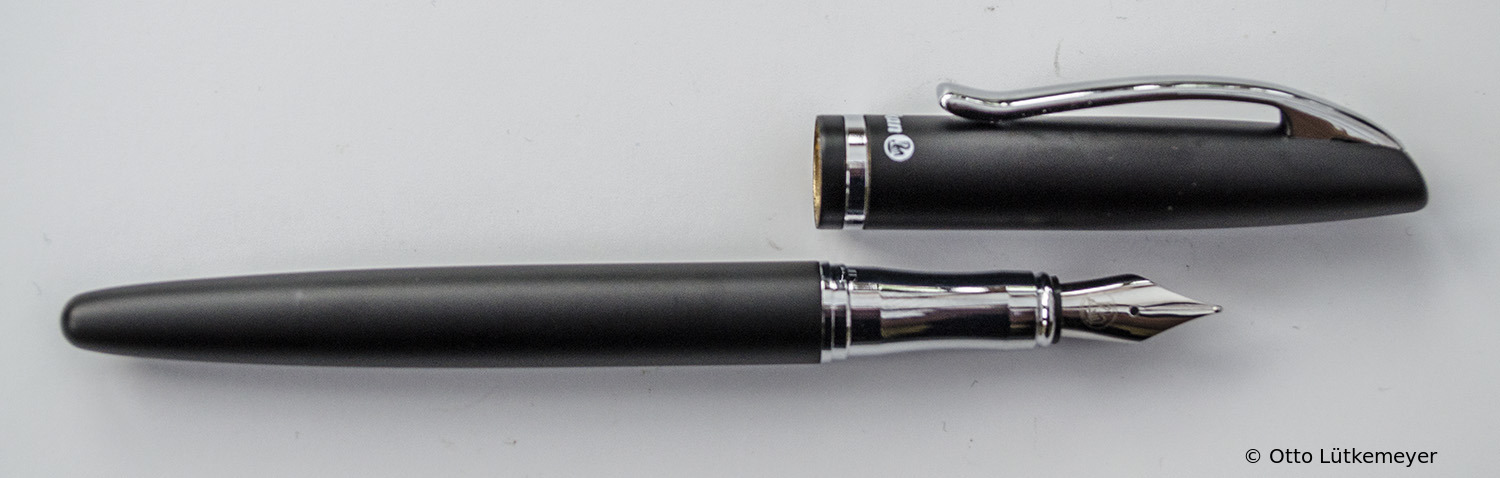

JAZZ Black Exportmodel Color
Production: 2015Nib: Steel
Logo: Without Logo Exportmodel
Barrel Color: blackCap Color: blackTrim: silver-colored

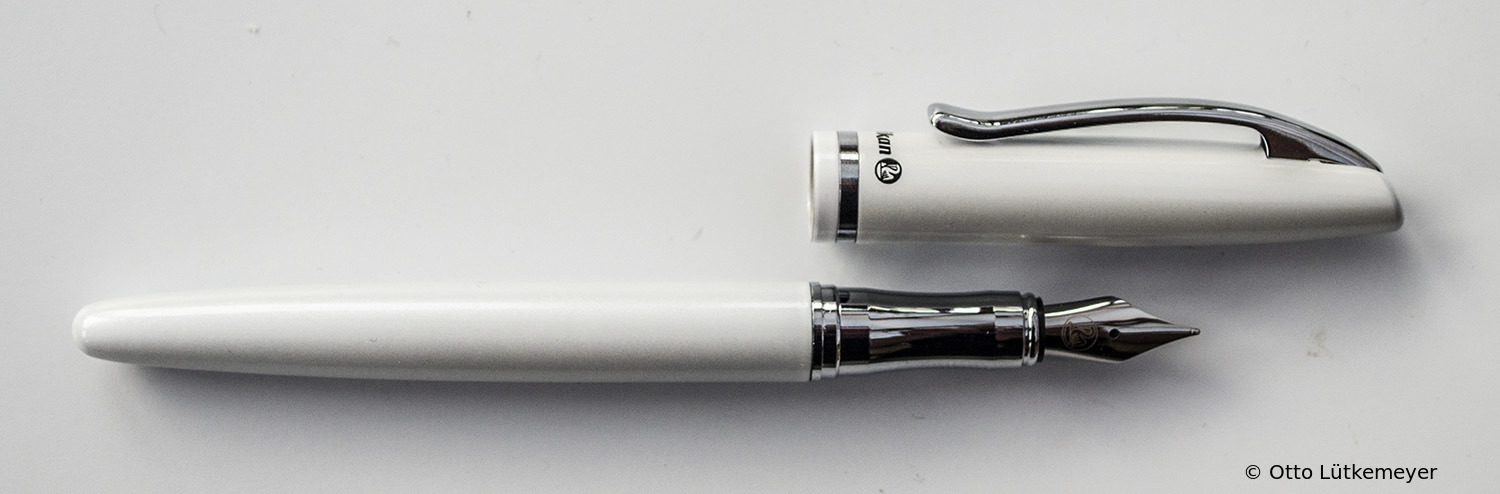

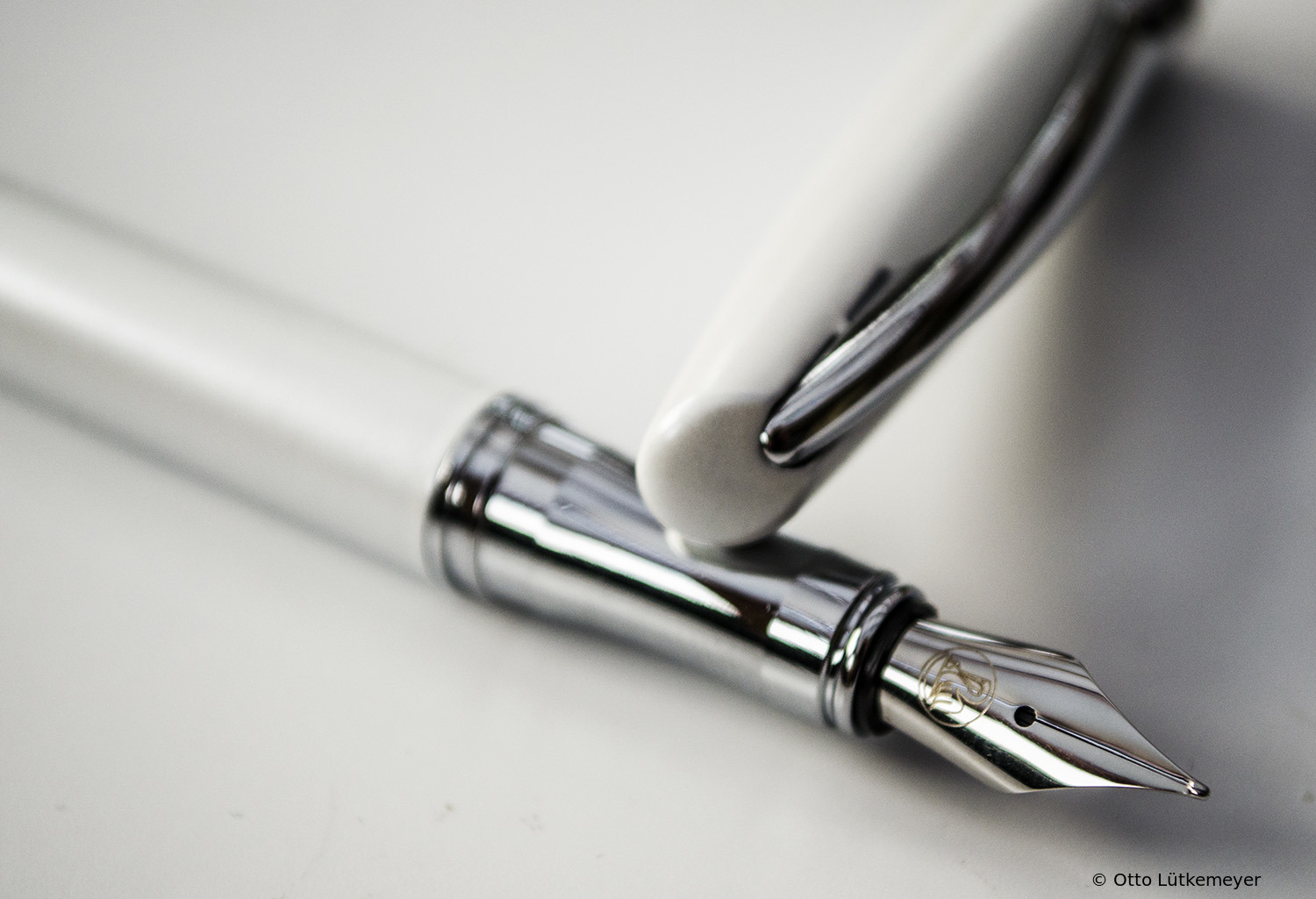

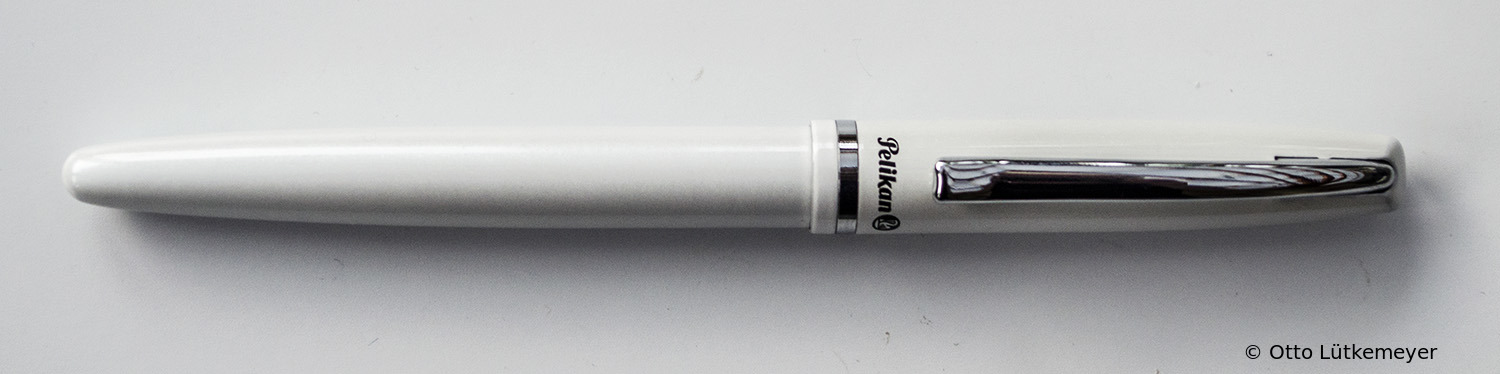

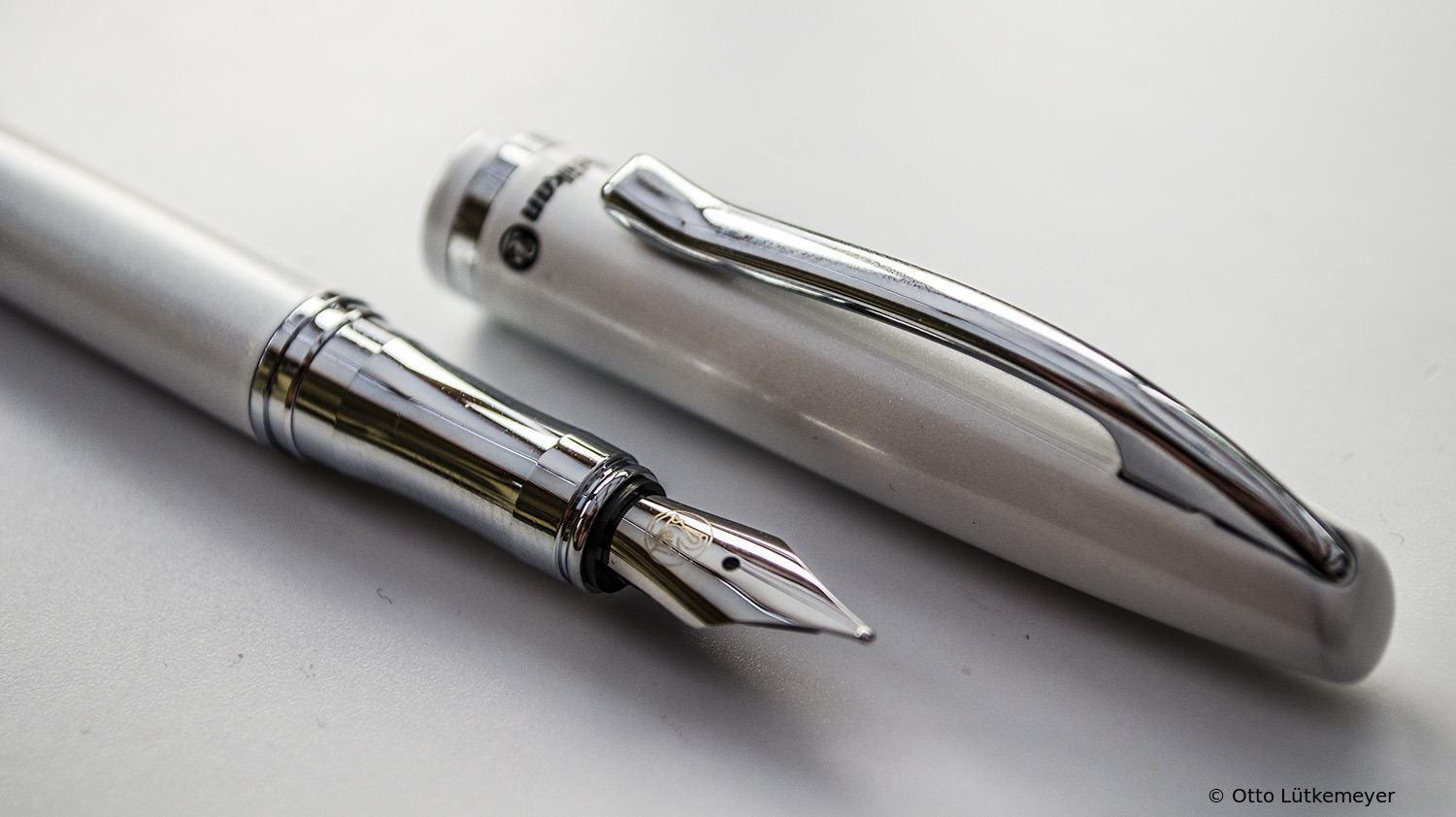

JAZZ White Exportmodel Color
Production: 2015Nib: Steel
Logo: Without Logo Exportmodel
Barrel Color: whiteCap Color: whiteTrim: silver-colored
