Pelikan 400NN

Model Production Period Nib
400NN 1956-1965

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.54 oz 5.12 in 4.06 in 2.44 in 0.47 in 2.0 ml
15.3 g 130 mm 103 mm 62 mm 12 mm


400NN

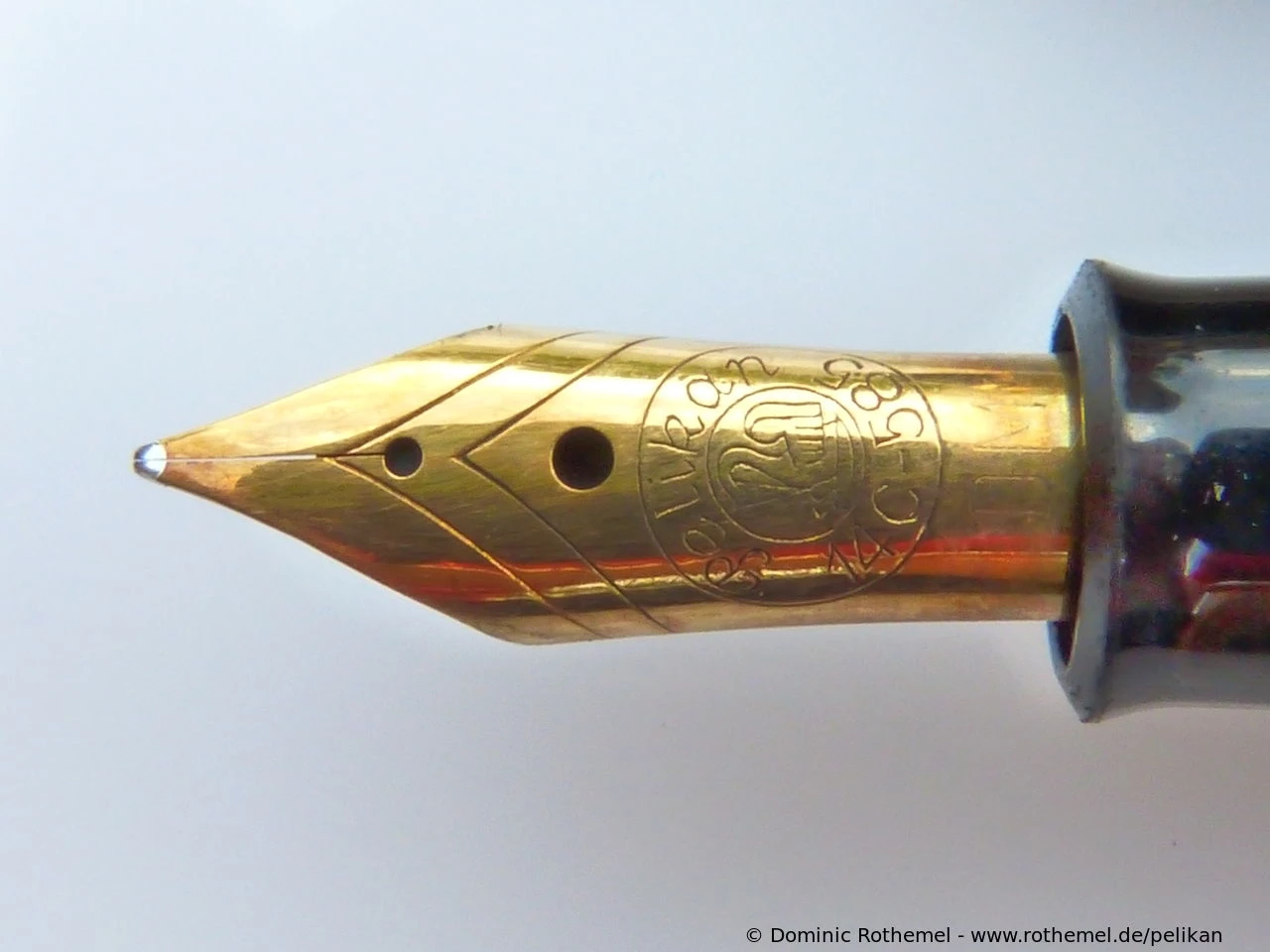

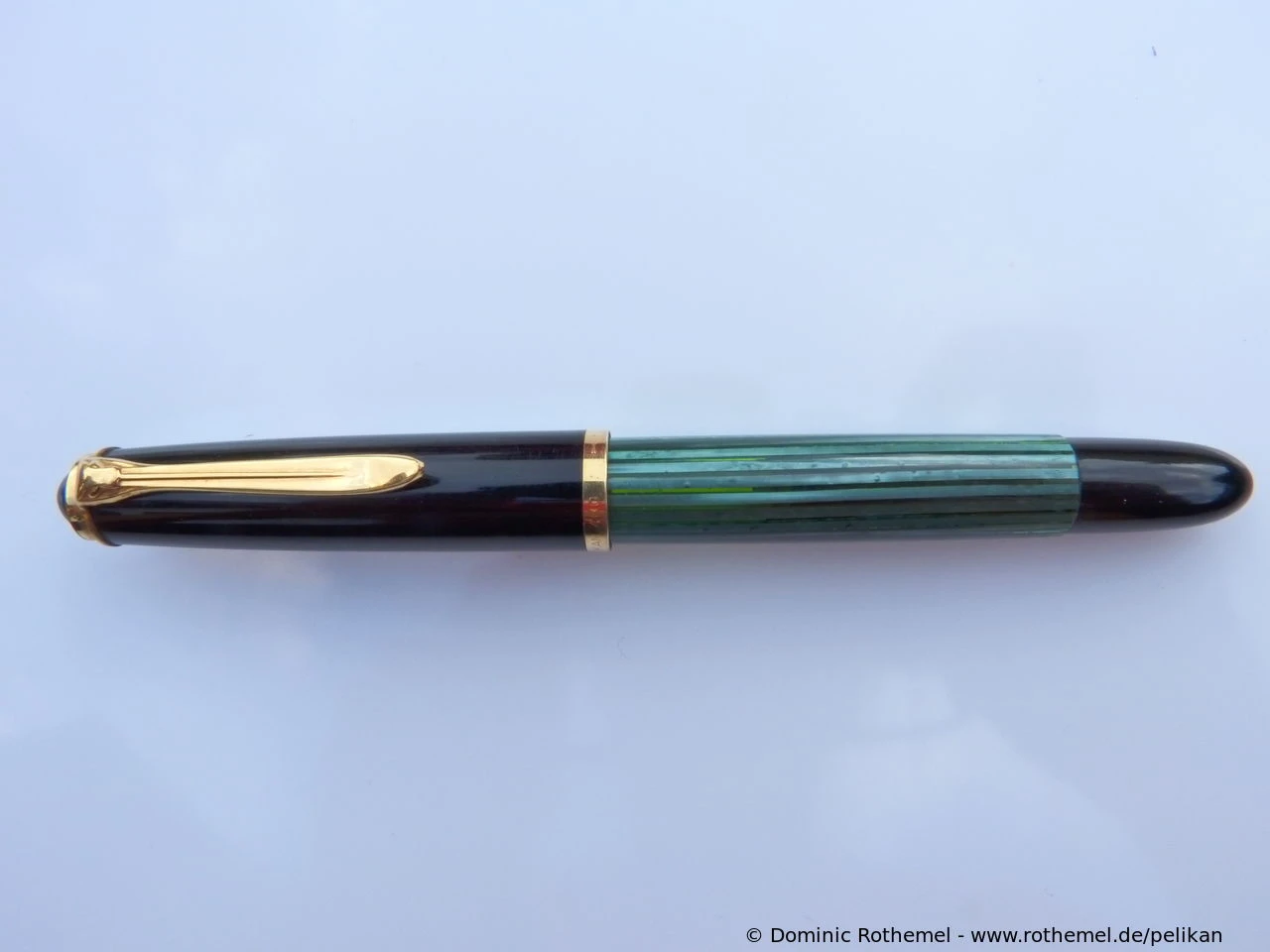

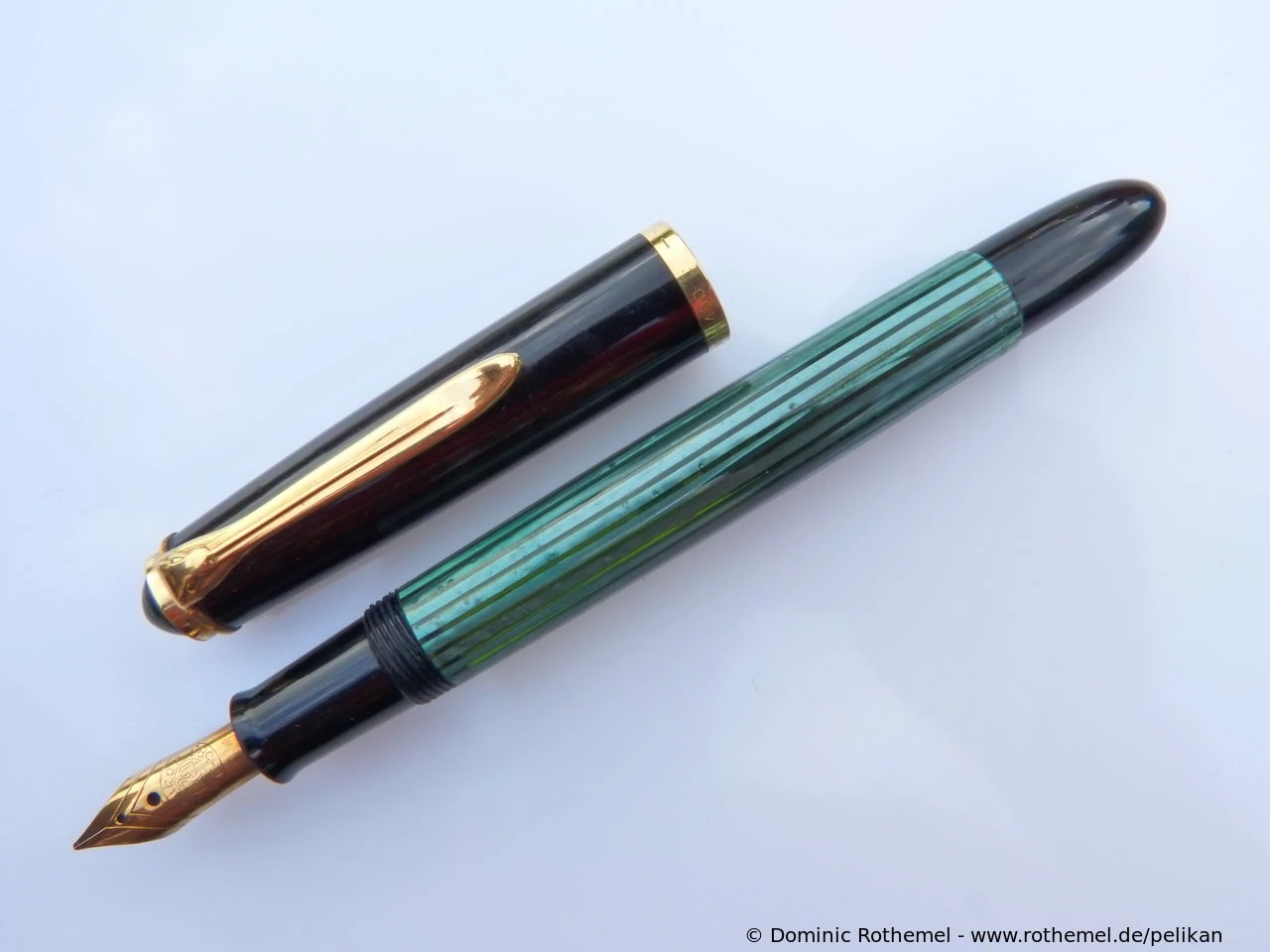

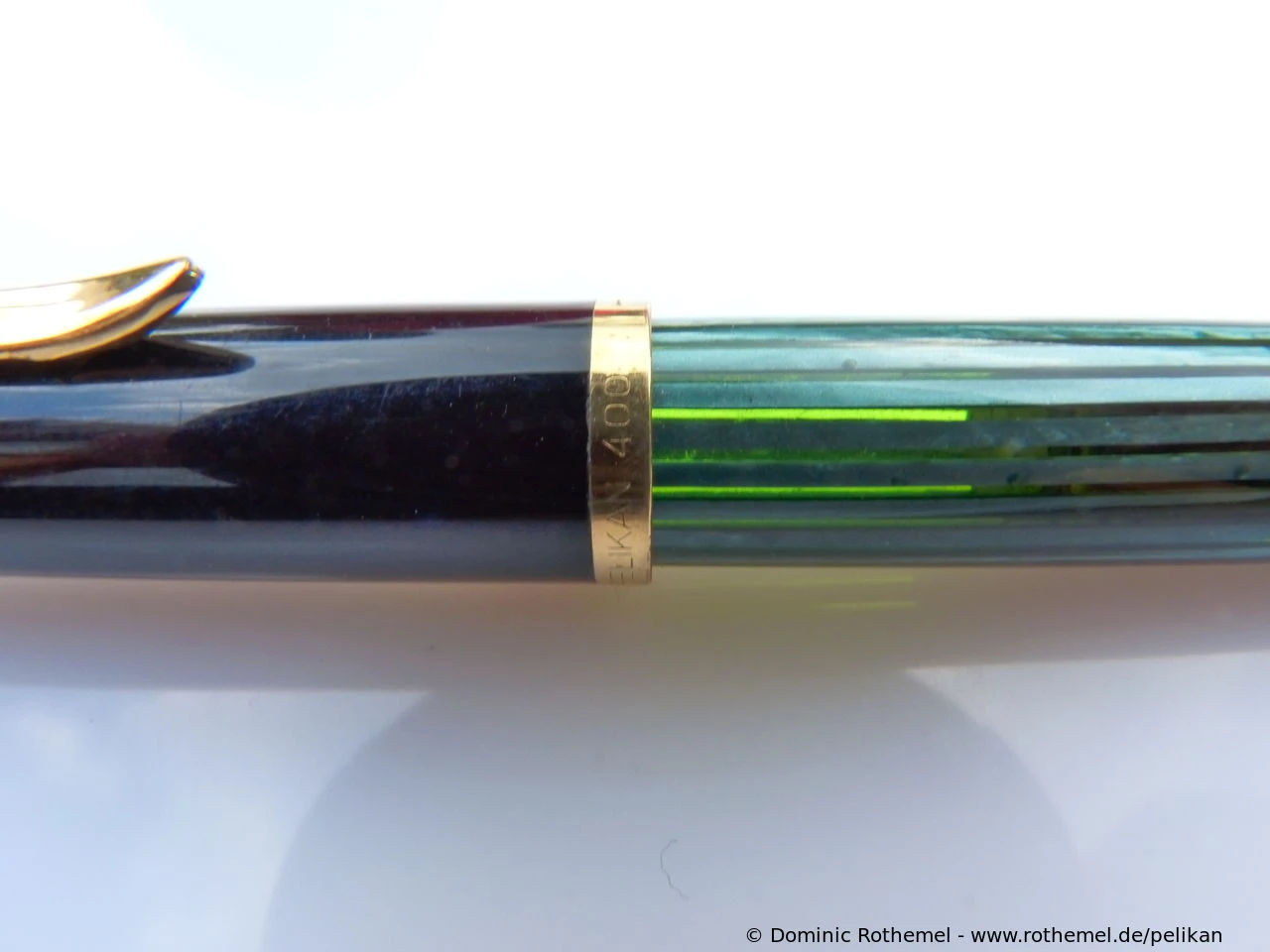

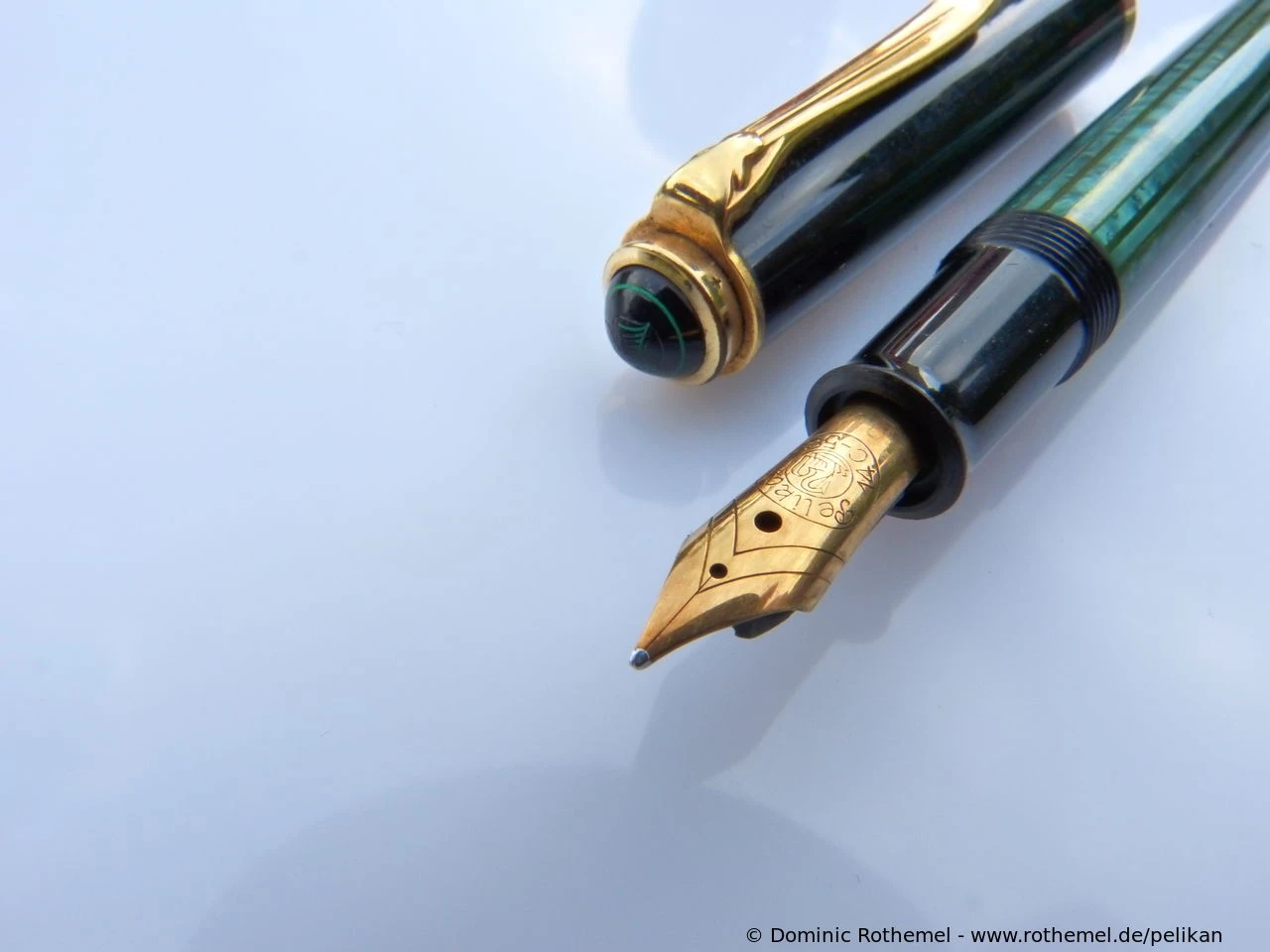

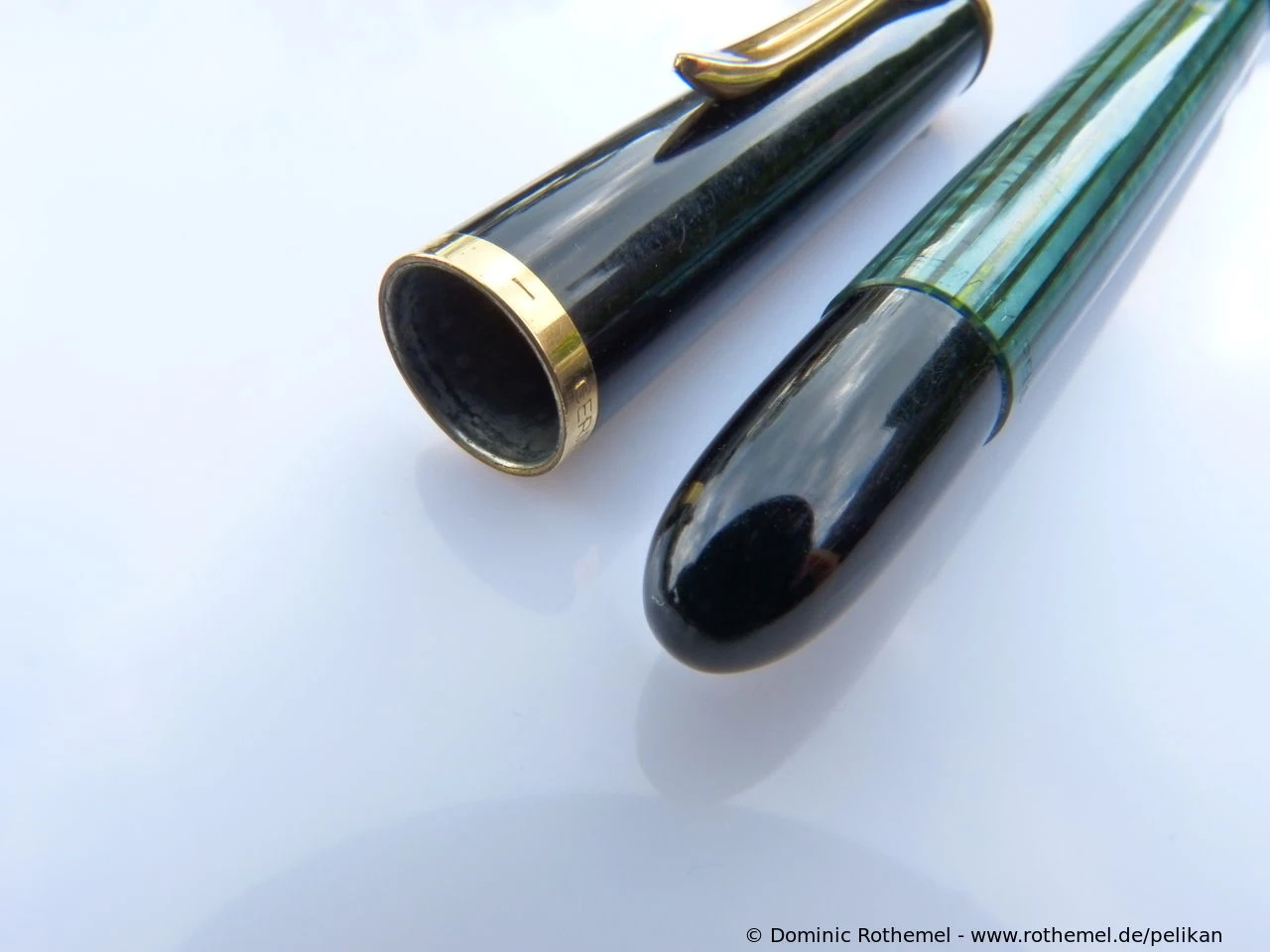

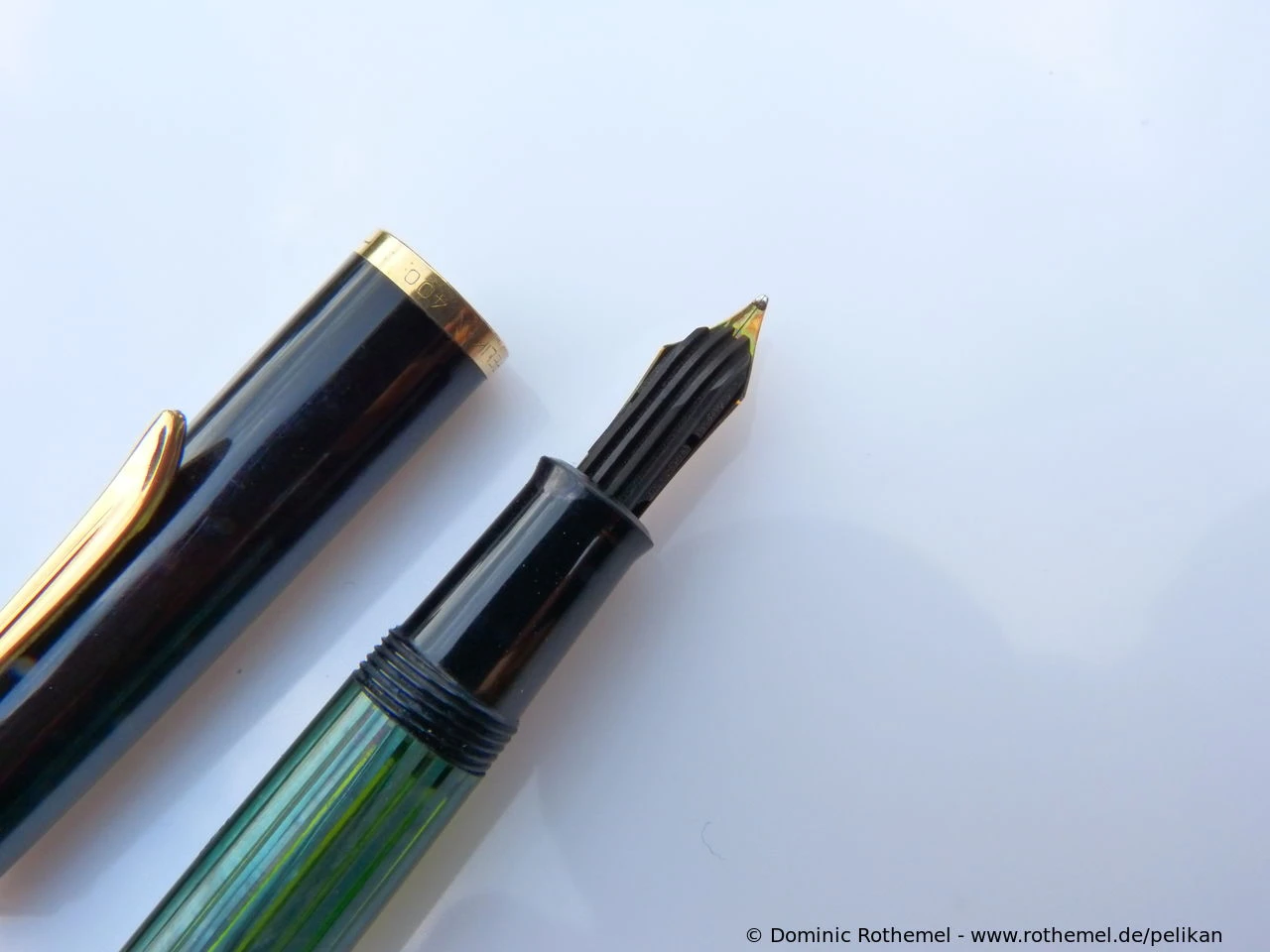

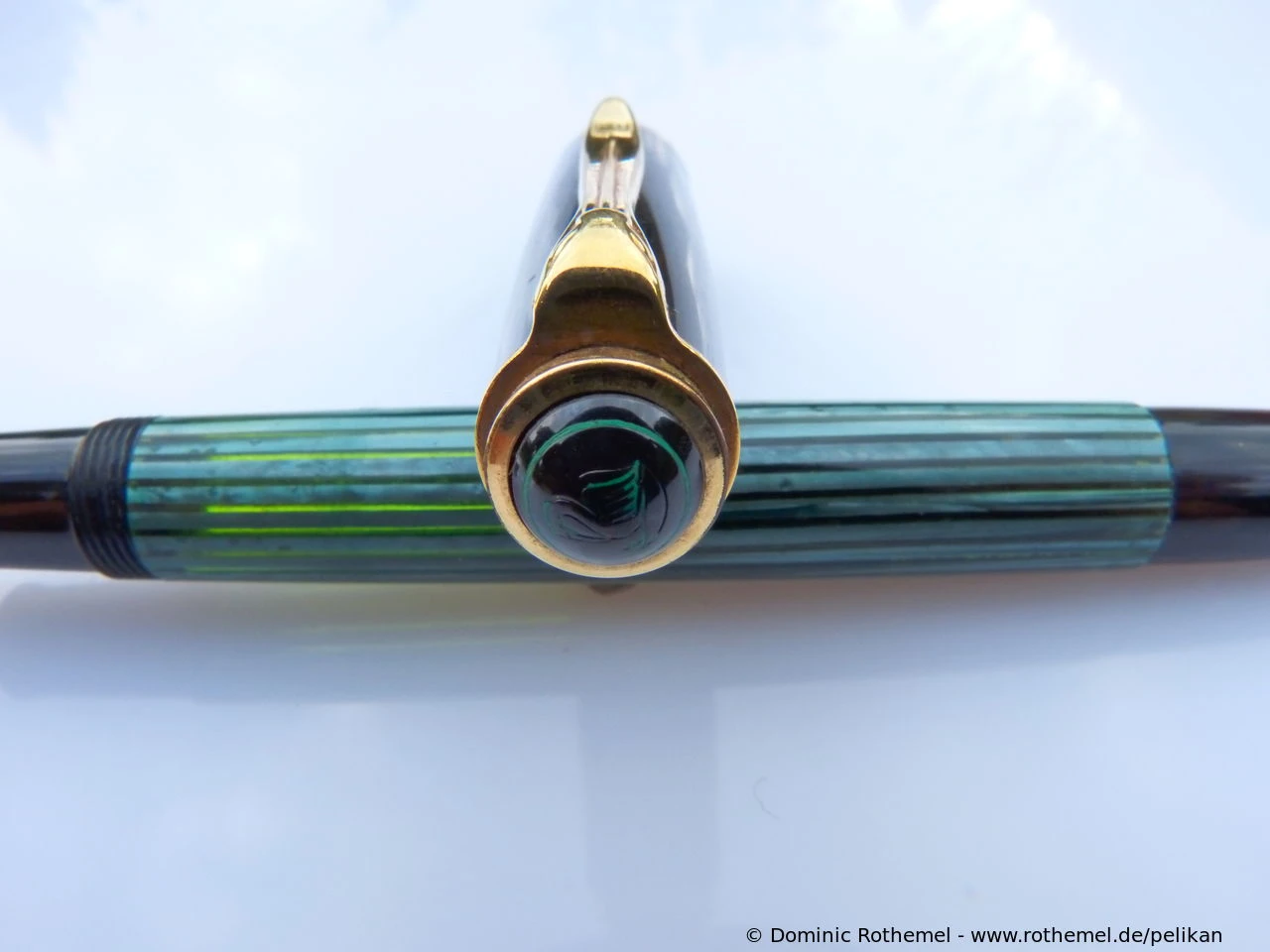

400NN Green-striped Series Production Color
Production: 1956-1965Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963 DeutschLink opens PDF documentPelikan für jeden der schreibt
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: green-stripedCap Color: blackTrim: gold plated

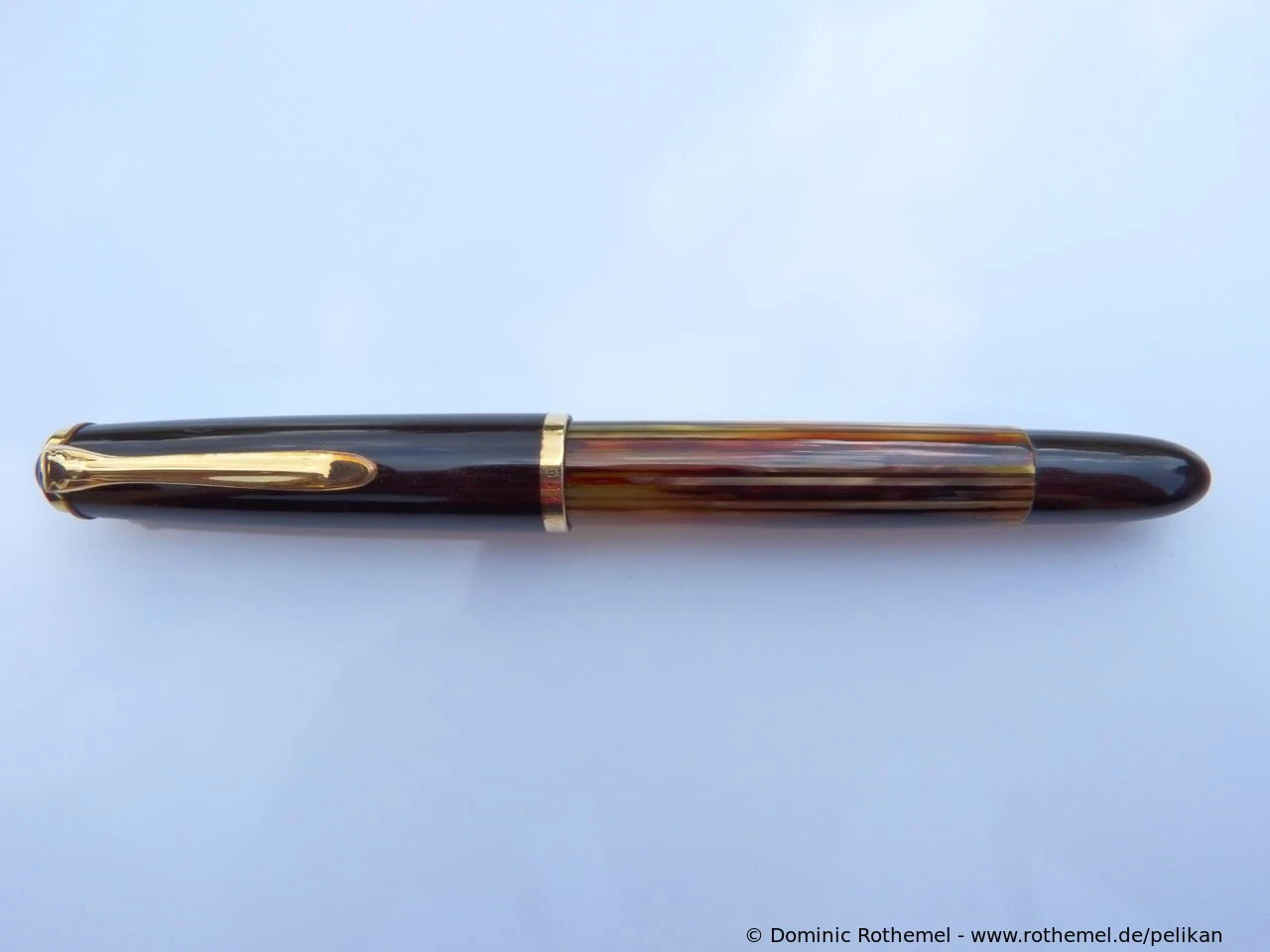

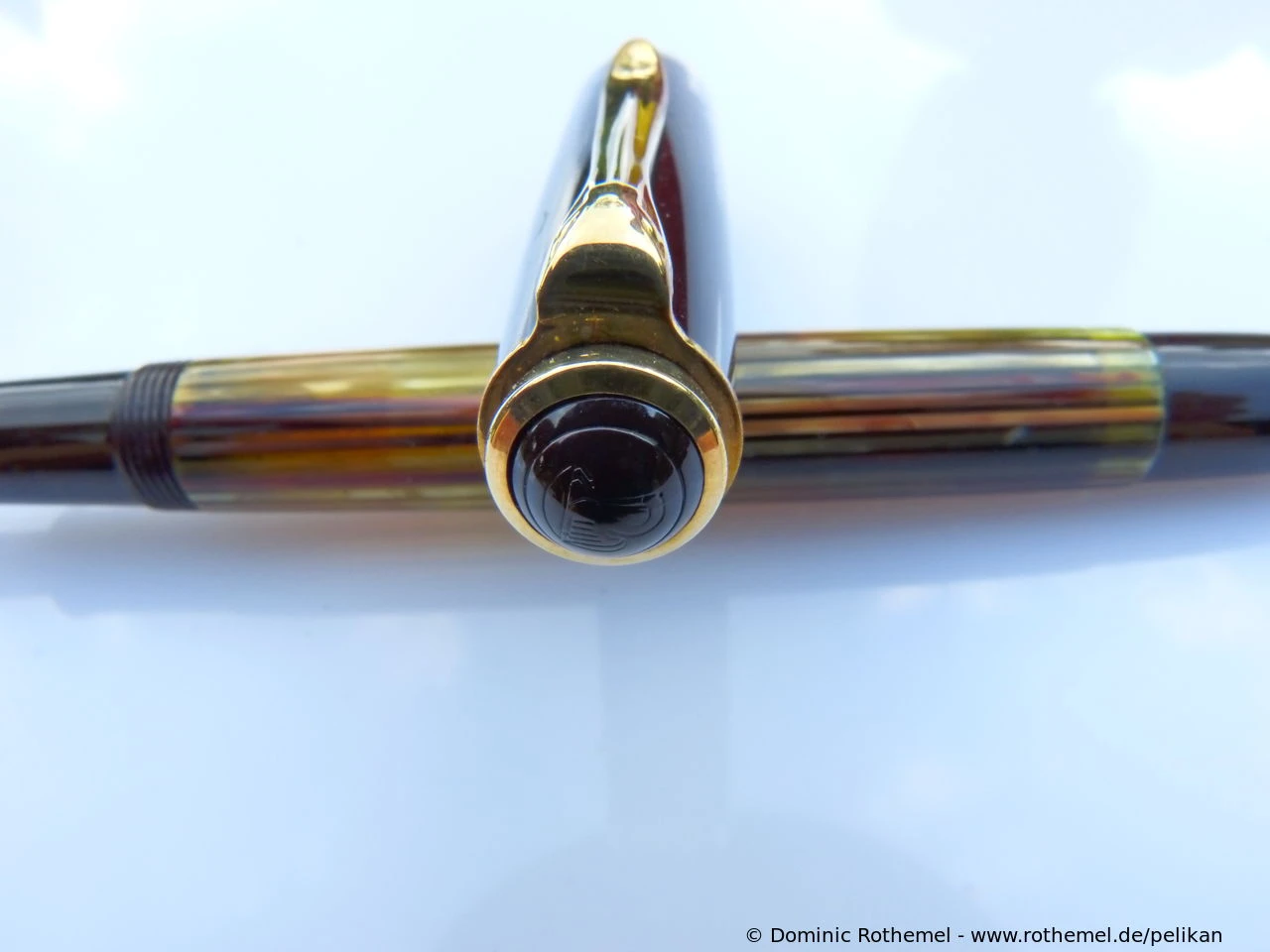

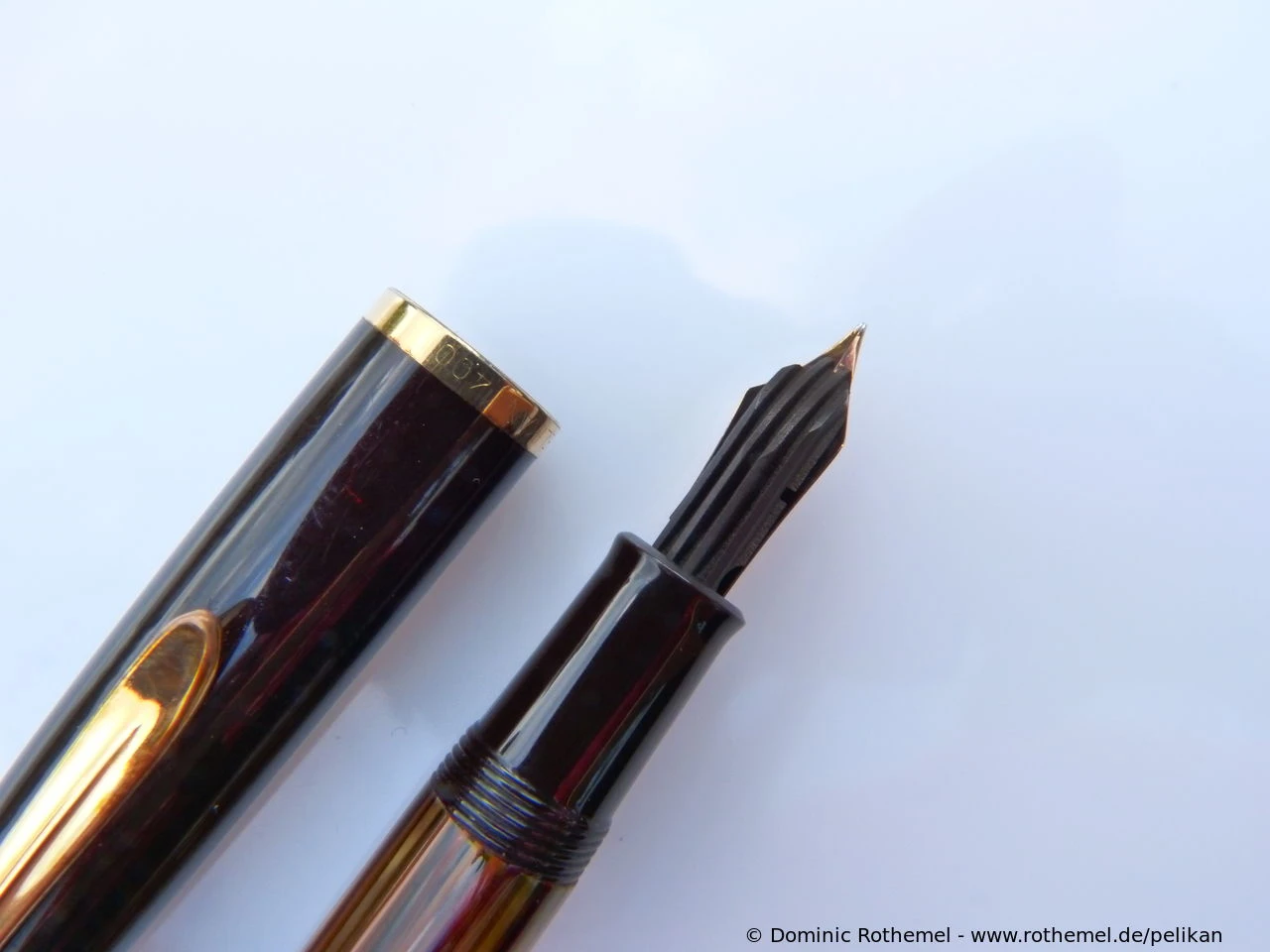

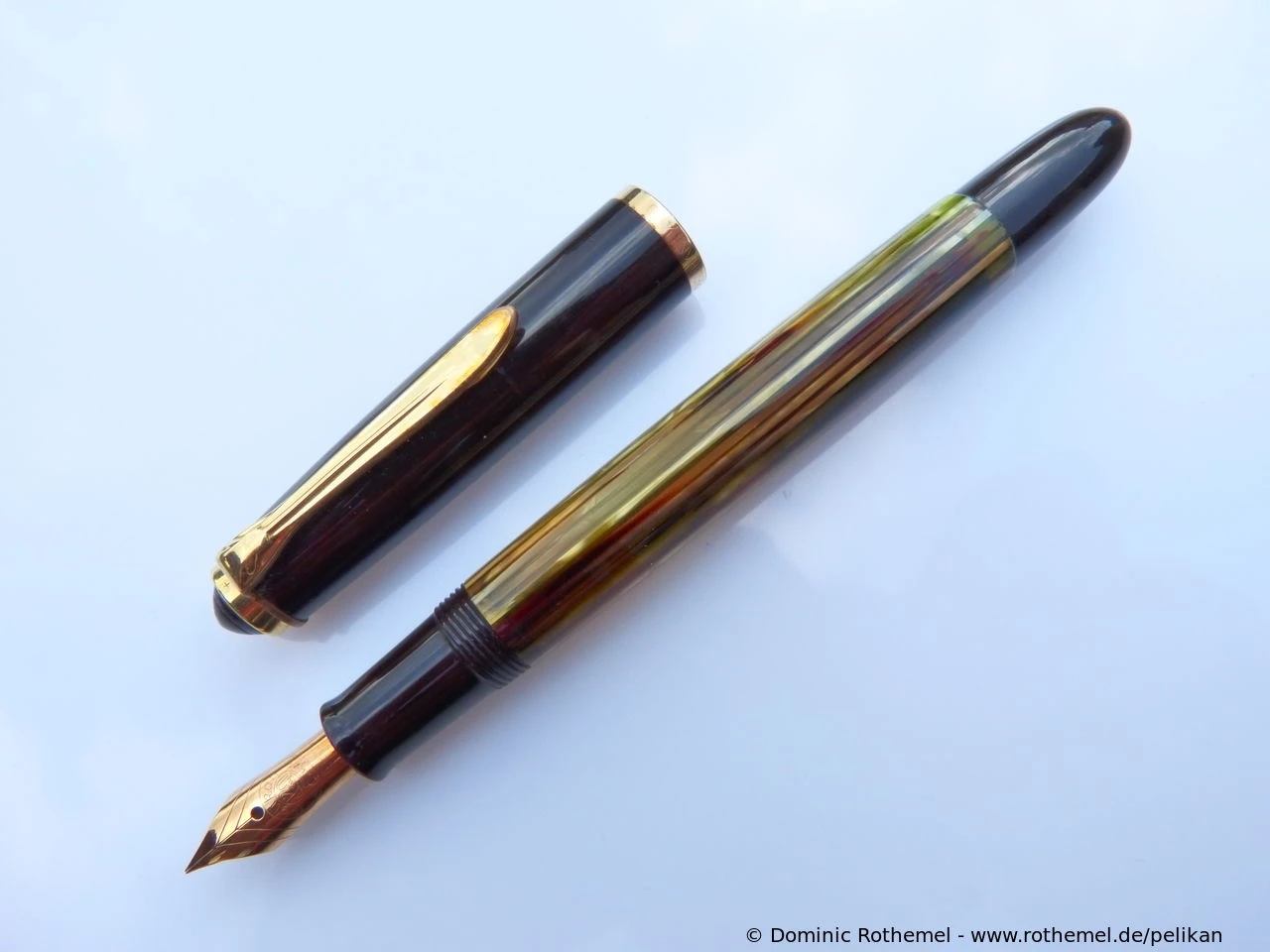

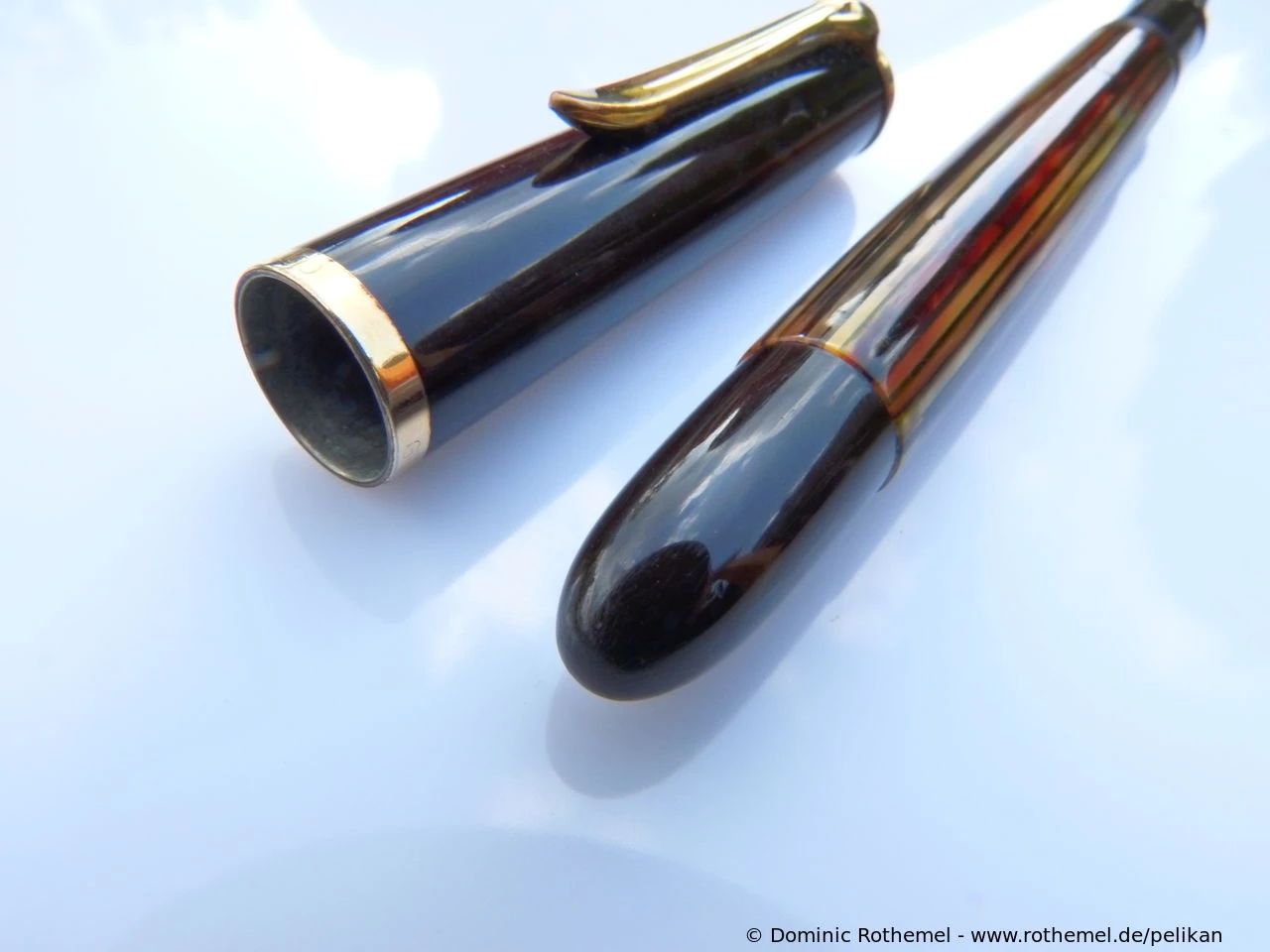

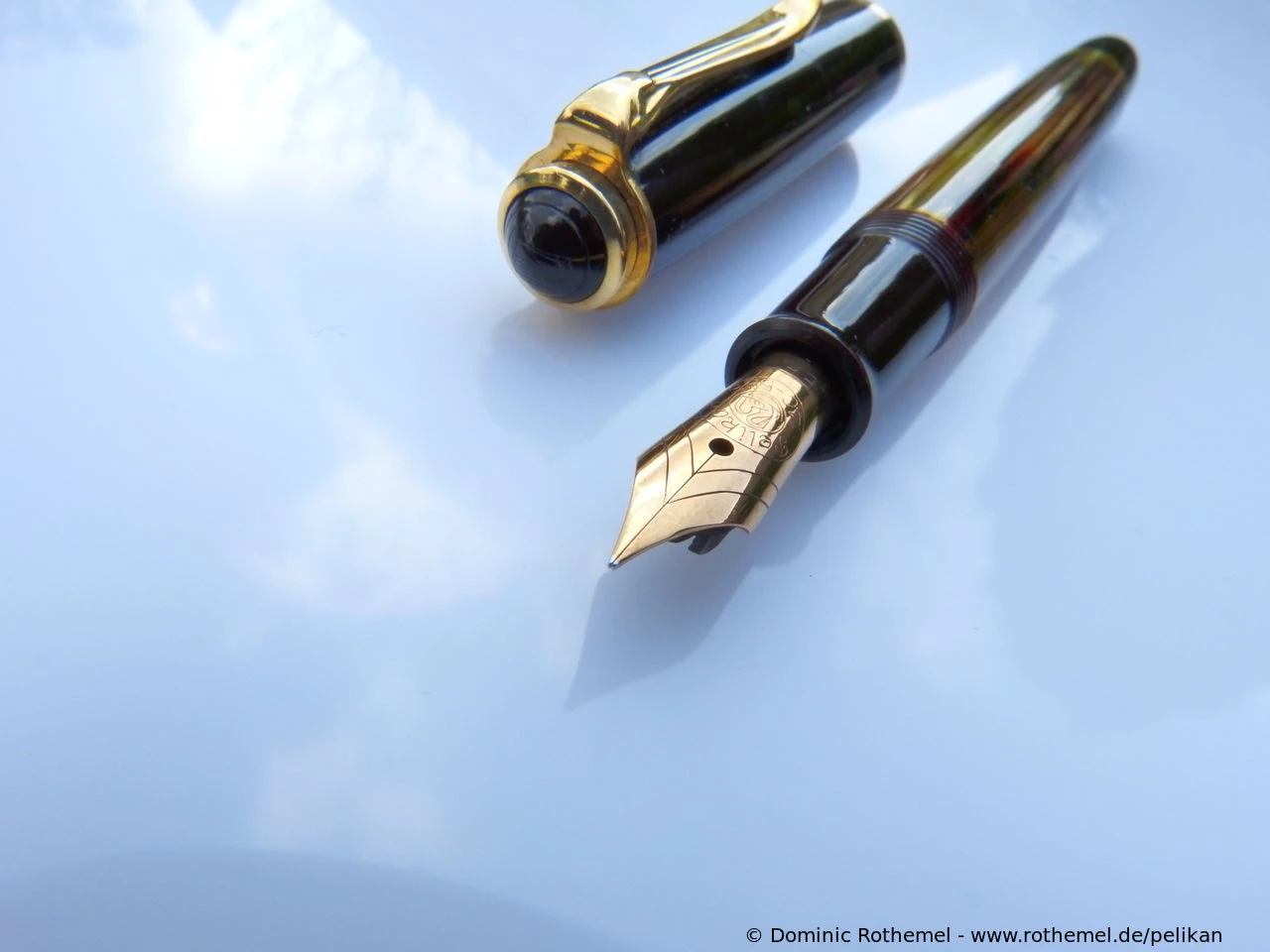

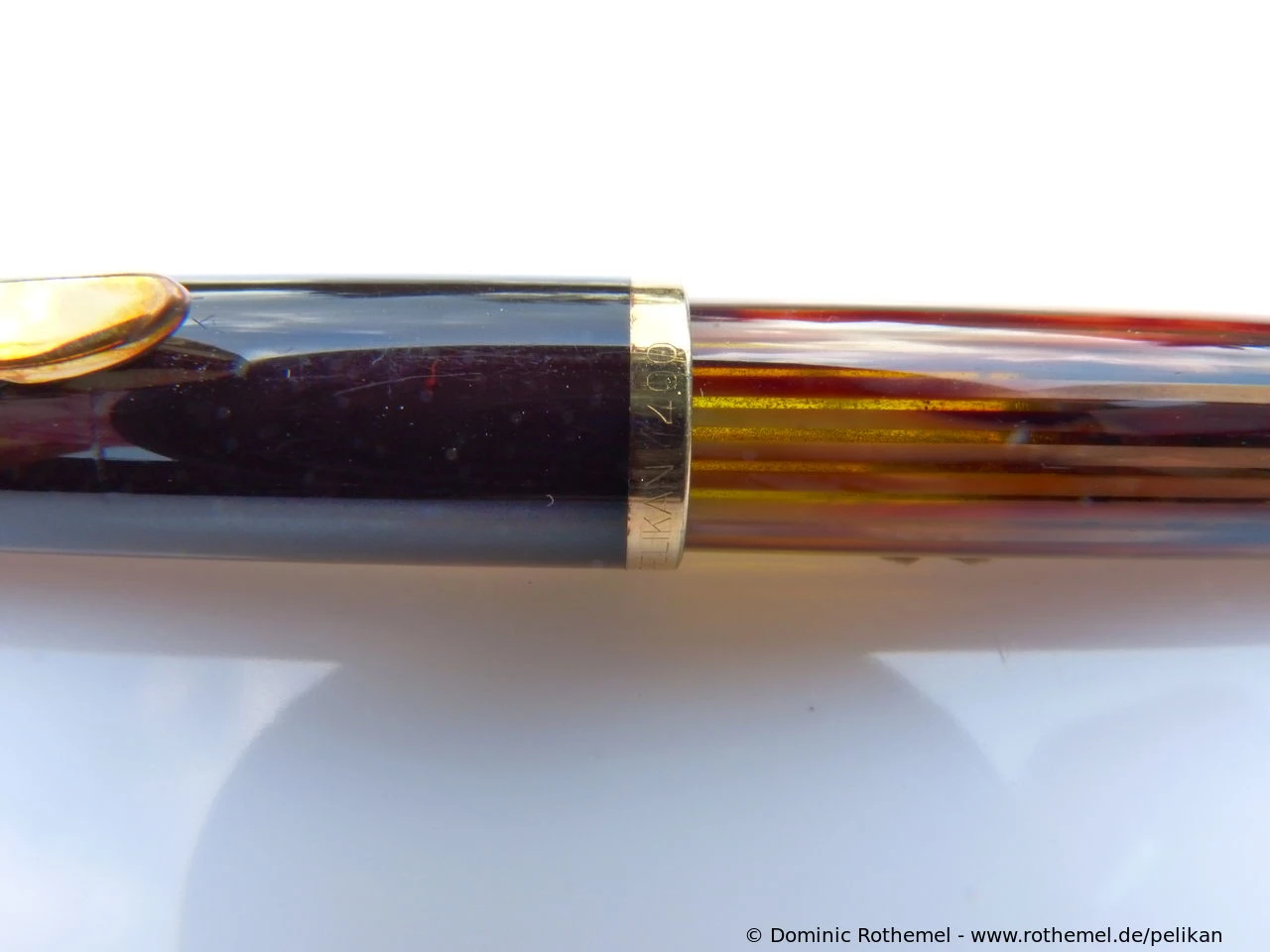

400NN Tortoise brown-striped Series Production Color
Production: 1956-1965Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963 DeutschLink opens PDF documentPelikan für jeden der schreibt
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: brown-stripedCap Color: dark brownTrim: gold plated

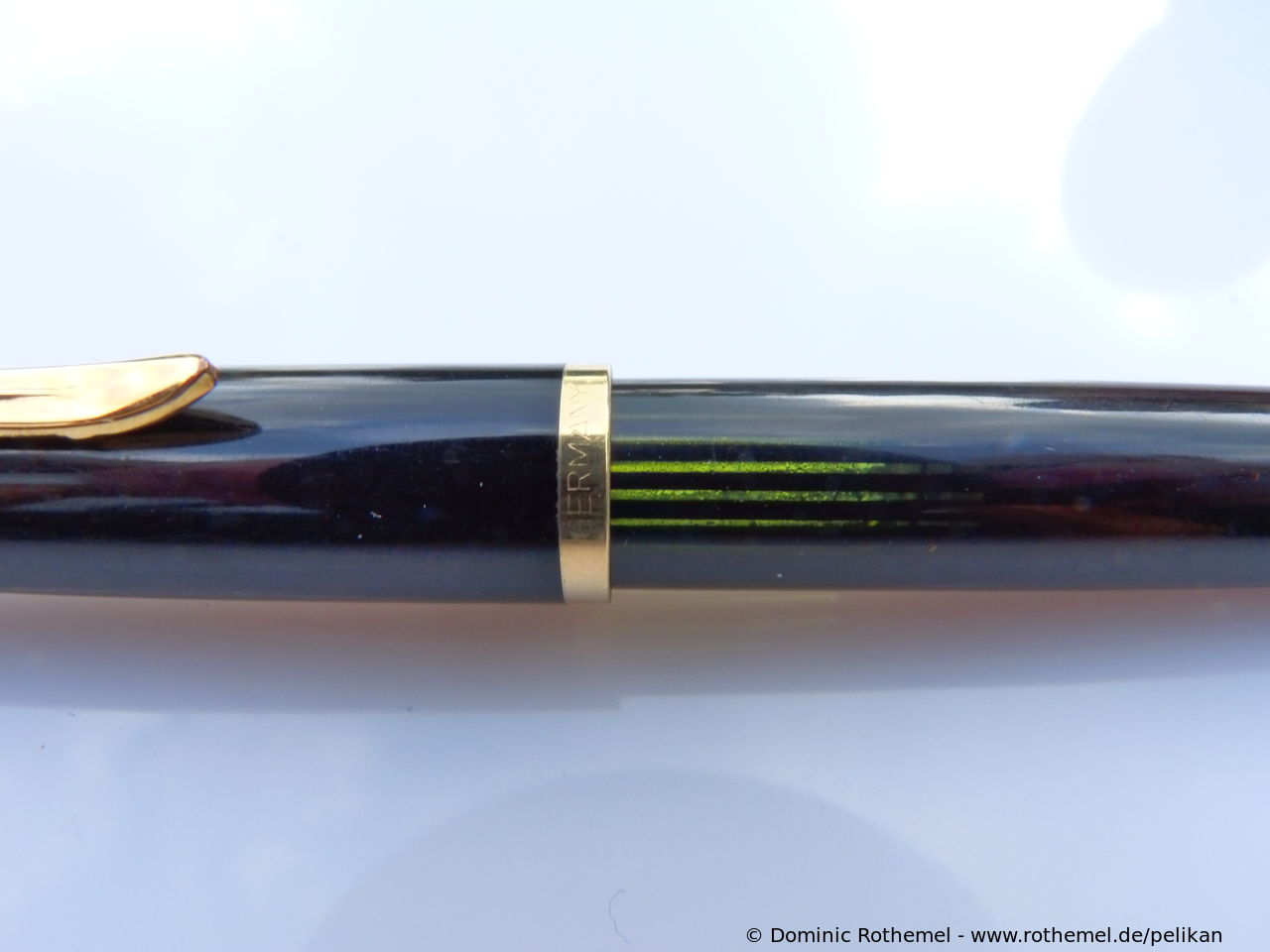

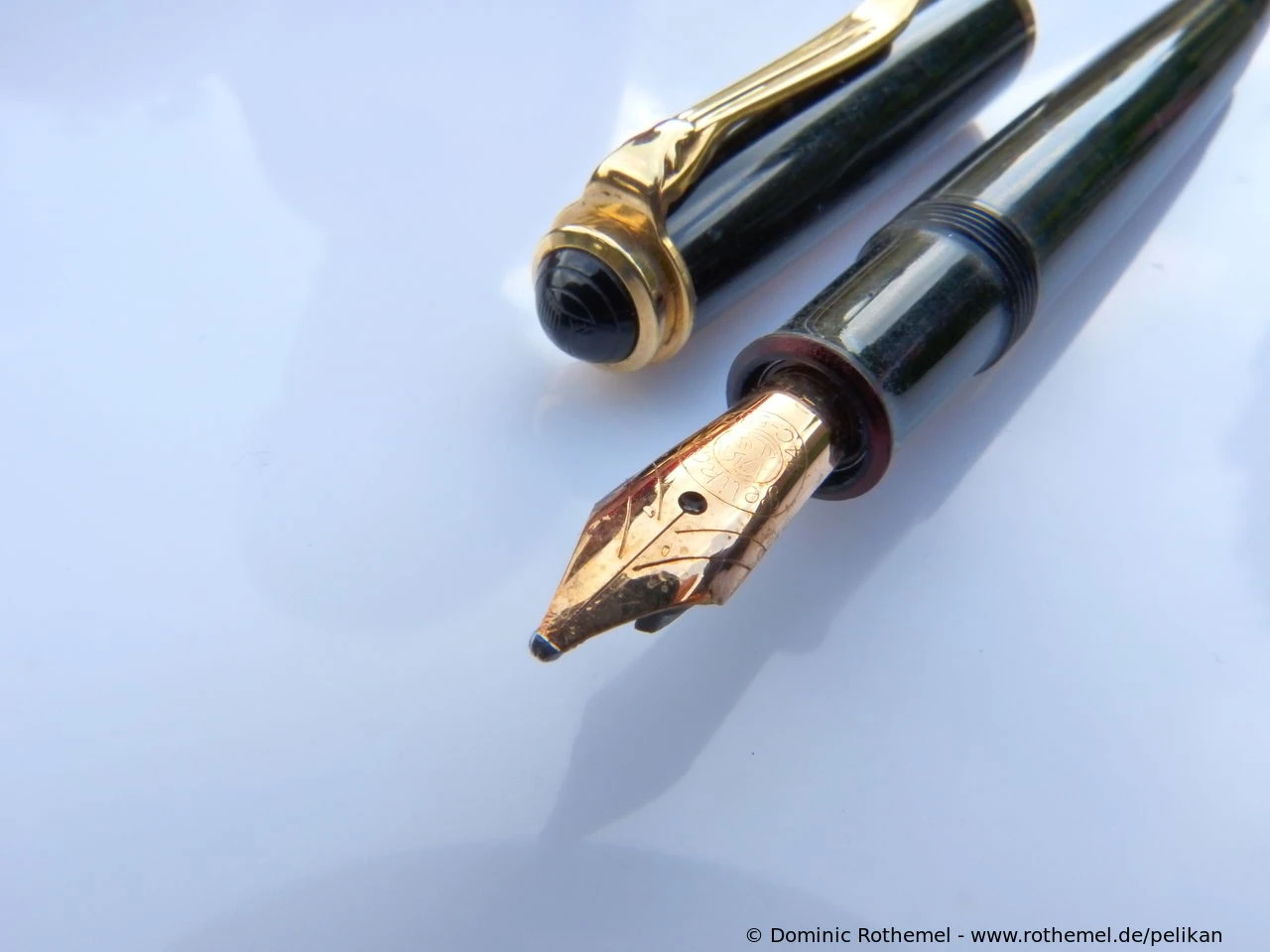

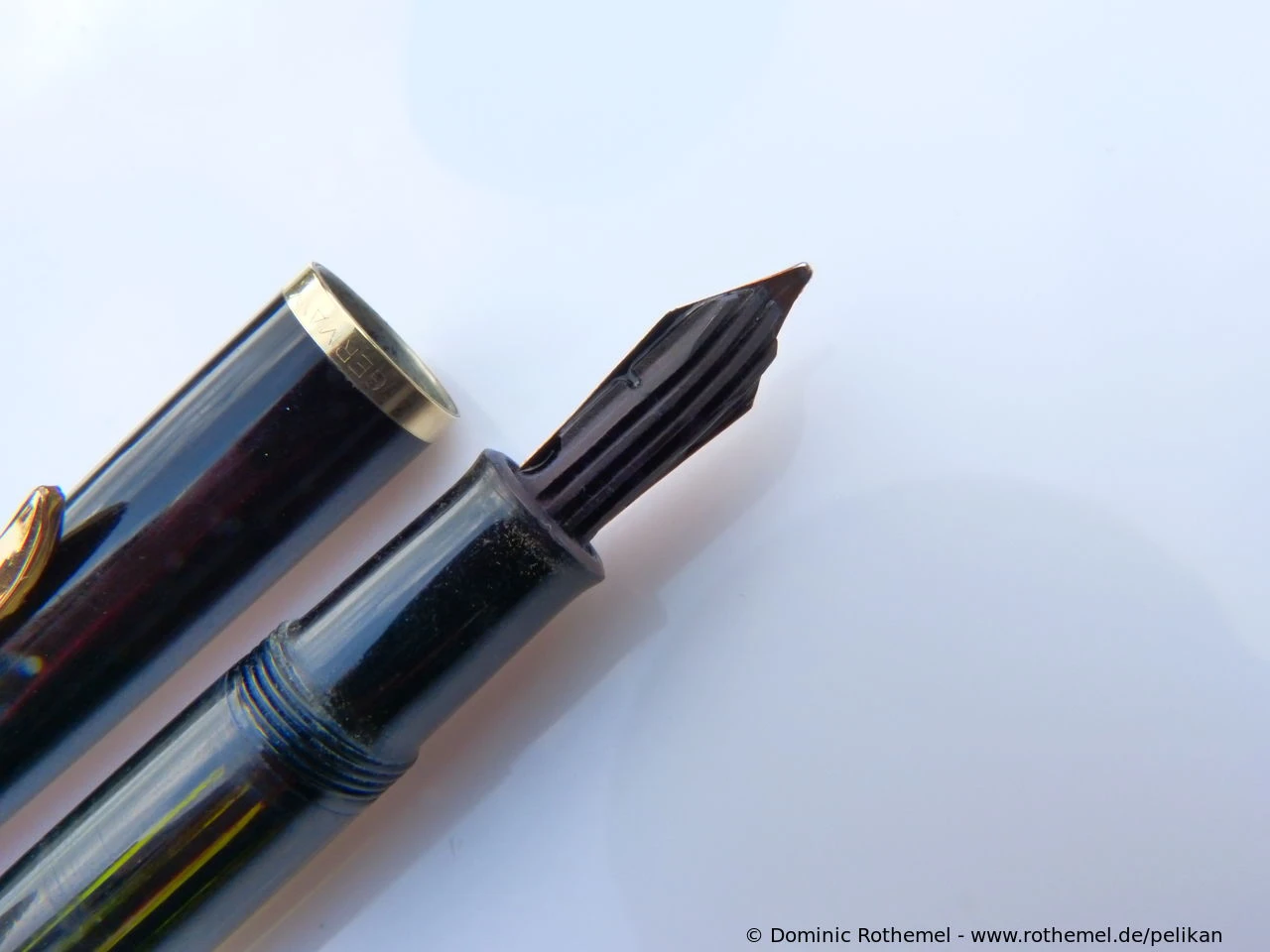

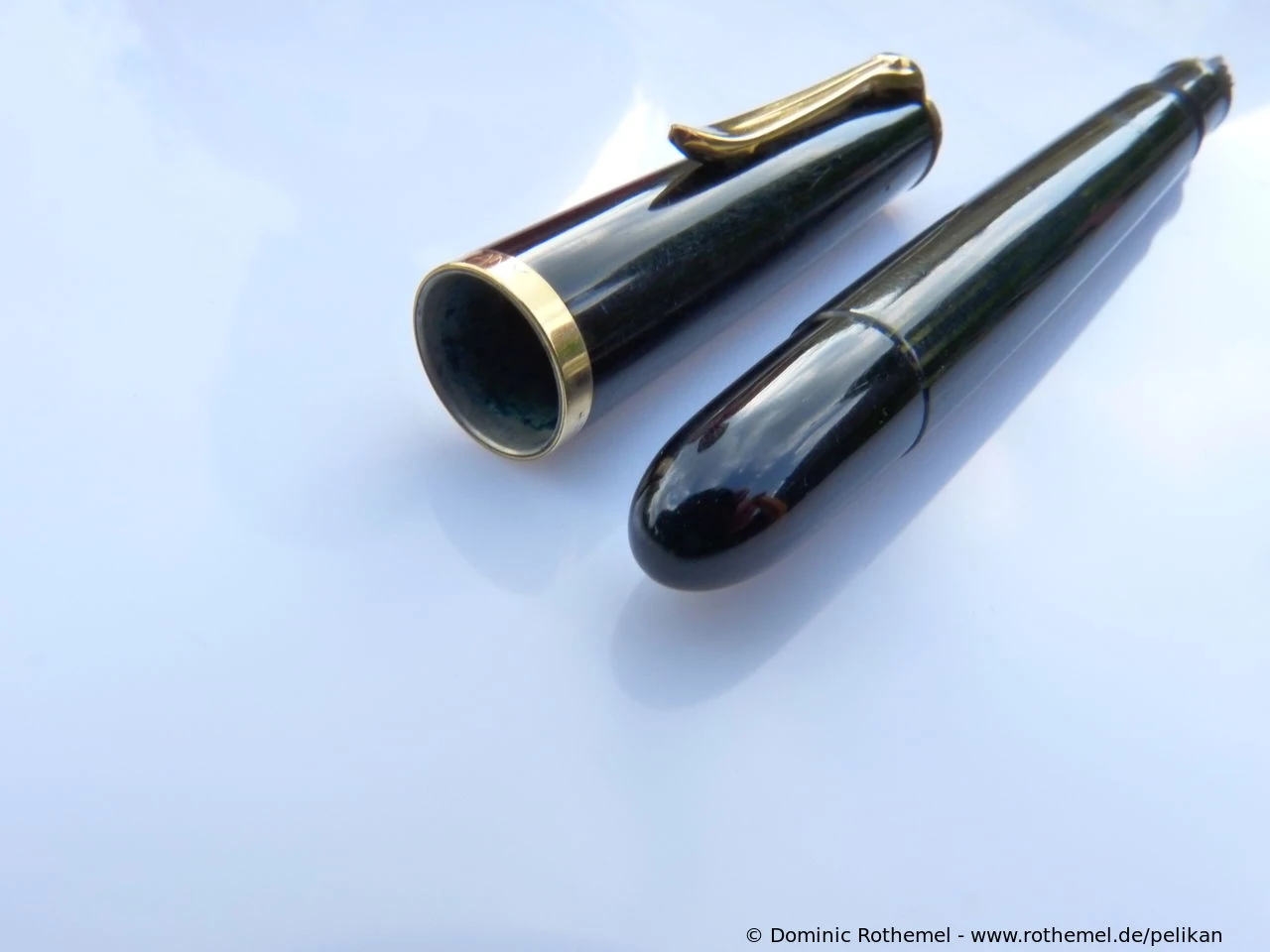

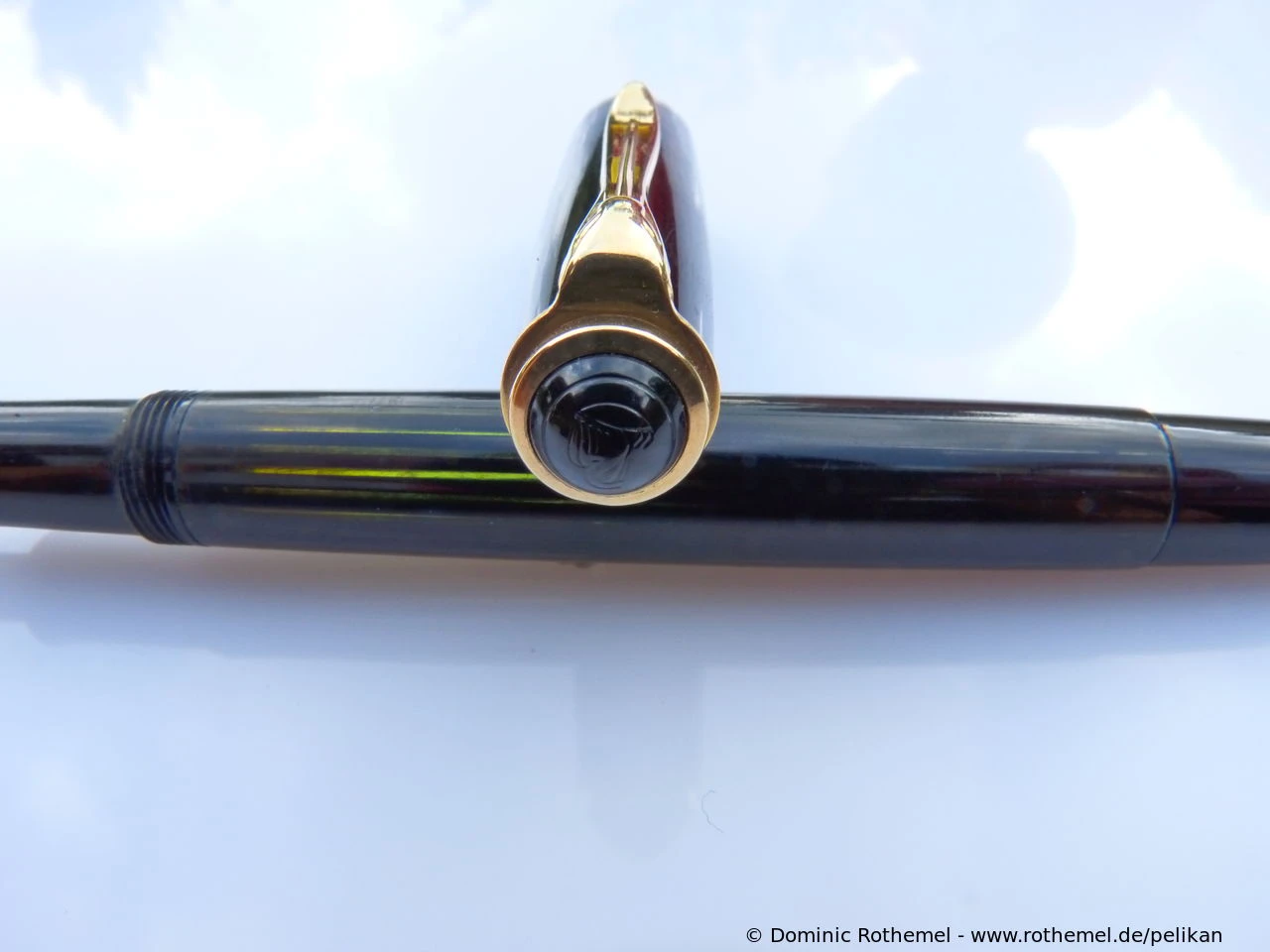

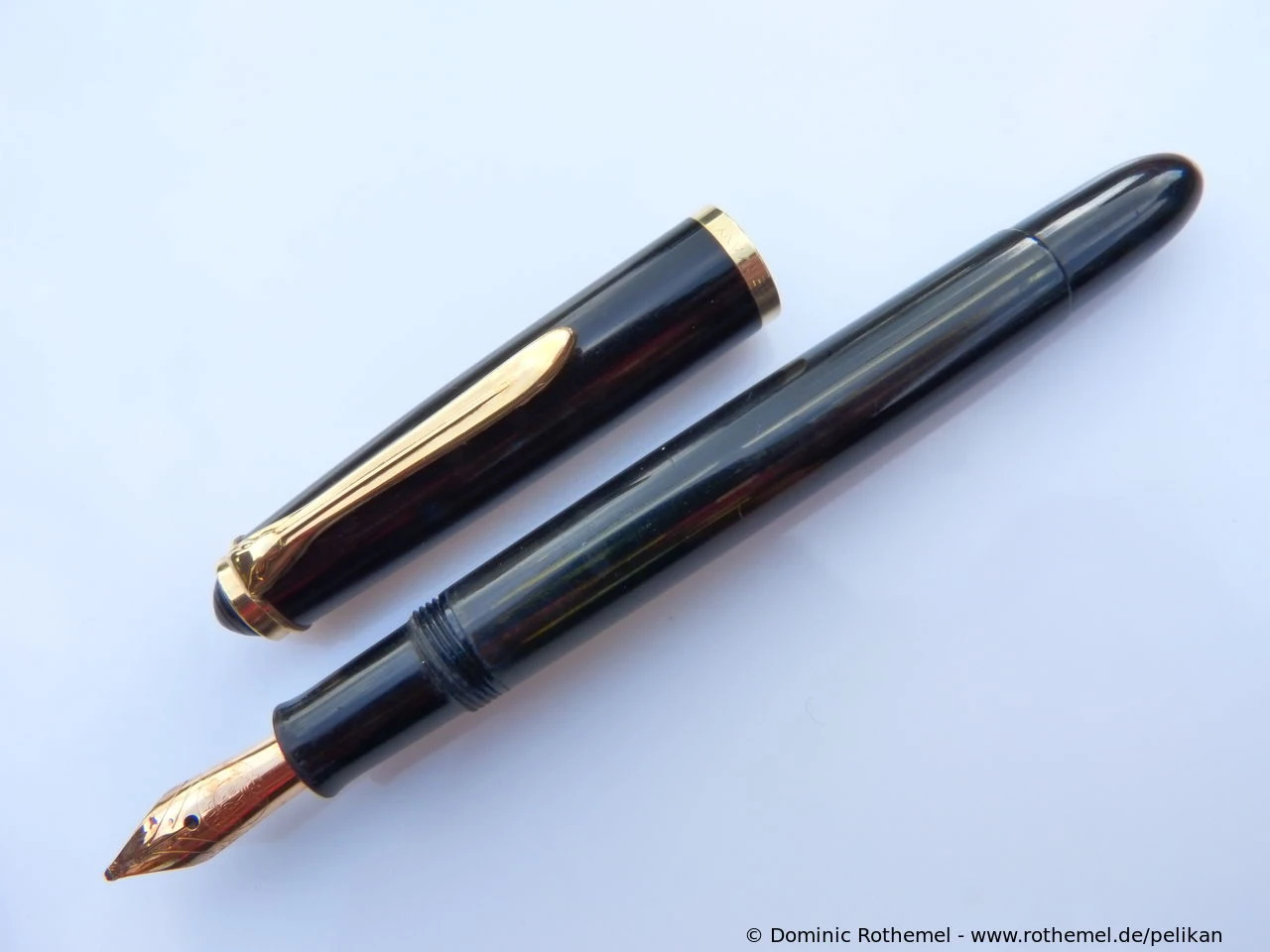

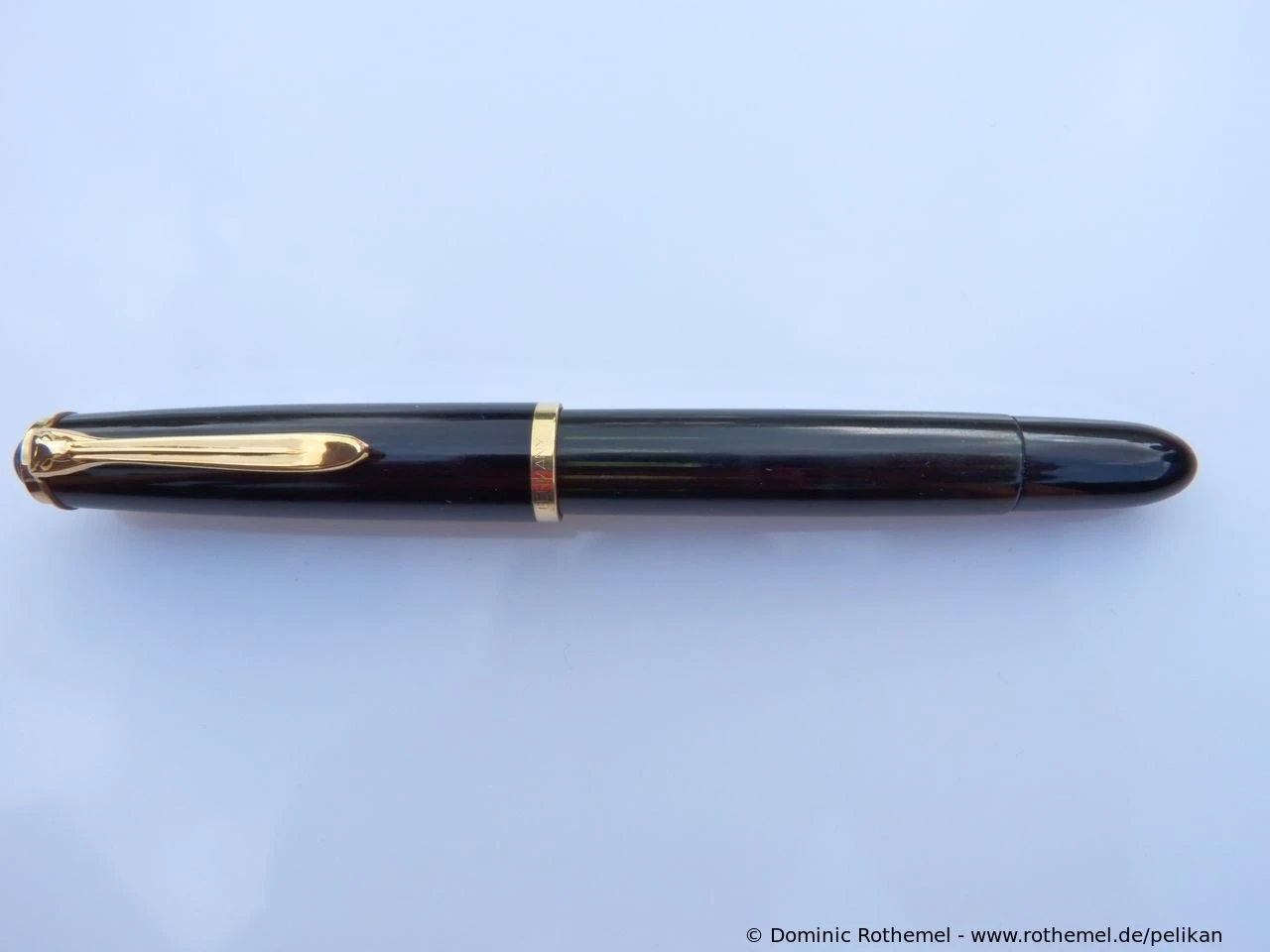

400NN Black-striped Series Production Color
Production: 1956-1965Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: black-stripedCap Color: blackTrim: gold plated

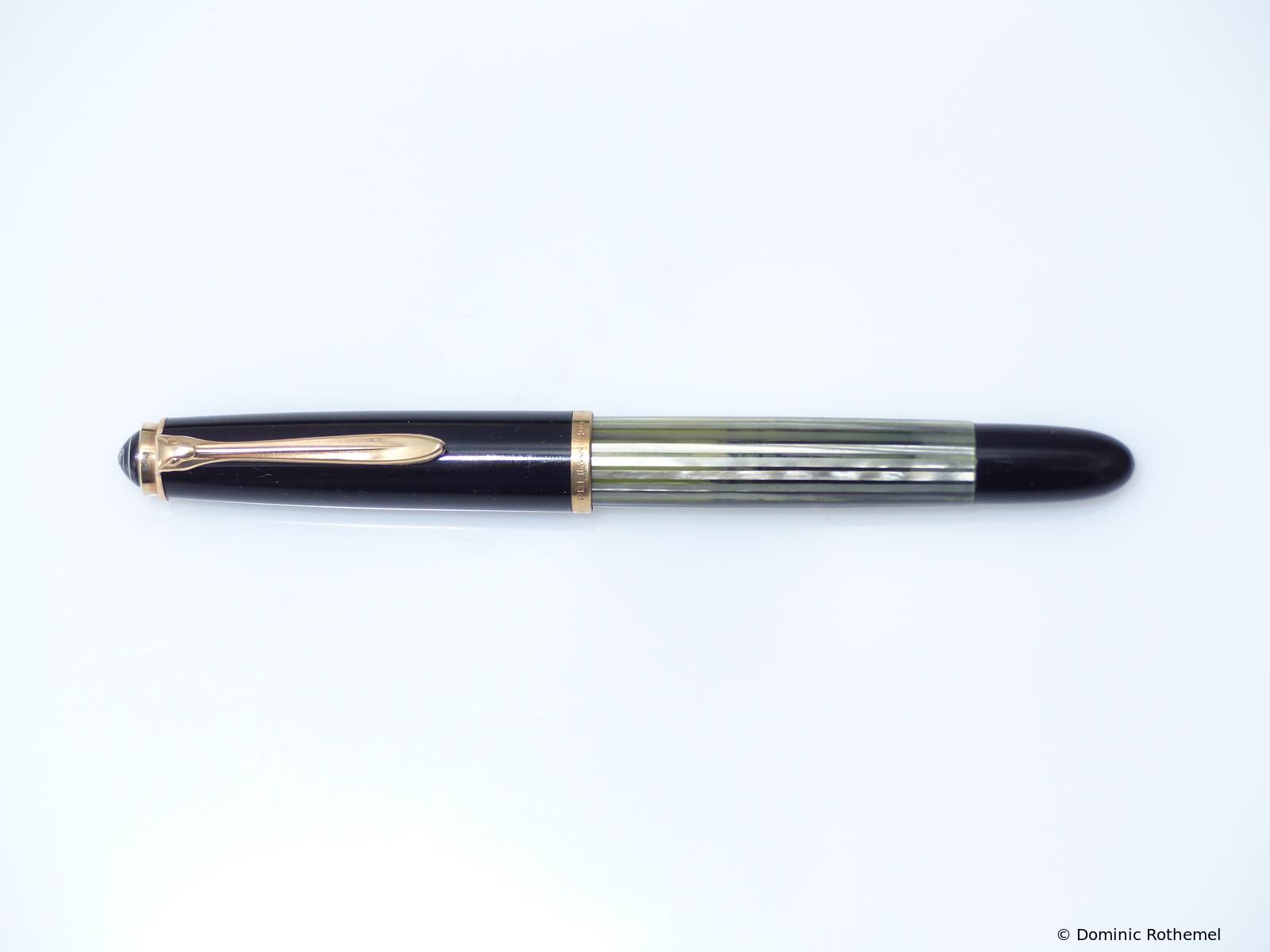

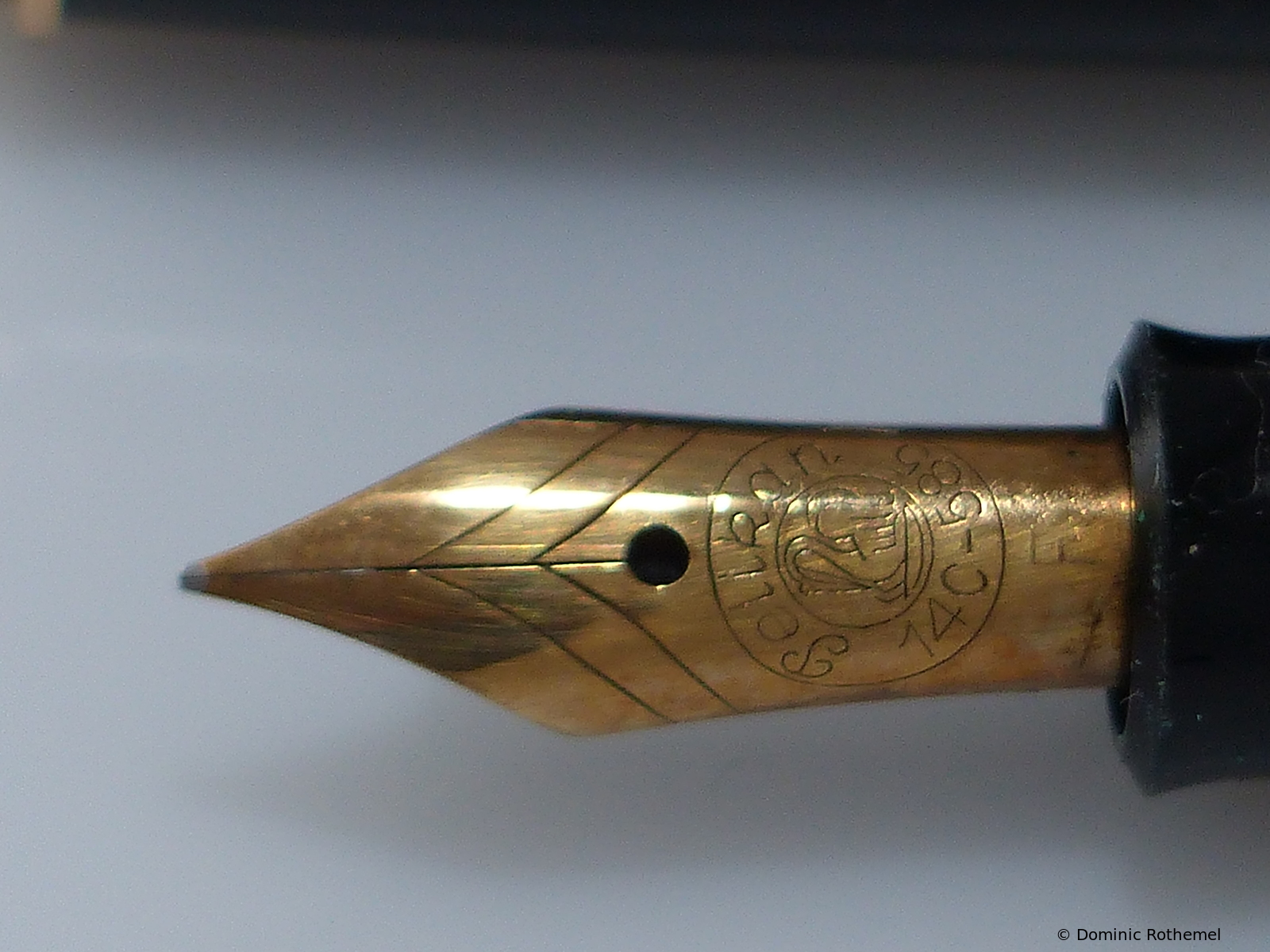

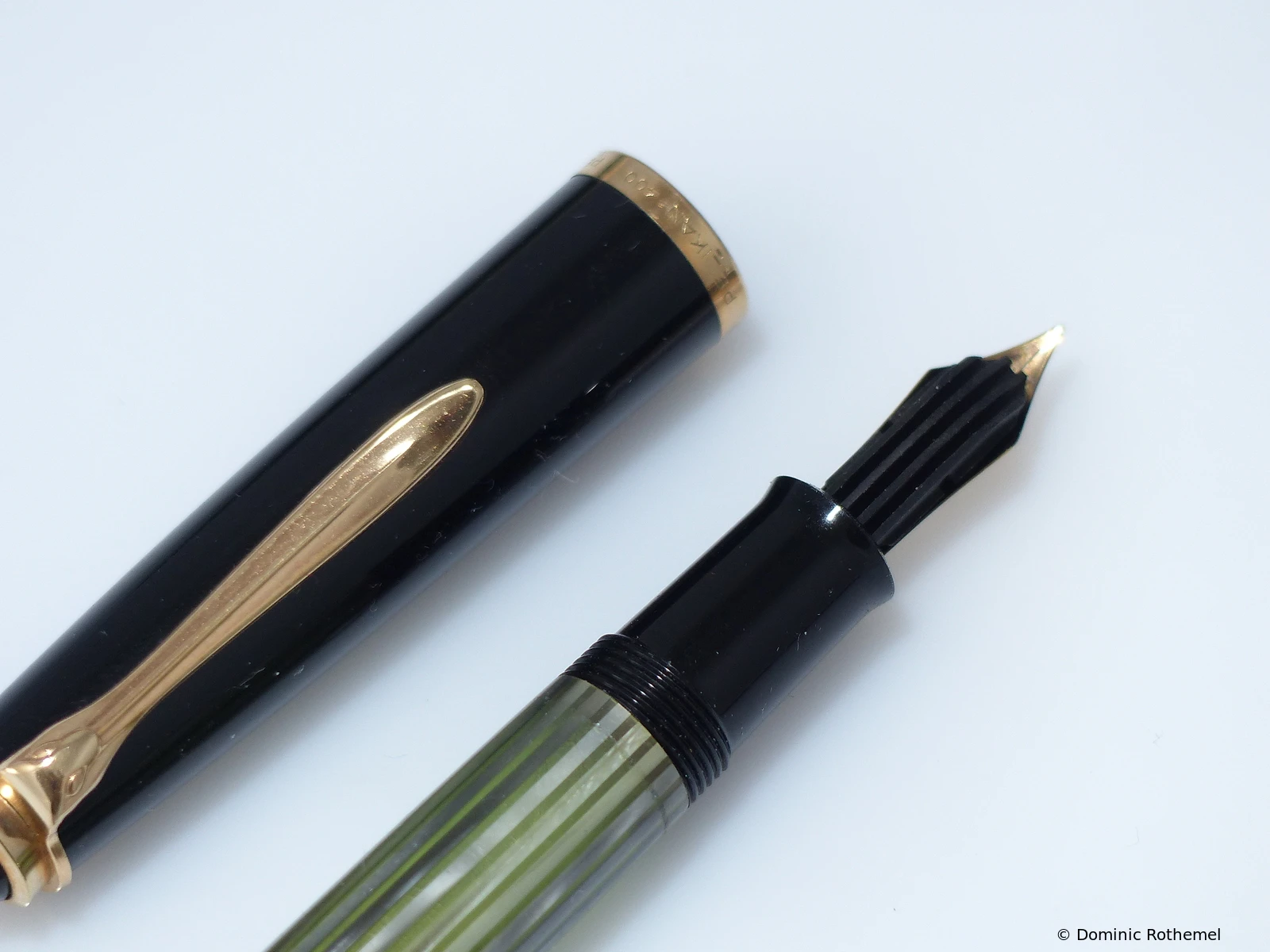

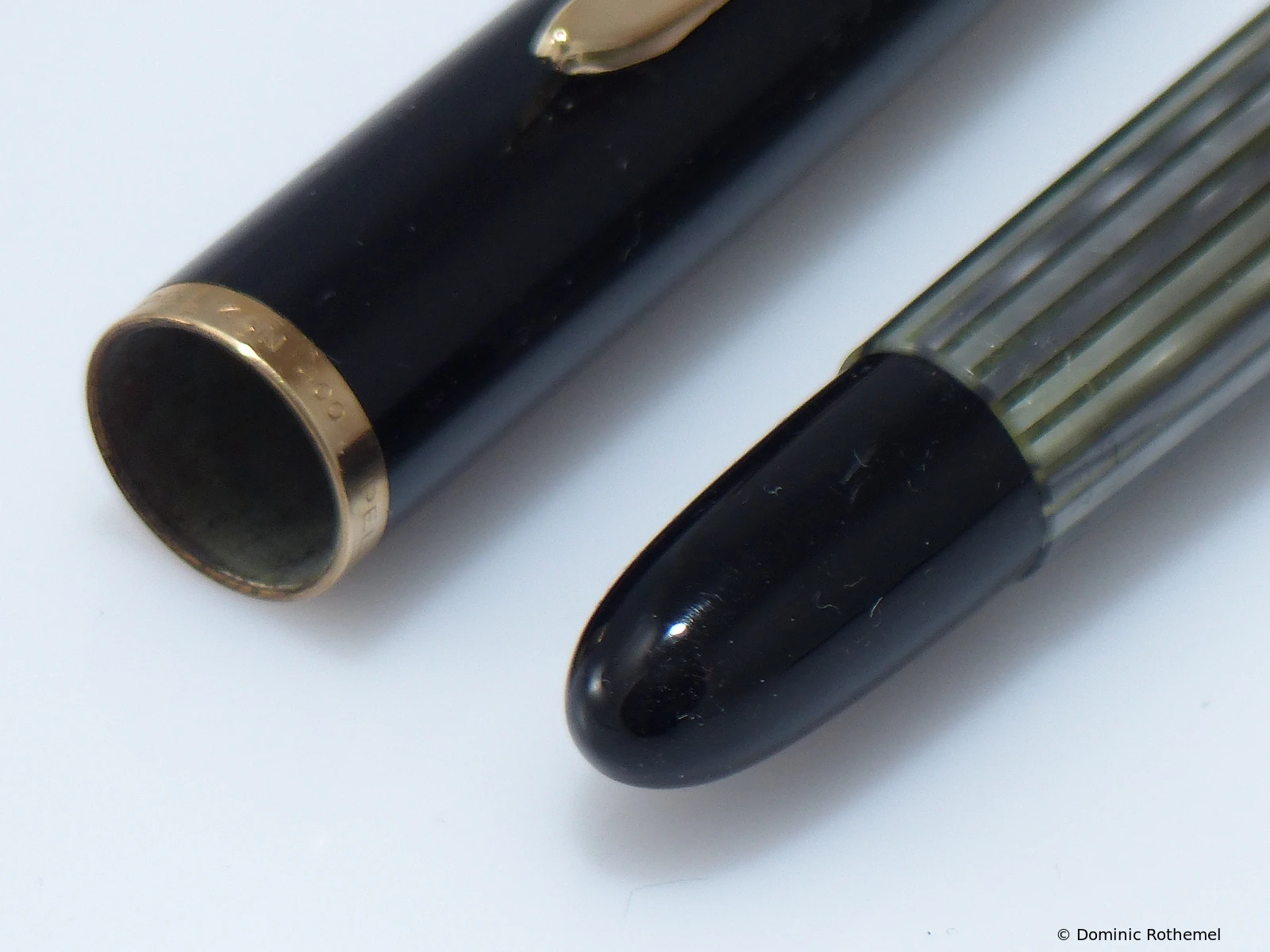

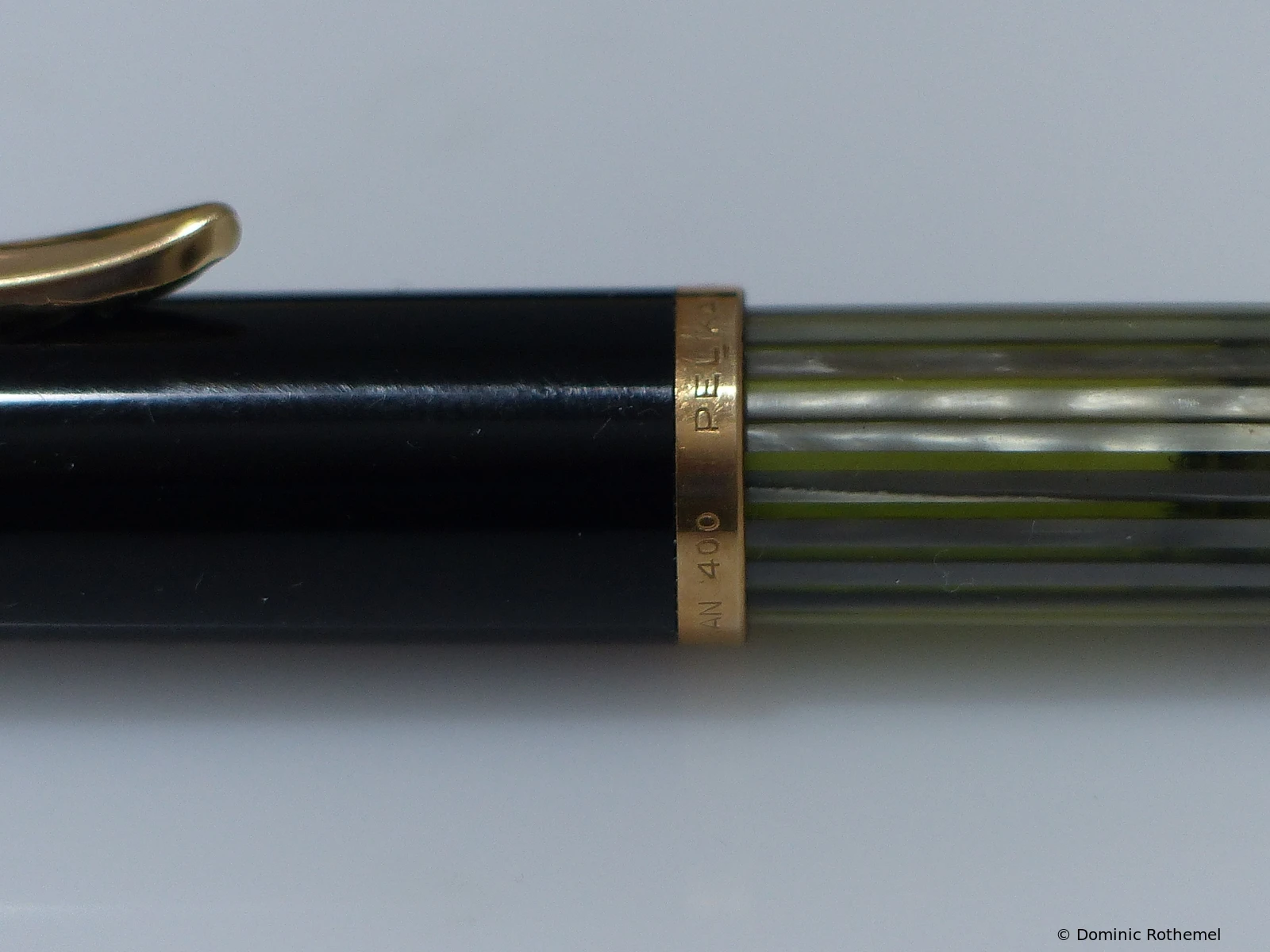

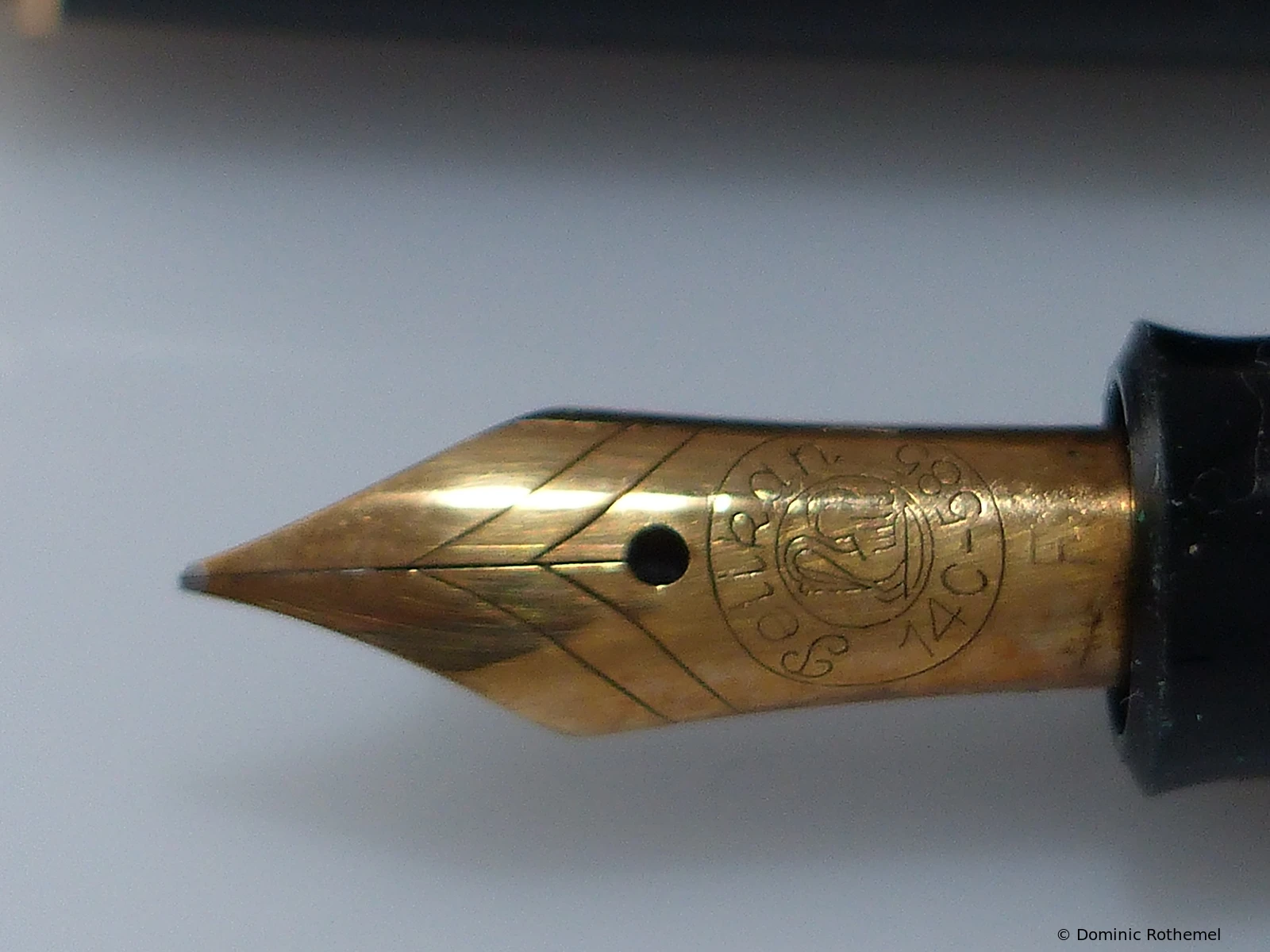

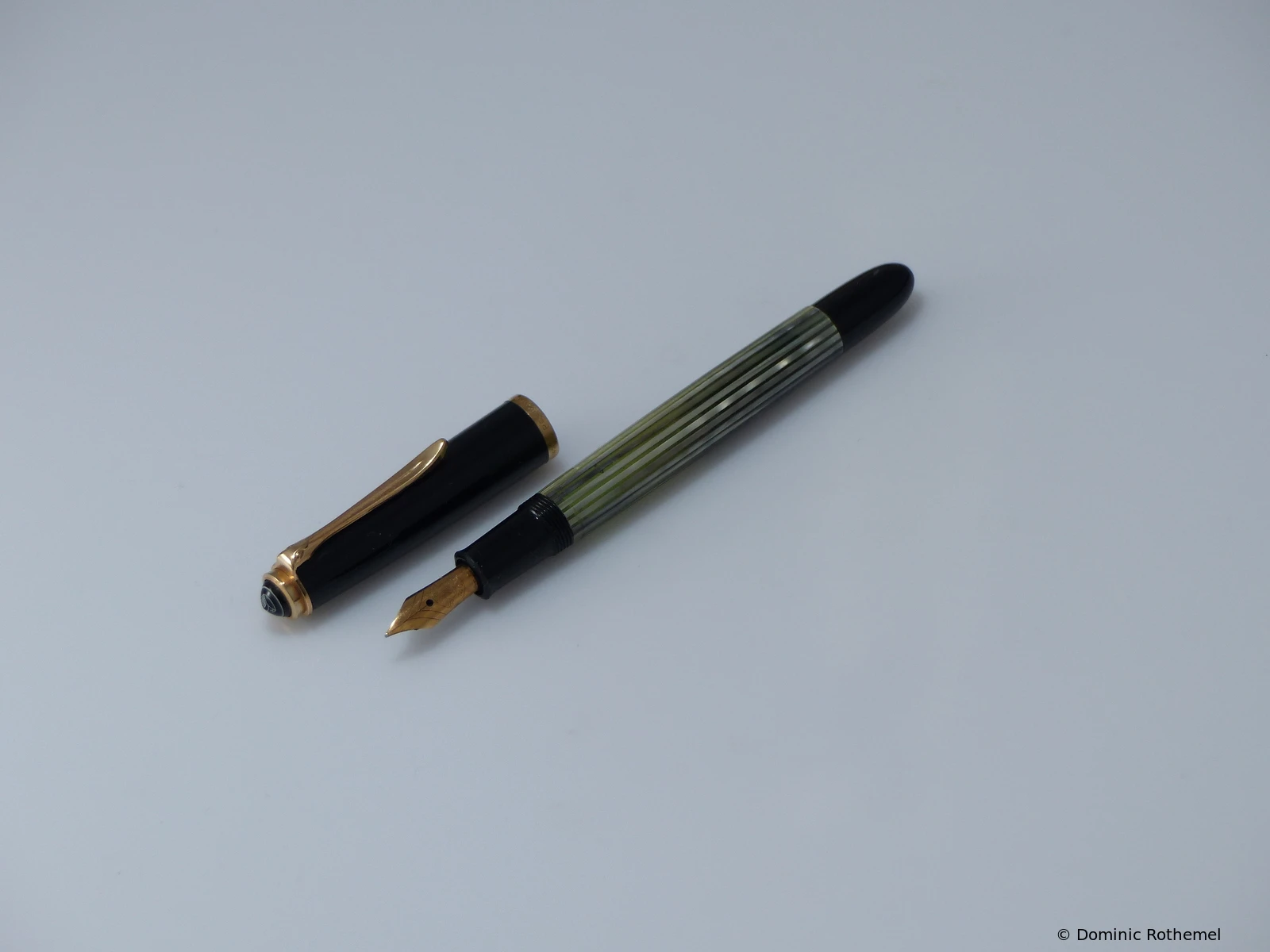

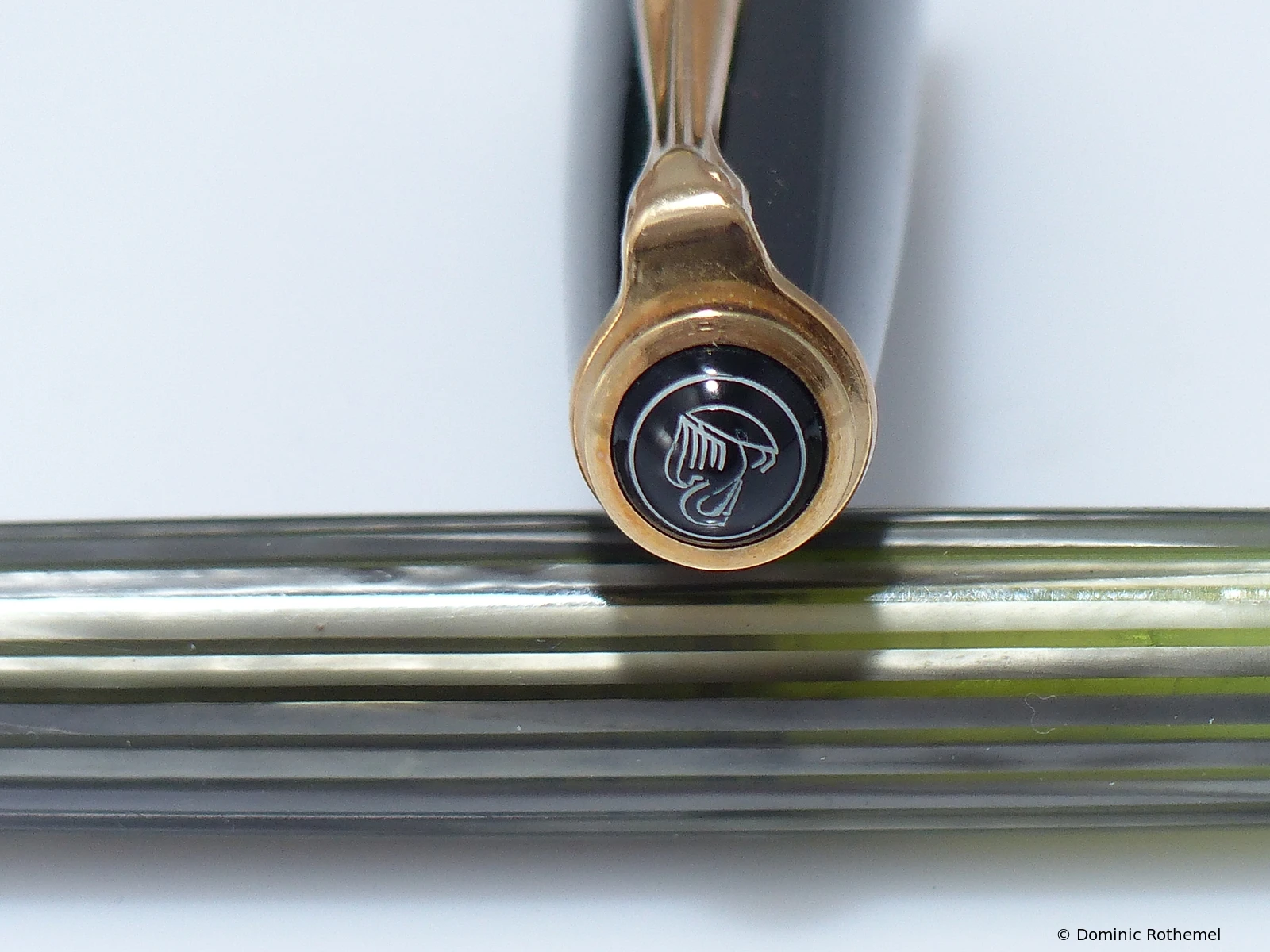

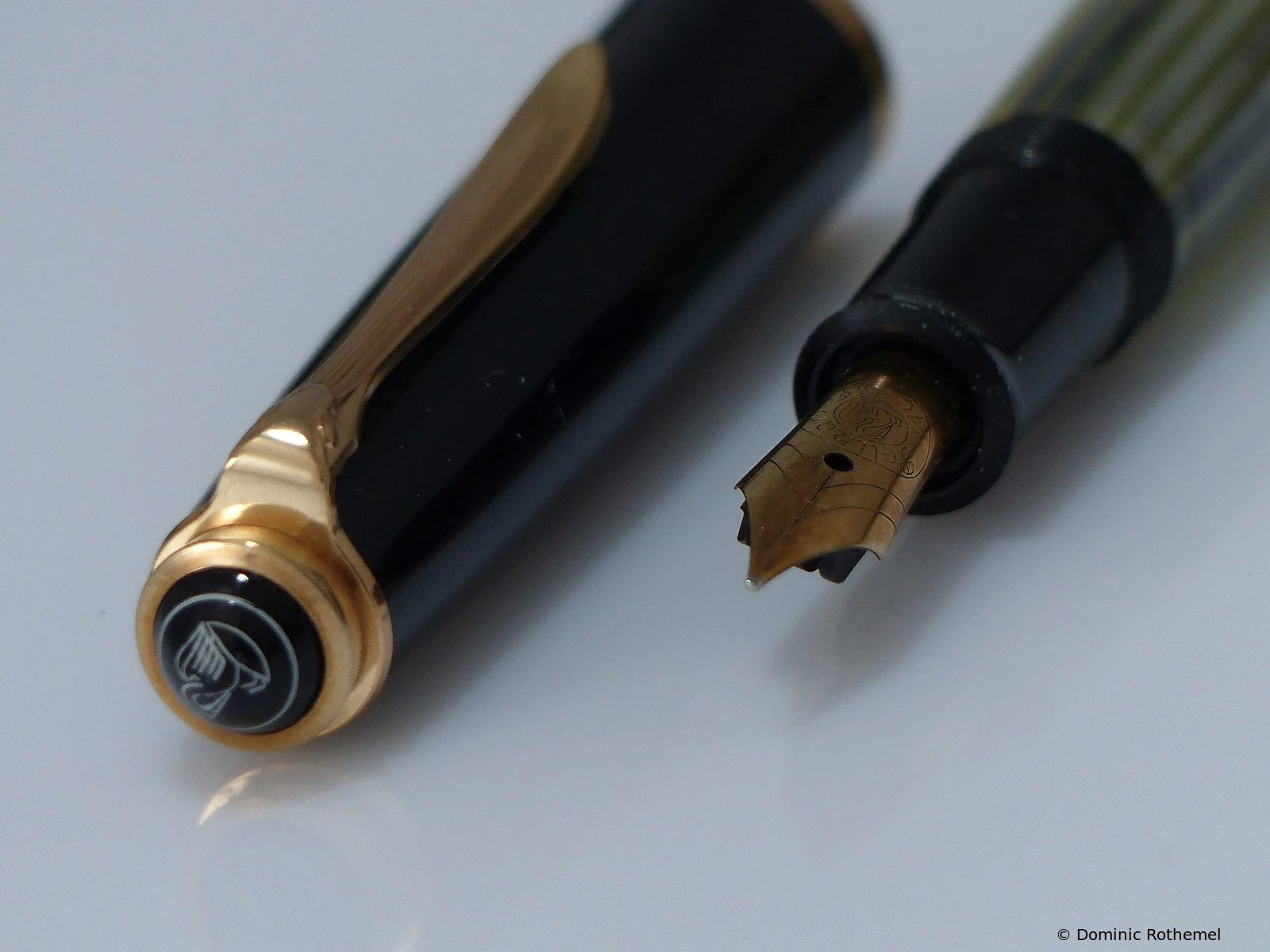

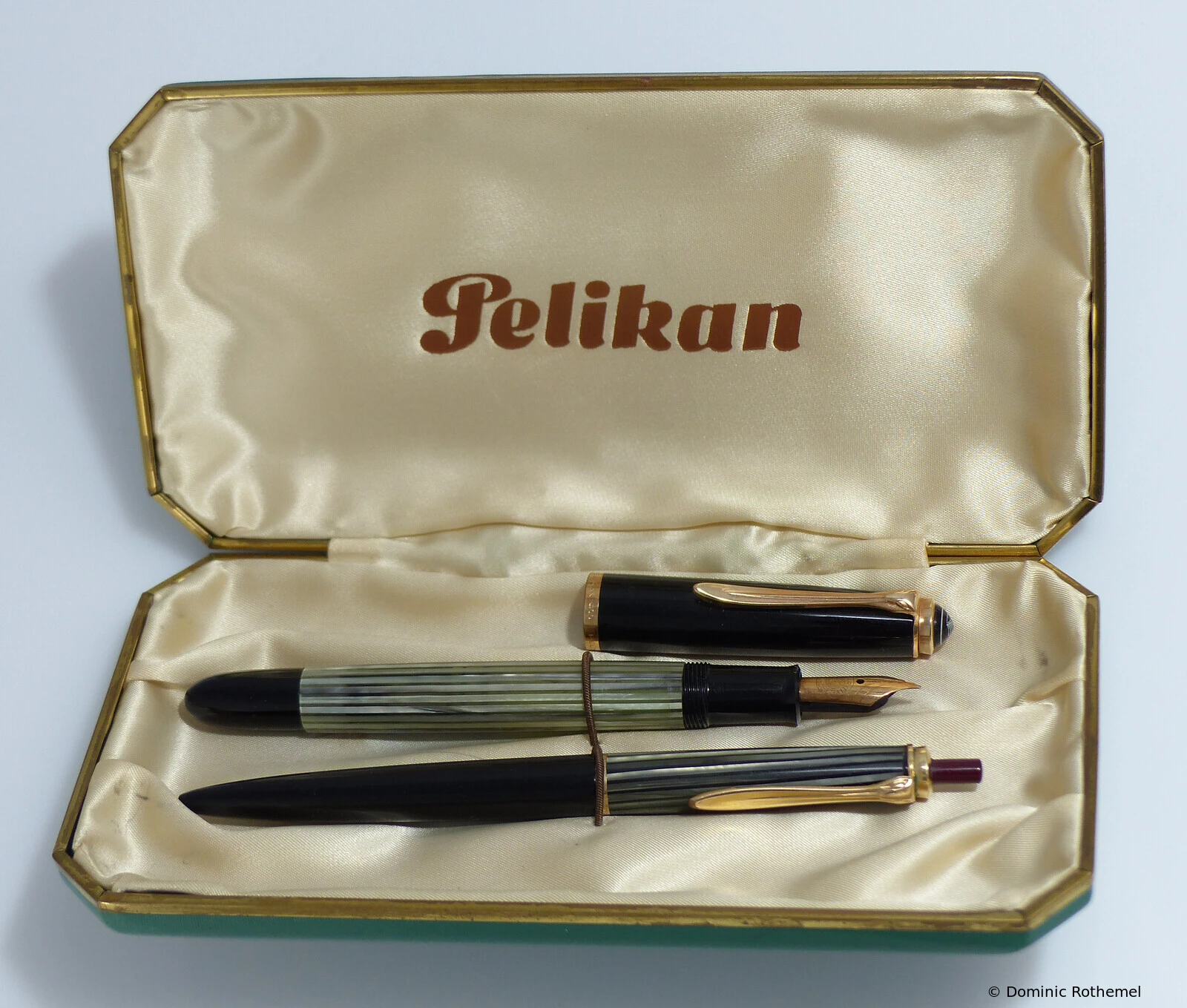

400NN Grey-striped Series Production Color
Production: 1957-1961Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: grey-stripedCap Color: blackTrim: gold plated

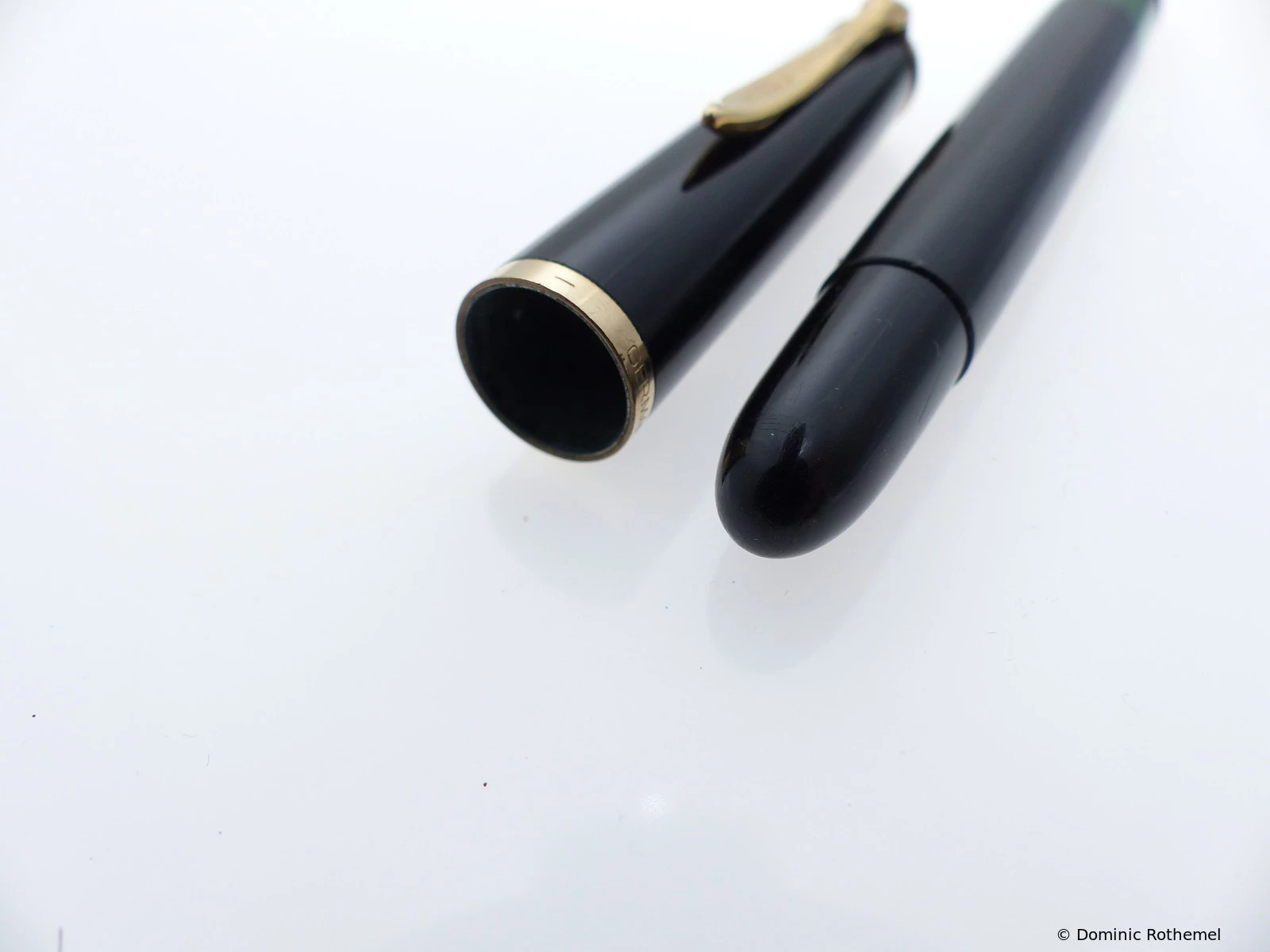

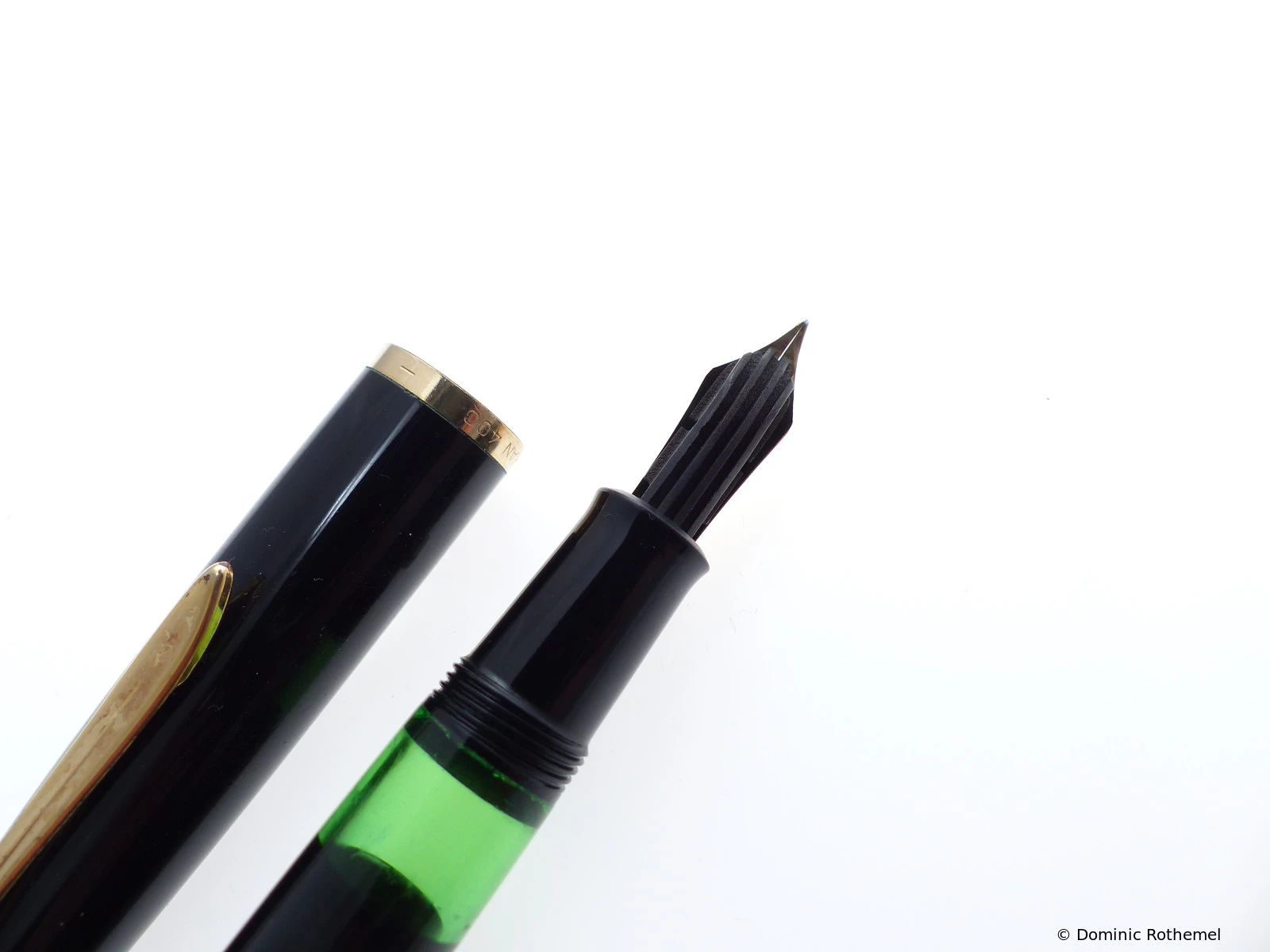

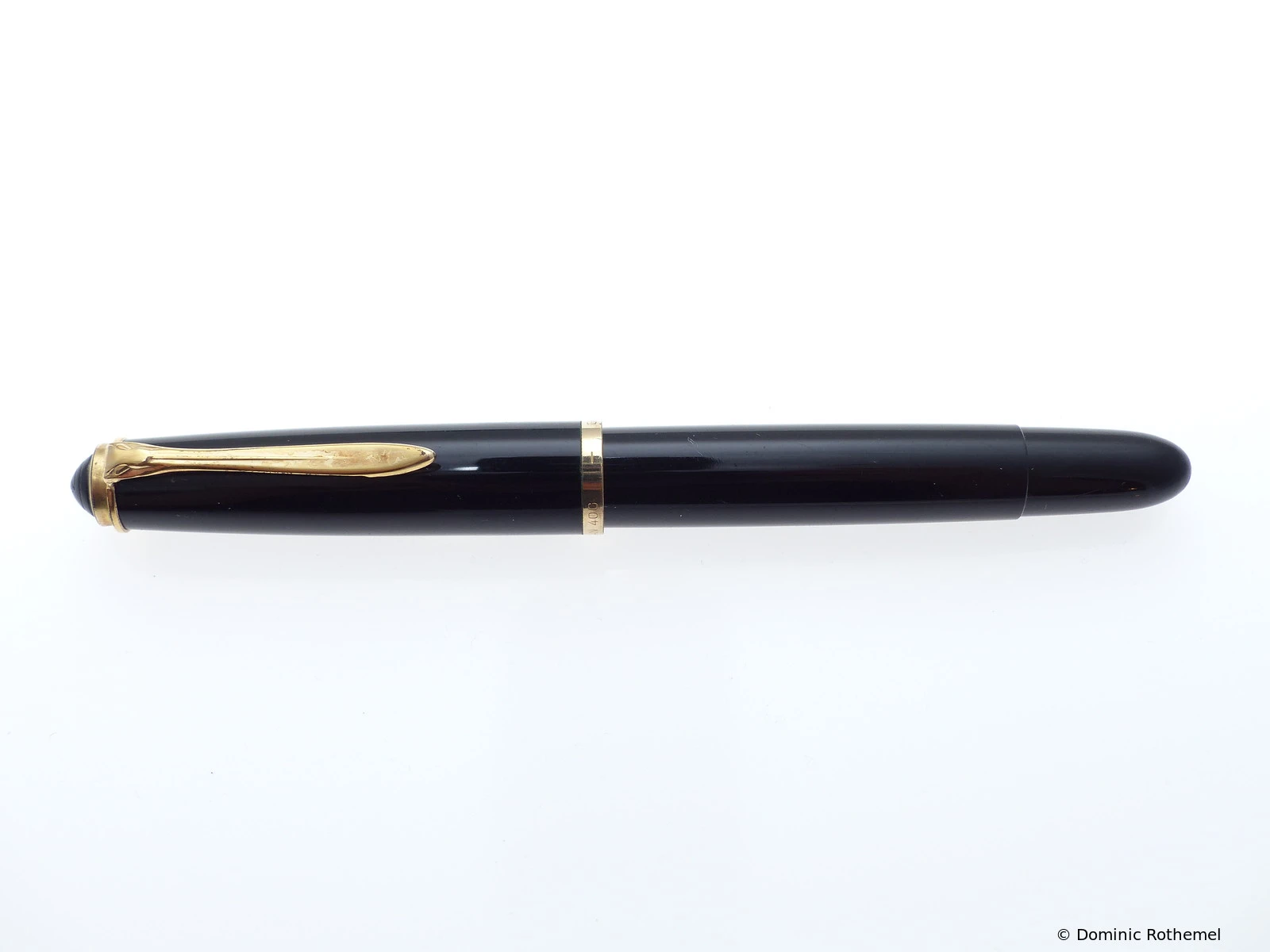

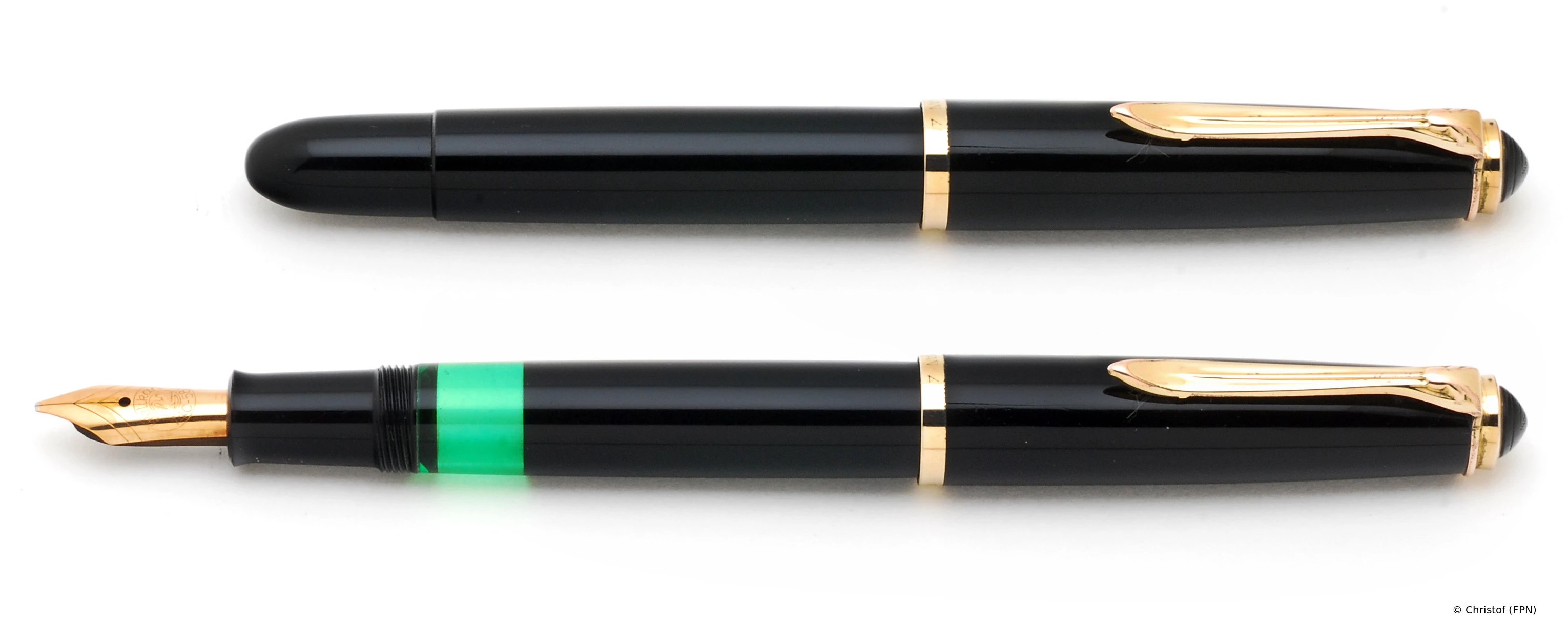

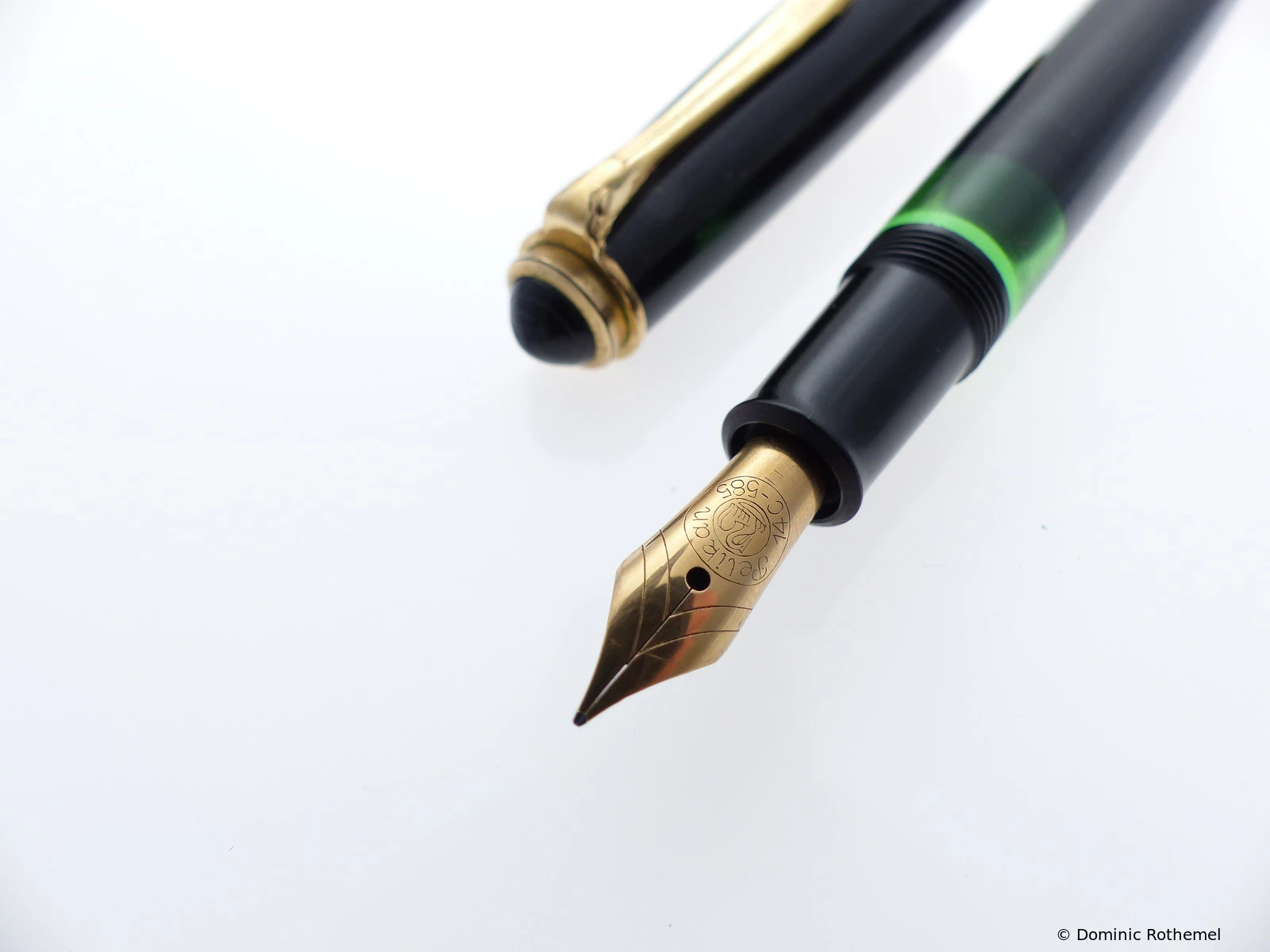

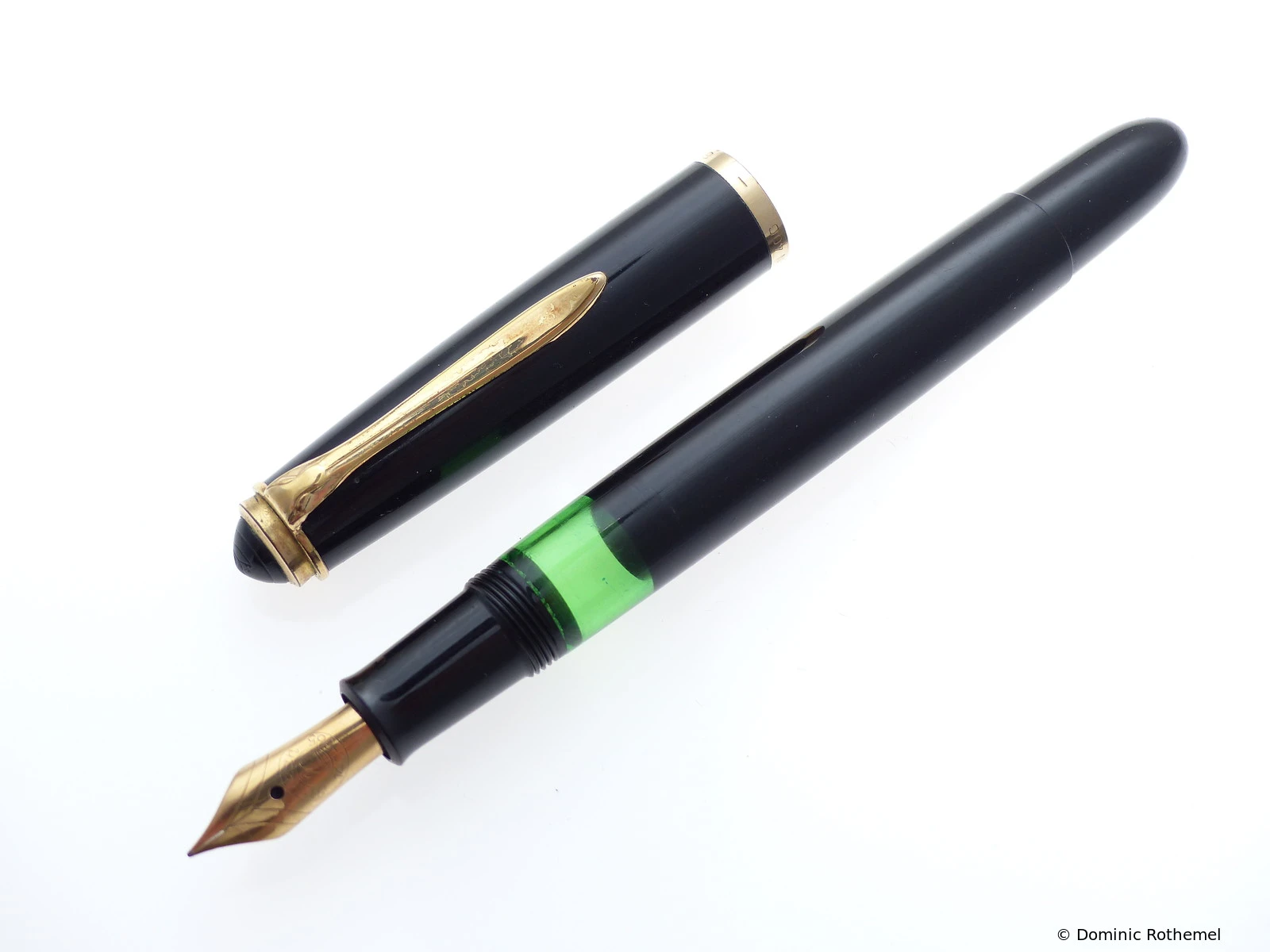

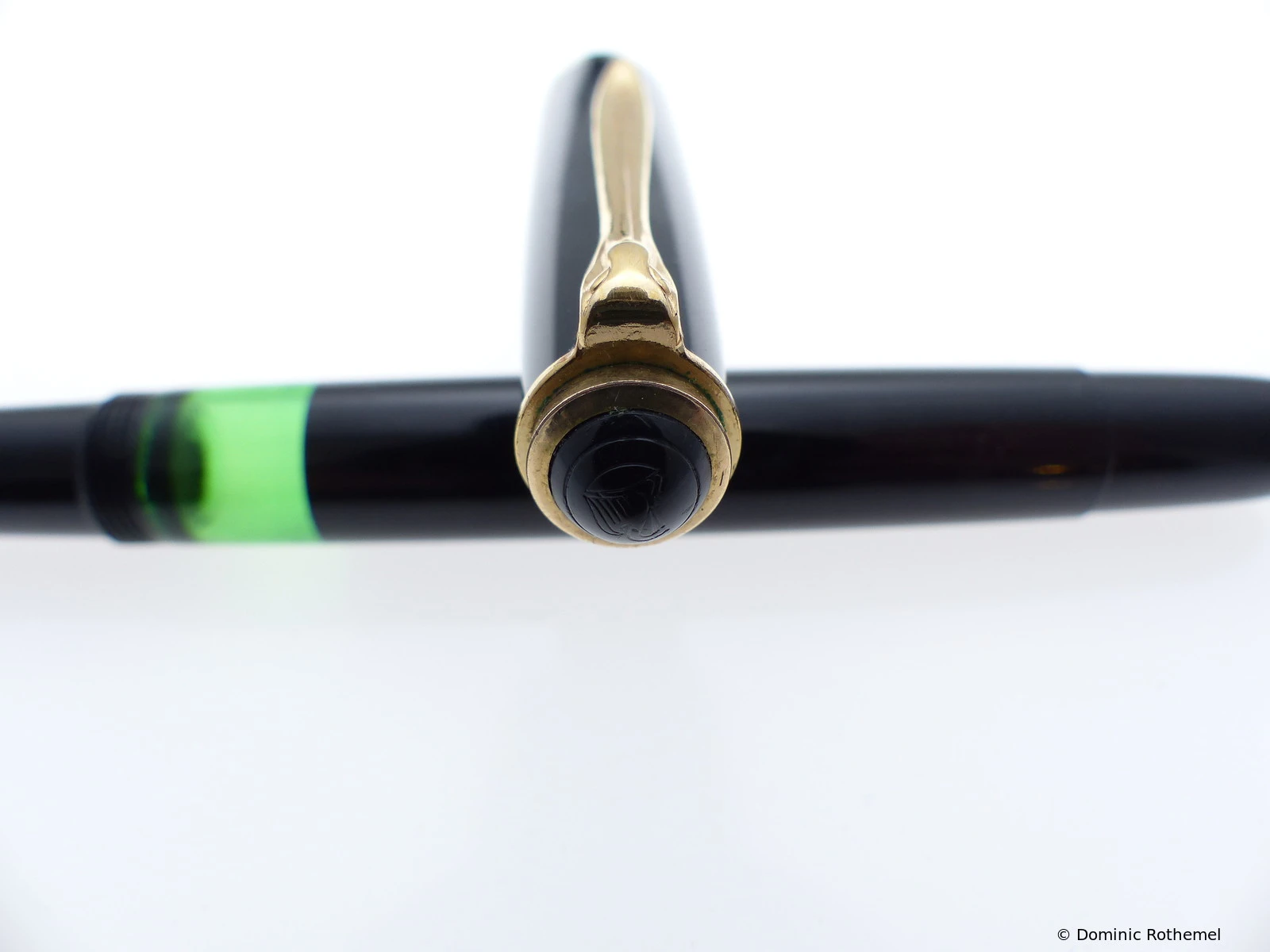

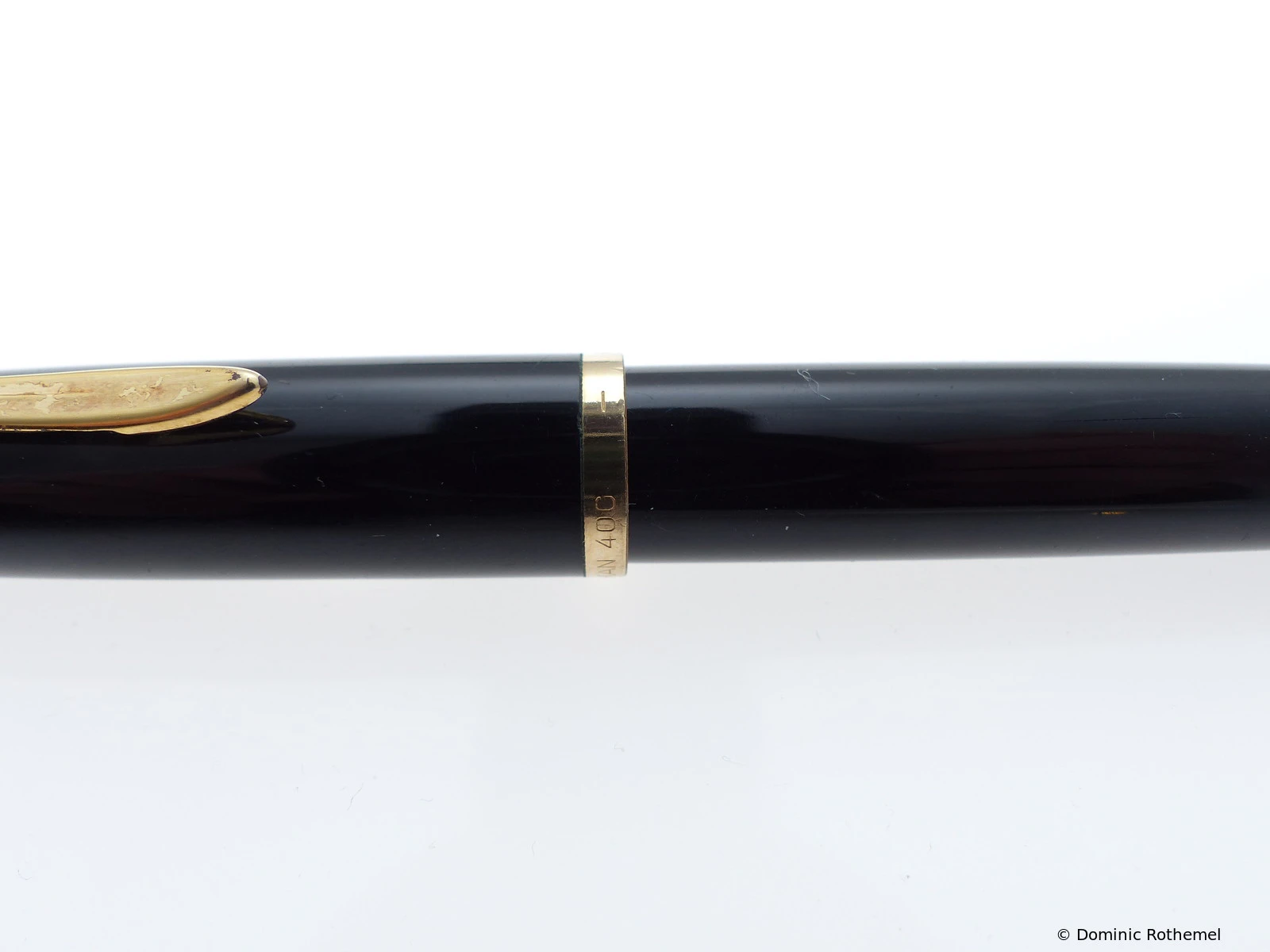

400NN Black Series Production Color
Production: 1956-1965Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan für jeden der schreibt
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: blackCap Color: blackTrim: gold plated
400NN Green / Green-striped Series Production Color Details
Production: unknownNib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: green-stripedCap Color: greenTrim: gold plated

On this model the otherwise black parts (cap, grip section, filling knob) are green (light green-grey).

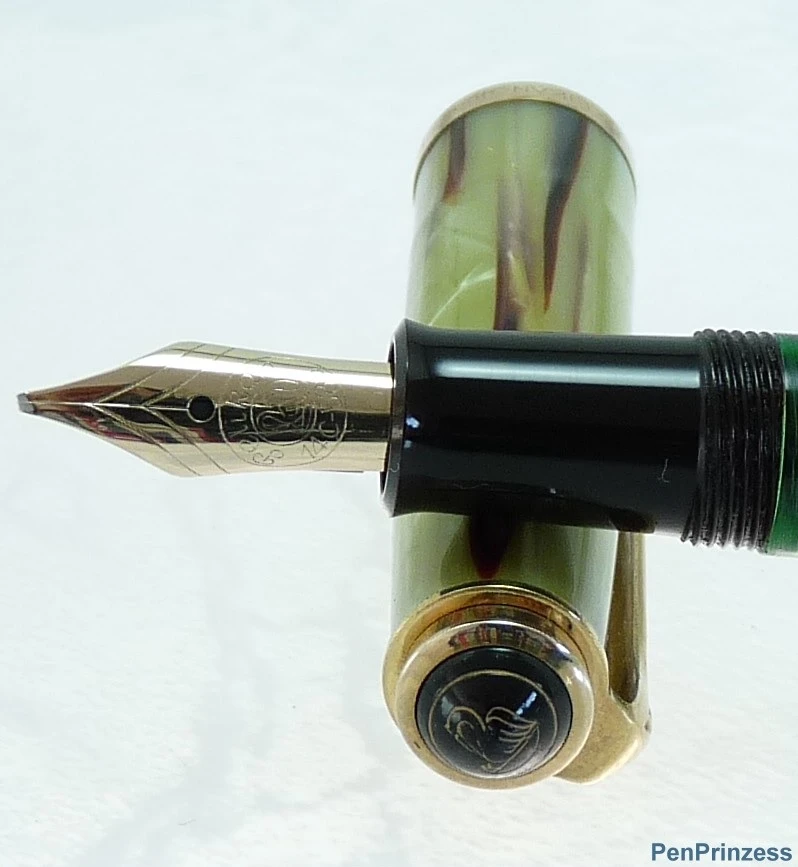

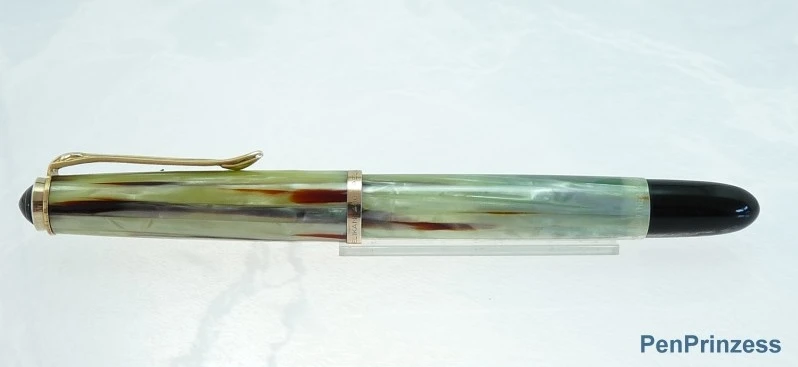

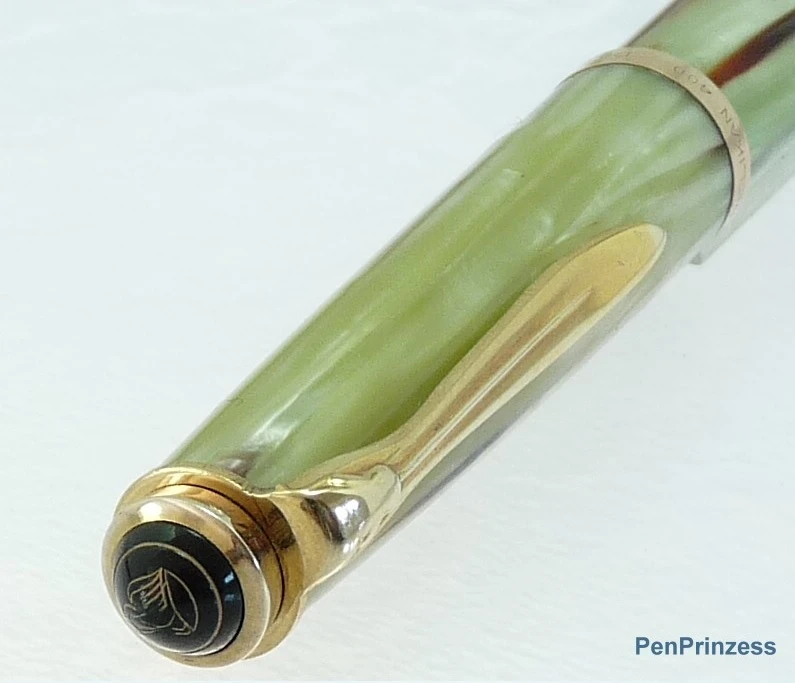

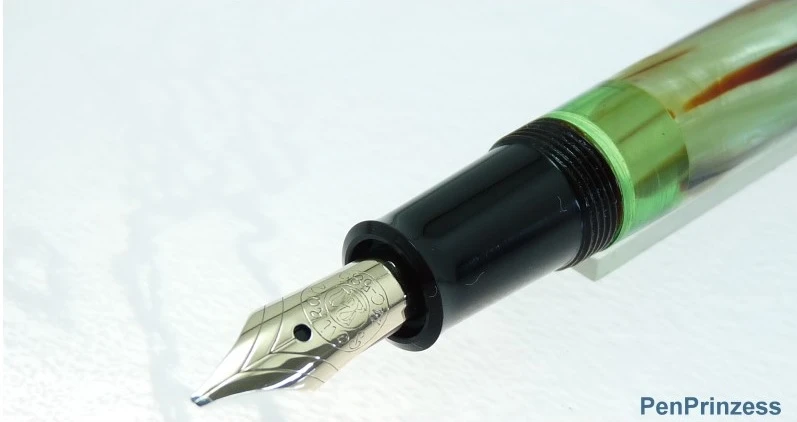

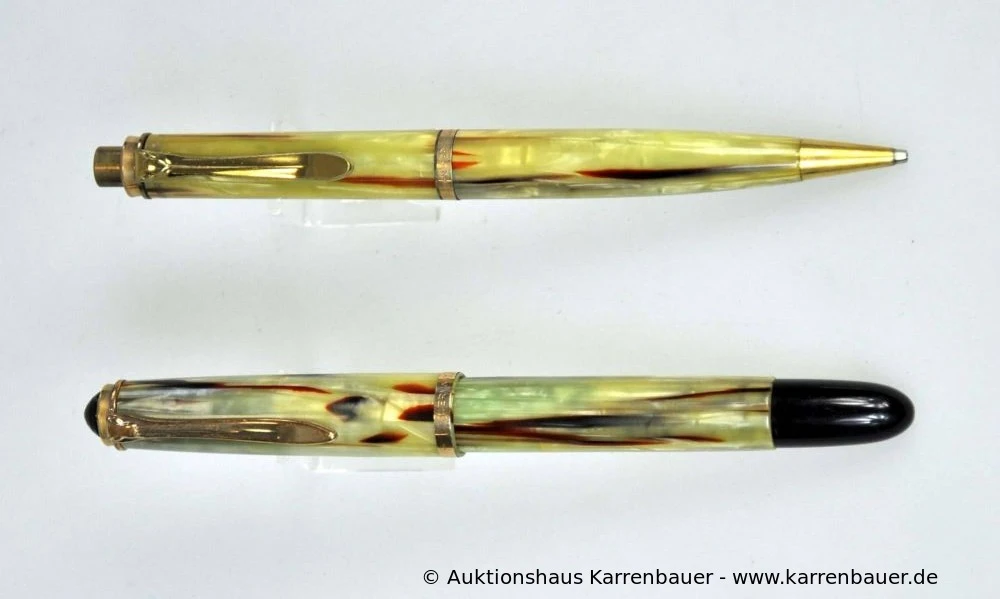

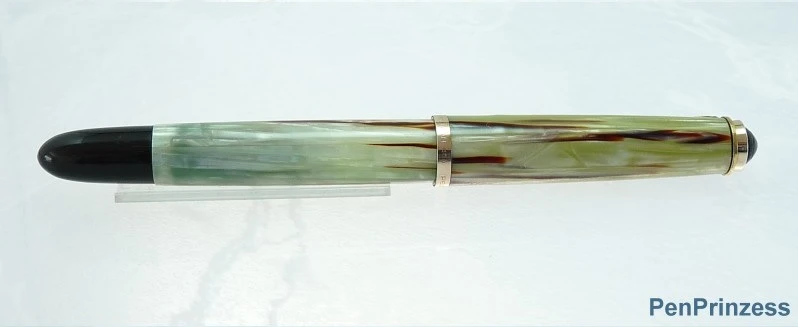

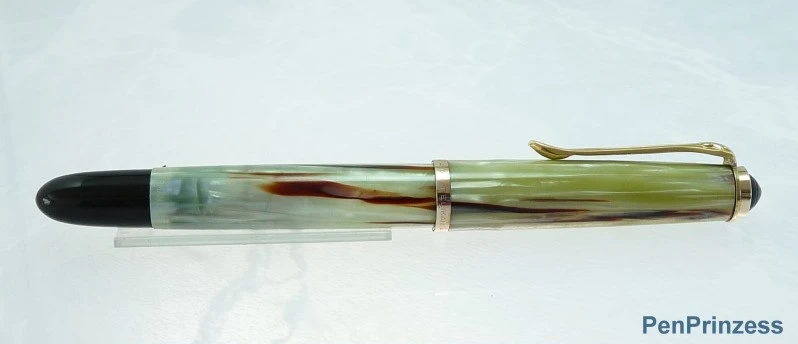

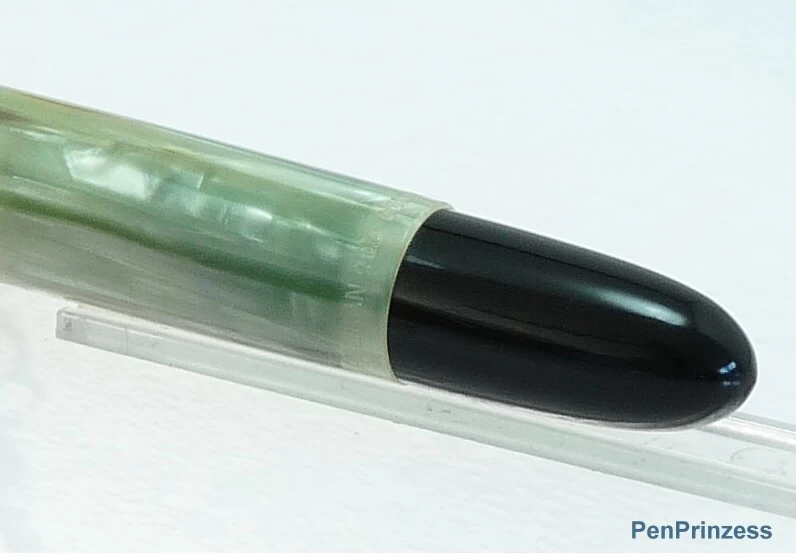

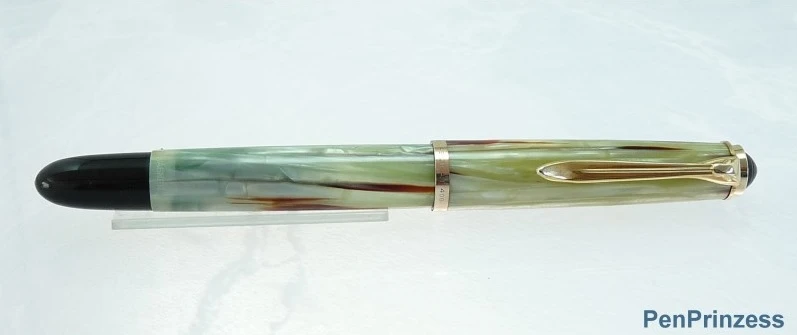

400NN Light tortoise Series Production Color
Production: 1957-1960Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: light tortoiseCap Color: light tortoiseTrim: gold plated

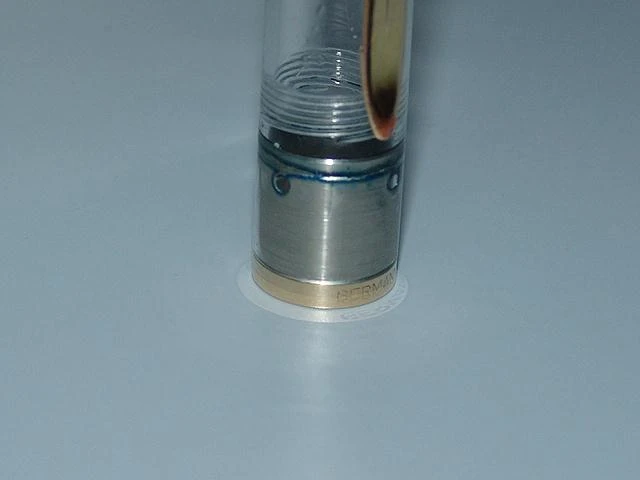

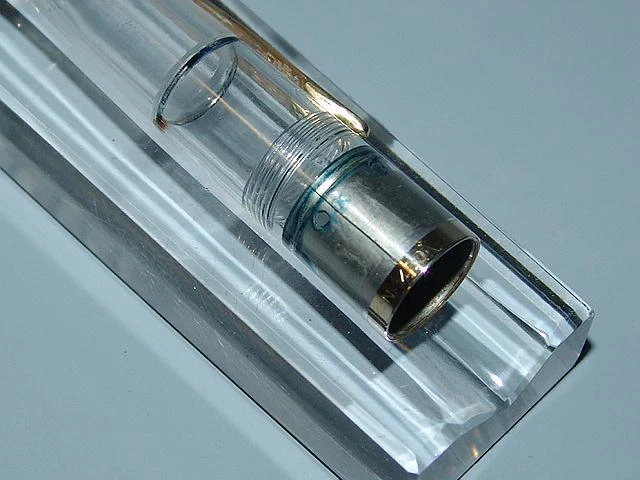

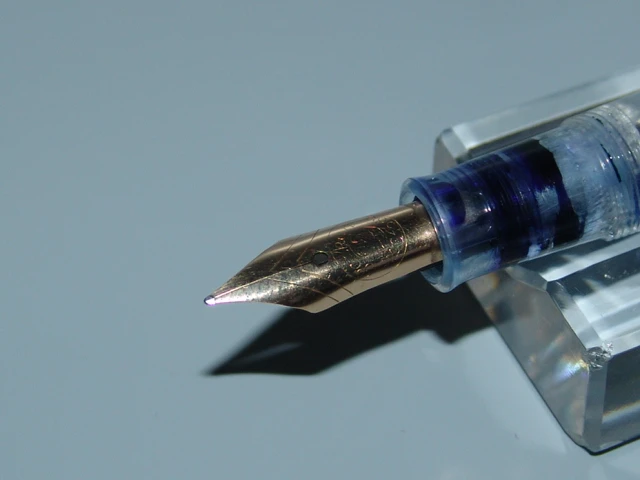

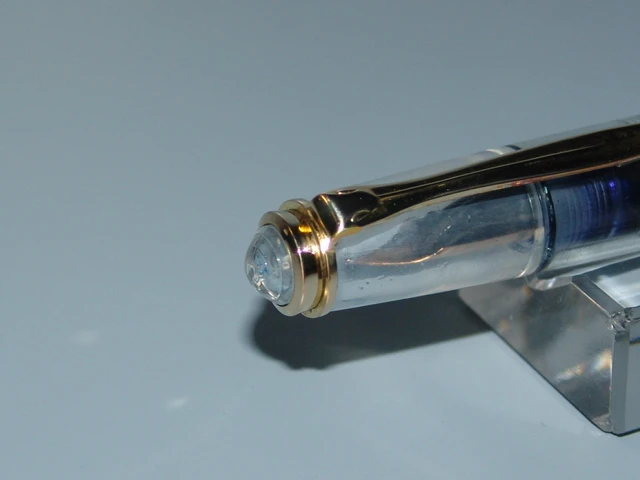

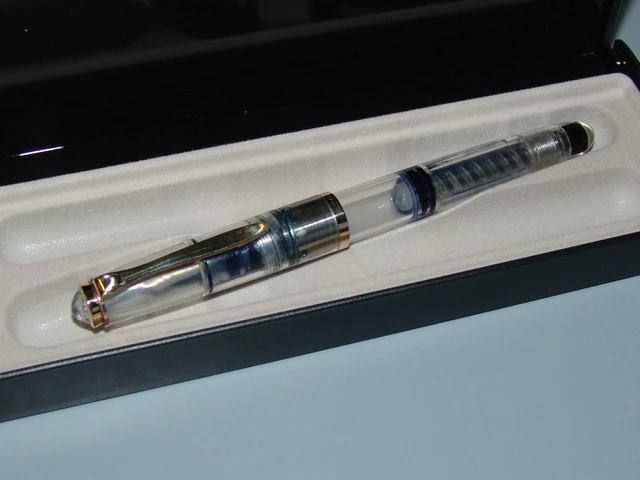

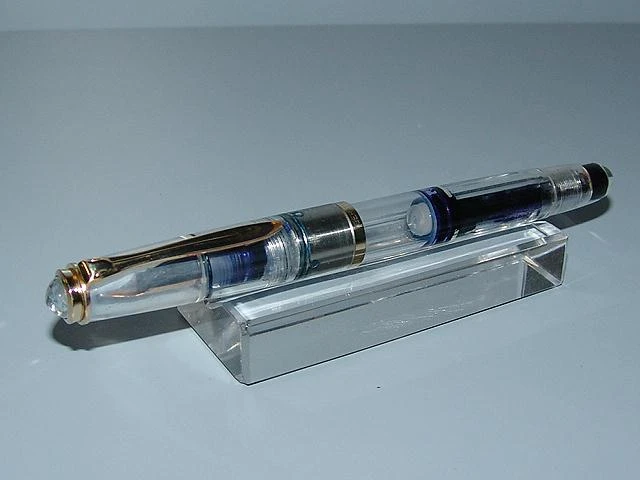

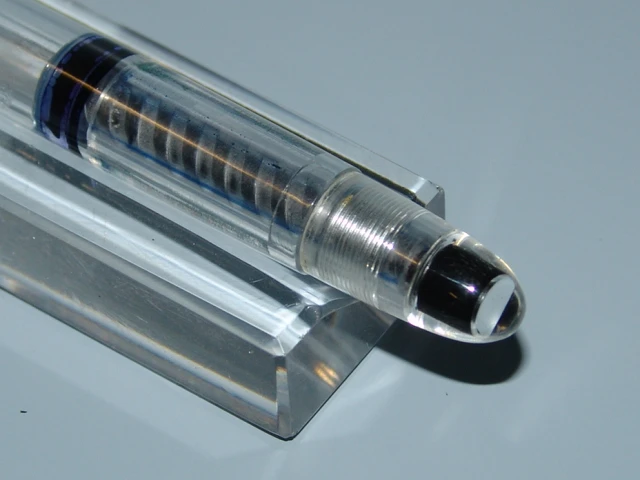

400NN Clear transparent Low vol. Production Color Details
Production: unknownNib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Low vol. Production
Barrel Color: clear transparentCap Color: clear transparentTrim: gold plated

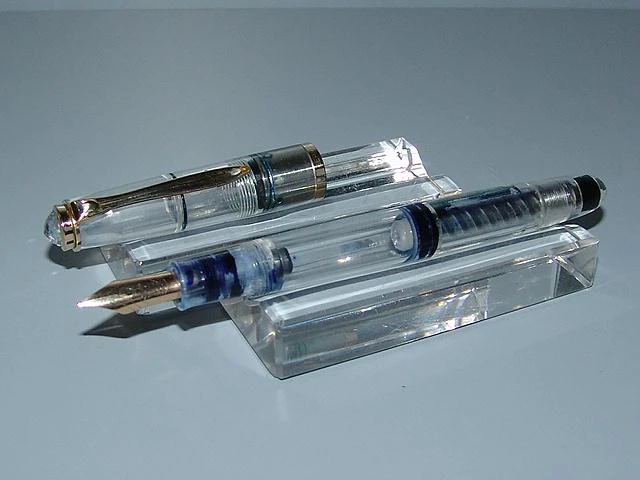

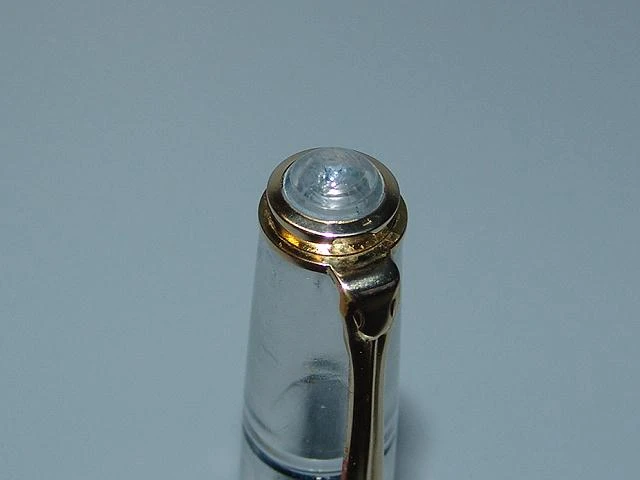

Clear transparent version, called demonstrator were e.g. delivered to stationery shops.

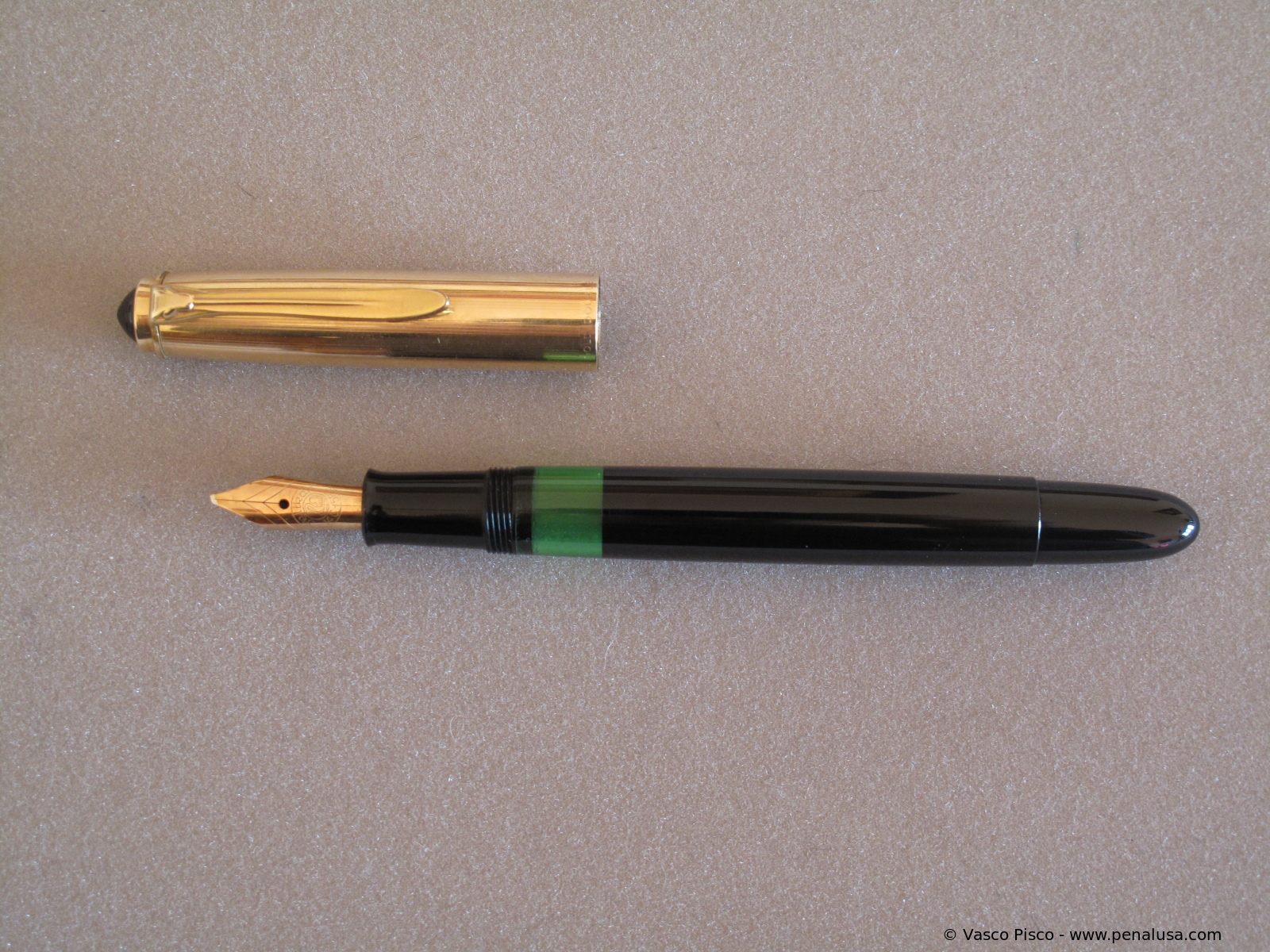

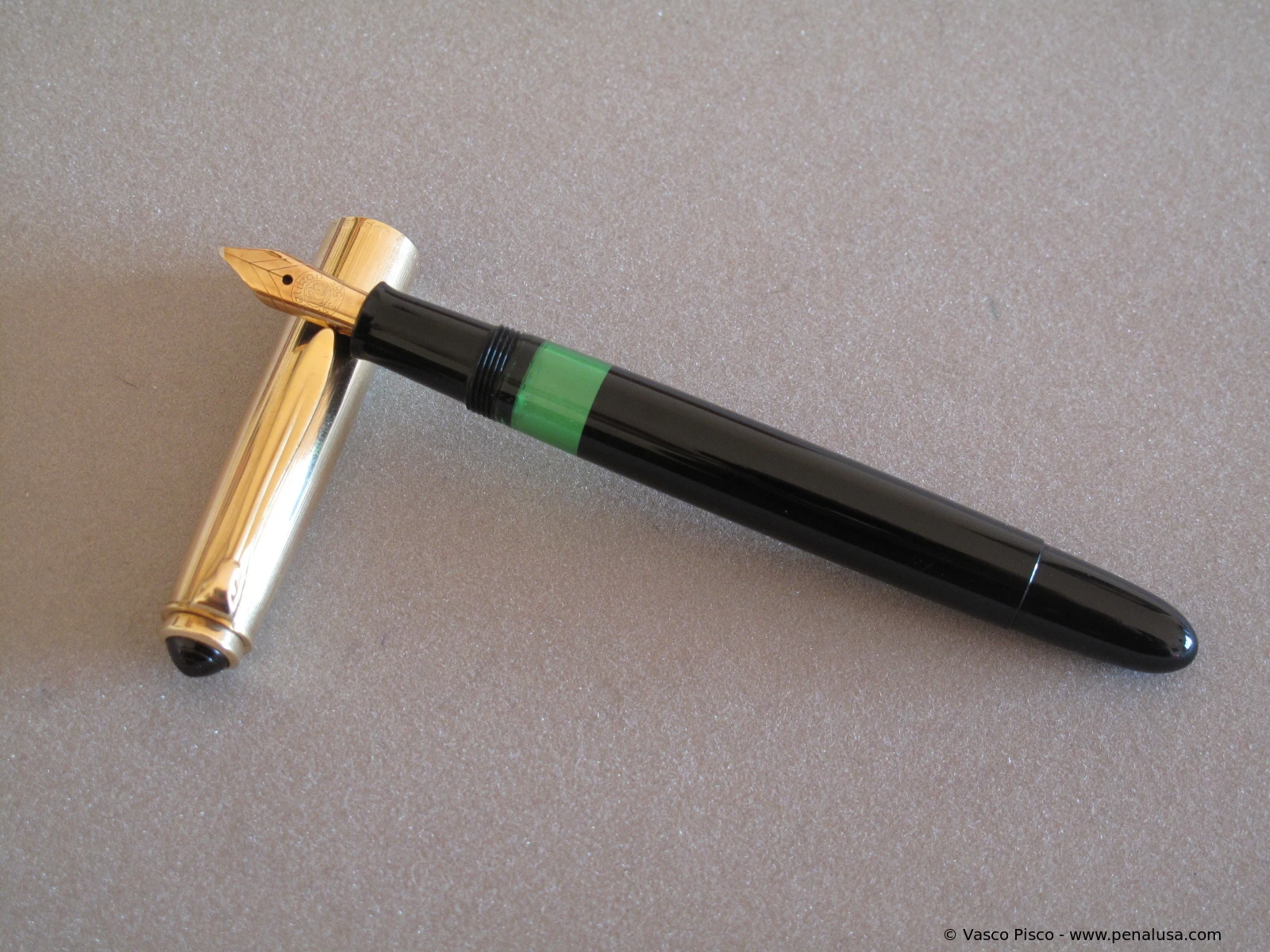

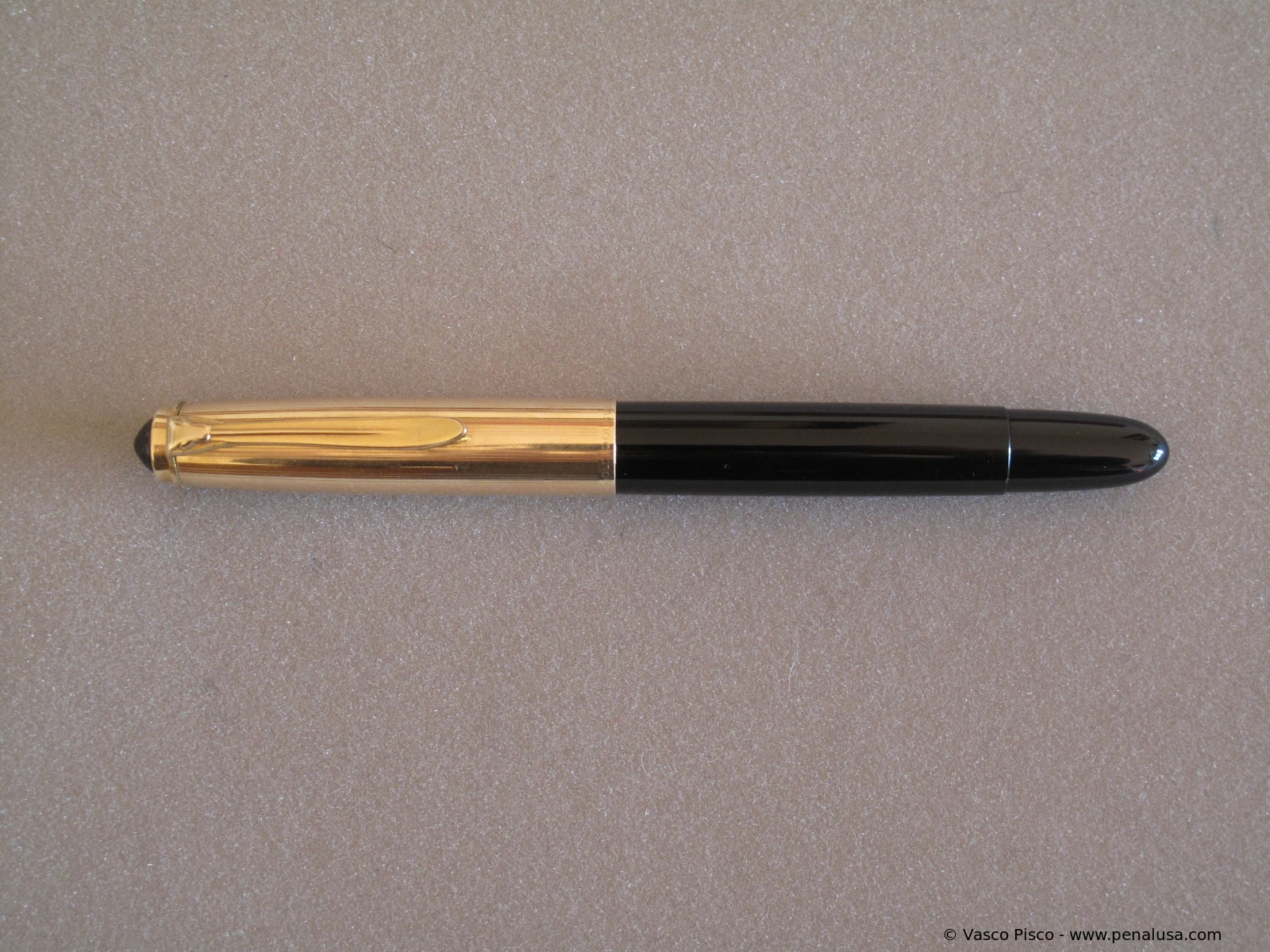

Pelikan 500NN

Identical to the Pelikan 400NN, only with gold double cap.

Model Production Period Nib
500NN - Cap Gold double 1956-1963

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.64 oz 5.12 in 4.06 in 2.44 in 0.47 in 2.0 ml
18.1 g 130 mm 103 mm 62 mm 12 mm


500NN

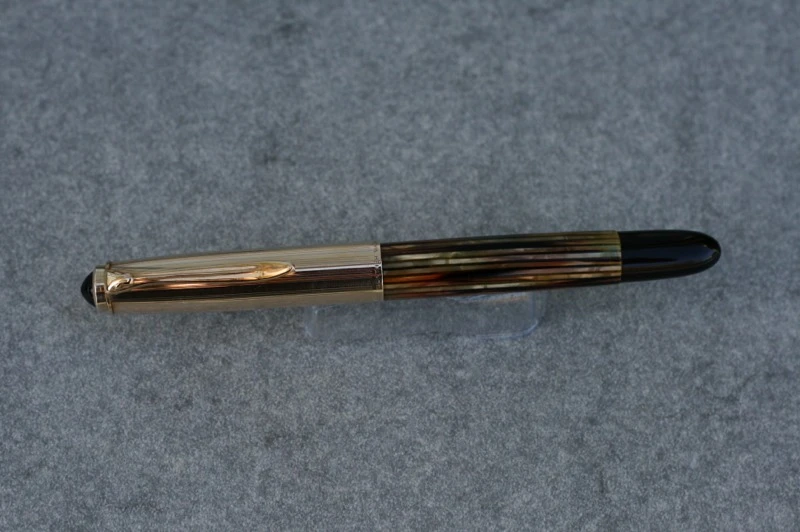

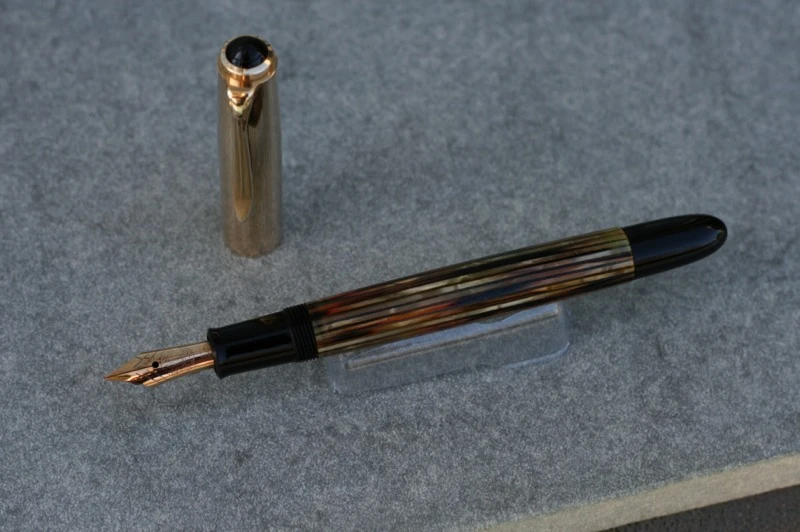

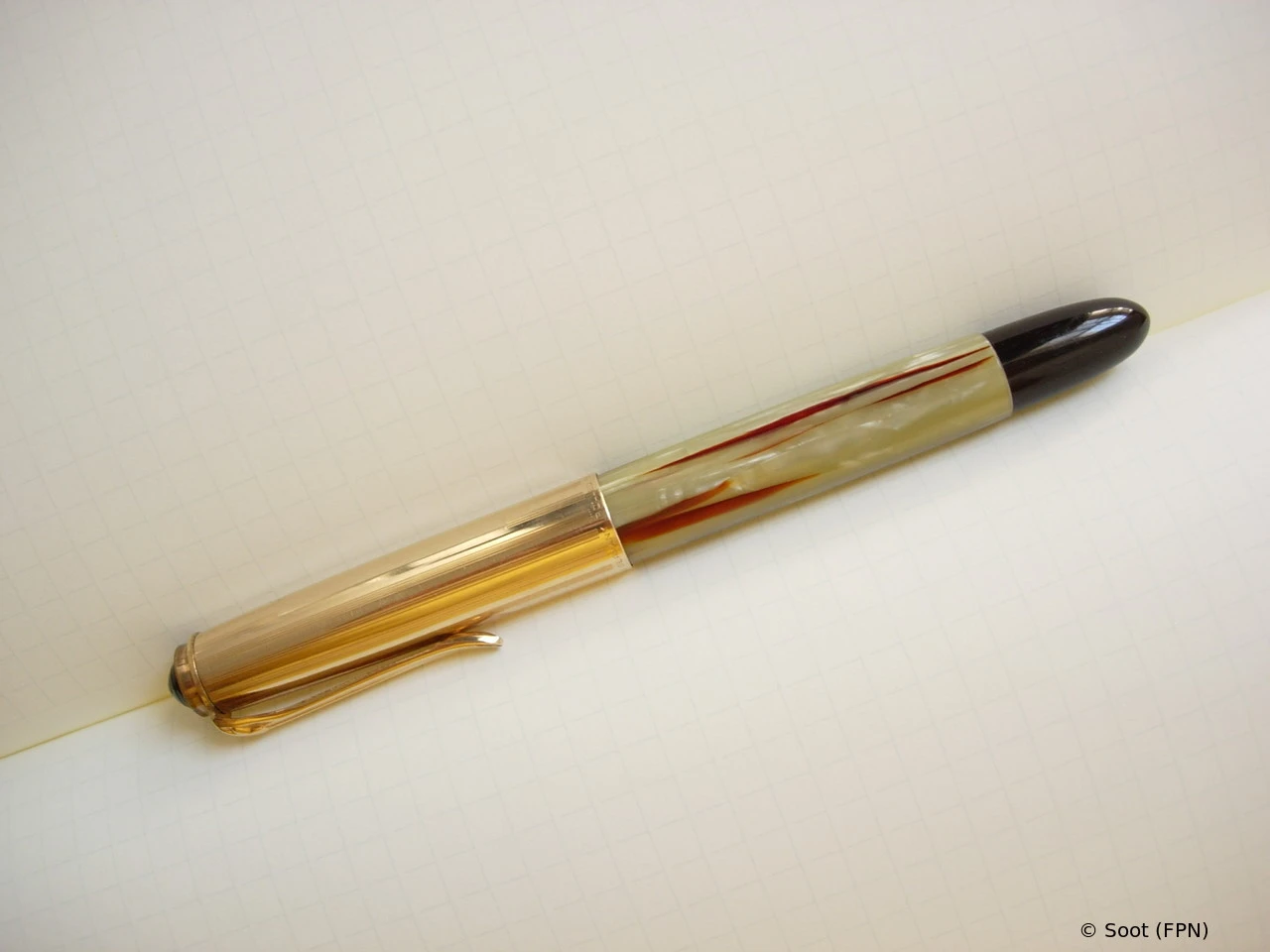

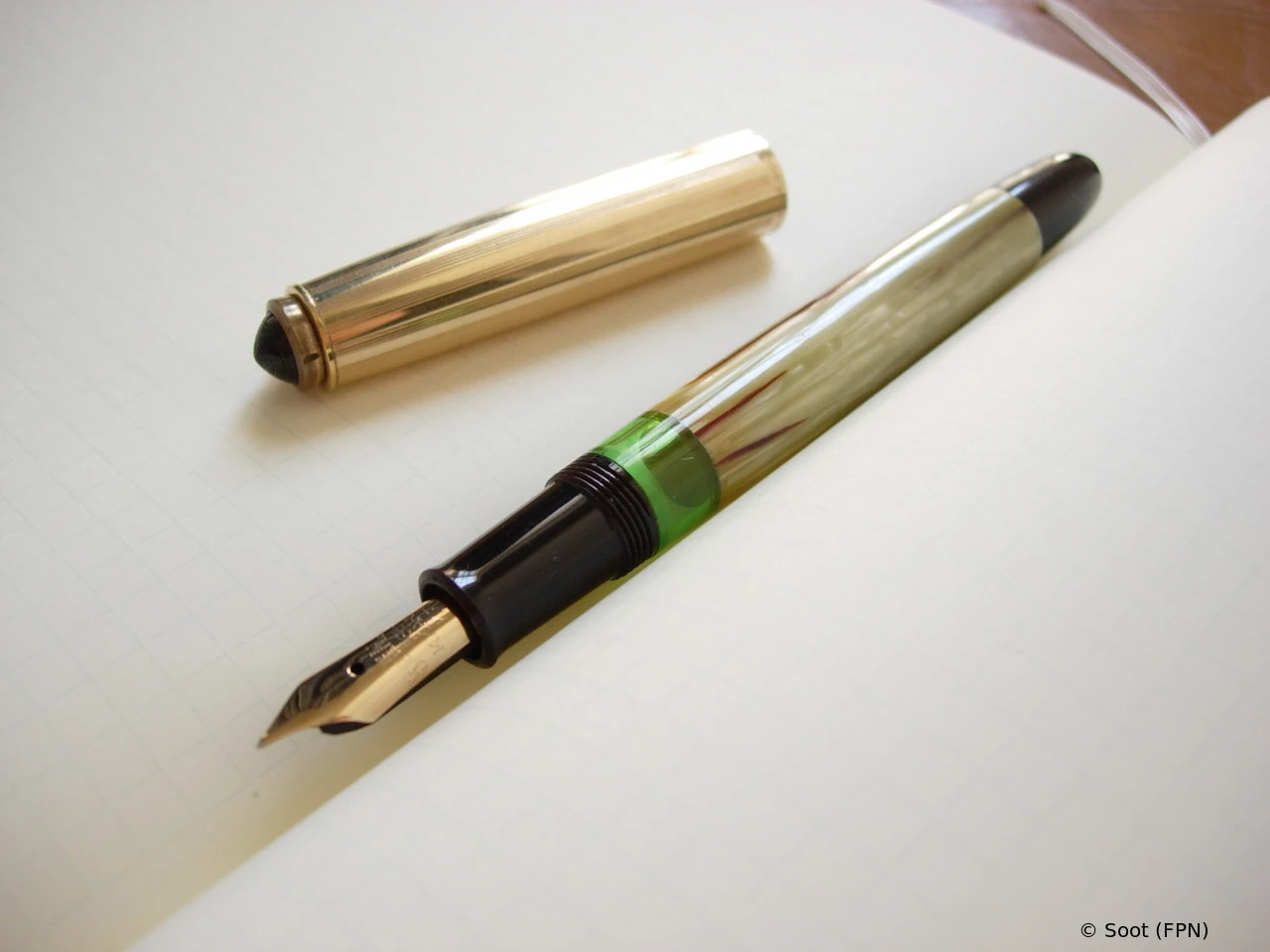

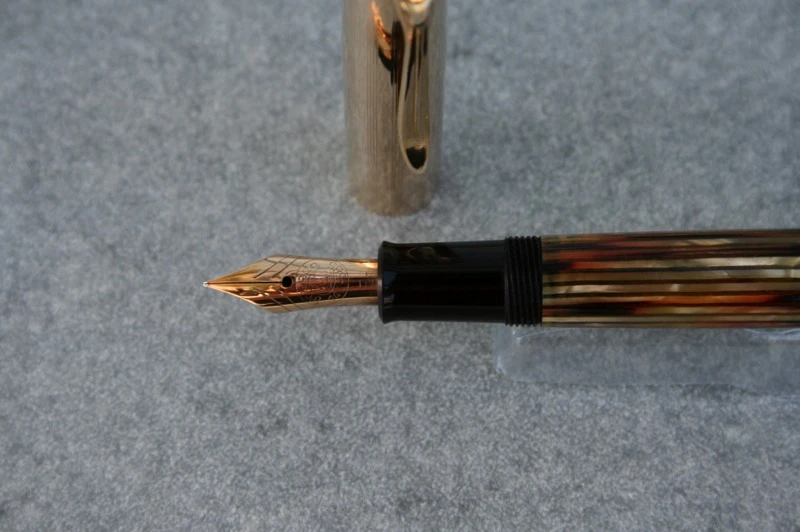

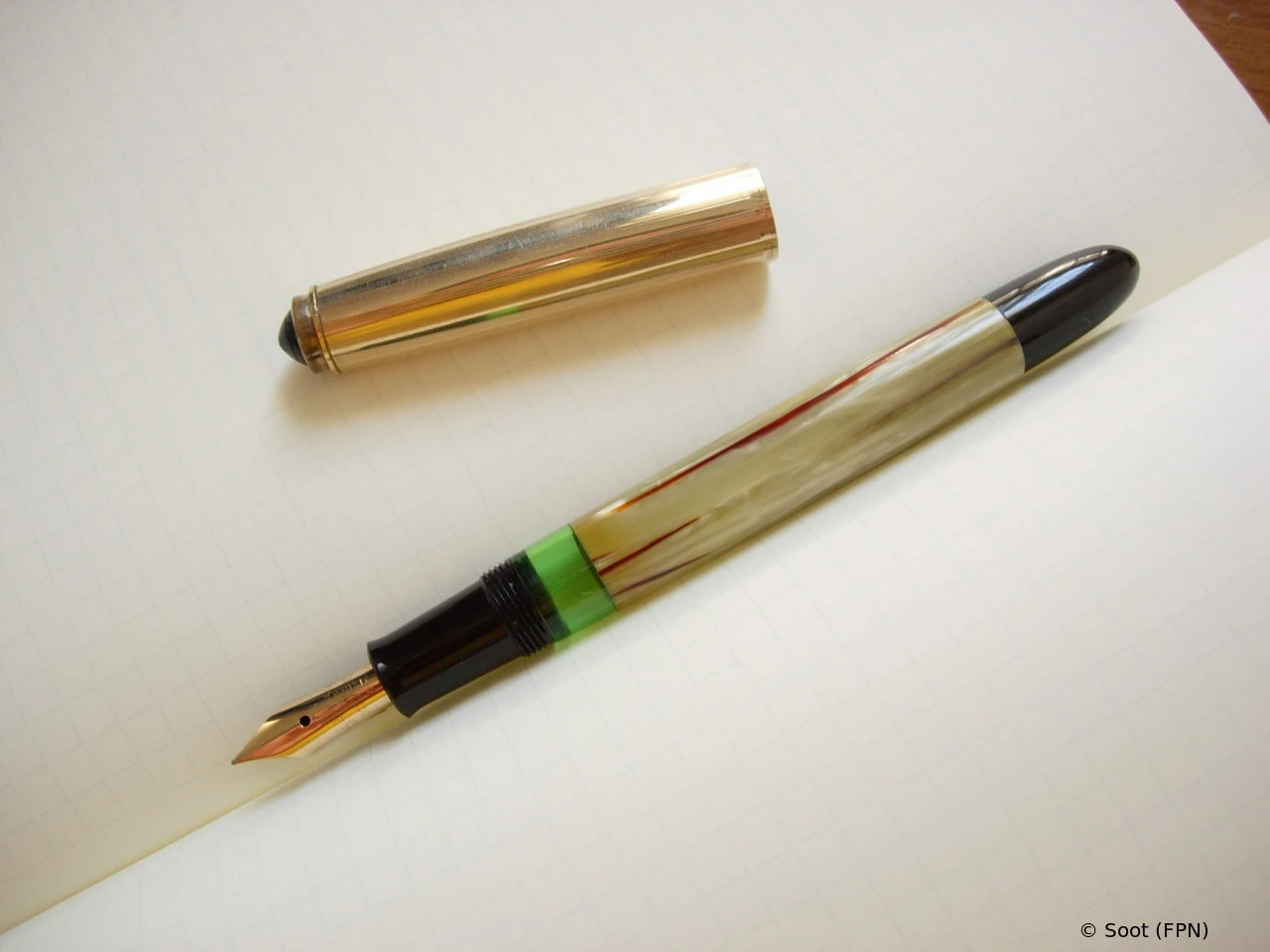

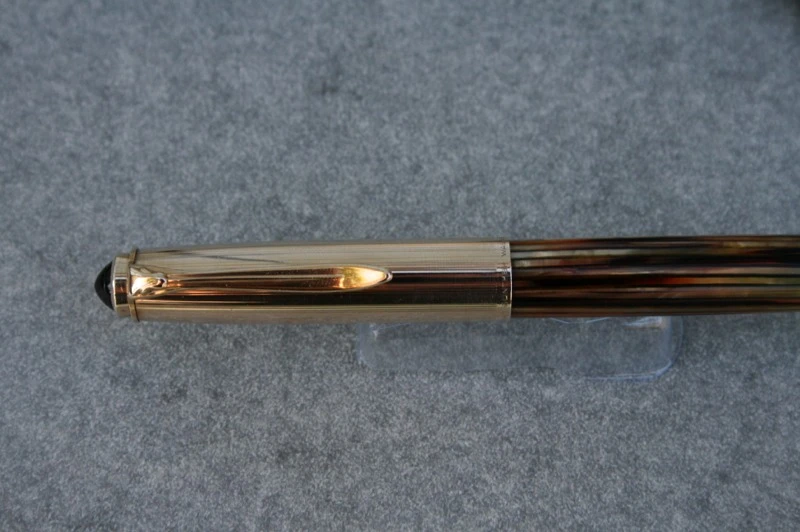

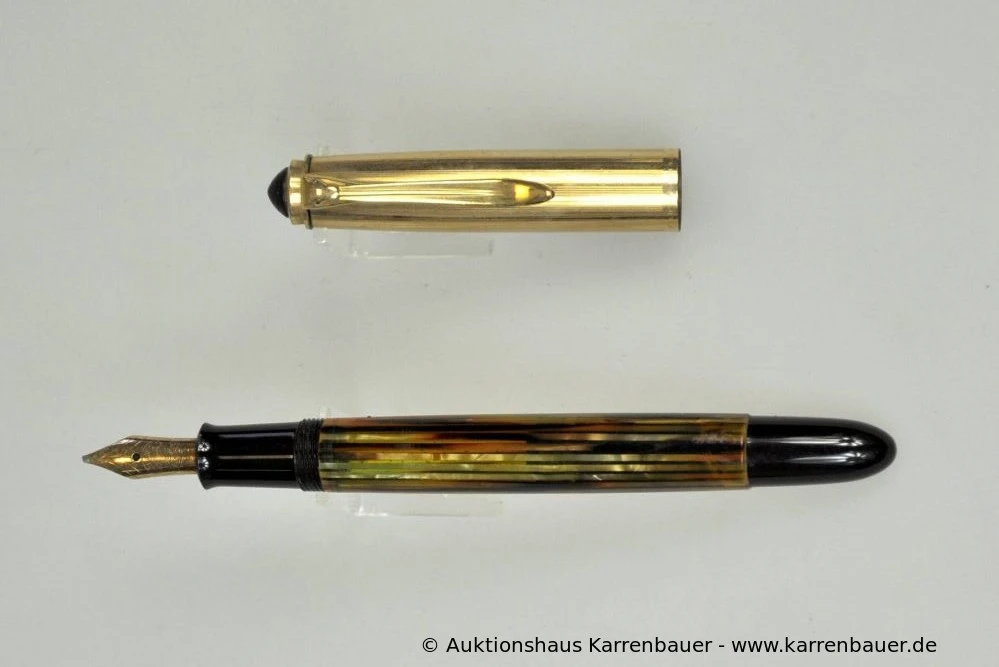

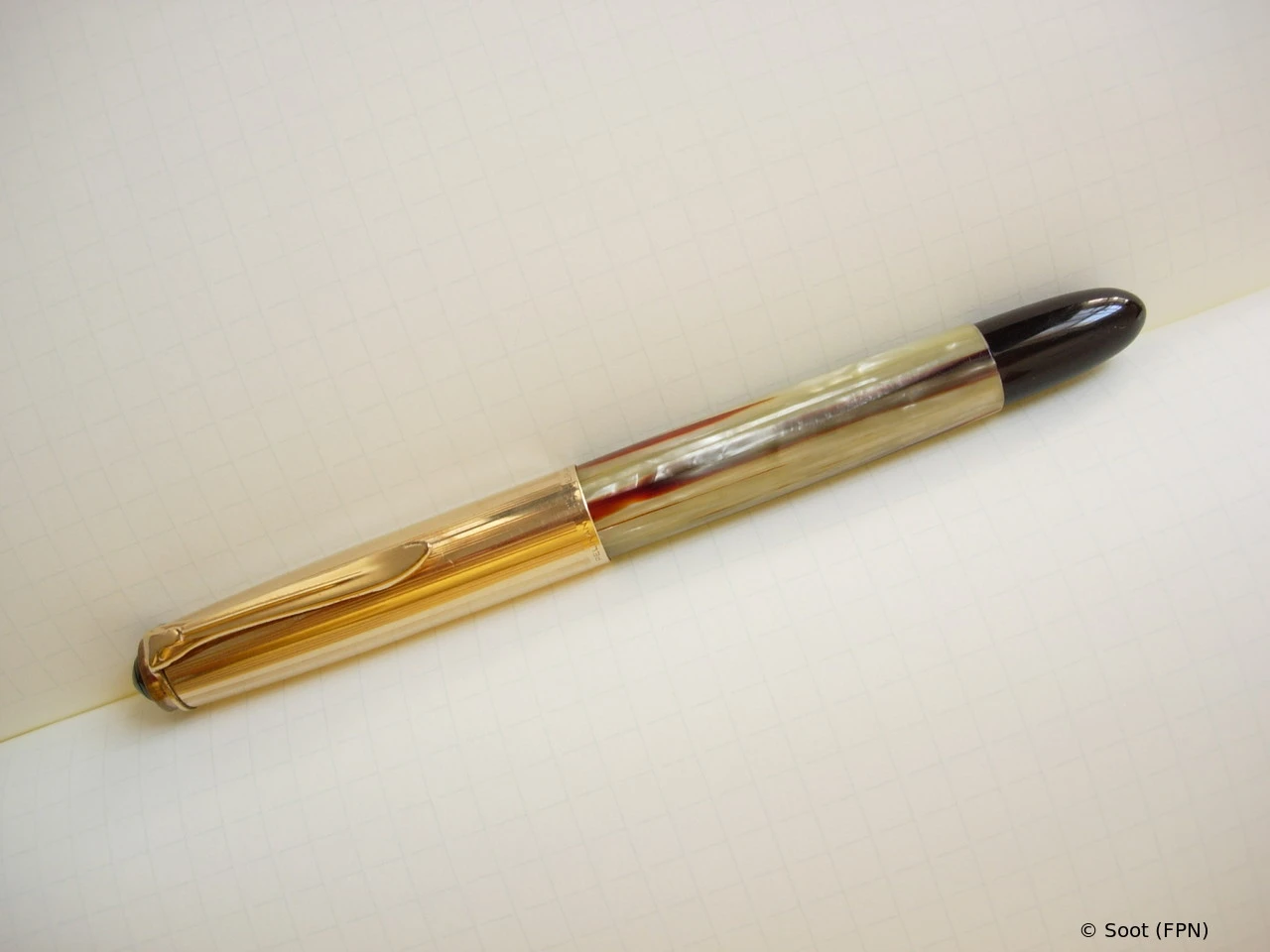

500NN Tortoise brown-striped - Gold double Series Production Color
Production: 1956-1963Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: brown-stripedCap Color: gold doubleTrim: gold plated

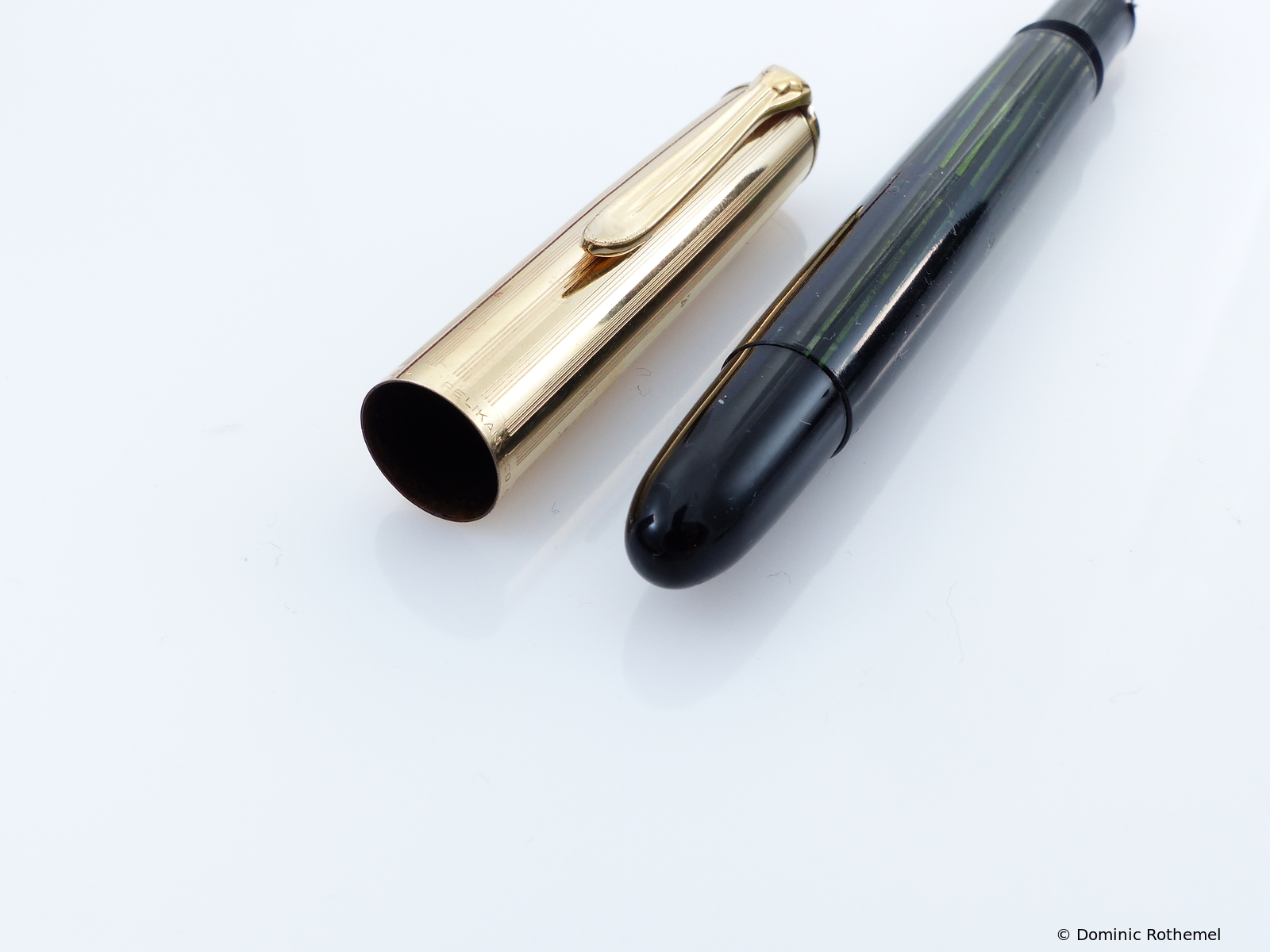

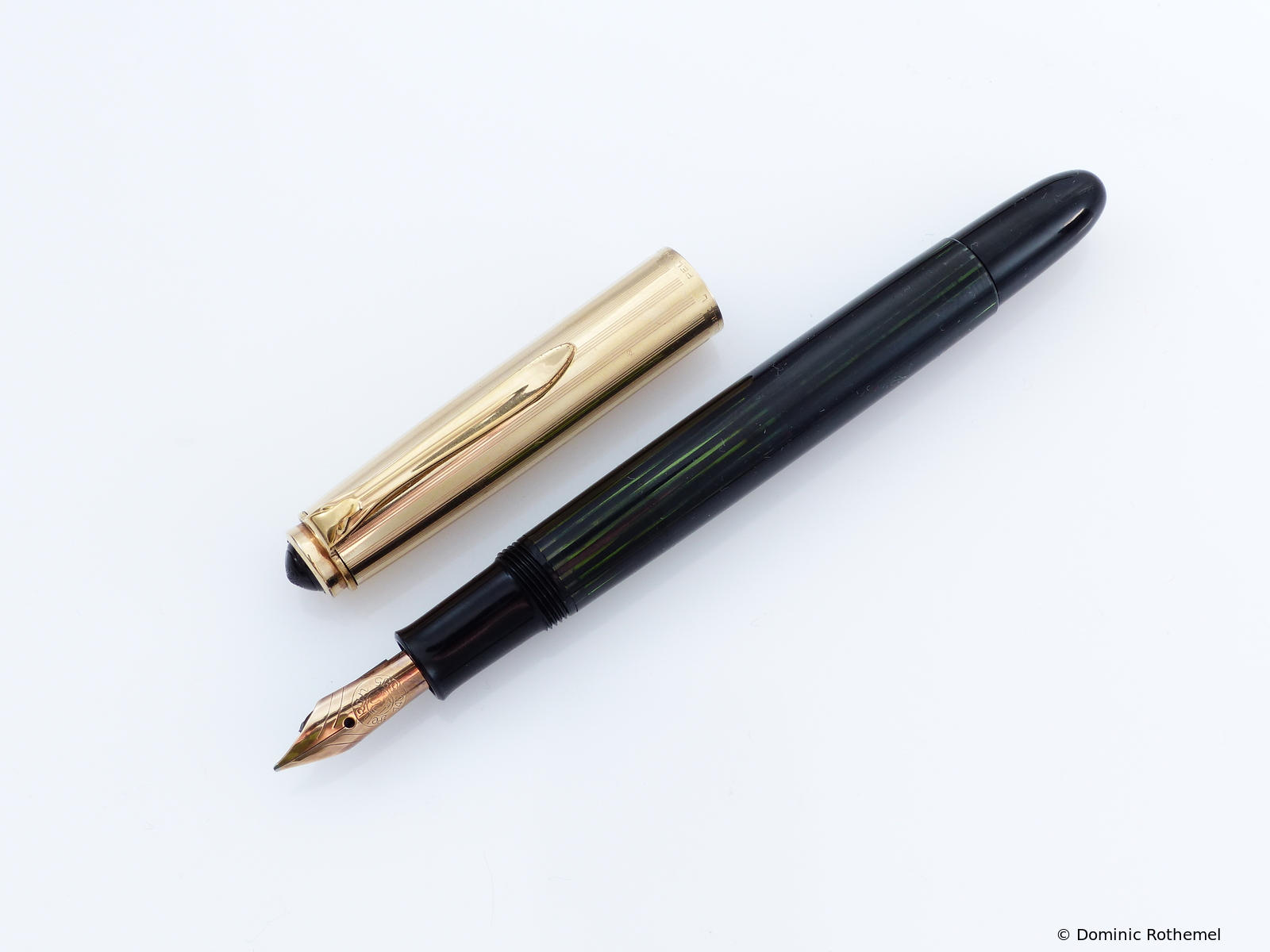

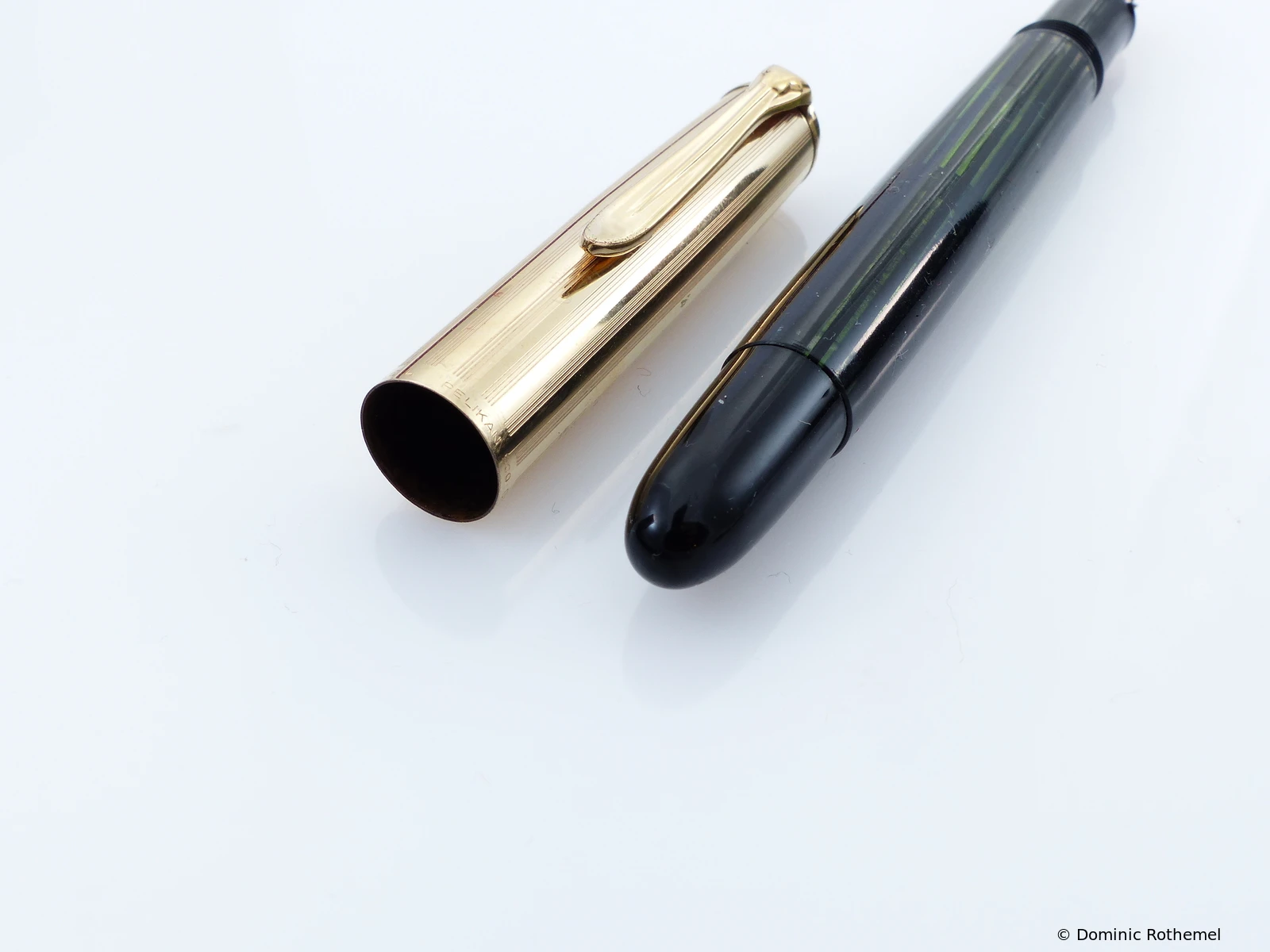

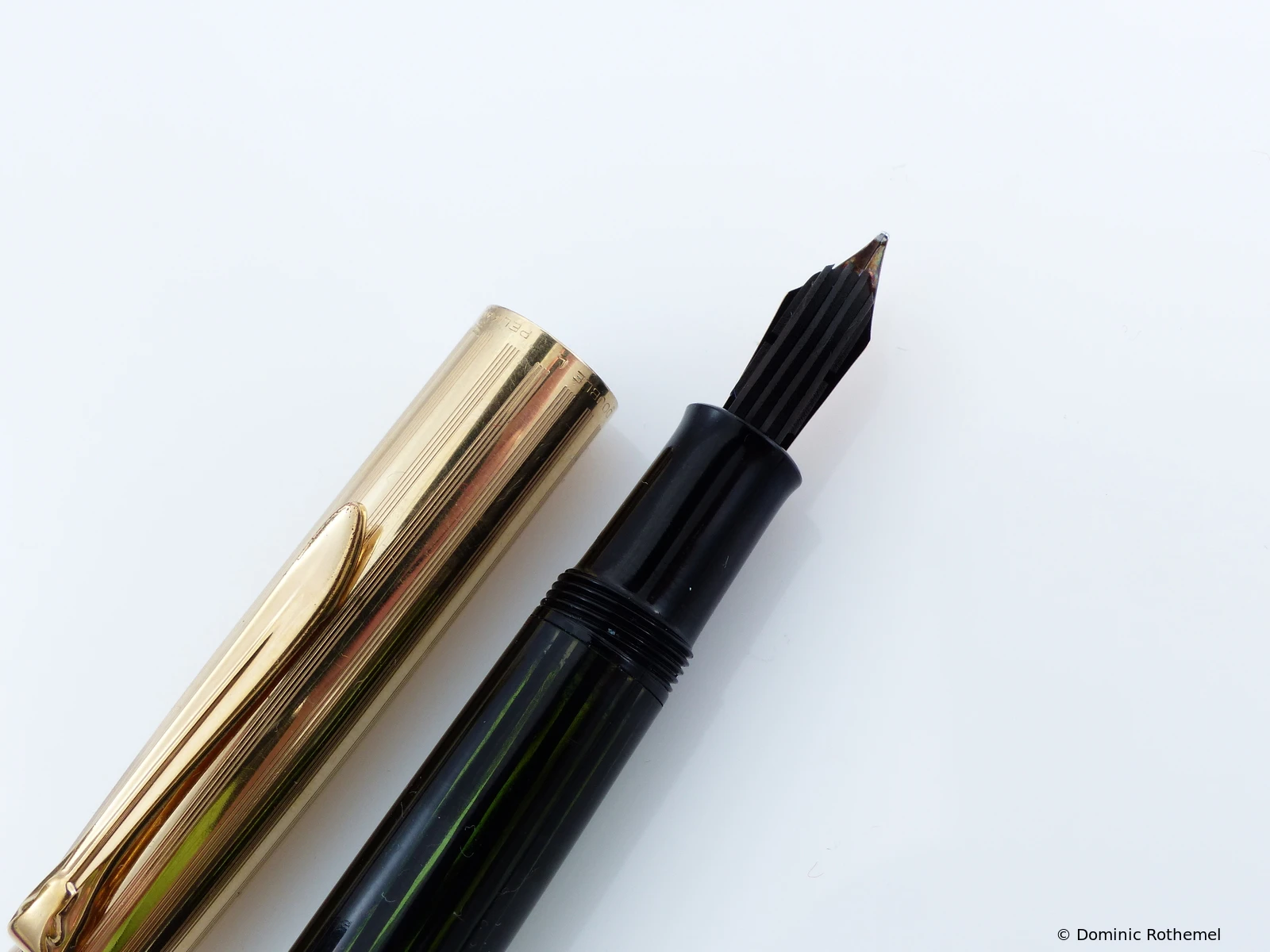

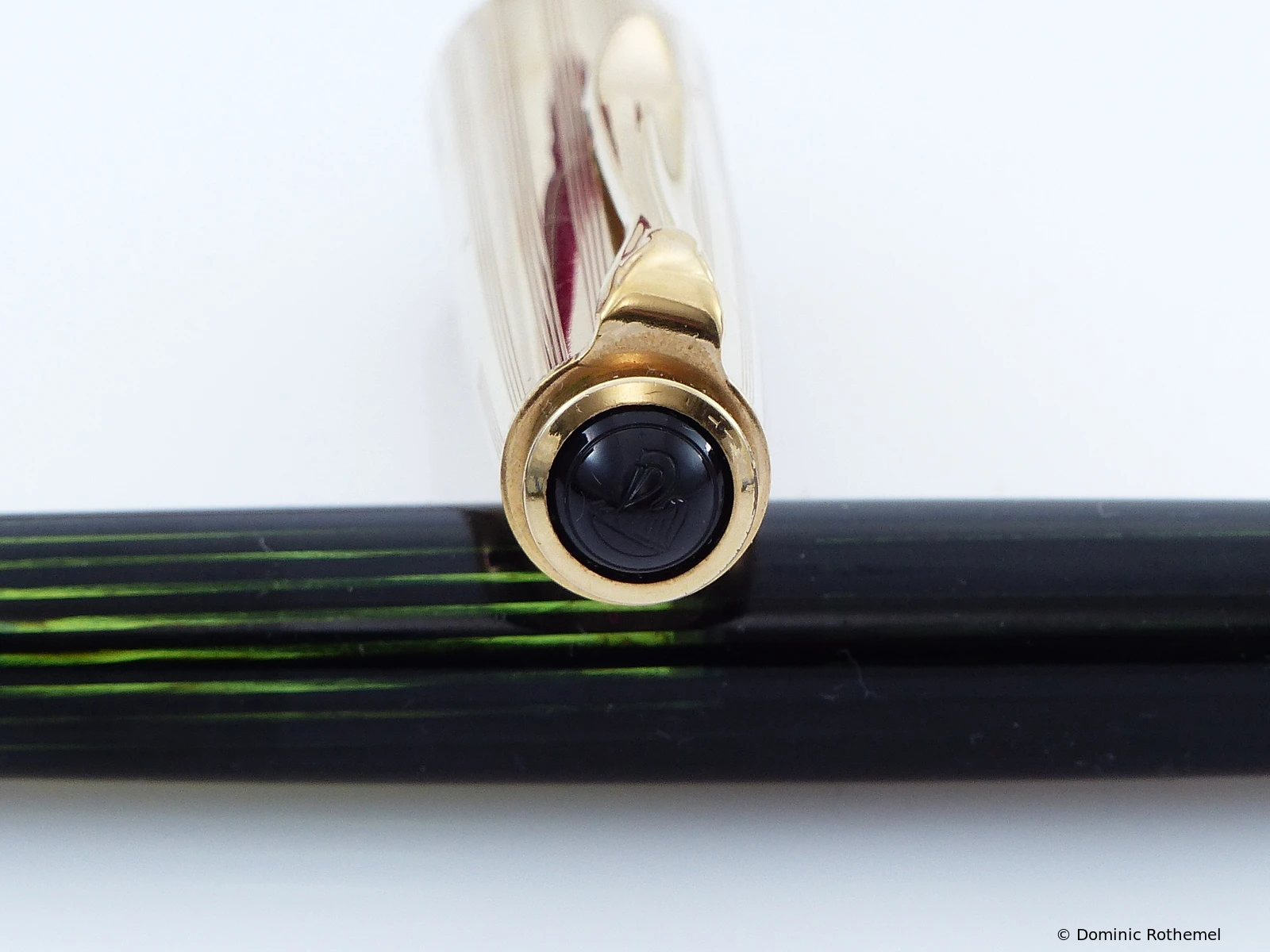

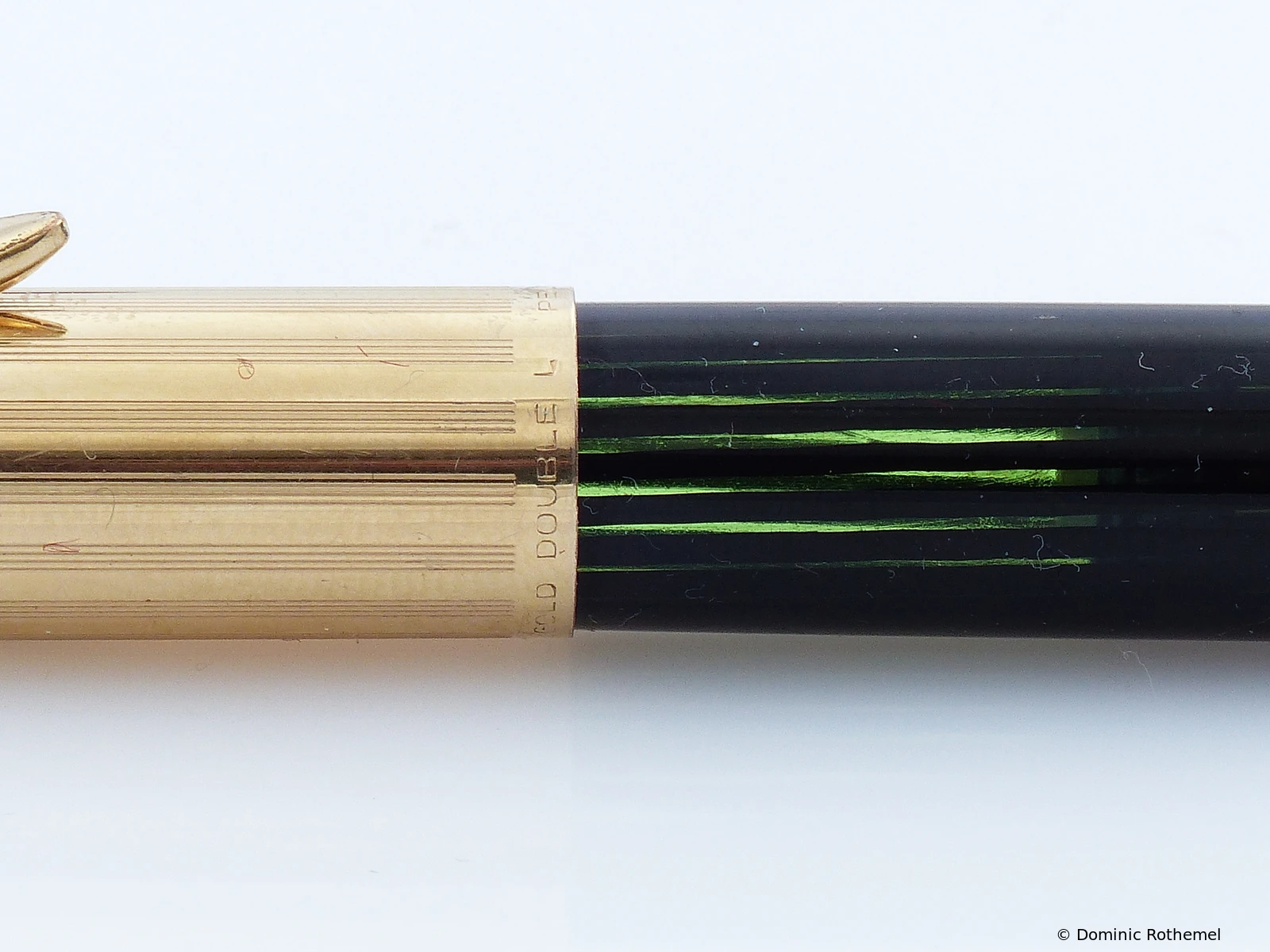

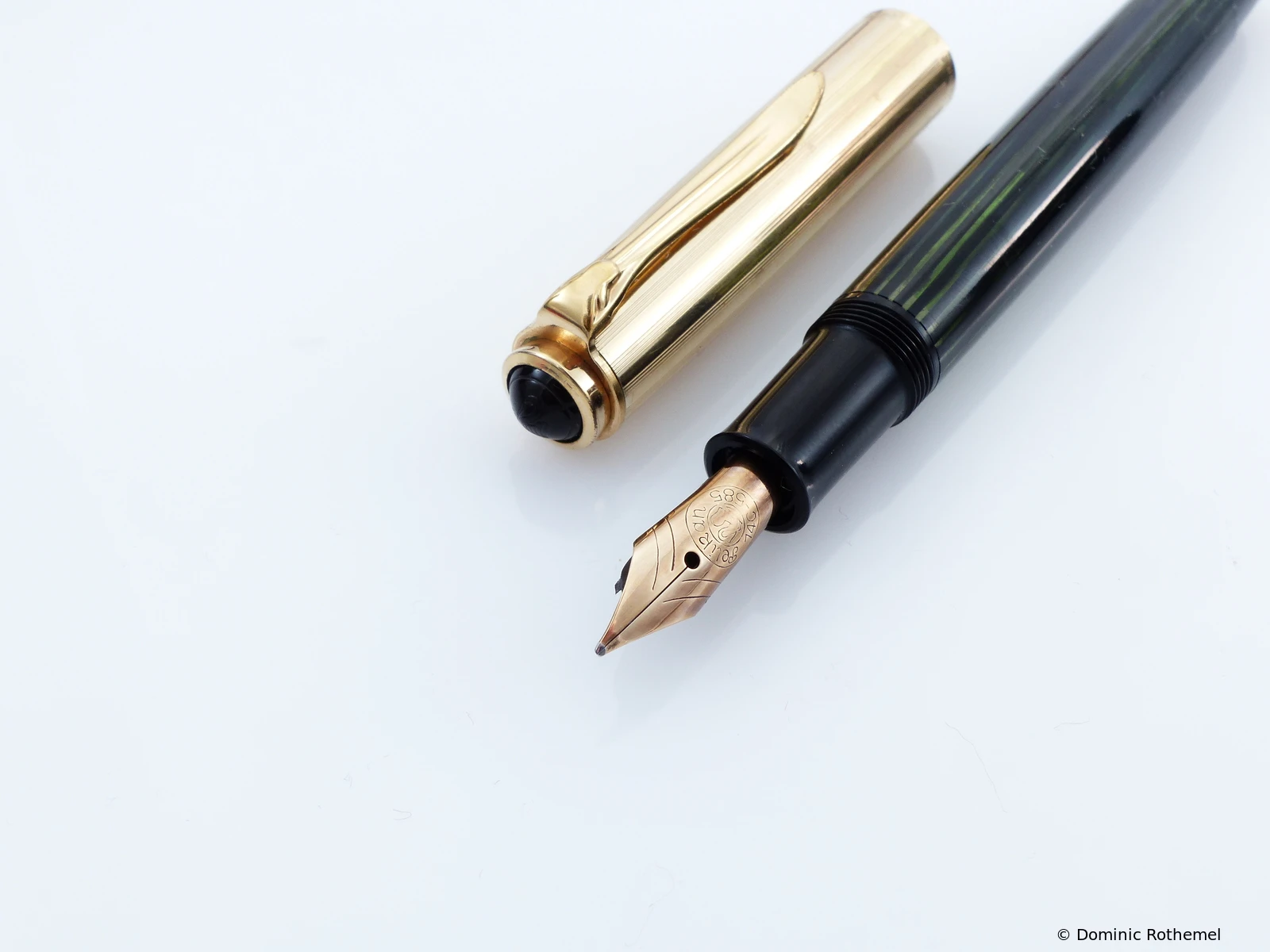

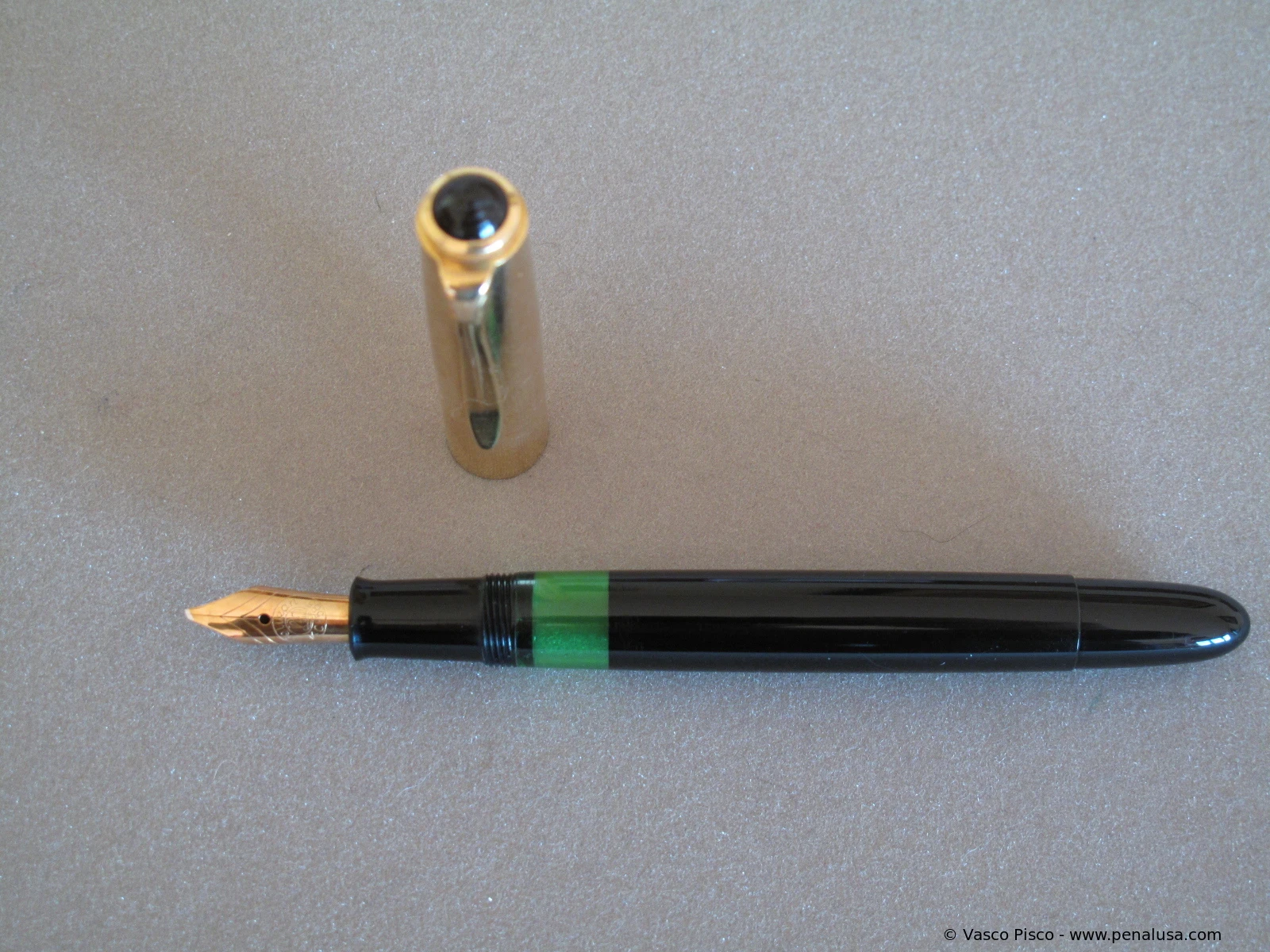

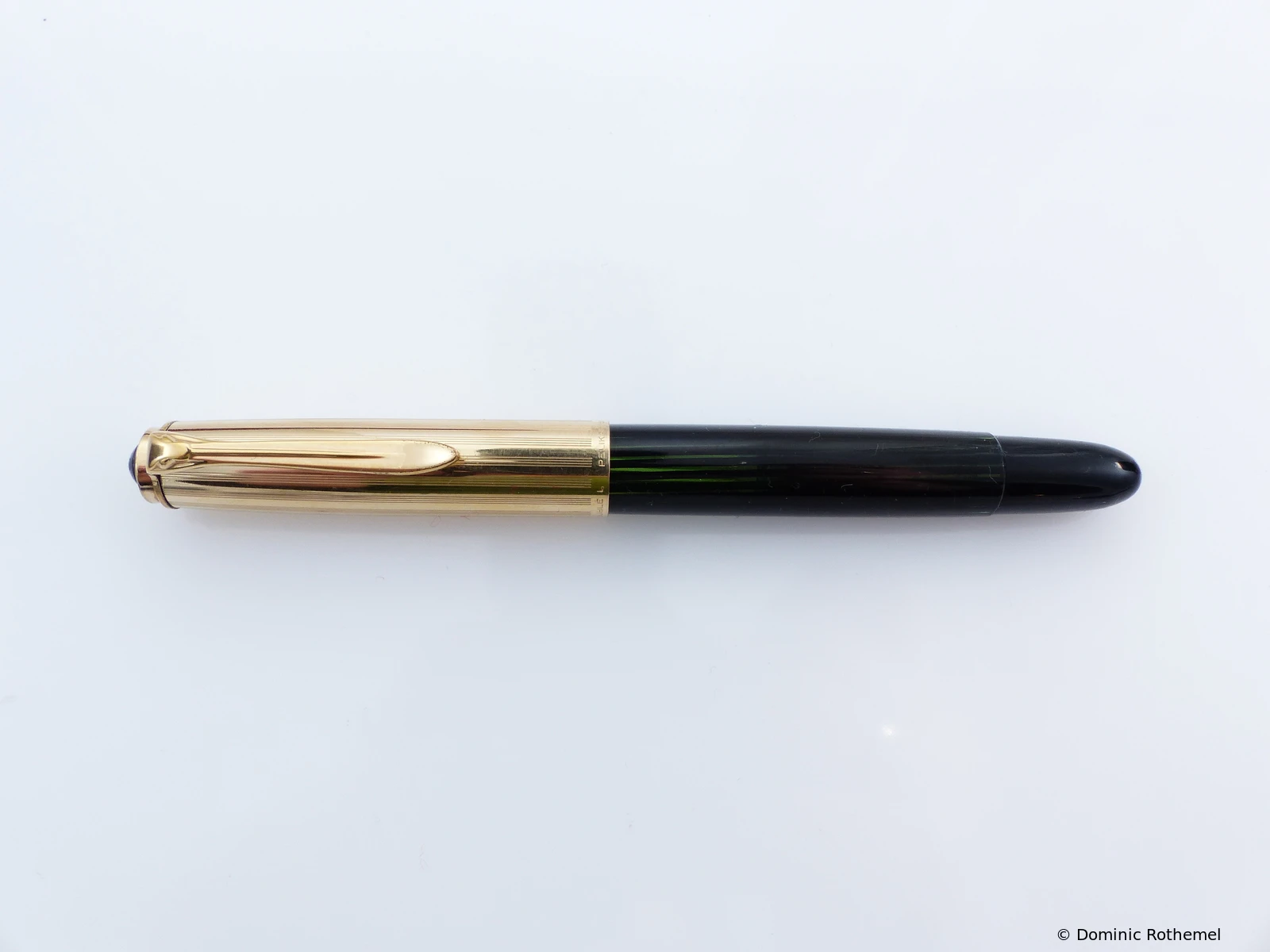

500NN Black-striped - Gold double Series Production Color
Production: 1956-1963Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: black-stripedCap Color: gold doubleTrim: gold plated

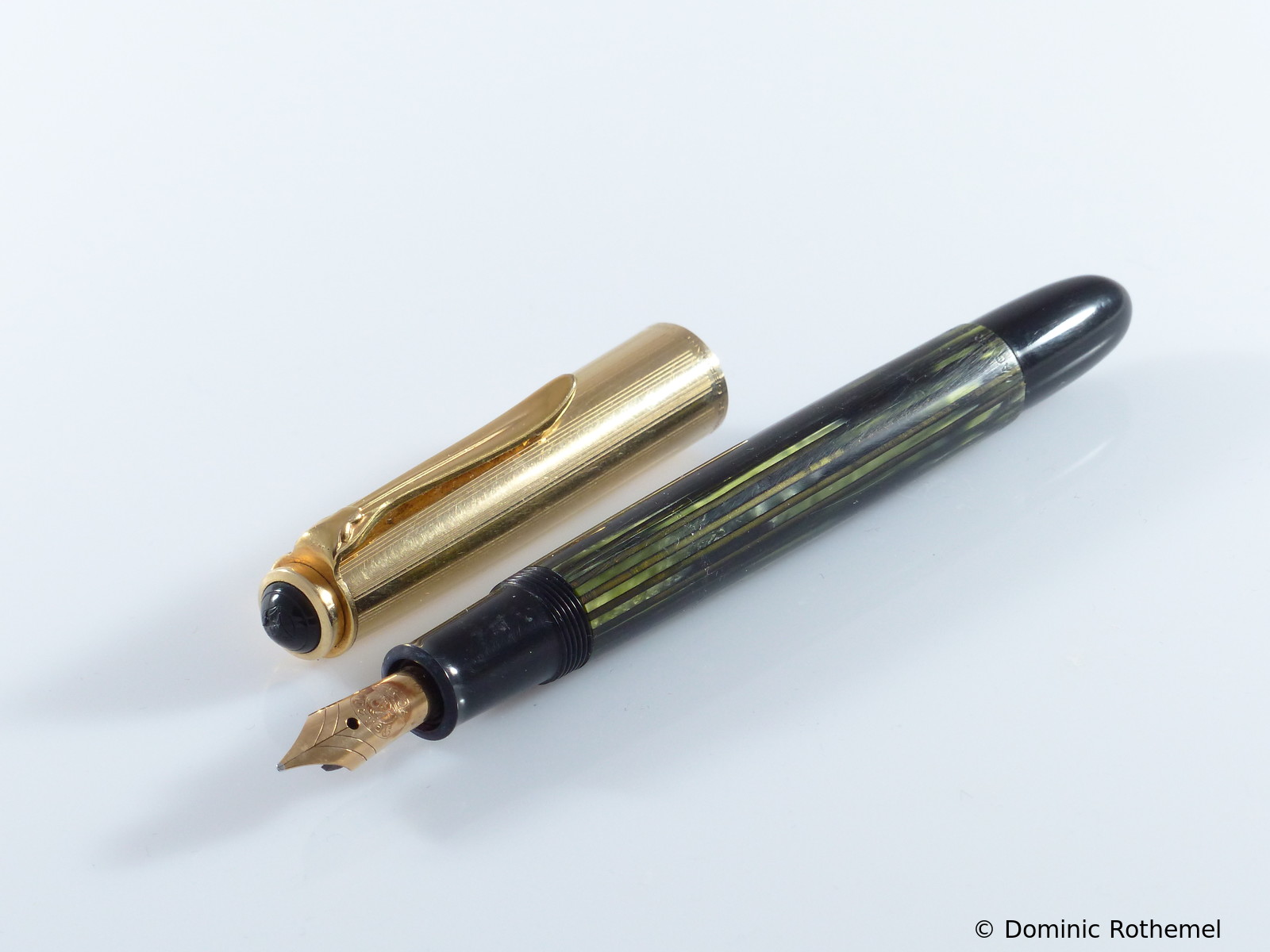

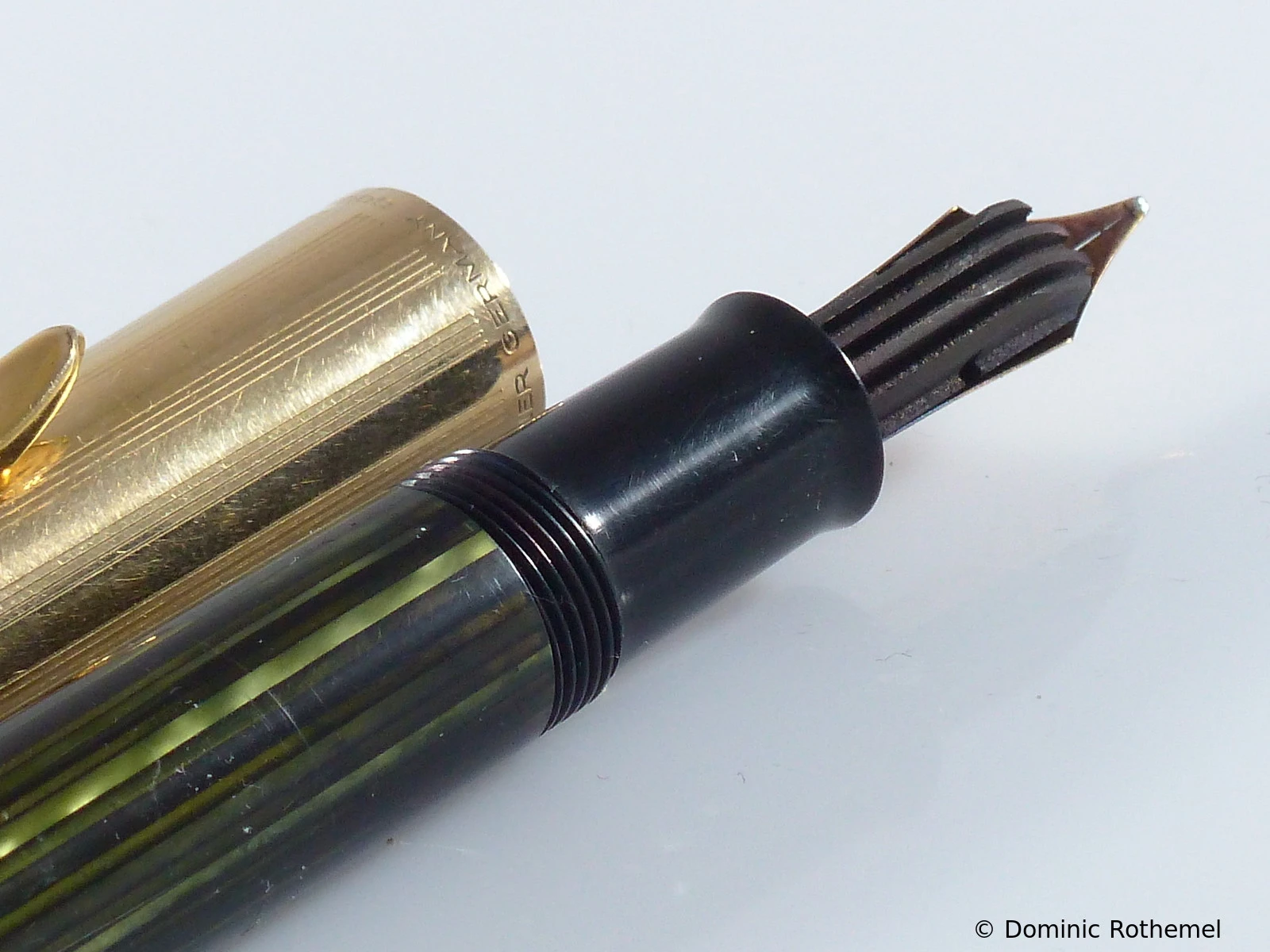

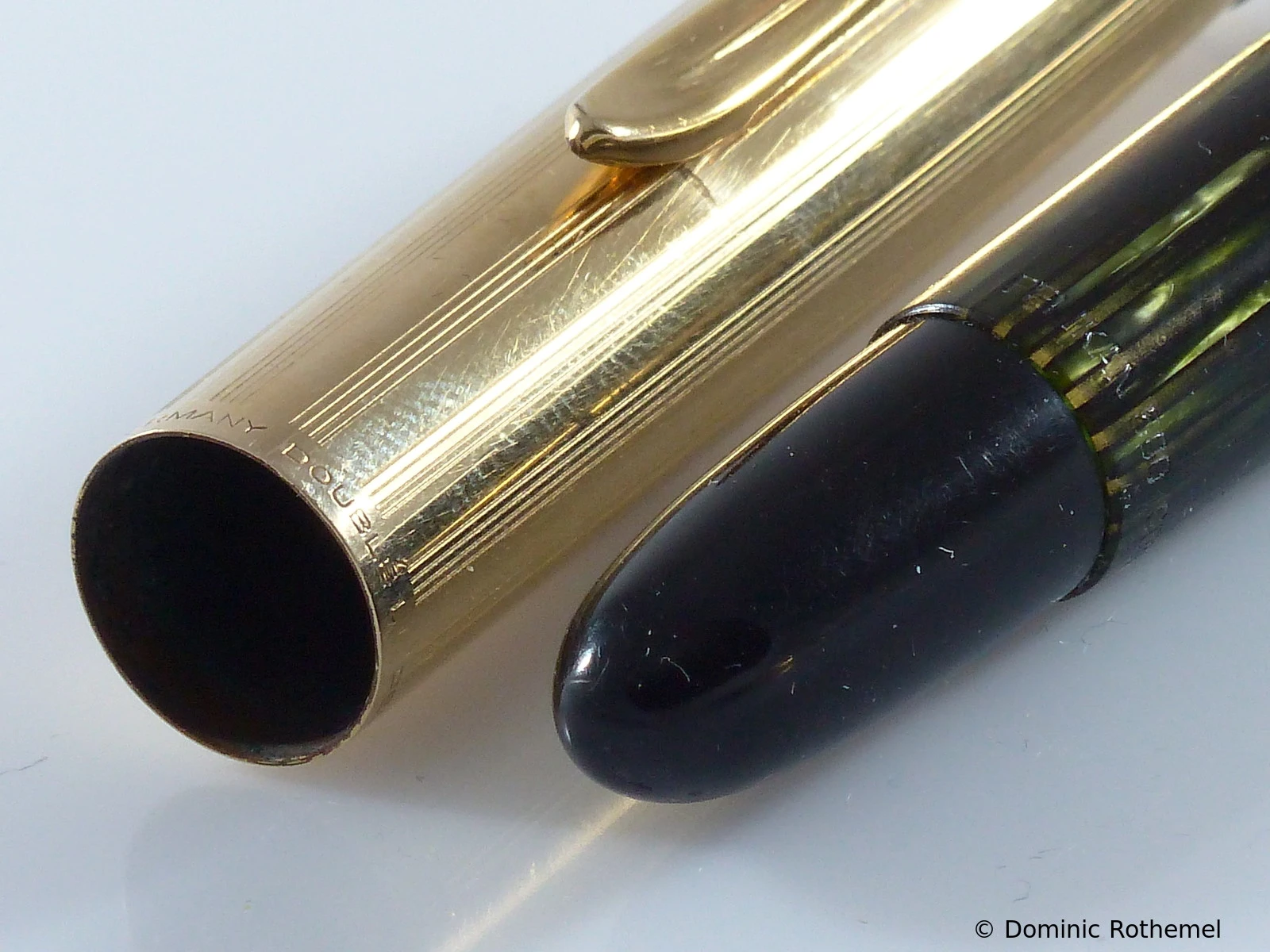

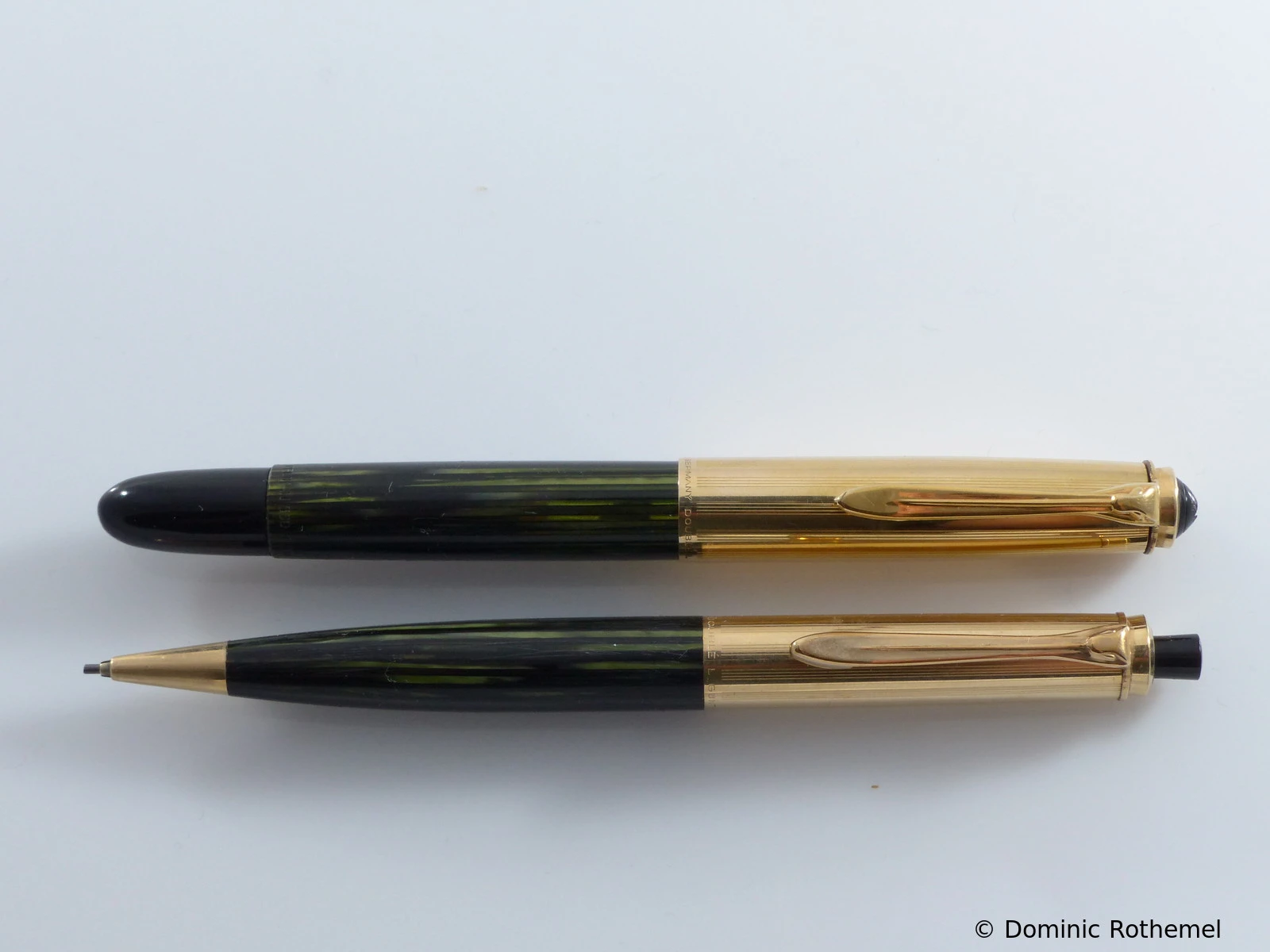

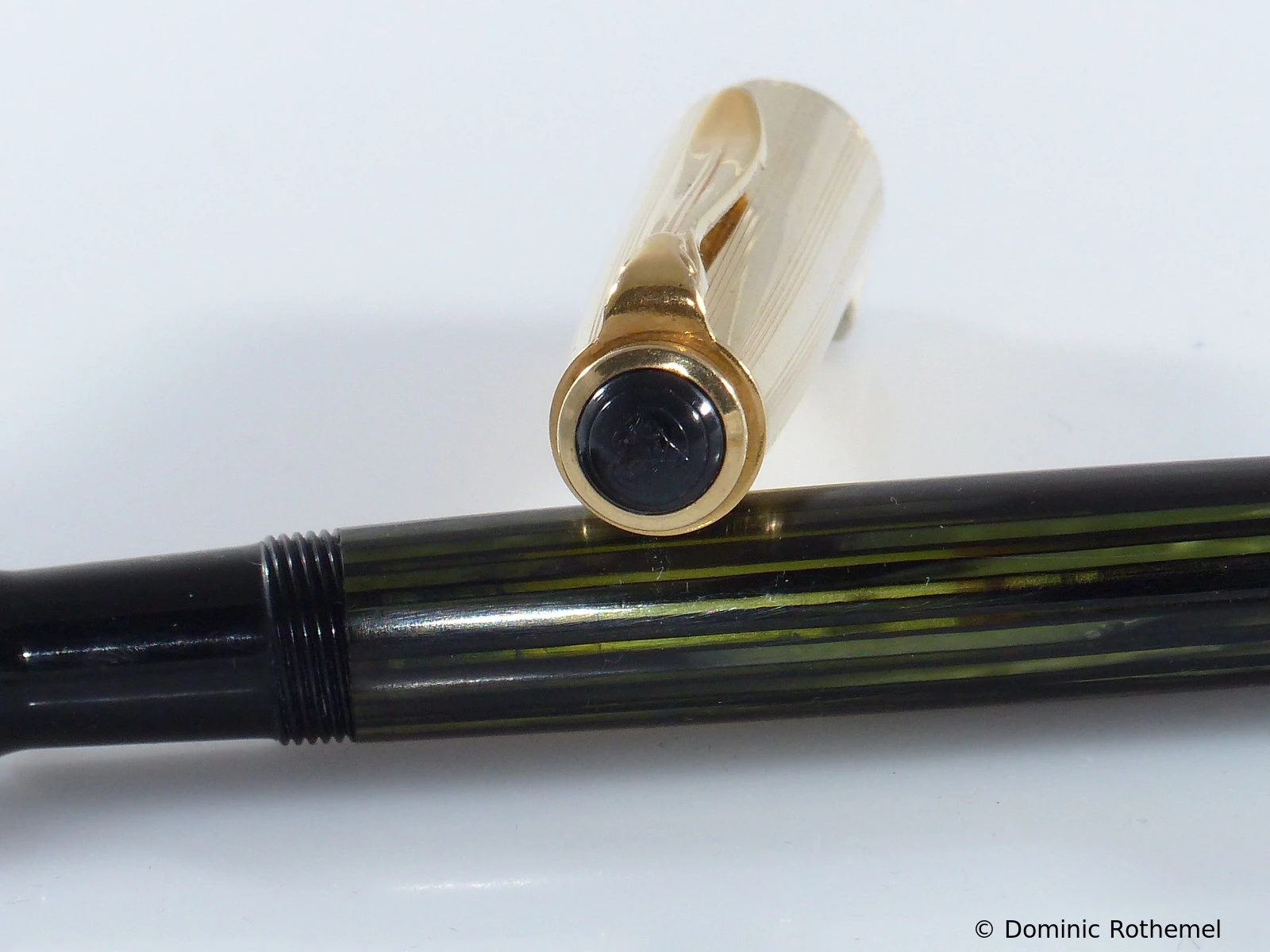

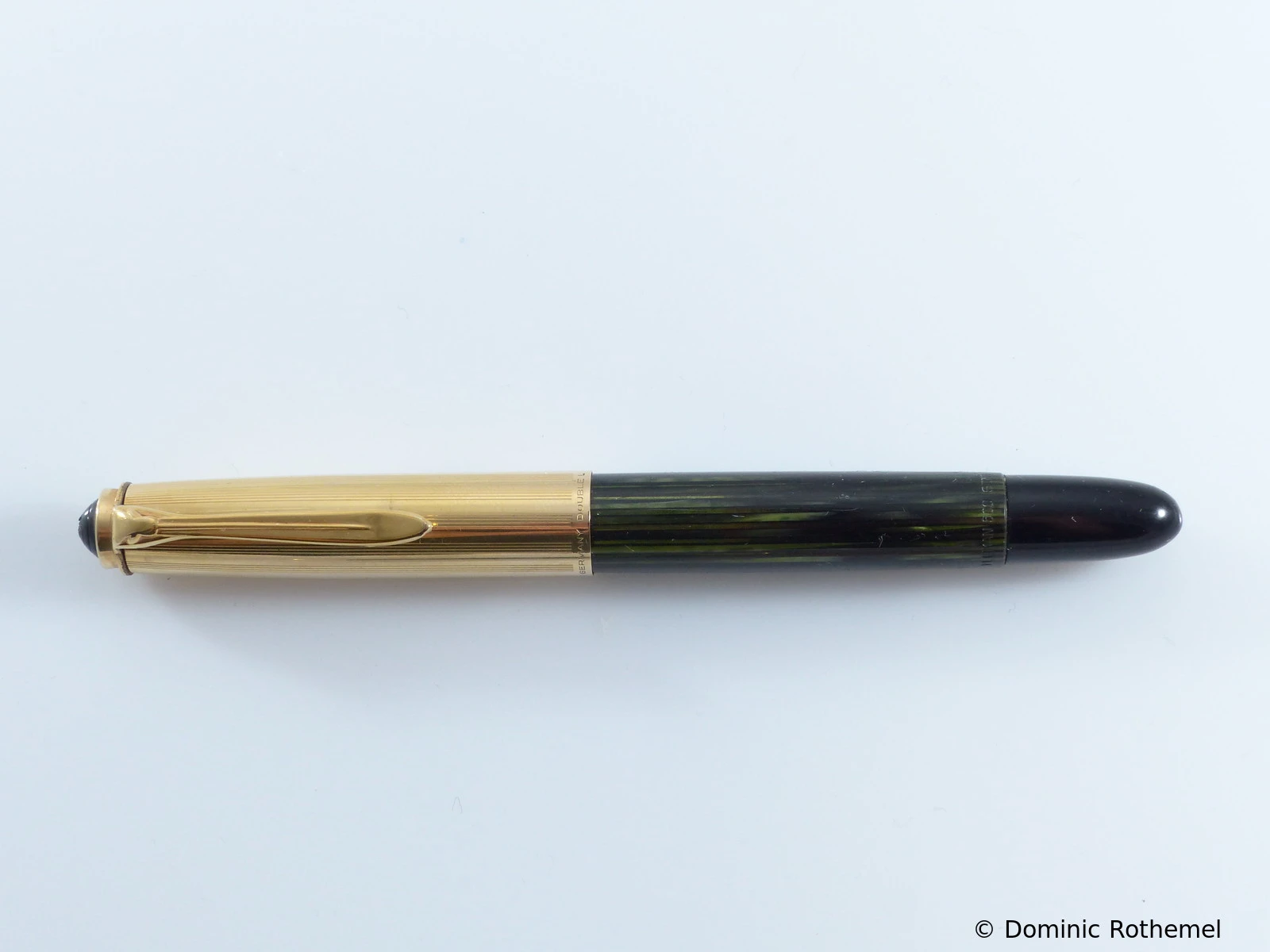

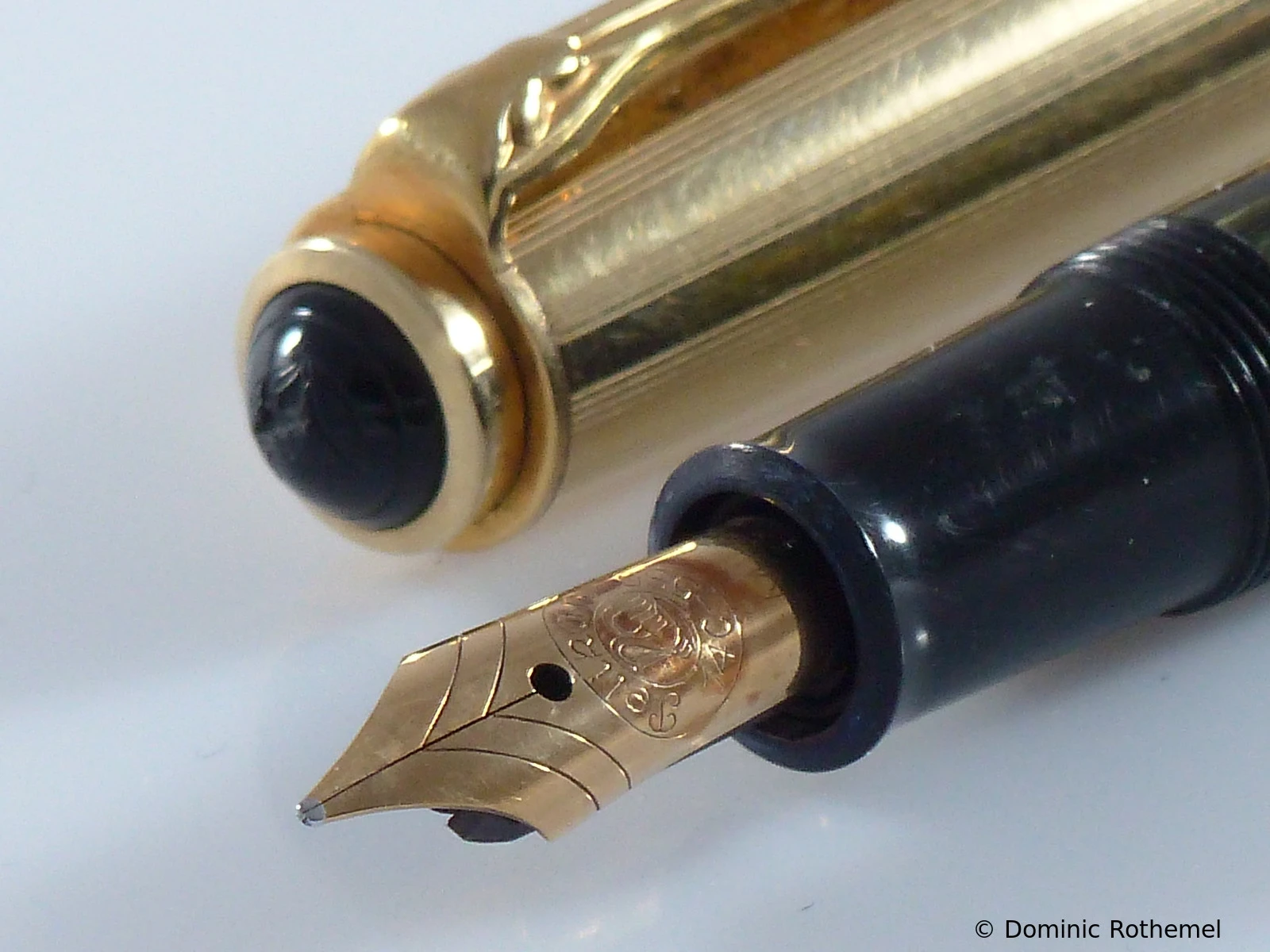

500NN Sea green-striped - Gold double Series Production Color Details
Production: 1956-1963Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: sea green-stripedCap Color: gold doubleTrim: gold plated

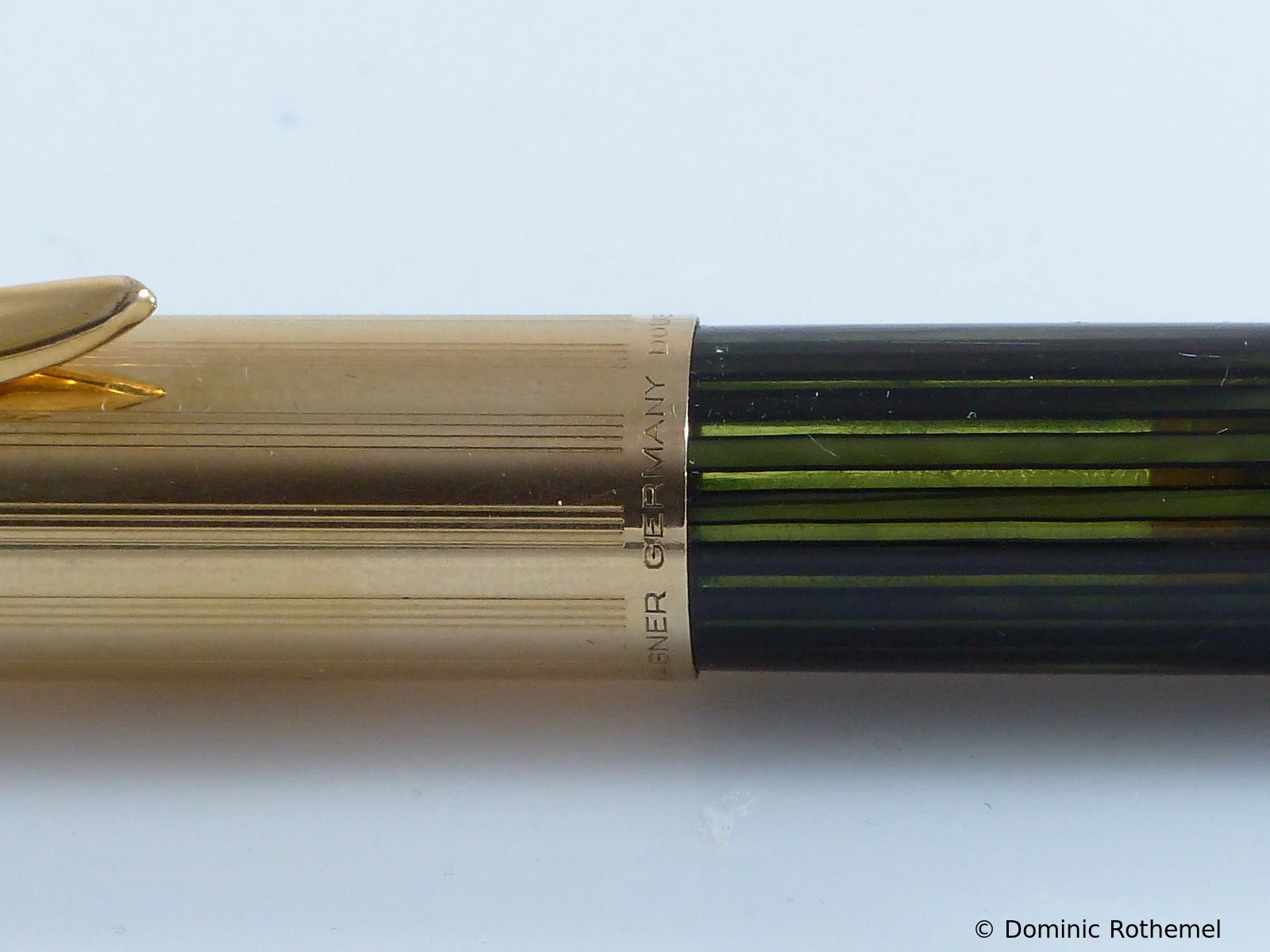

Sea green, the strips are olive-green and black belted. The cap is made from gold double.

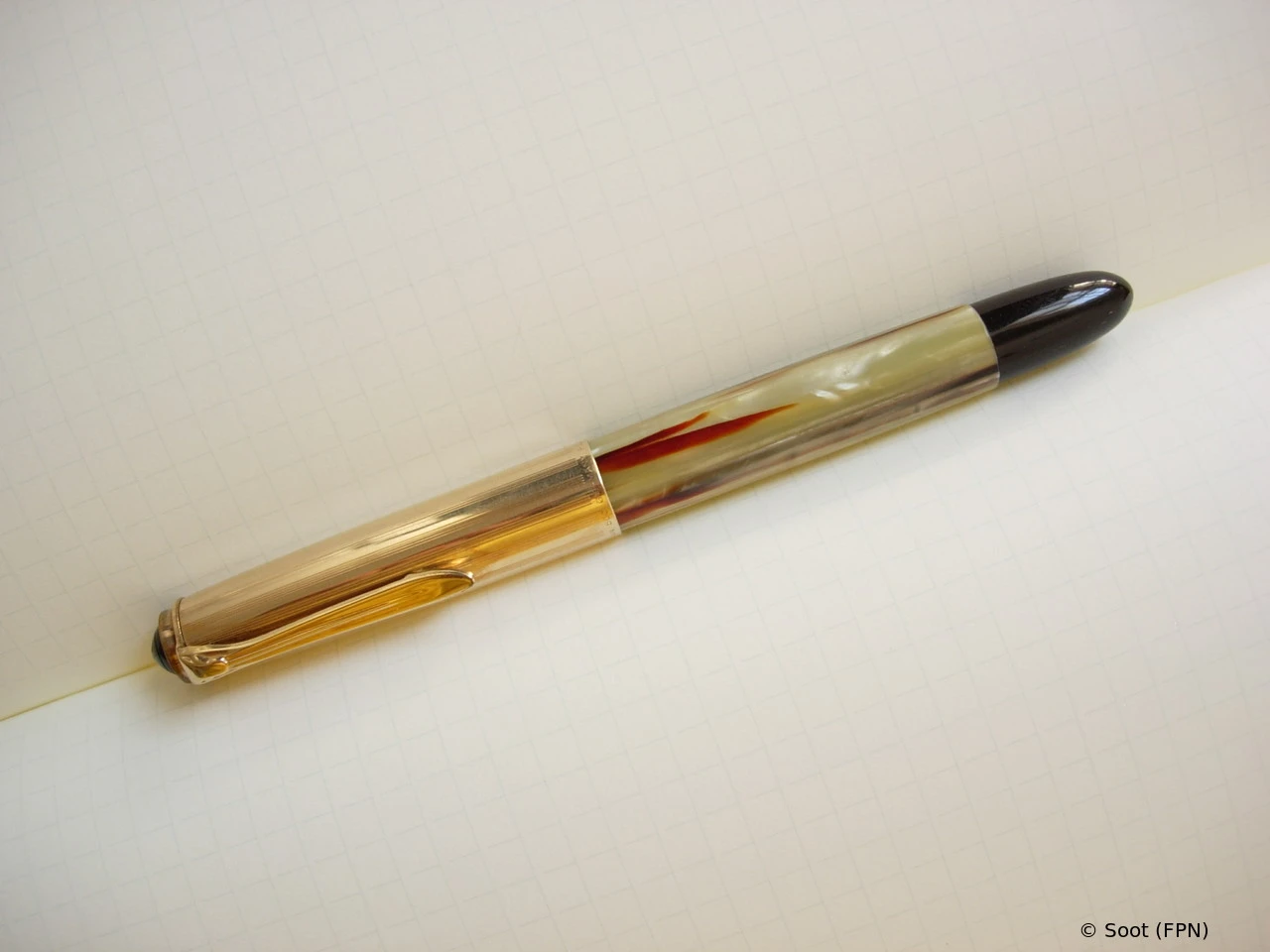

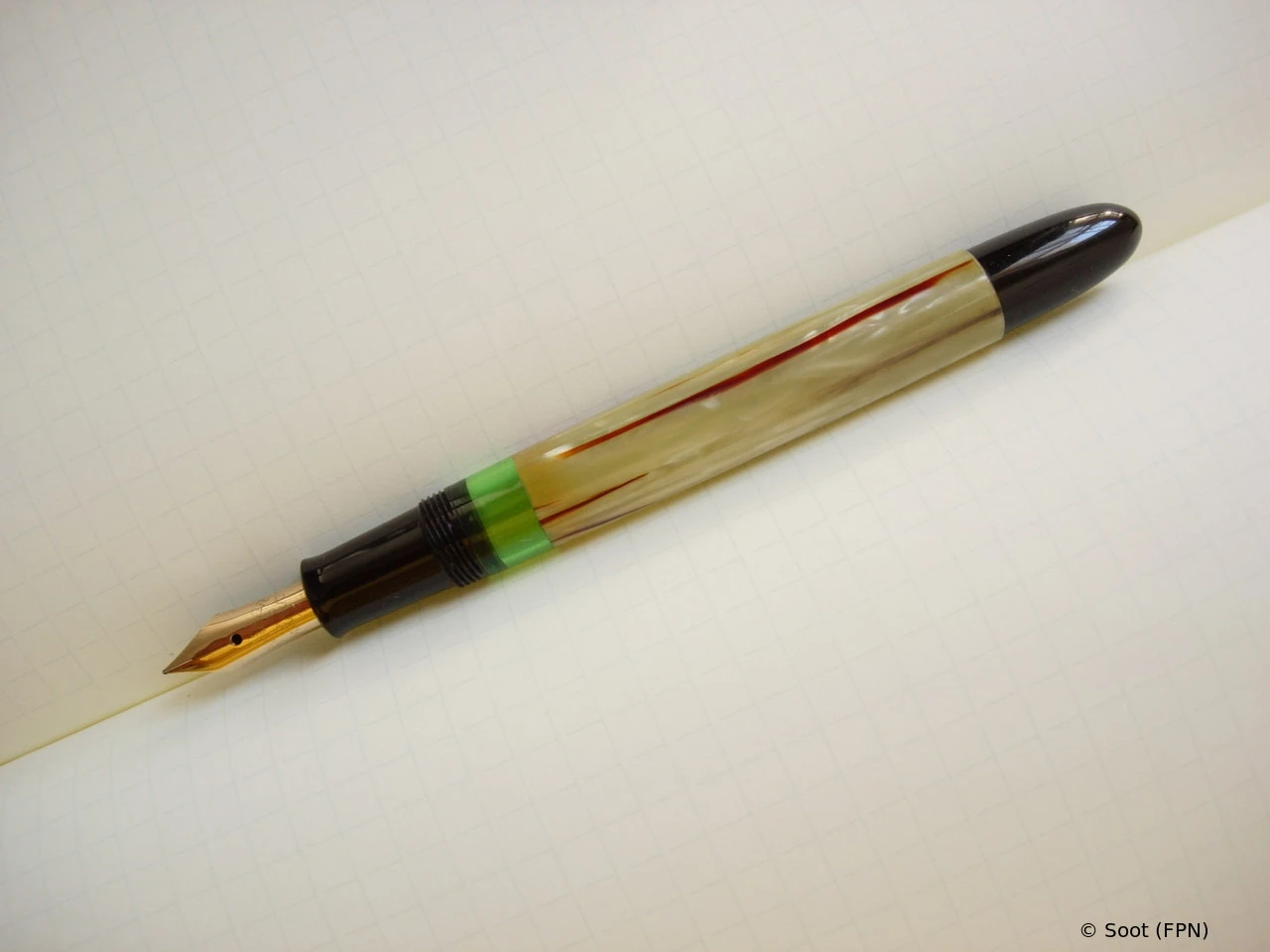

500NN Light tortoise - Gold double Series Production Color
Production: 1957-1961Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: light tortoiseCap Color: gold doubleTrim: gold plated

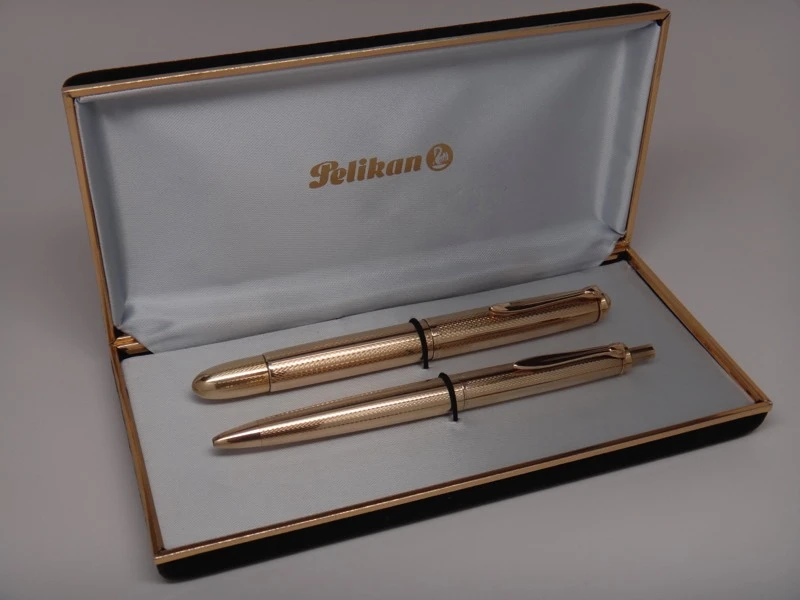

Pelikan 520NN

Enire pen is made from rolled gold double.

Model Production Period Nib
520NN - Rolled gold double 1957-1963

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.86 oz 5.12 in 4.06 in 2.44 in 0.47 in 2.0 ml
24.5 g 130 mm 103 mm 62 mm 12 mm


520NN

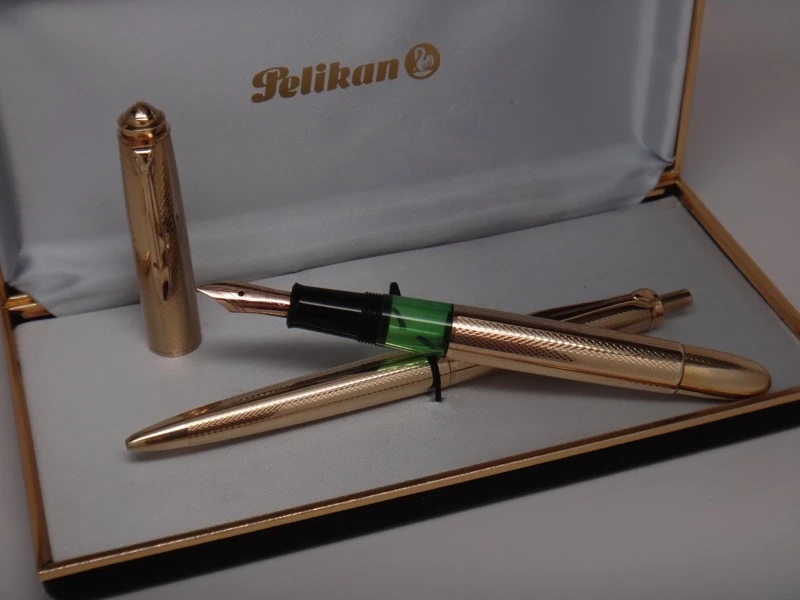

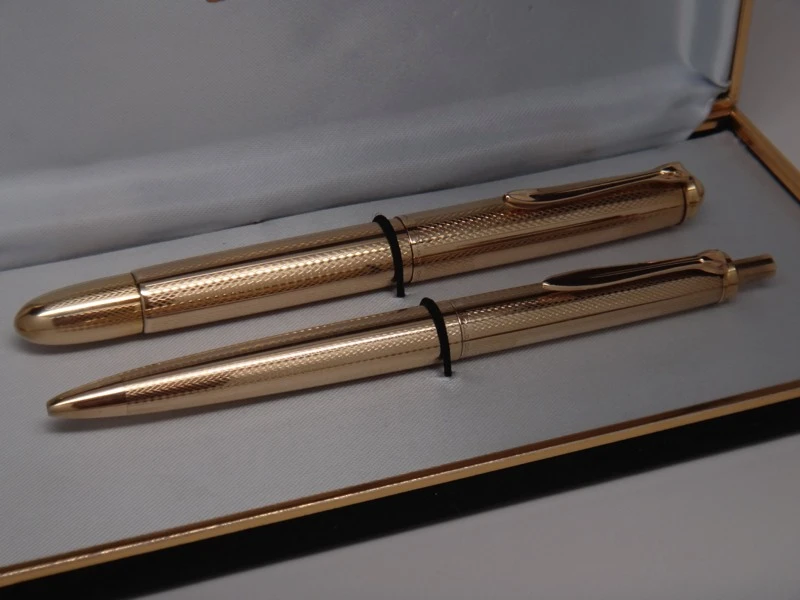

520NN Rolled gold double Series Production Color
Production: 1957-1963Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: rolled gold doubleCap Color: rolled gold doubleTrim: gold plated

Pelikan 600NN

Cap made from 14 carat gold.

Model Production Period Nib
600NN 1957-1963

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
5.12 in 4.06 in 2.44 in 0.47 in 2.0 ml
130 mm 103 mm 62 mm 12 mm


600NN

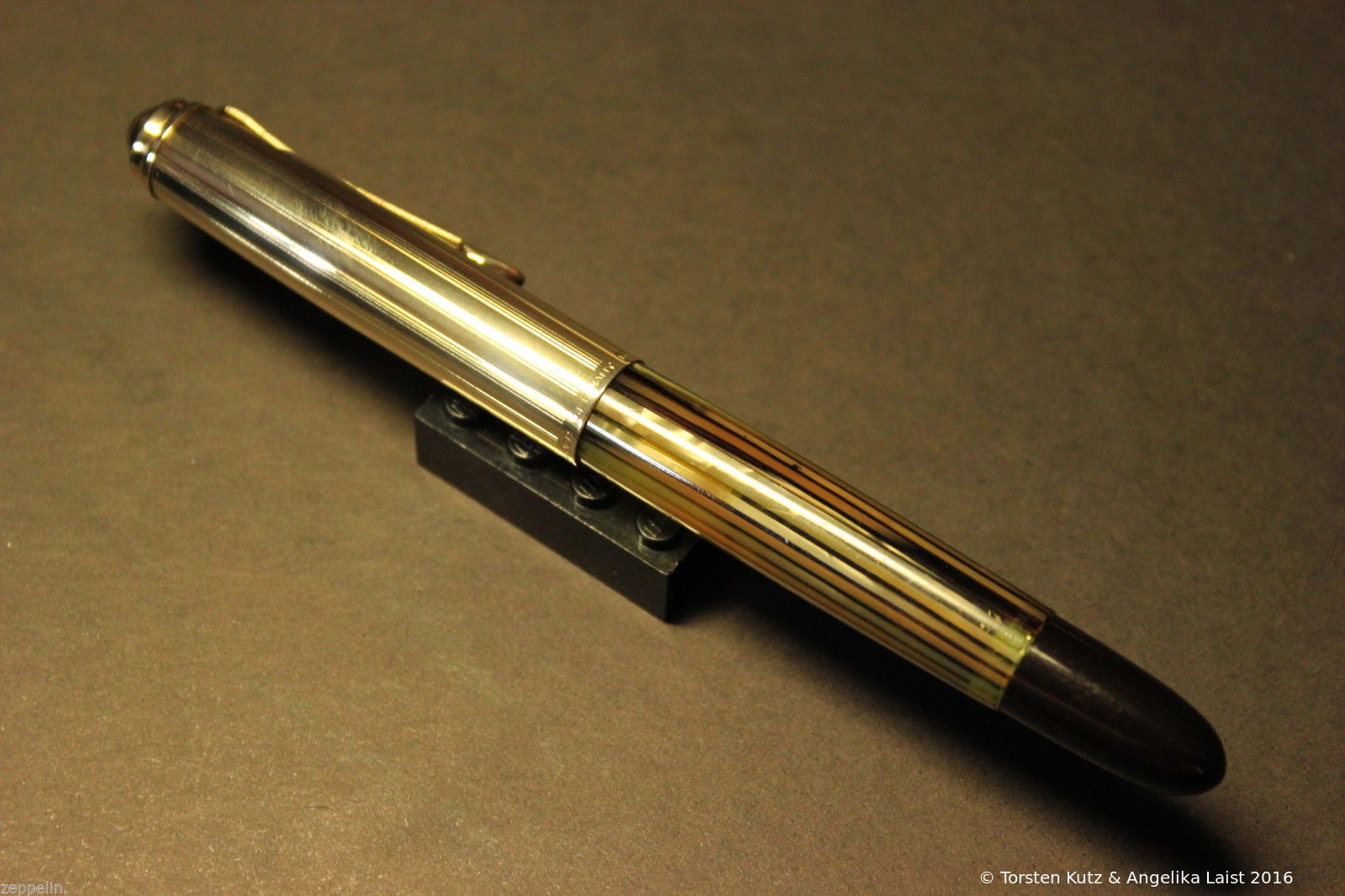

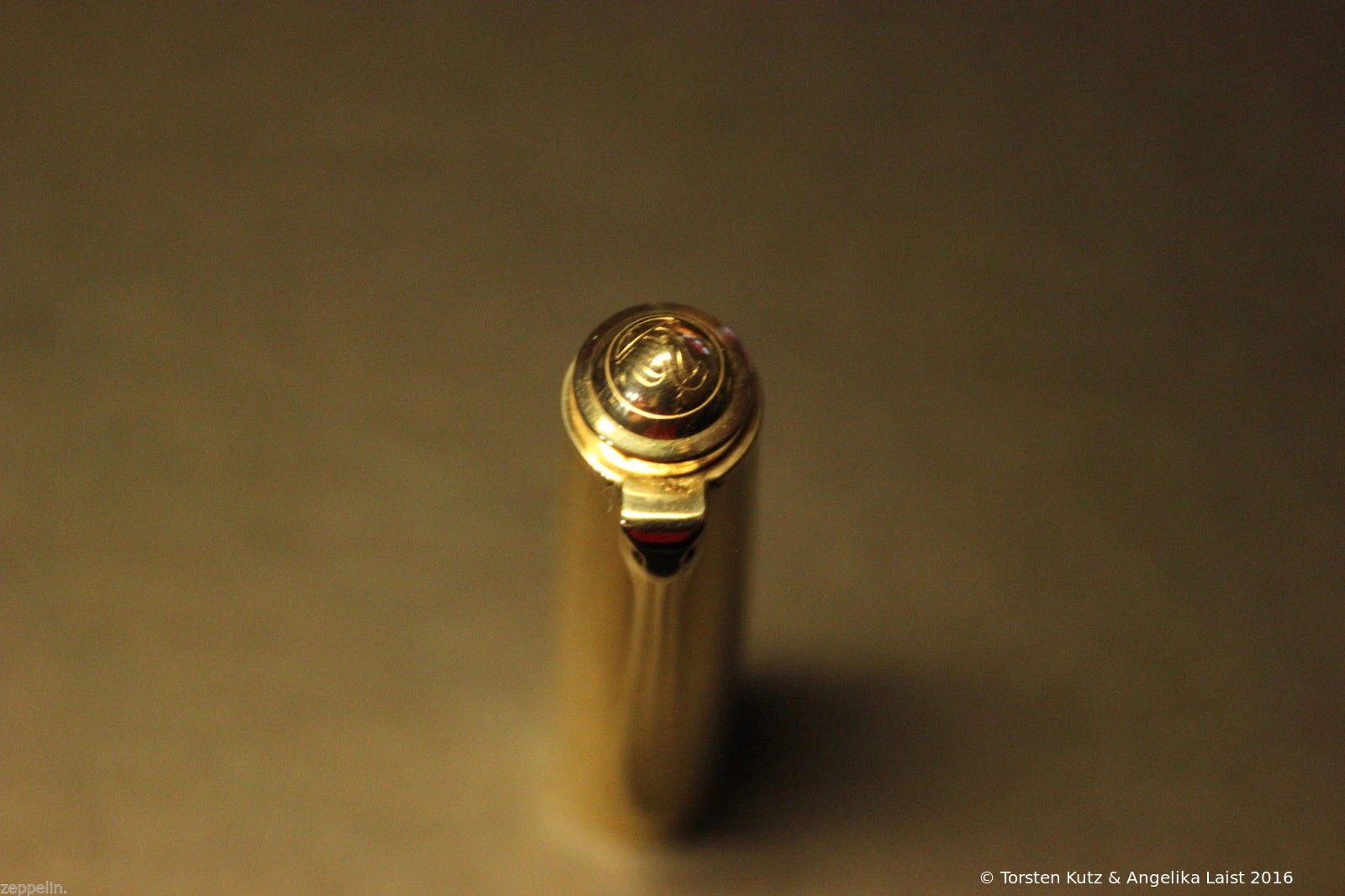

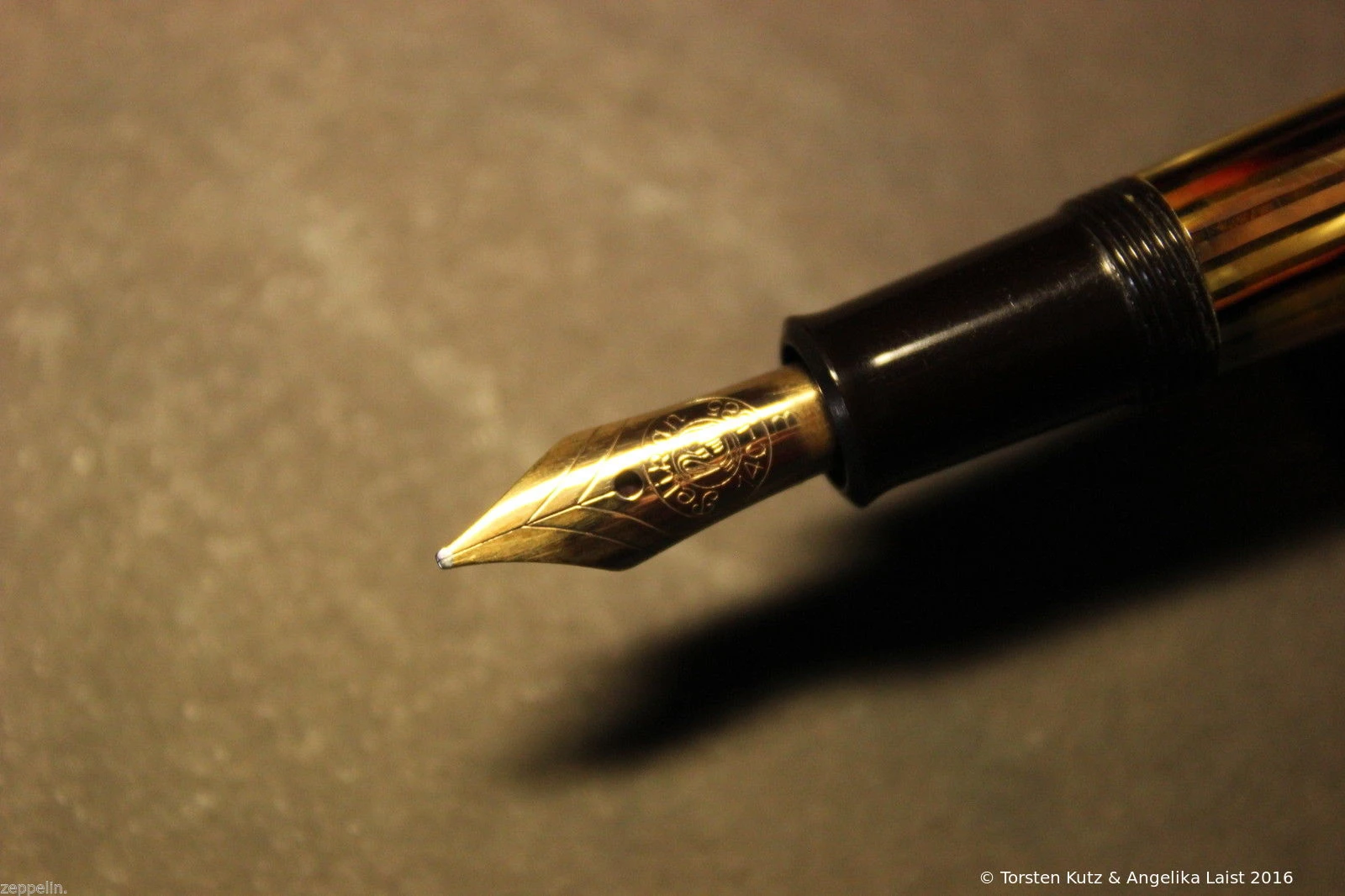

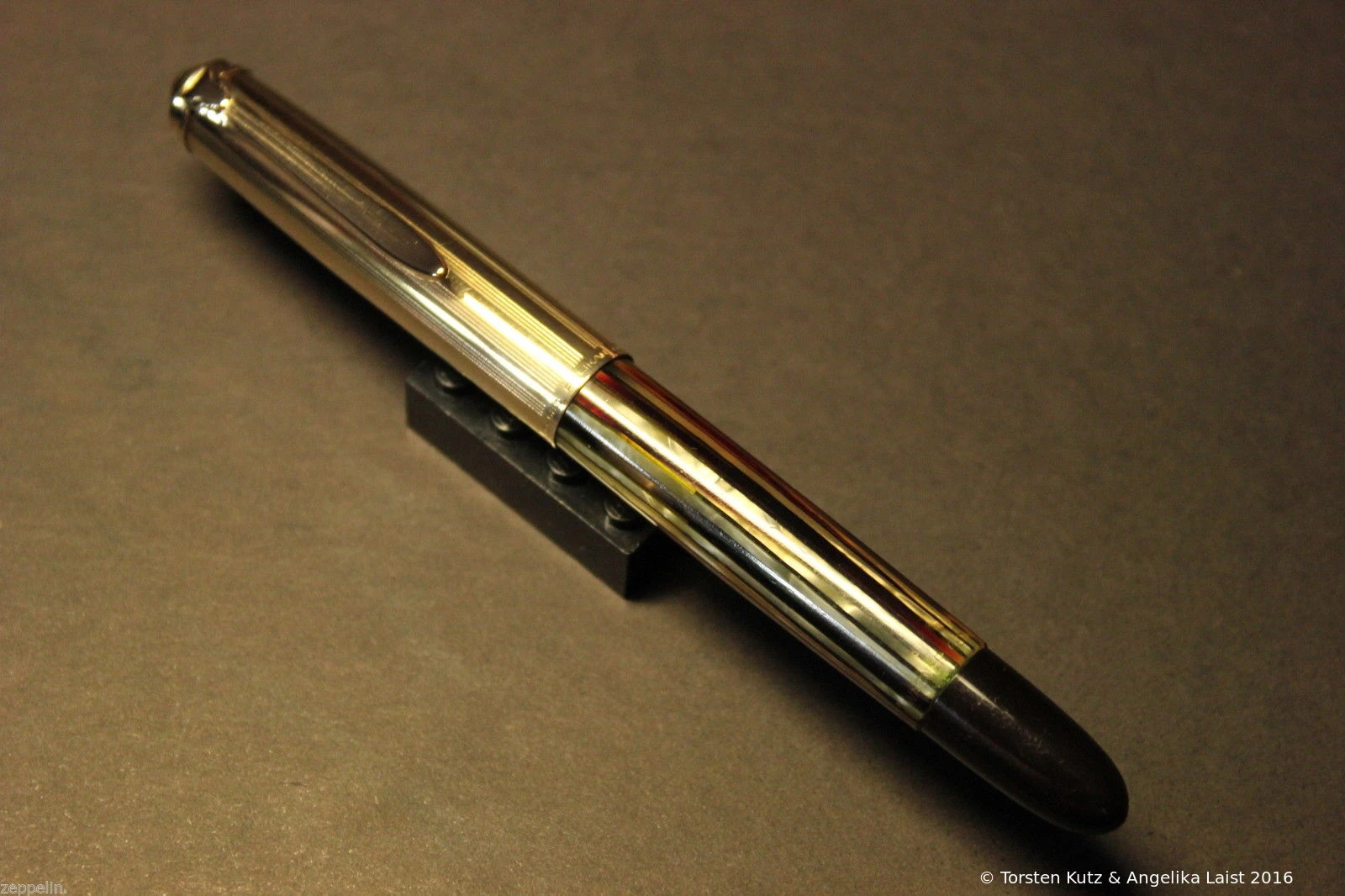

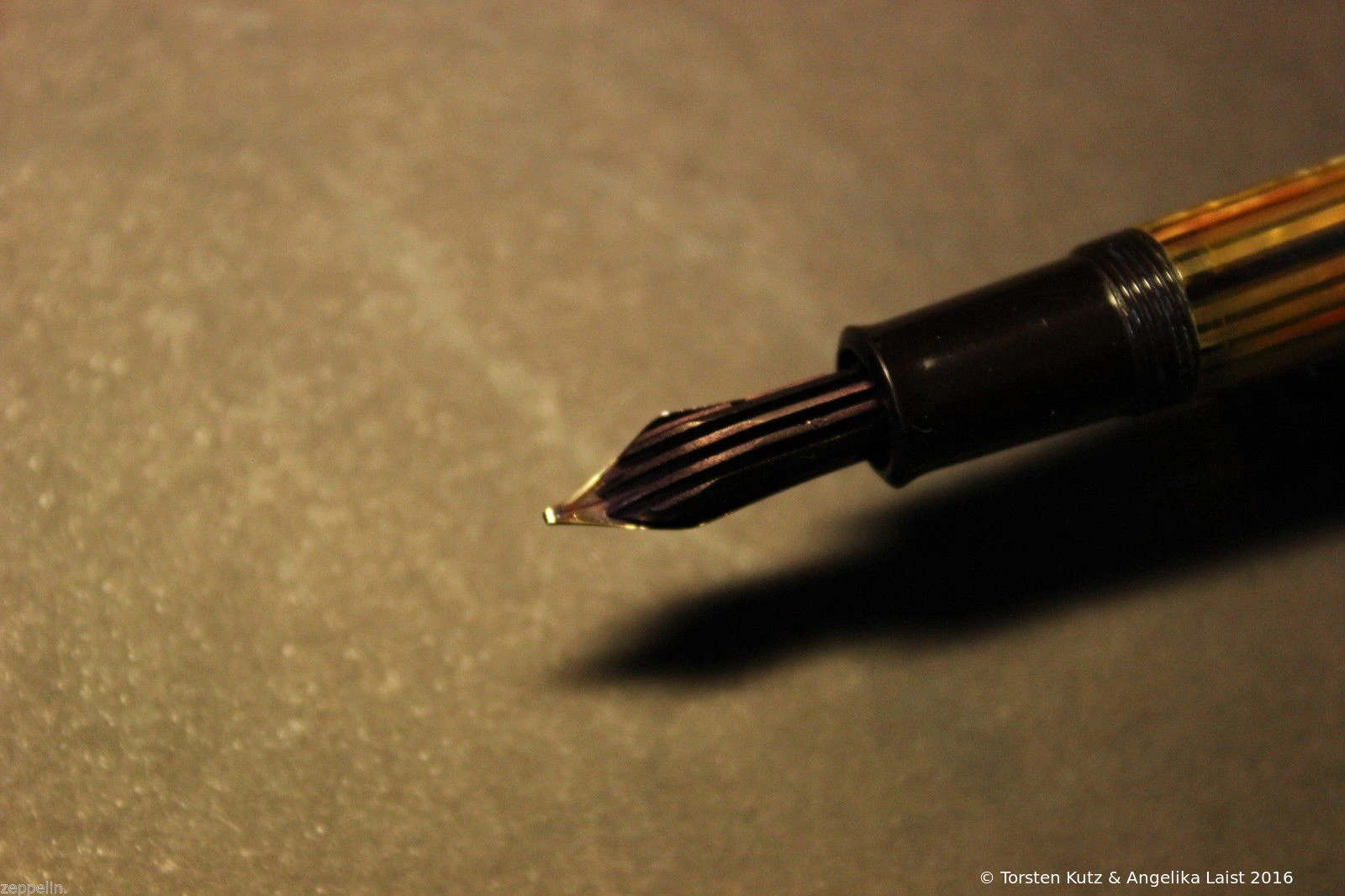

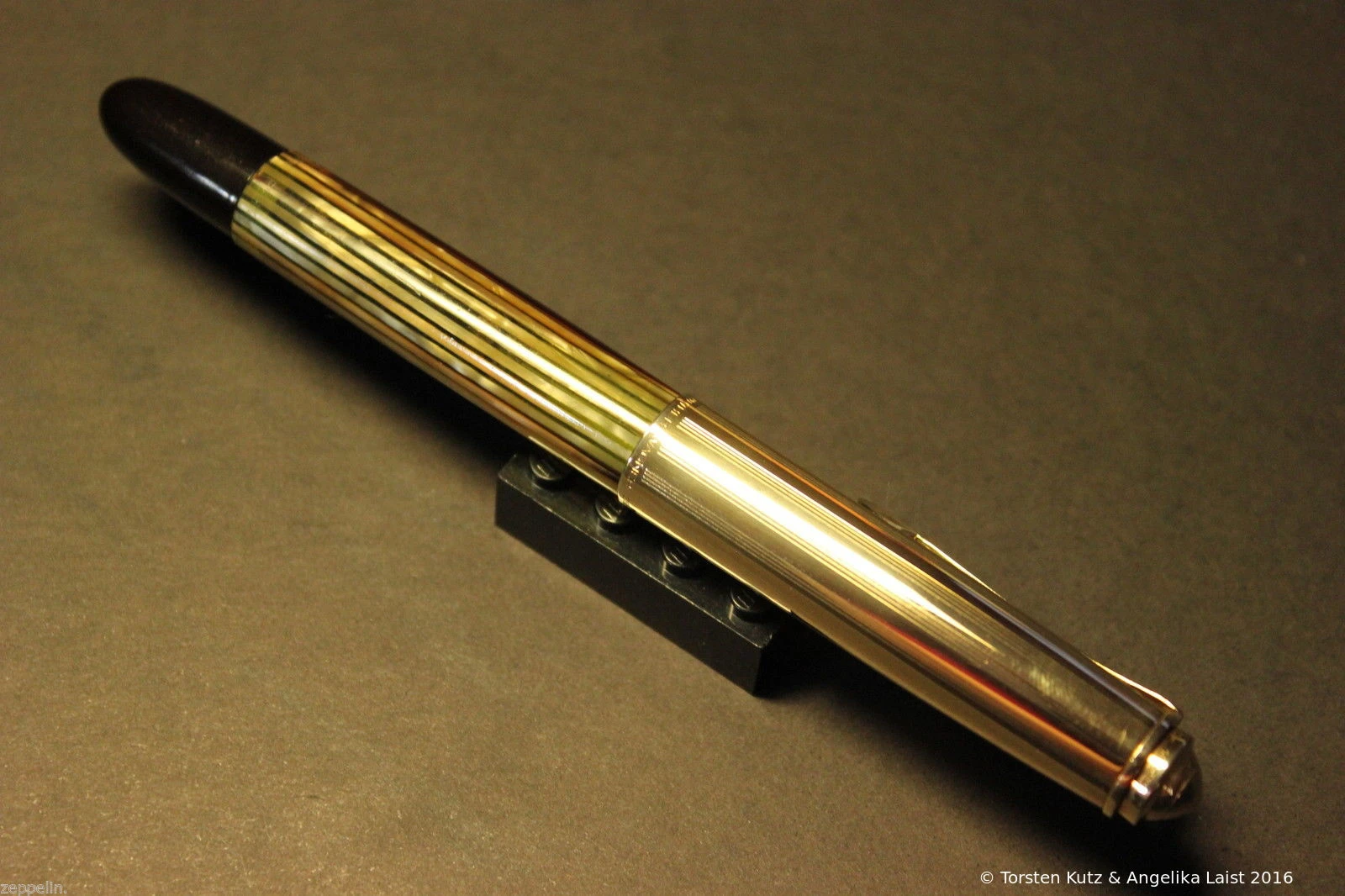

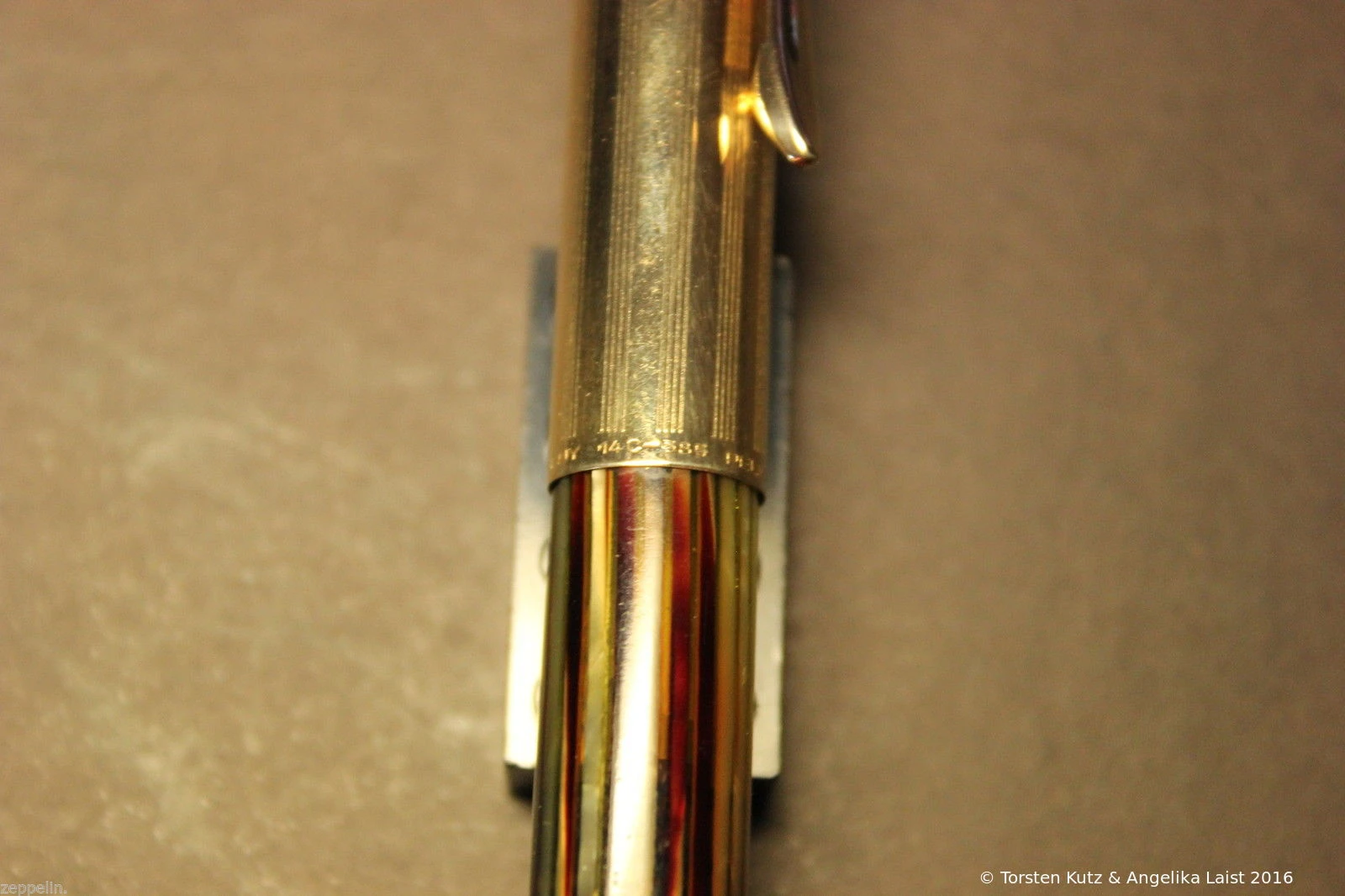

600NN Tortoise brown-striped Series Production Color Details
Production: 1957-1963Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: brown-stripedCap Color: 14 ct goldTrim: 585 gold

Tortoise brown striped. Cap made from 14 carat gold.

600NN Black-striped Series Production Color Details
Production: 1957-1963Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: black-stripedCap Color: 14 ct goldTrim: 585 gold

Black-striped. Cap made from 14 ct gold.

600NN Sea green-striped Series Production Color Details
Production: 1957-1963Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: sea green-stripedCap Color: 14 ct goldTrim: 585 gold

Sea green, the strips are olive-green and black belted. The cap is made from 14 carat gold.

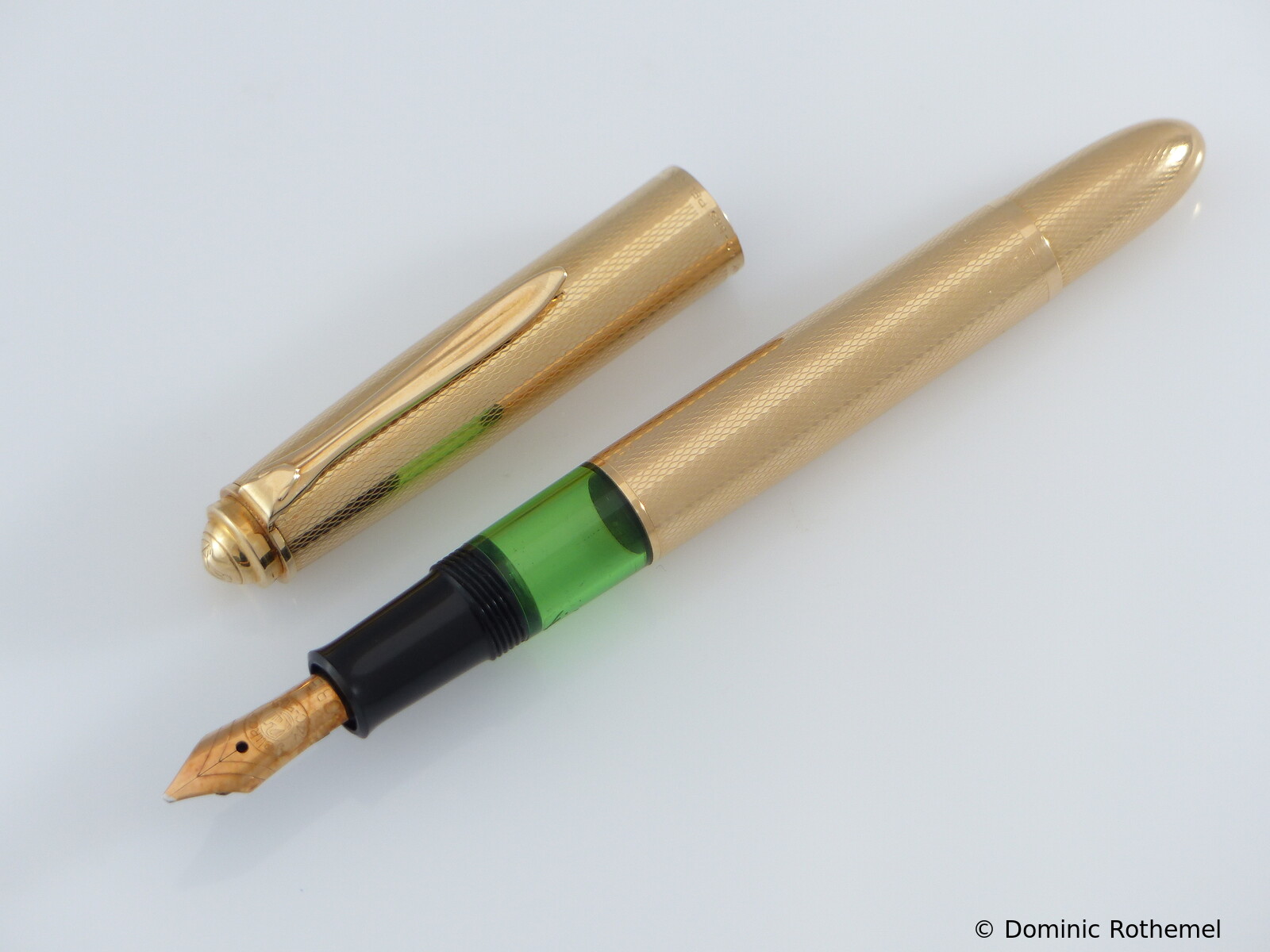

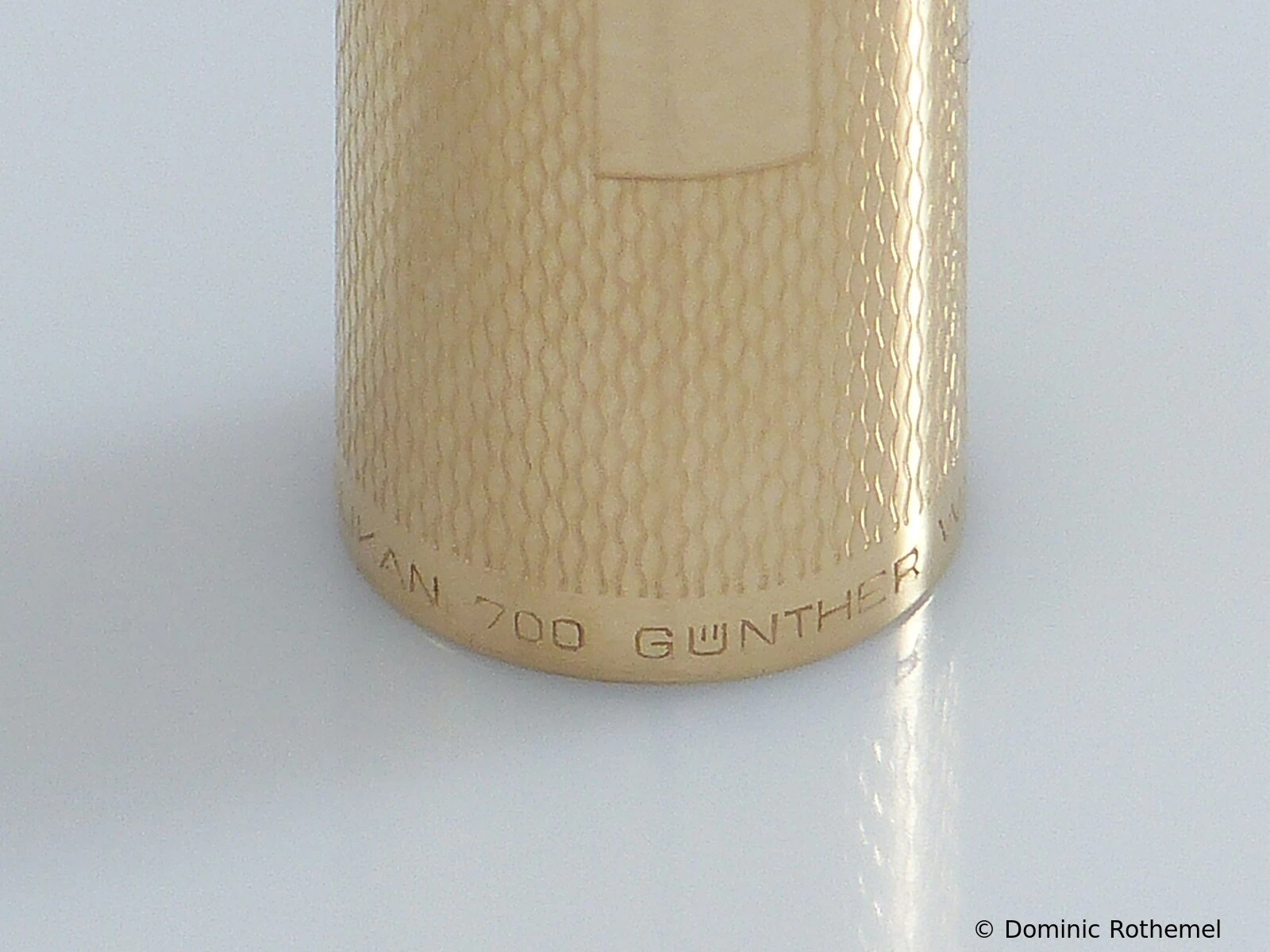

Pelikan 700NN

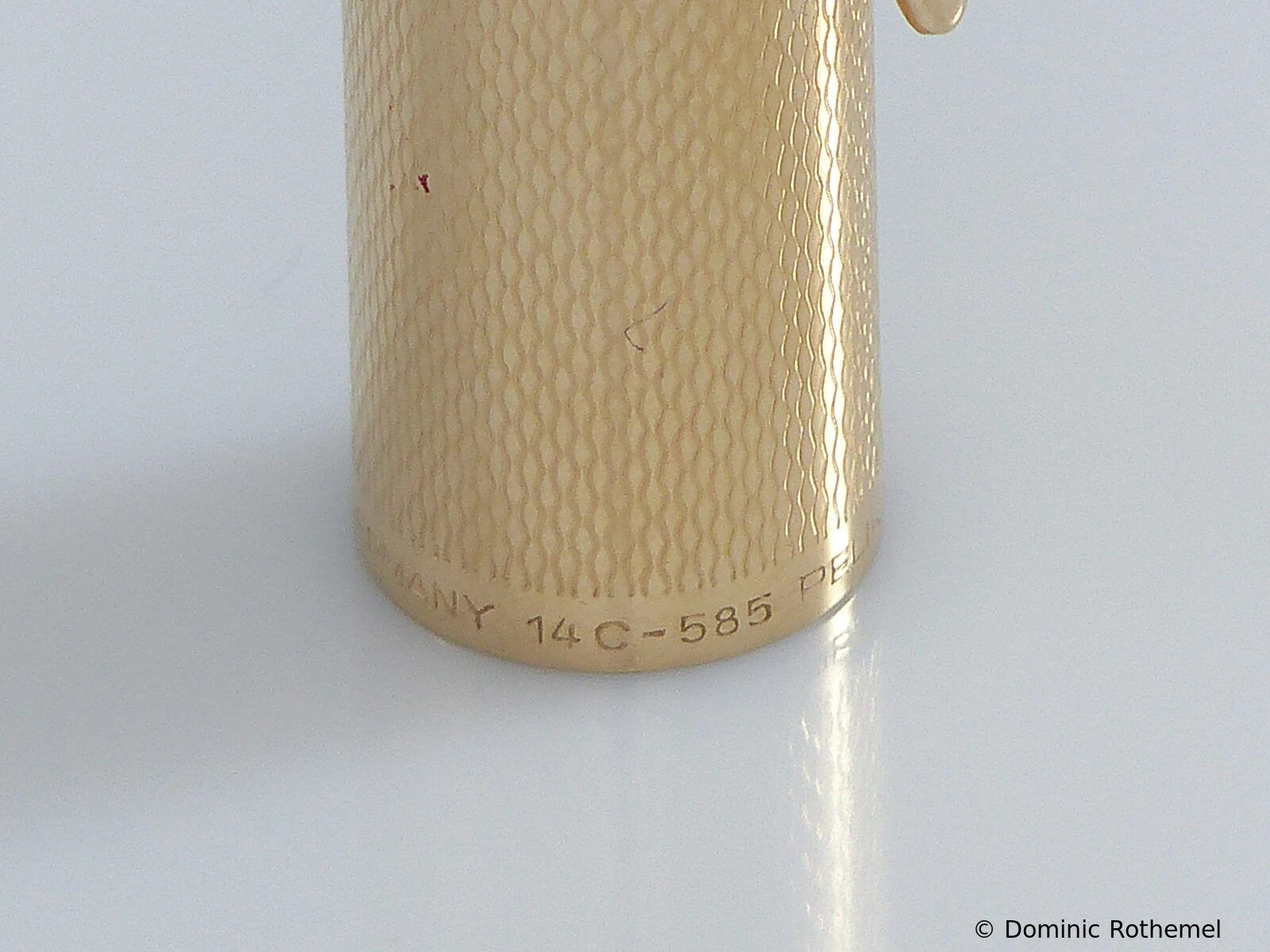

14 ct gold. Hallmark (14C - 585) on the cap, barrel, clip and clip nut.

Model Production Period Nib
700NN - 14 ct gold 1957-1963

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.96 oz 5.12 in 4.06 in 2.44 in 0.47 in 2.0 ml
27.2 g 130 mm 103 mm 62 mm 12 mm


700NN

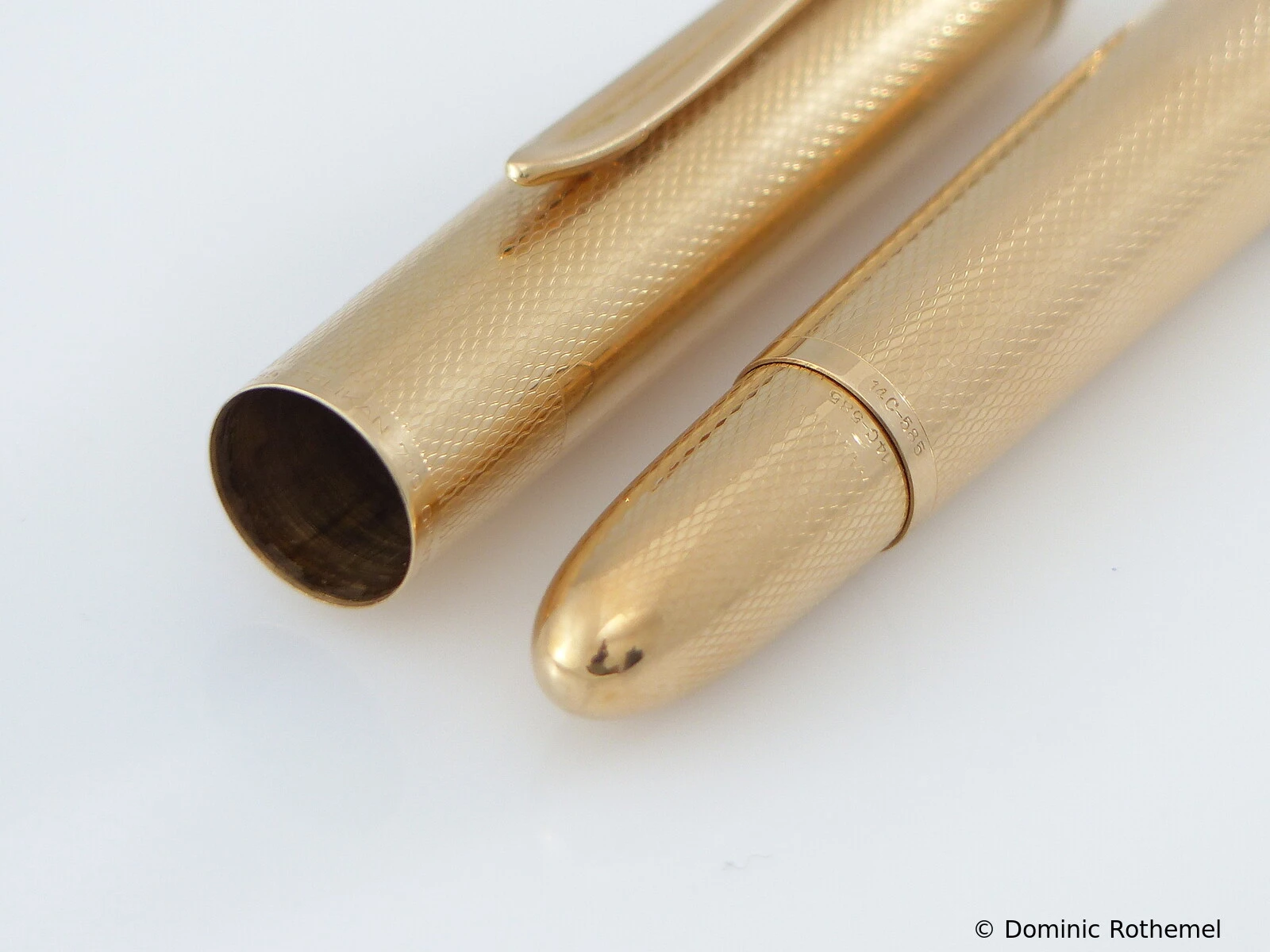

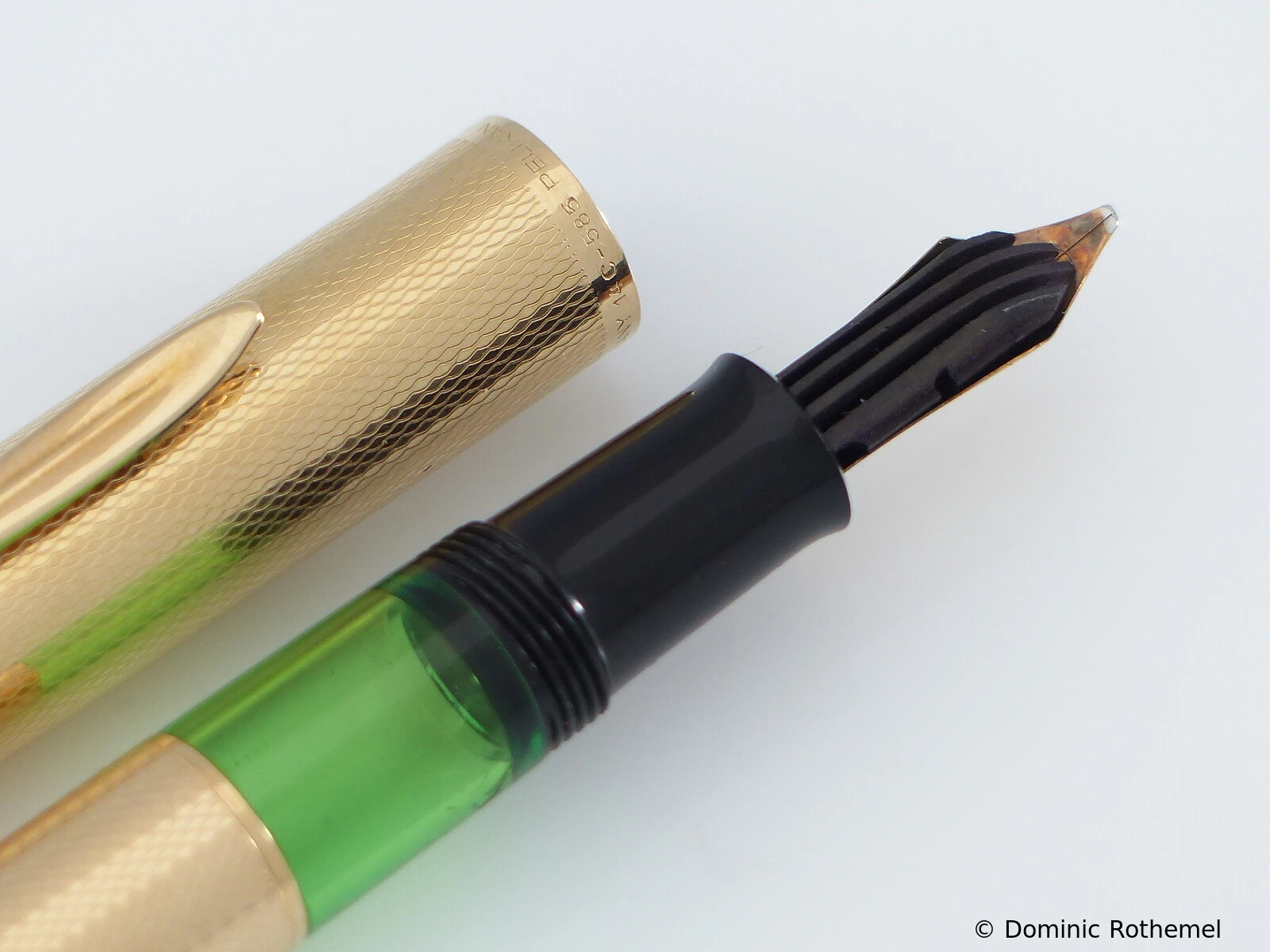

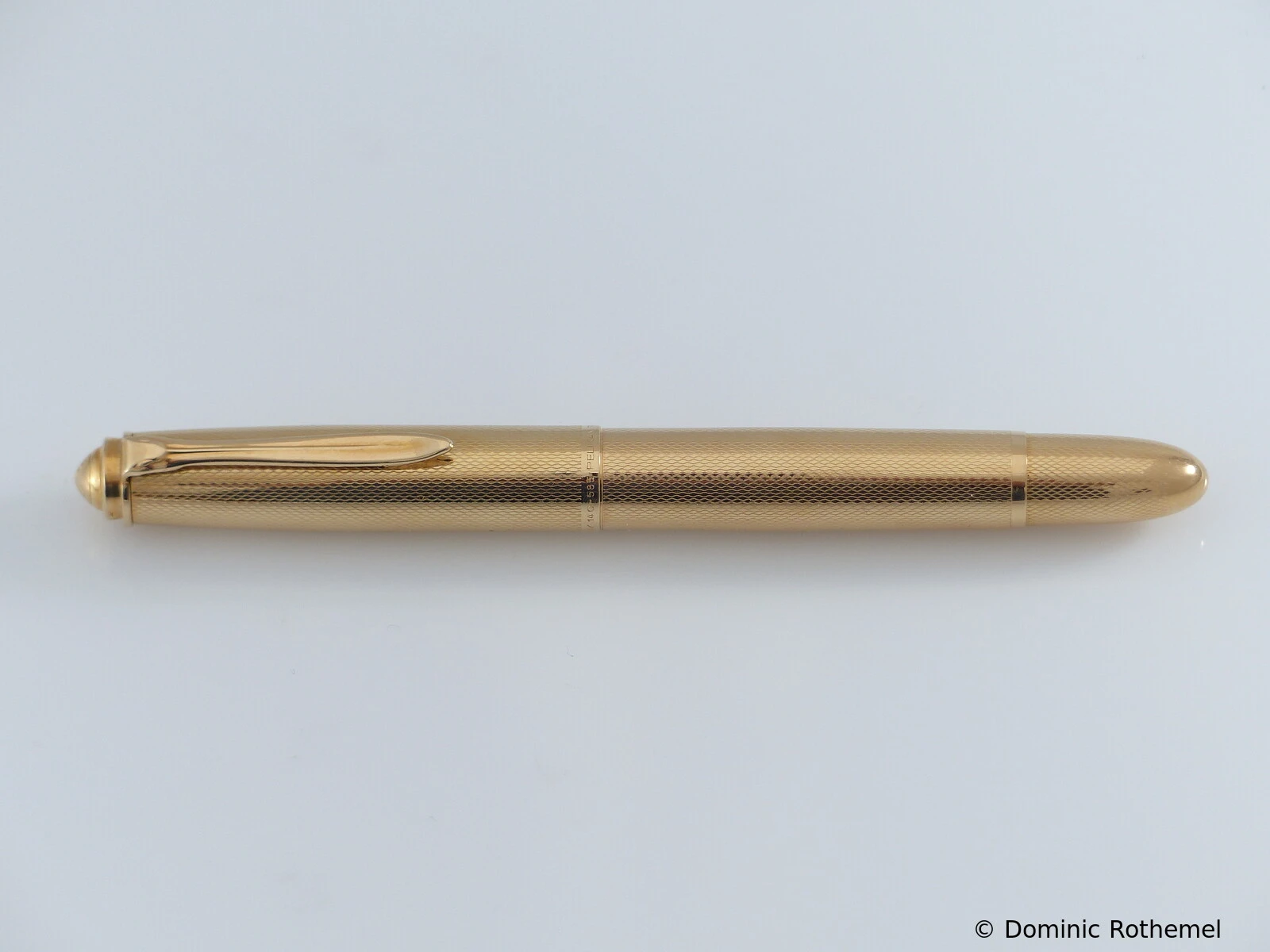

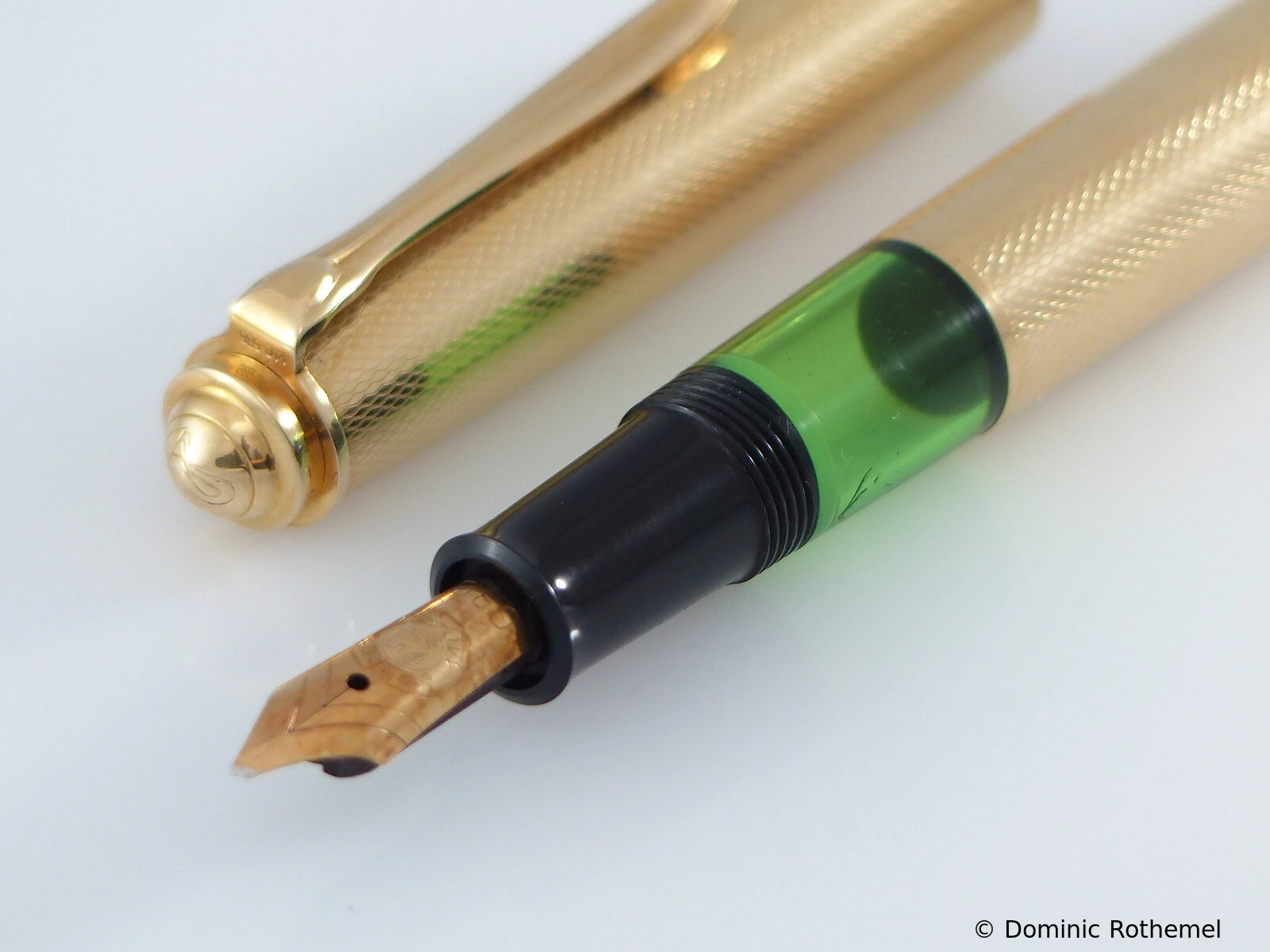

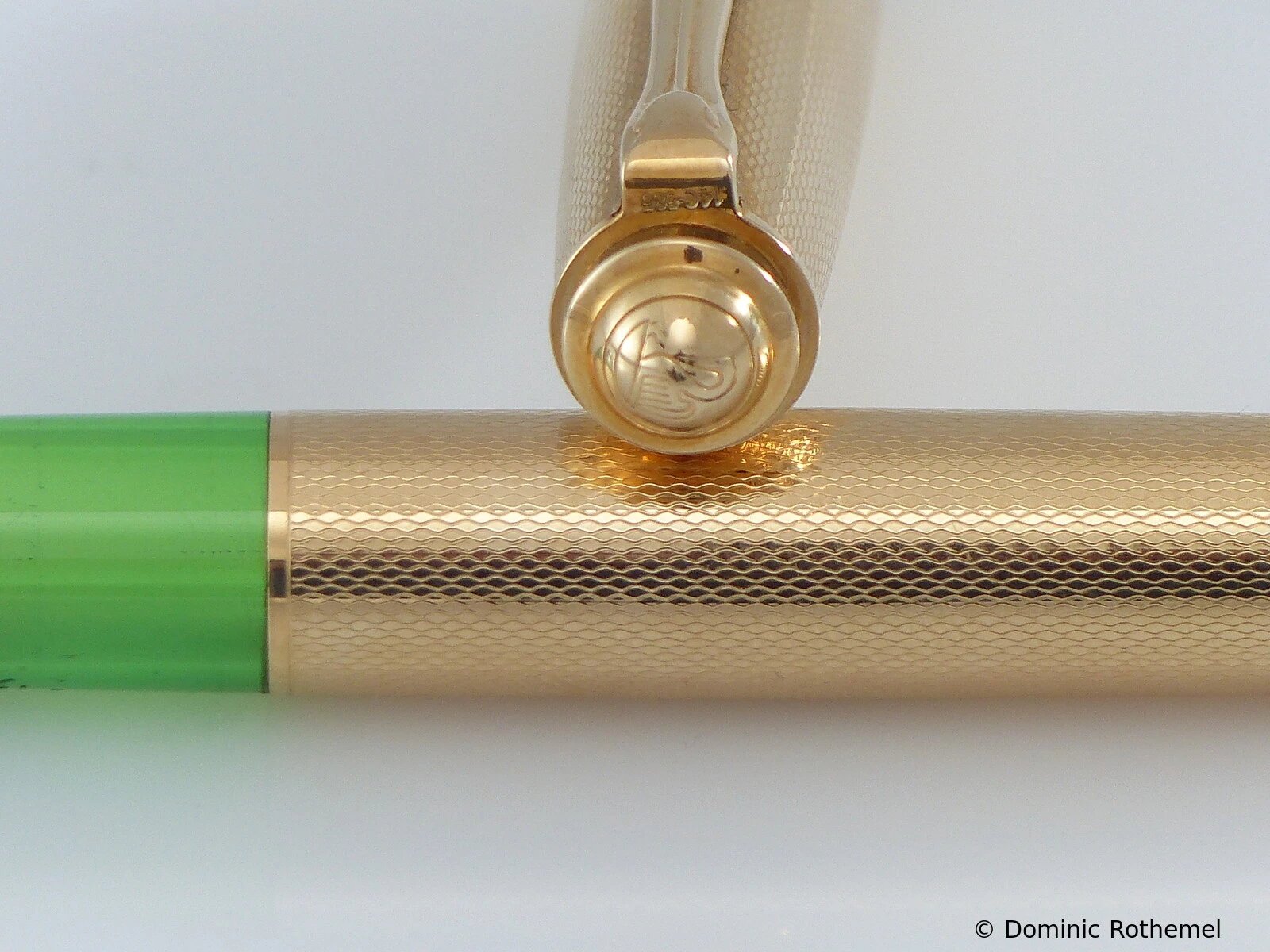

700NN 14 ct gold Series Production Color Details
Production: 1957-1963Nib: 14 ct gold Leaflet: DeutschLink opens PDF documentPreisliste 100 DeutschLink opens PDF documentPelikan Hauptpreisliste 110 / 1963
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: 14 ct goldCap Color: 14 ct goldTrim: 585 gold

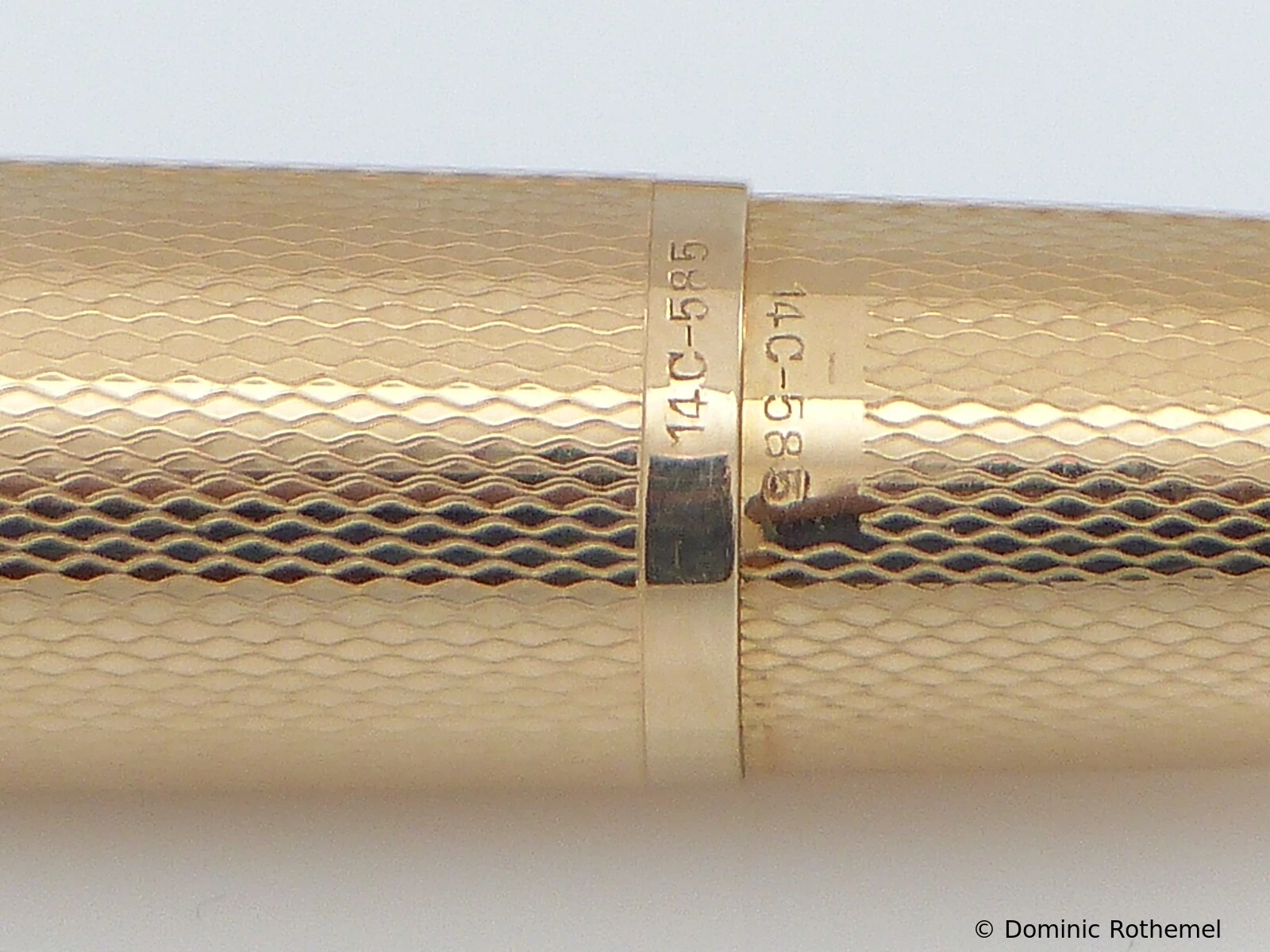

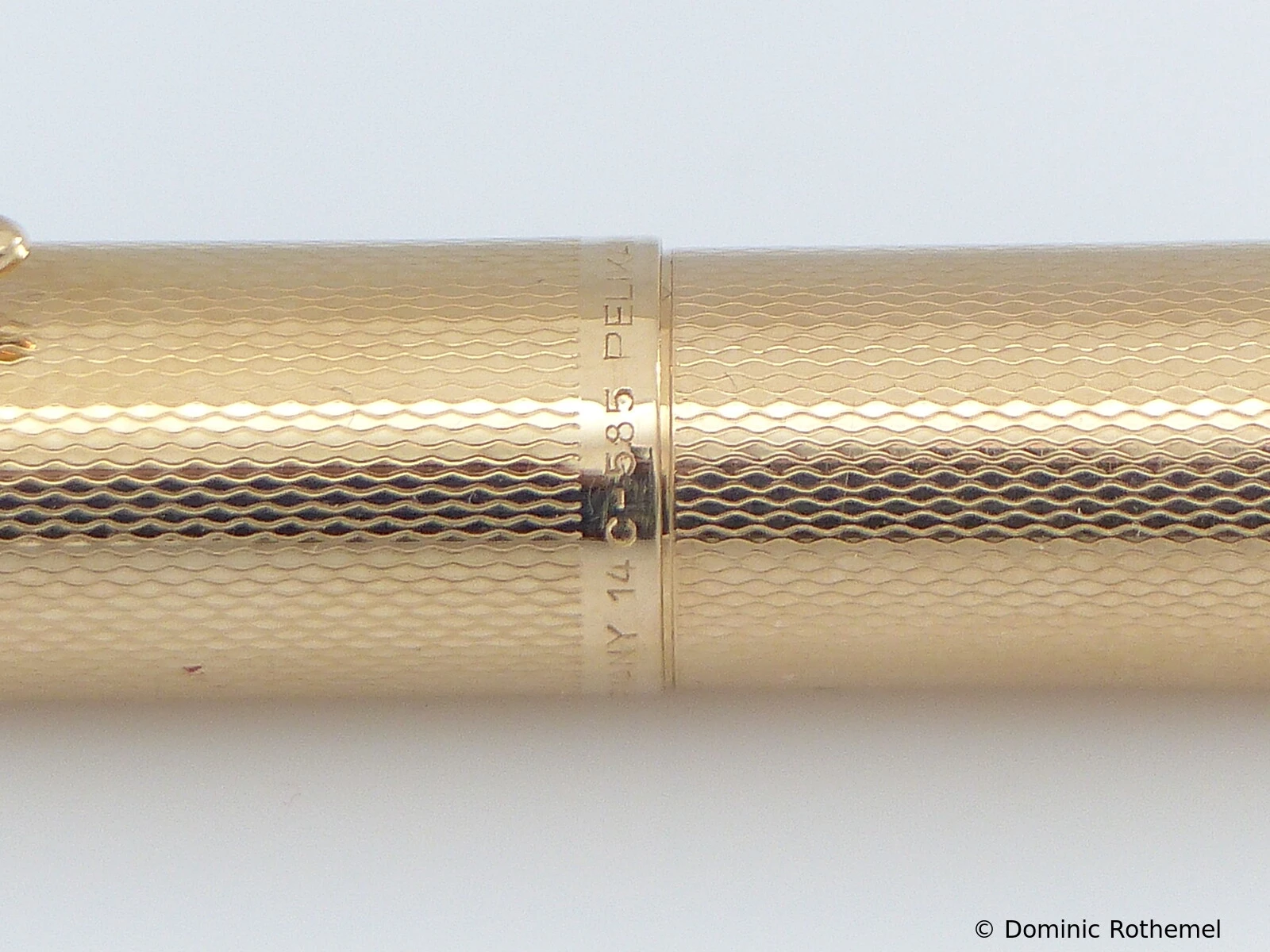

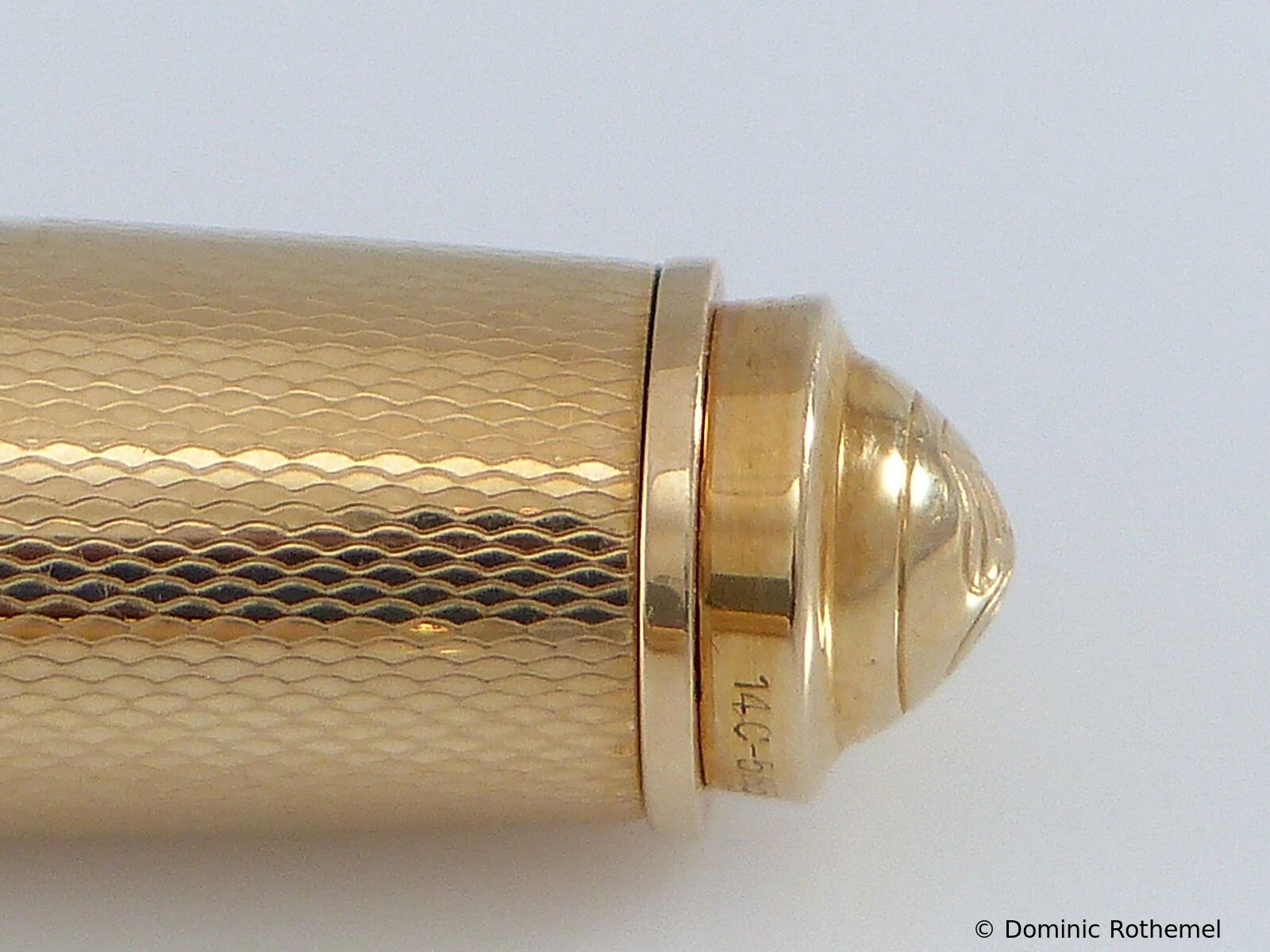

14 ct gold. Hallmark (14C - 585) on the cap, barrel, clip and clip nut.

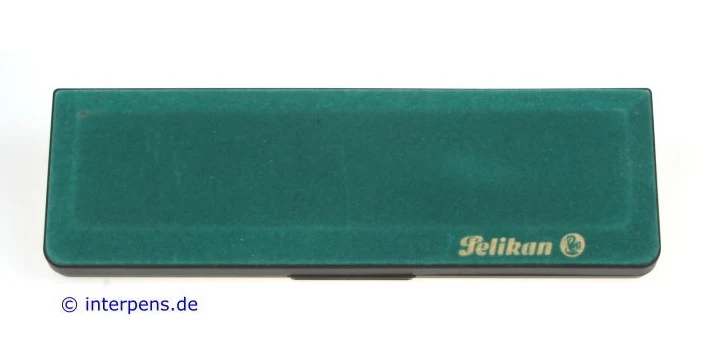

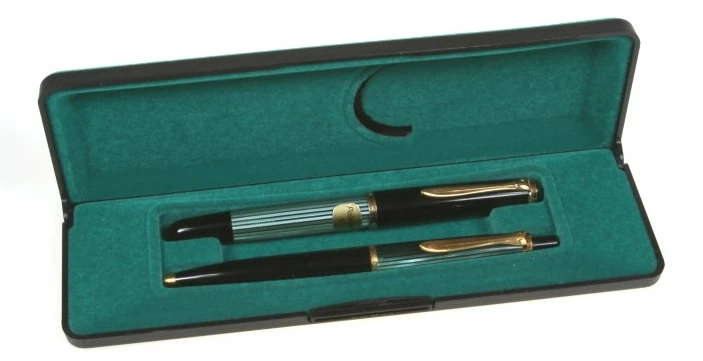

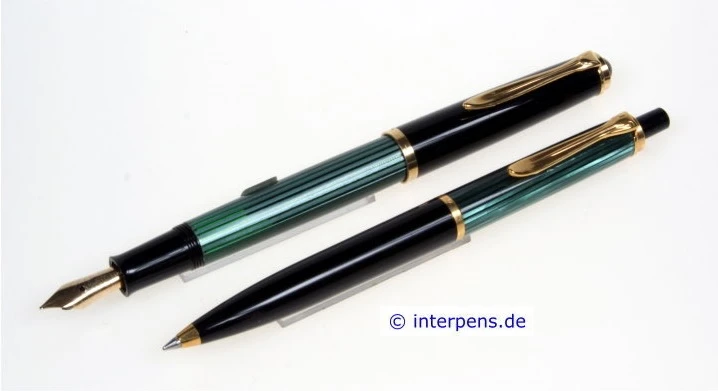

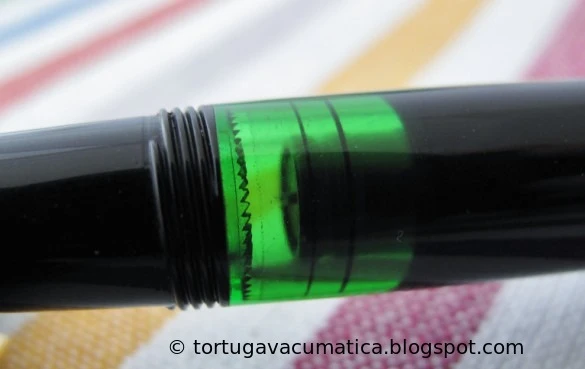

Pelikan 400NN (Merz & Krell)

Pelikan 400NN - Merz & Krell.

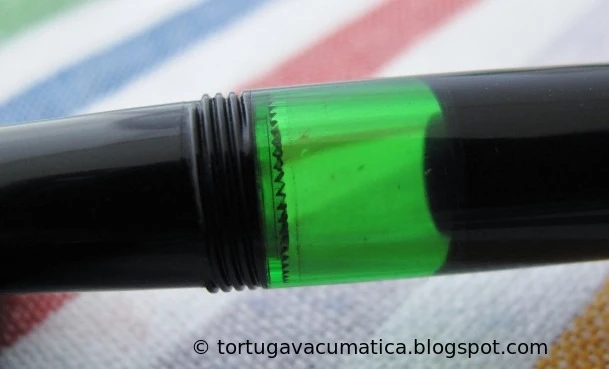

Pelikan had already stopped the production of the 400NN by 1965. In 1973 a new edition appeared. This was manufactured by Merz & Krell and differs in some details from the original model. The filling knob is flush with the barrel, as is the transition from the grip section to the barrel.

The threads of the cap are also different, so the cap of an old 400NN will not fit the M & K.

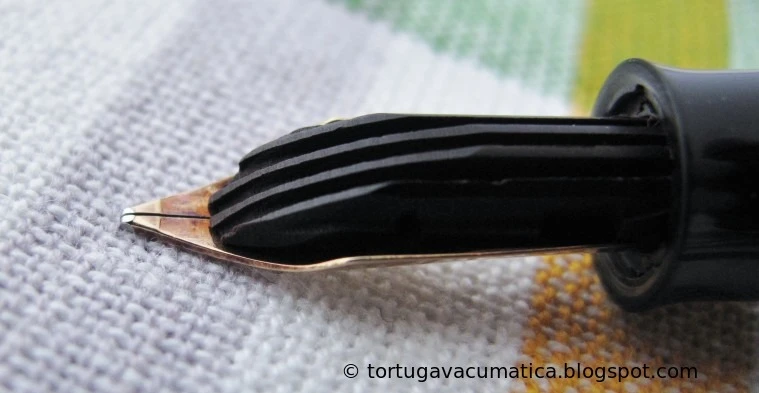

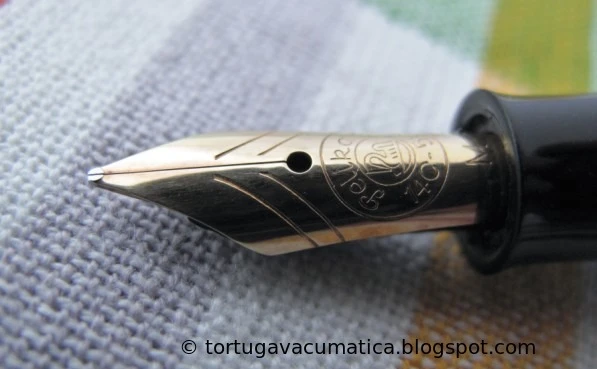

Since the Merz & Krell model also the writing characteristics of the nibs are different, so far, the nibs of the 400 models were ground as Italic nibs, now the nibs have a ball point which offers no line variance.

Model Production Period Nib
400NN Merz & Krell 1973-1978

14 ct gold nib

Weight Total Length Barrel Length Cap Length Diameter Ink Capacity
0.59 oz 5.08 in 3.86 in 2.48 in 0.45 in 0.75 ml
15.6 g 129 mm 98 mm 63 mm 11.5 mm


400NN (Merz & Krell)

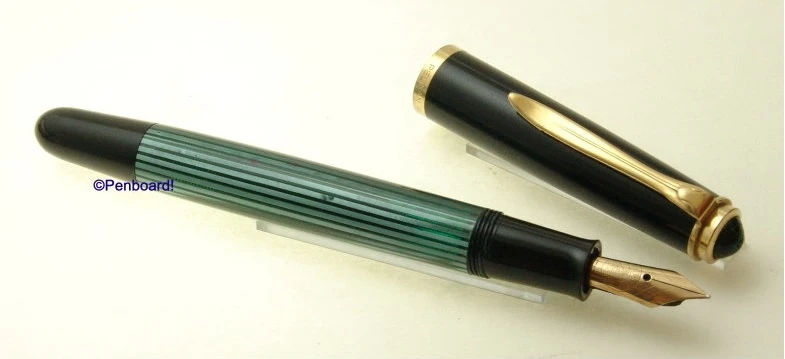

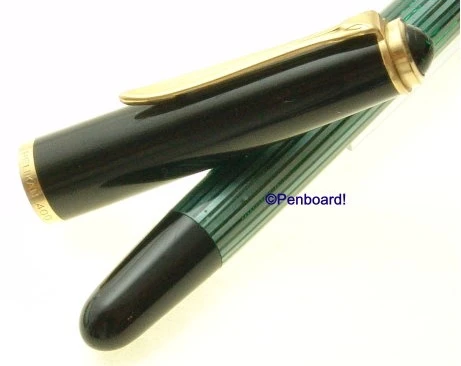

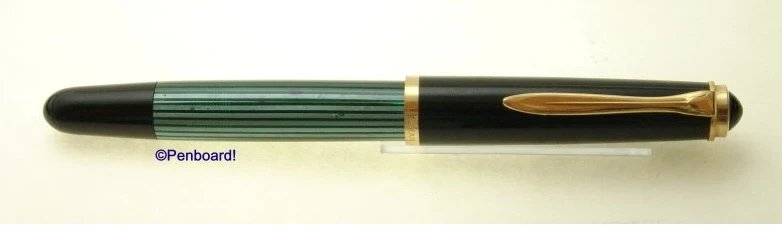

400NN (Merz & Krell) Green-striped Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: green-stripedCap Color: blackTrim: gold plated

400NN produced by Merz & Krell

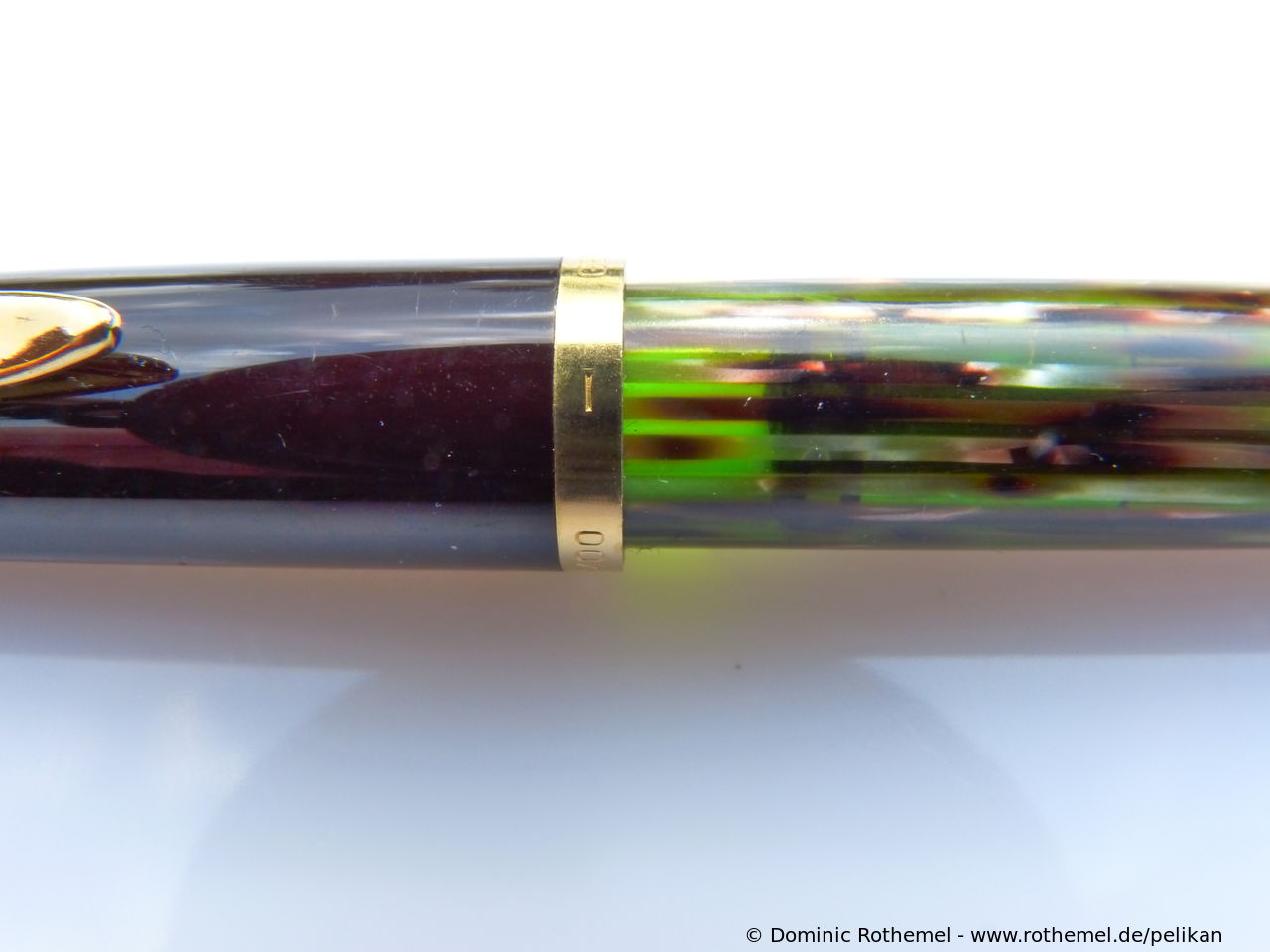

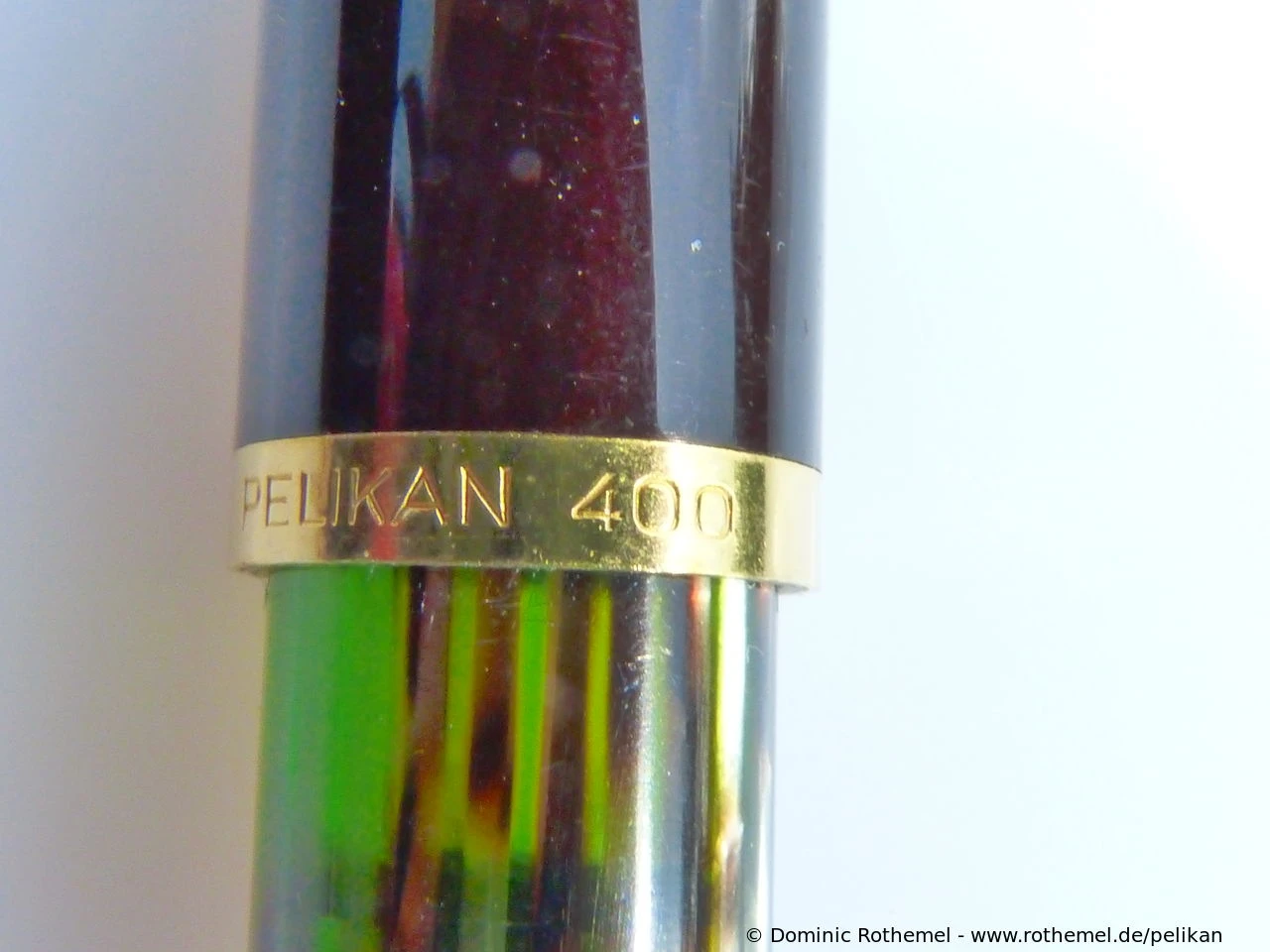

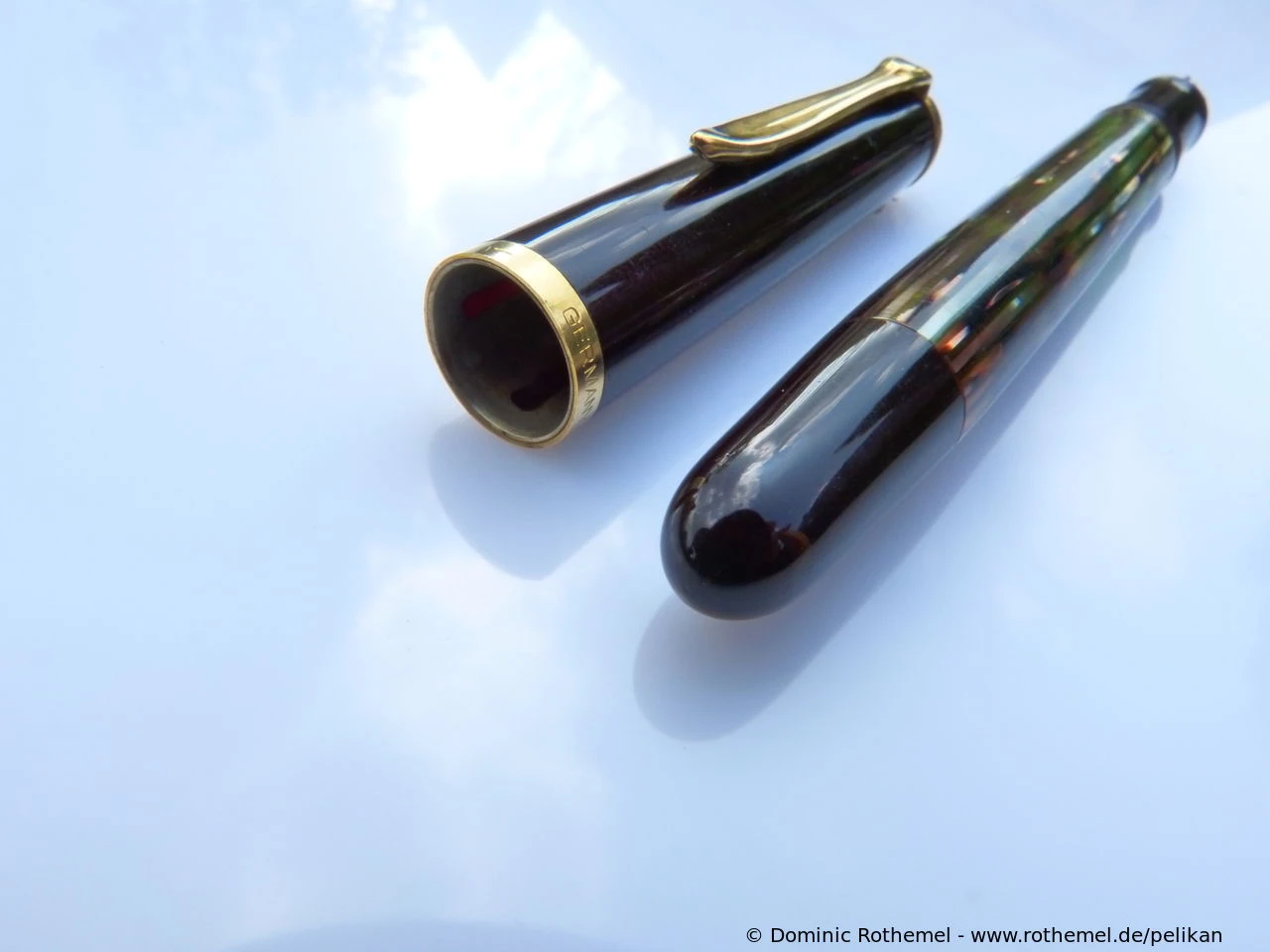

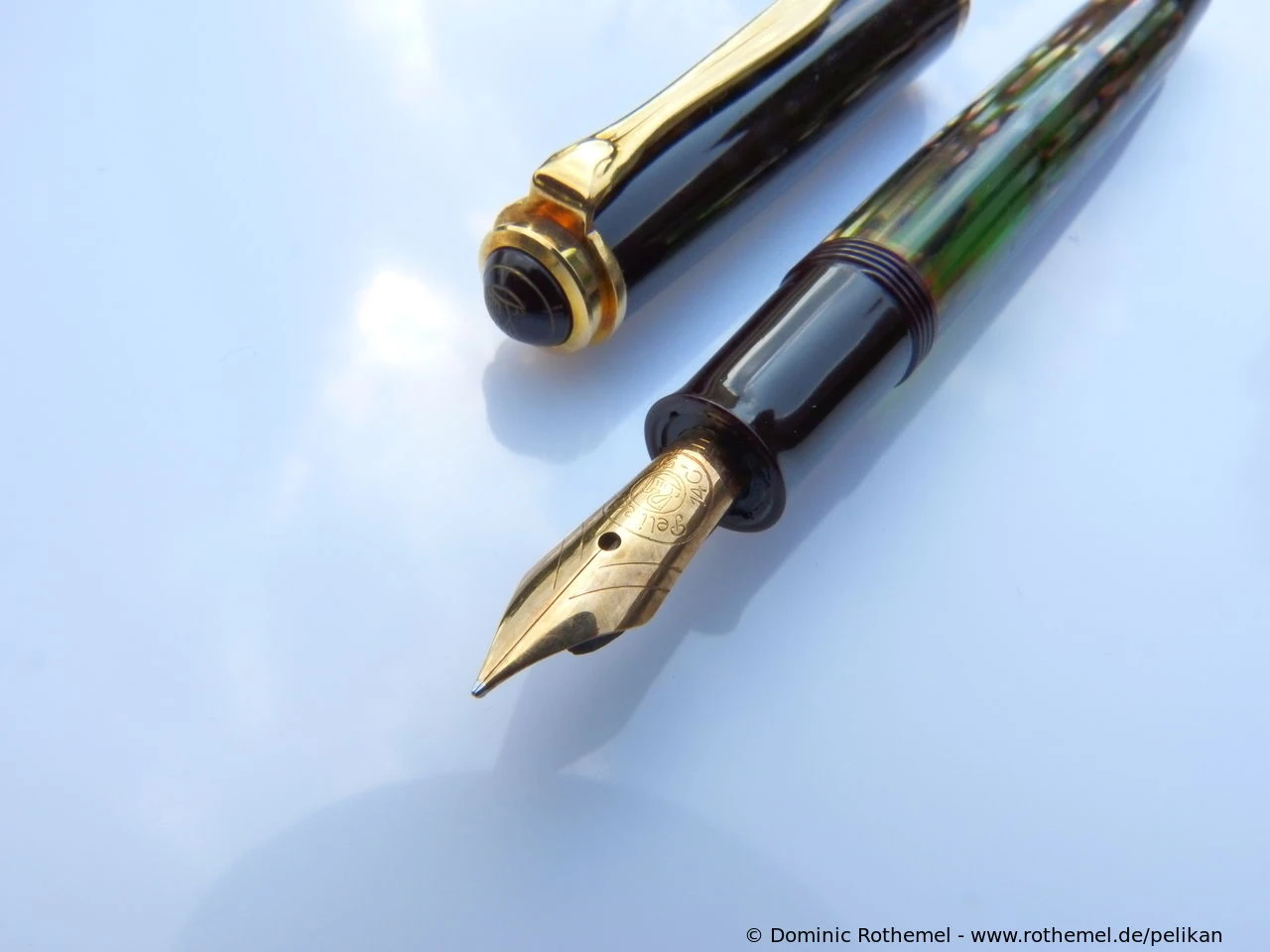

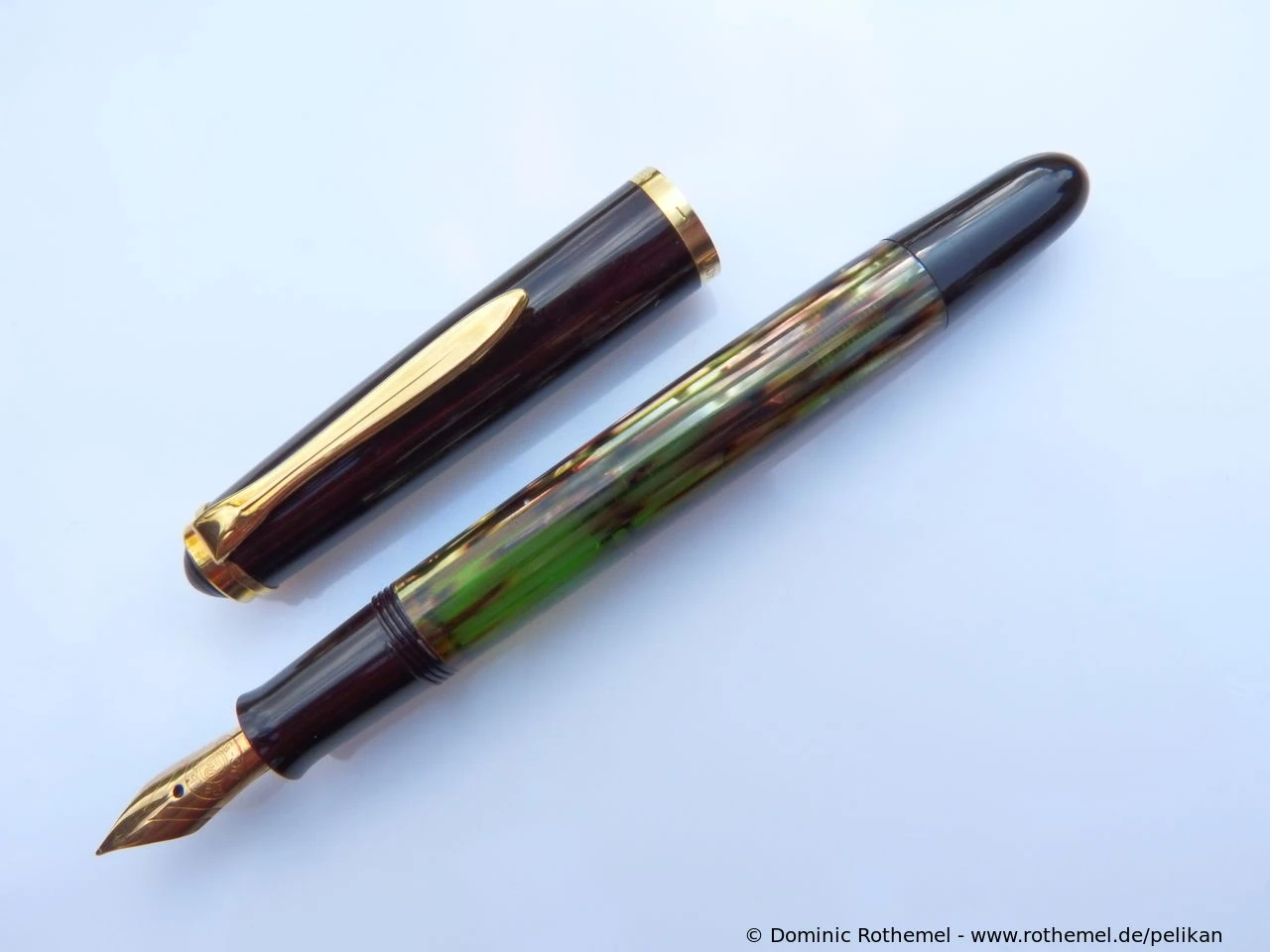

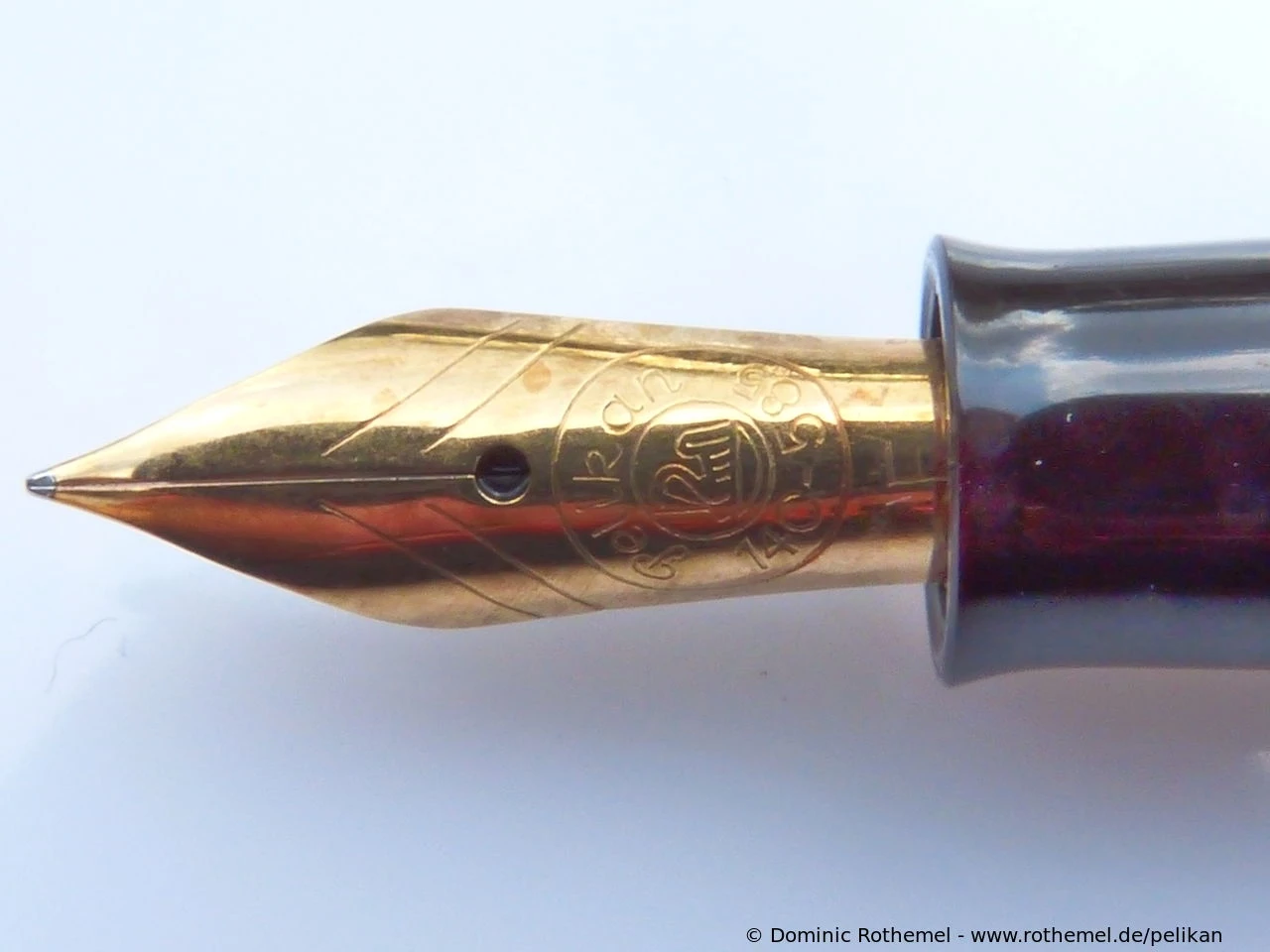

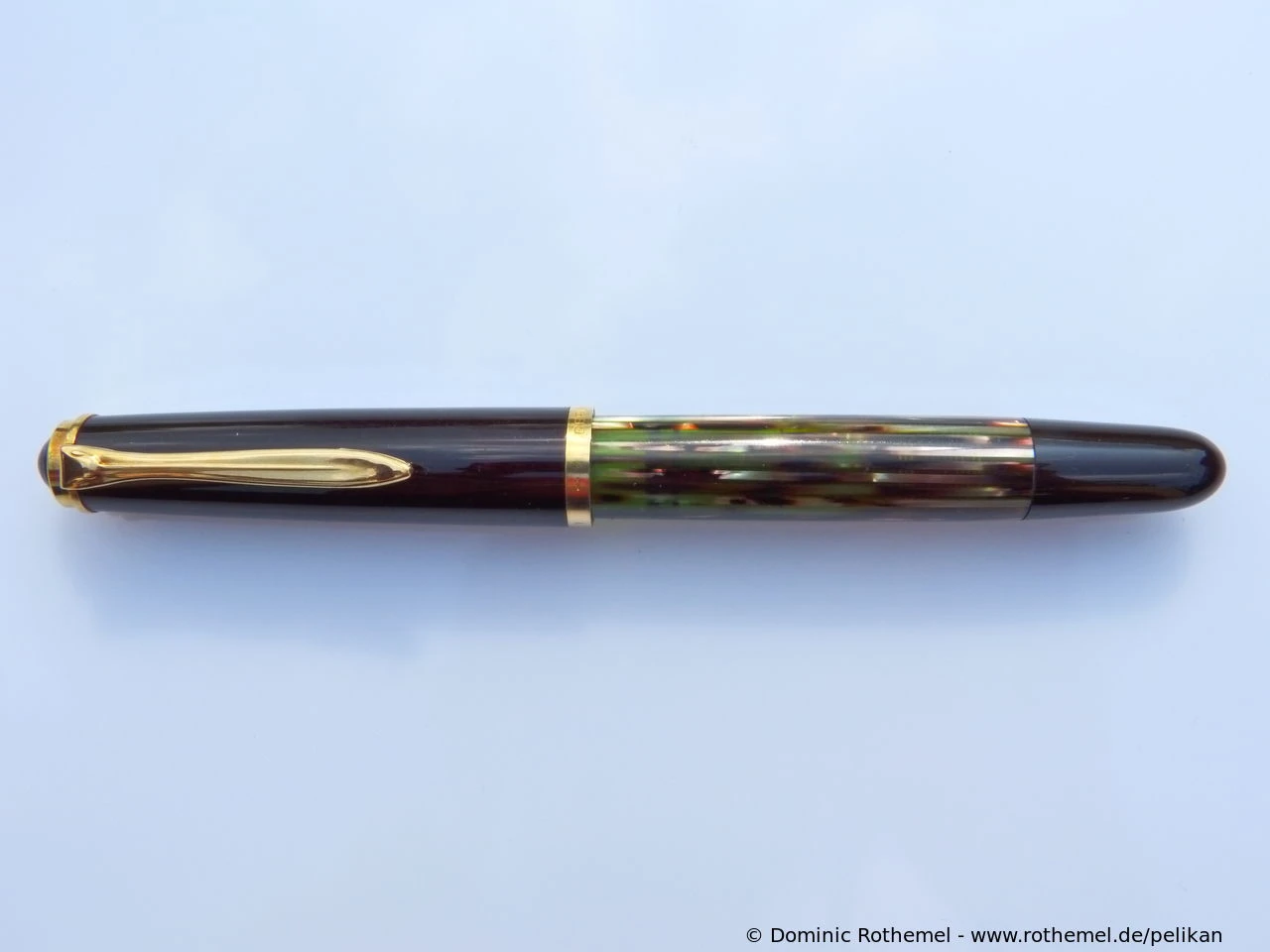

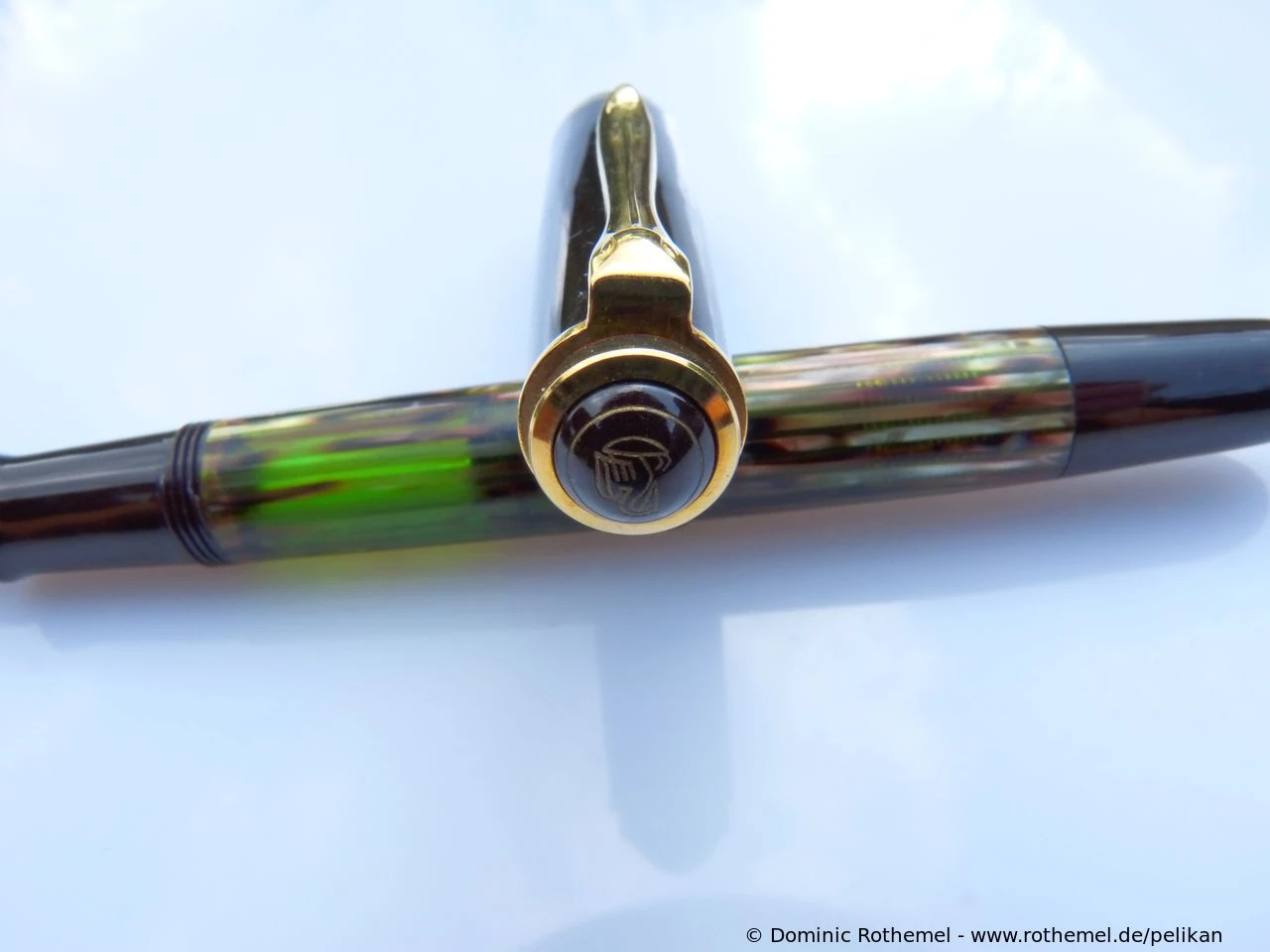

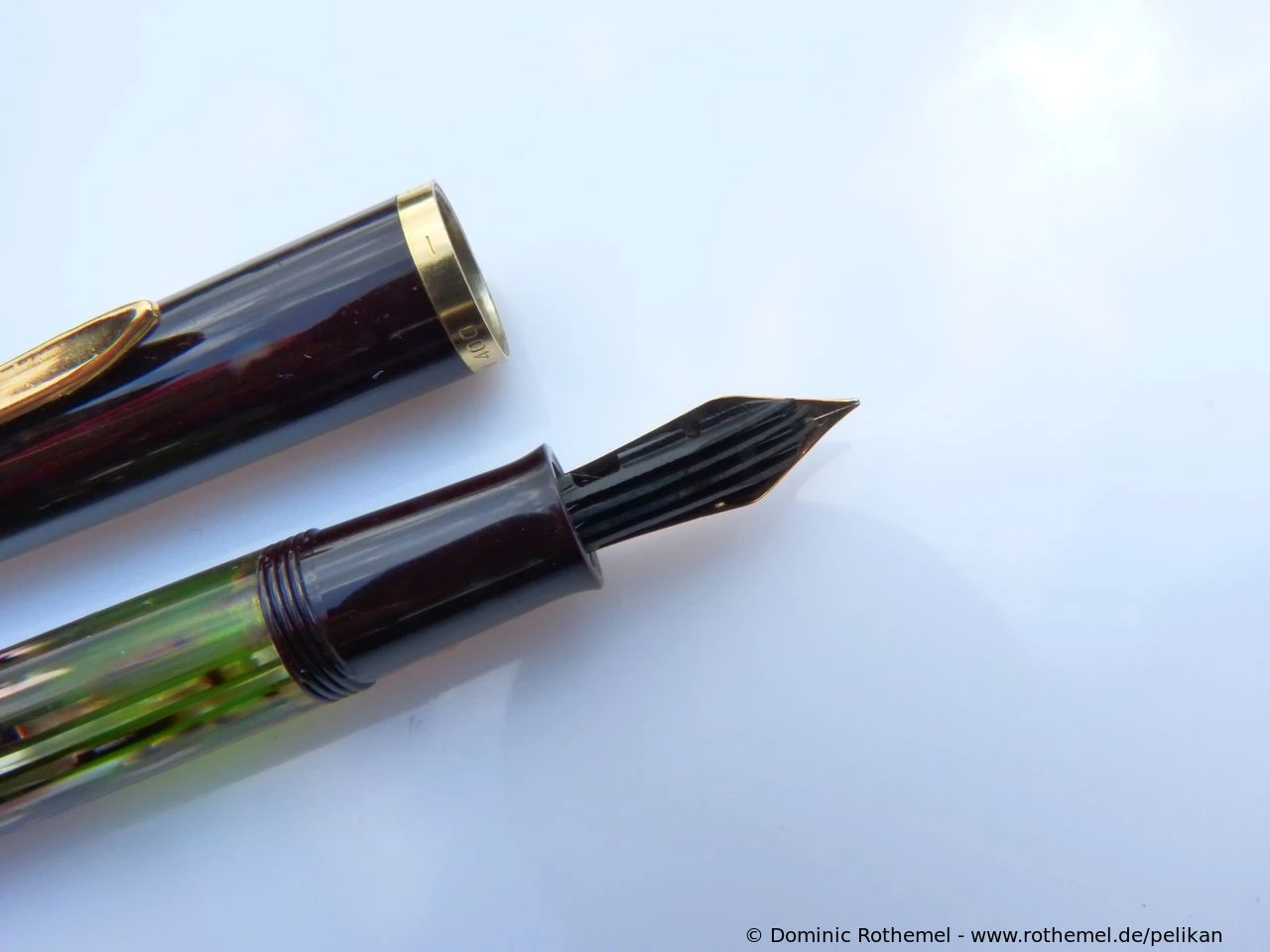

400NN (Merz & Krell) Tortoise brown-striped Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: brown-stripedCap Color: dark brownTrim: gold plated

400NN produced by Merz & Krell

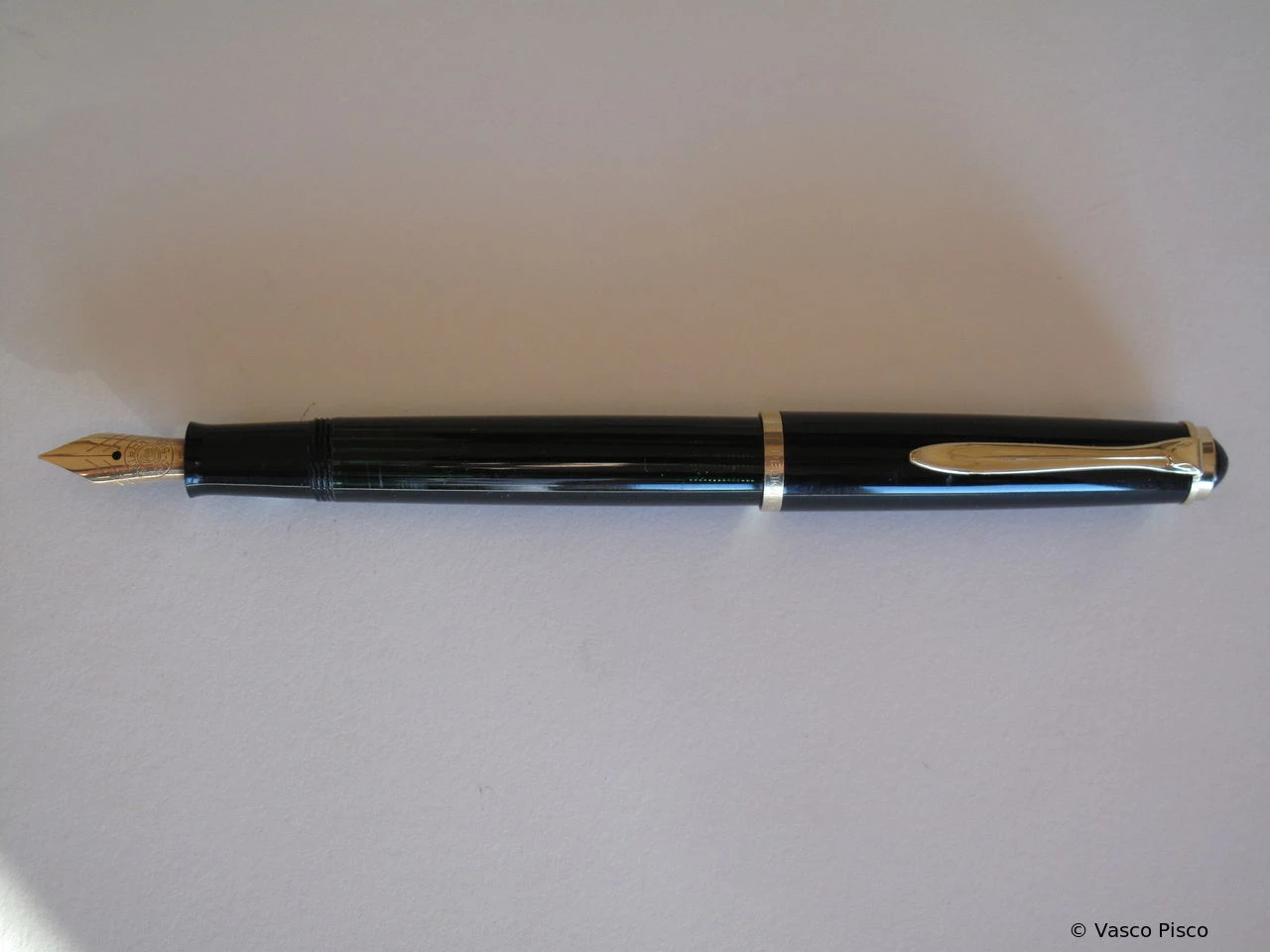

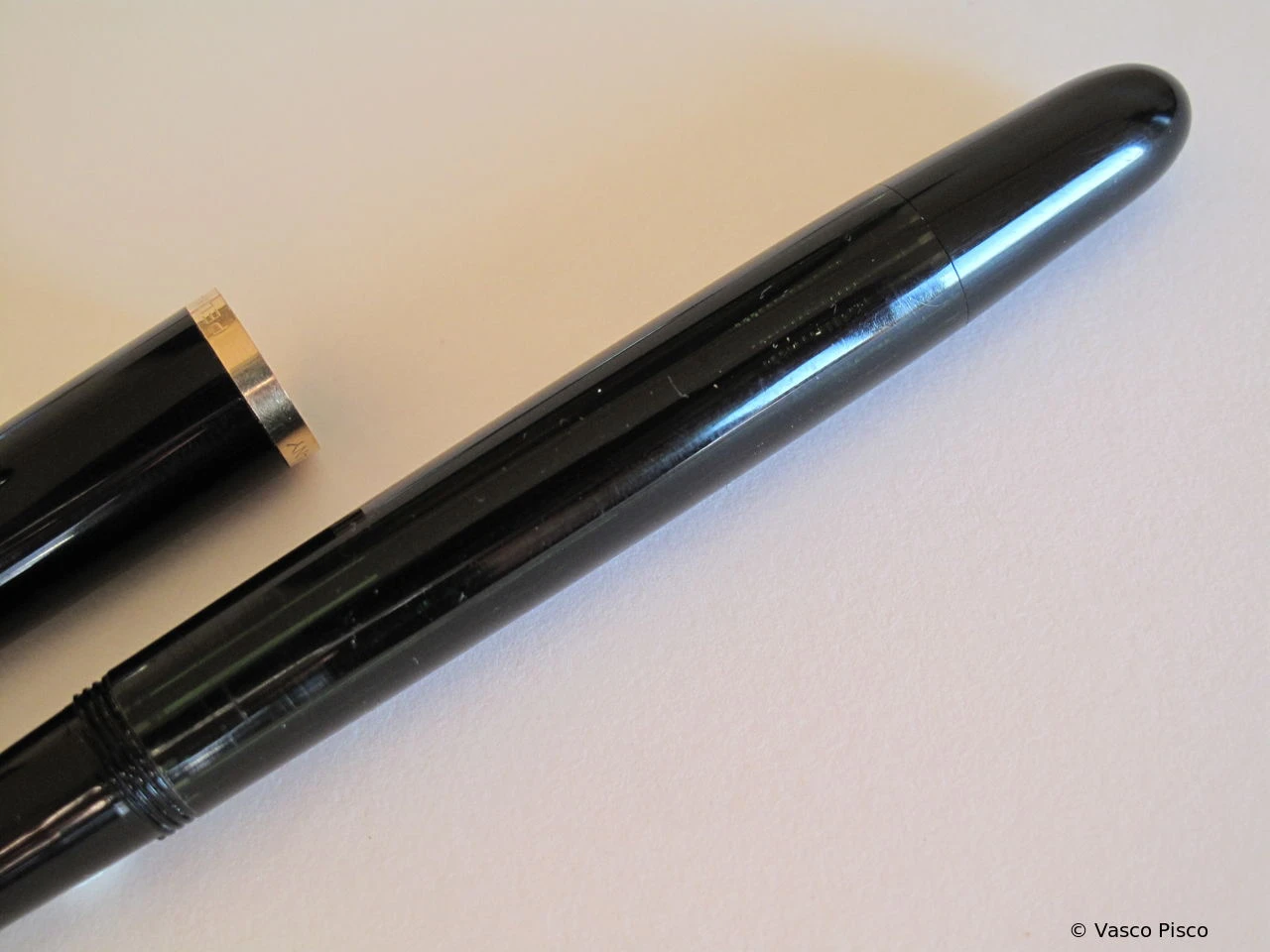

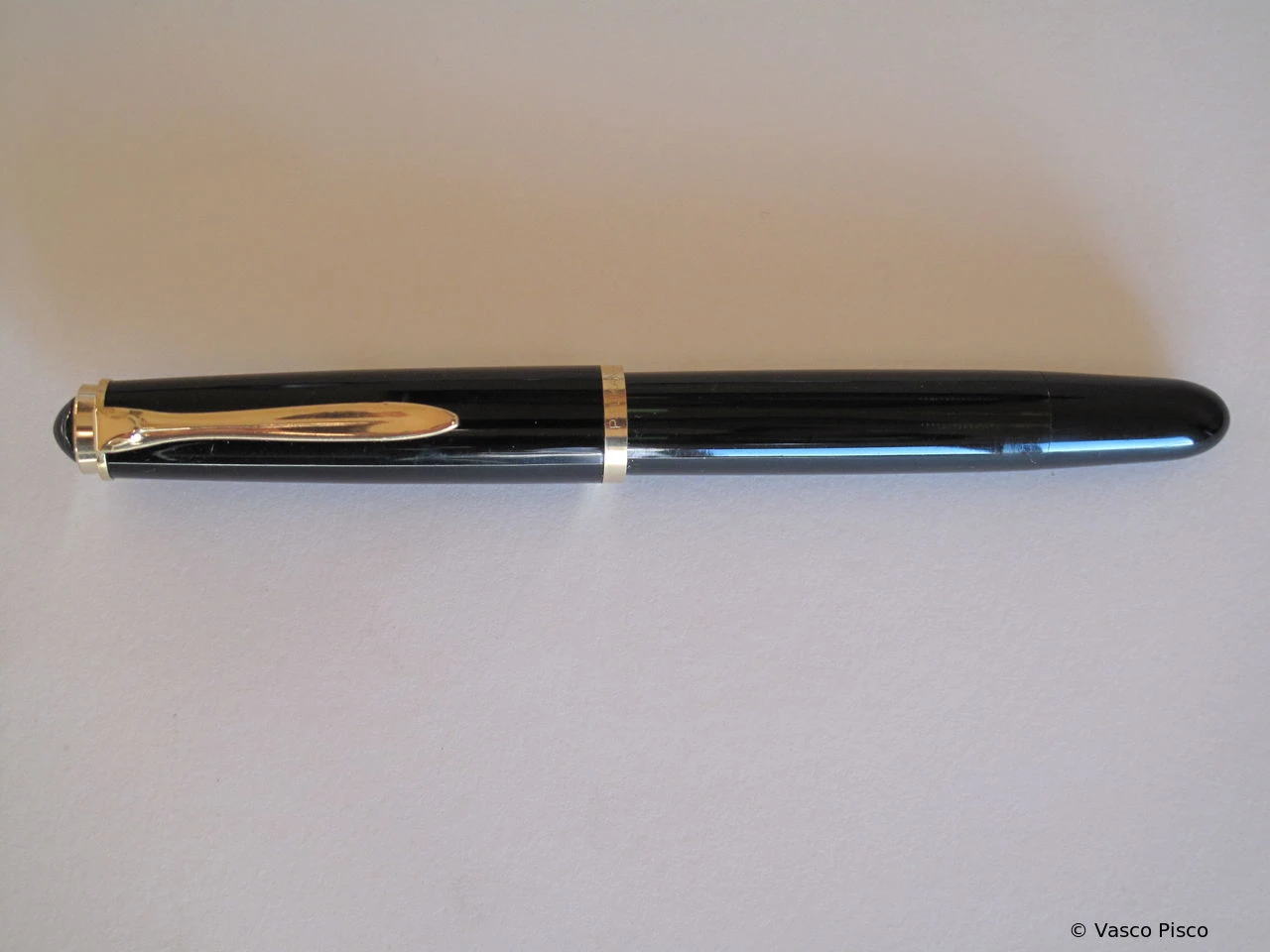

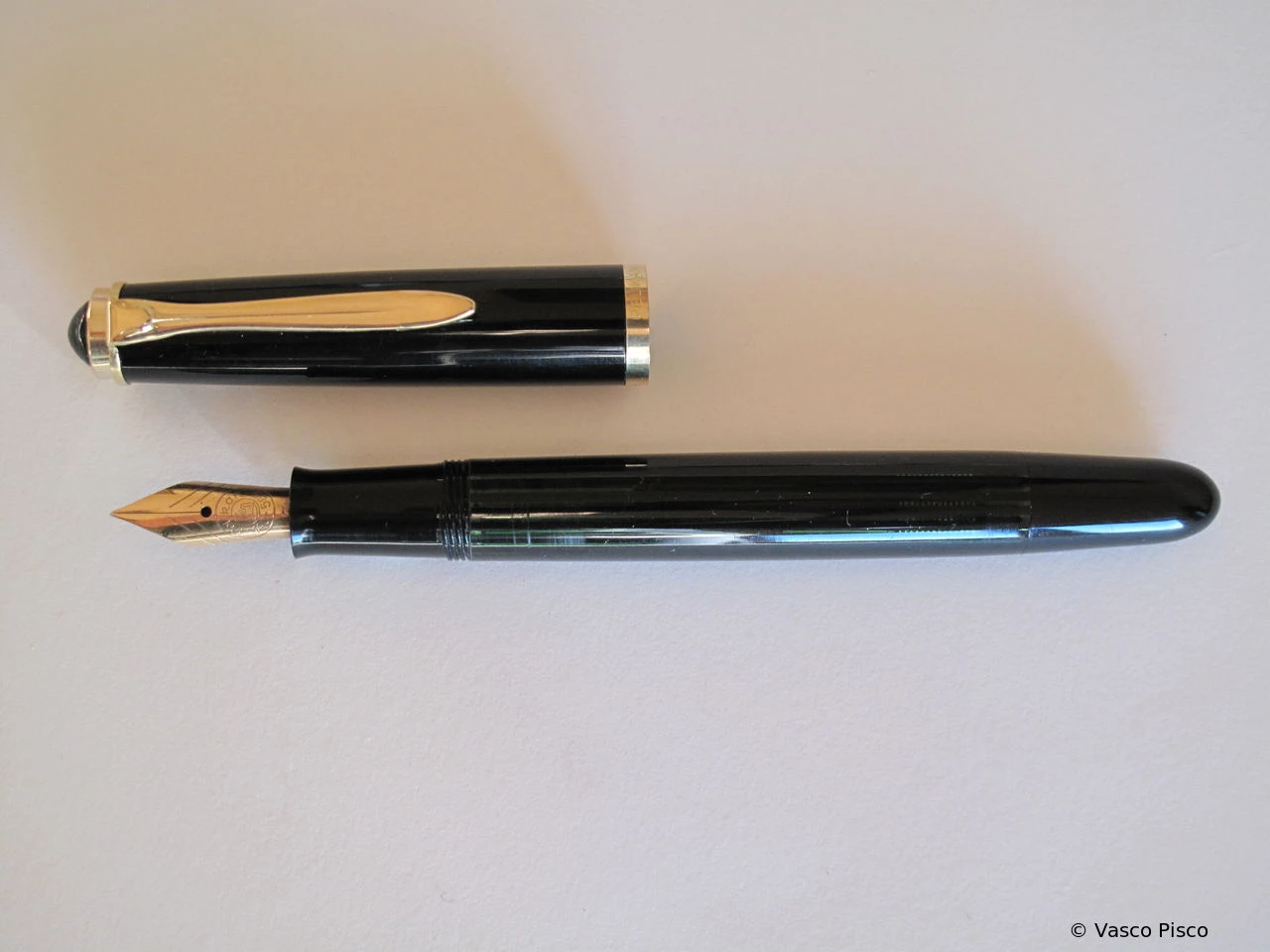

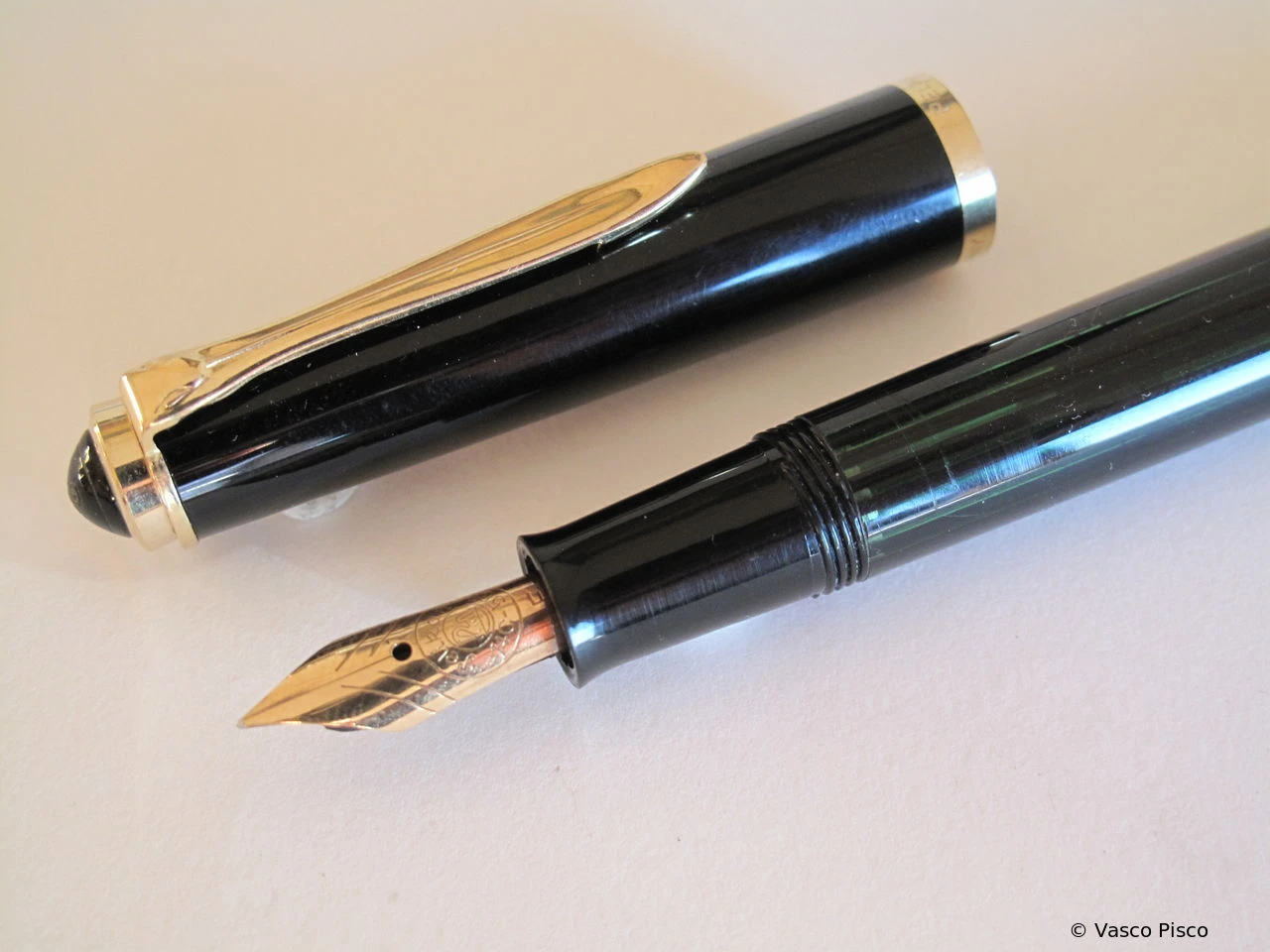

400NN (Merz & Krell) Black-striped Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: black-stripedCap Color: blackTrim: gold plated

400NN produced by Merz & Krell

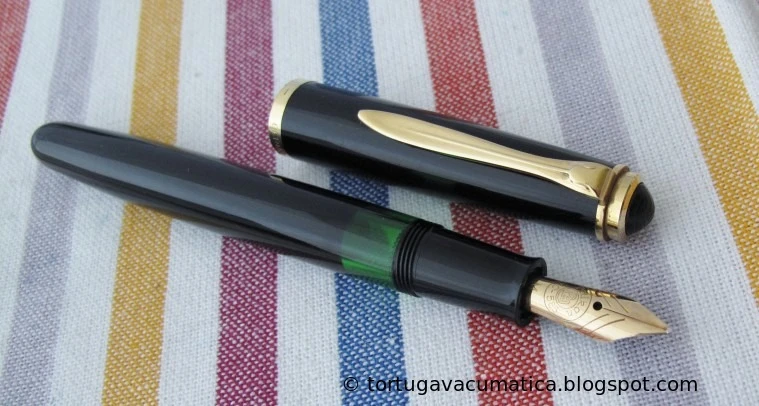

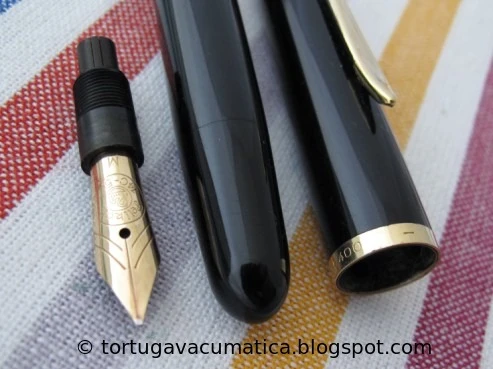

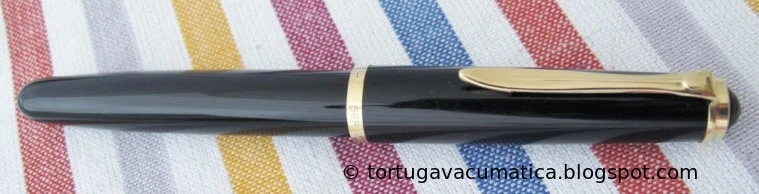

400NN (Merz & Krell) Black Series Production Color Details
Production: 1973-1978Nib: 14 ct gold
Logo: Logo as of 1938 (two chicken) Series Production
Barrel Color: blackCap Color: blackTrim: gold plated

400NN produced by Merz & Krell.
